Jeep Patriot (2017 year). Instruction

cleaning of the condenser fins and a performance test.
Drive belt tension should also be checked at this time.

WARNING!

• Use only refrigerants and compressor lubricants ap-

proved by the manufacturer for your air conditioning
system. Some unapproved refrigerants are flam-
mable and can explode, injuring you. Other unap-
proved refrigerants or lubricants can cause the sys-
tem to fail, requiring costly repairs. Refer to
Warranty Information Book, in the owner’s informa-
tion kit.

• The air conditioning system contains refrigerant un-

der high pressure. To avoid risk of personal injury or
damage to the system, adding refrigerant or any
repair requiring lines to be disconnected should be
done by an experienced technician.

CAUTION!

Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condition-
ing components. Such damage is not covered by the
New Vehicle Limited Warranty.

Refrigerant Recovery And Recycling

R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by authorized dealer or other service
facilities using recovery and recycling equipment.

NOTE:

Use only manufacturer approved A/C system PAG

compressor oil and refrigerants.

A/C Air Filter

Refer to the “Maintenance Plan” for the proper mainte-
nance intervals.

WARNING!

Do not remove the cabin air filter while the vehicle is
running, or while the ignition is in the ACC or ON/
RUN mode. With the cabin air filter removed and the
blower operating, the blower can contact hands and
may propel dirt and debris into your eyes, resulting in
personal injury.

288

SERVICING AND MAINTENANCE

The A/C air filter is located in the fresh air inlet behind the
glove compartment. Perform the following procedure to
replace the filter:

1. Open the glove compartment and remove all contents.

2. Push in on the sides of the glove compartment and

lower the door.

3. Pivot the glove compartment downward.

4. Disengage the two retaining tabs that secure the filter

cover to the HVAC housing, and remove the cover.

5. Remove the A/C air filter by pulling it straight out of

the housing.

6. Install the A/C air filter with the arrow on the filter

pointing toward the floor. When installing the filter
cover, make sure the retaining tabs fully engage the
cover.

CAUTION!

The cabin air filter is identified with an arrow to
indicate airflow direction through the filter. Failure to
properly install the filter will result in the need to
replace it more often.

7. Rotate the glove compartment door back into position.

Engine Air Cleaner Filter

Refer to the “Maintenance Plan” in the “Scheduled Servic-
ing” section for the proper maintenance intervals.

WARNING!

The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine

(Continued)

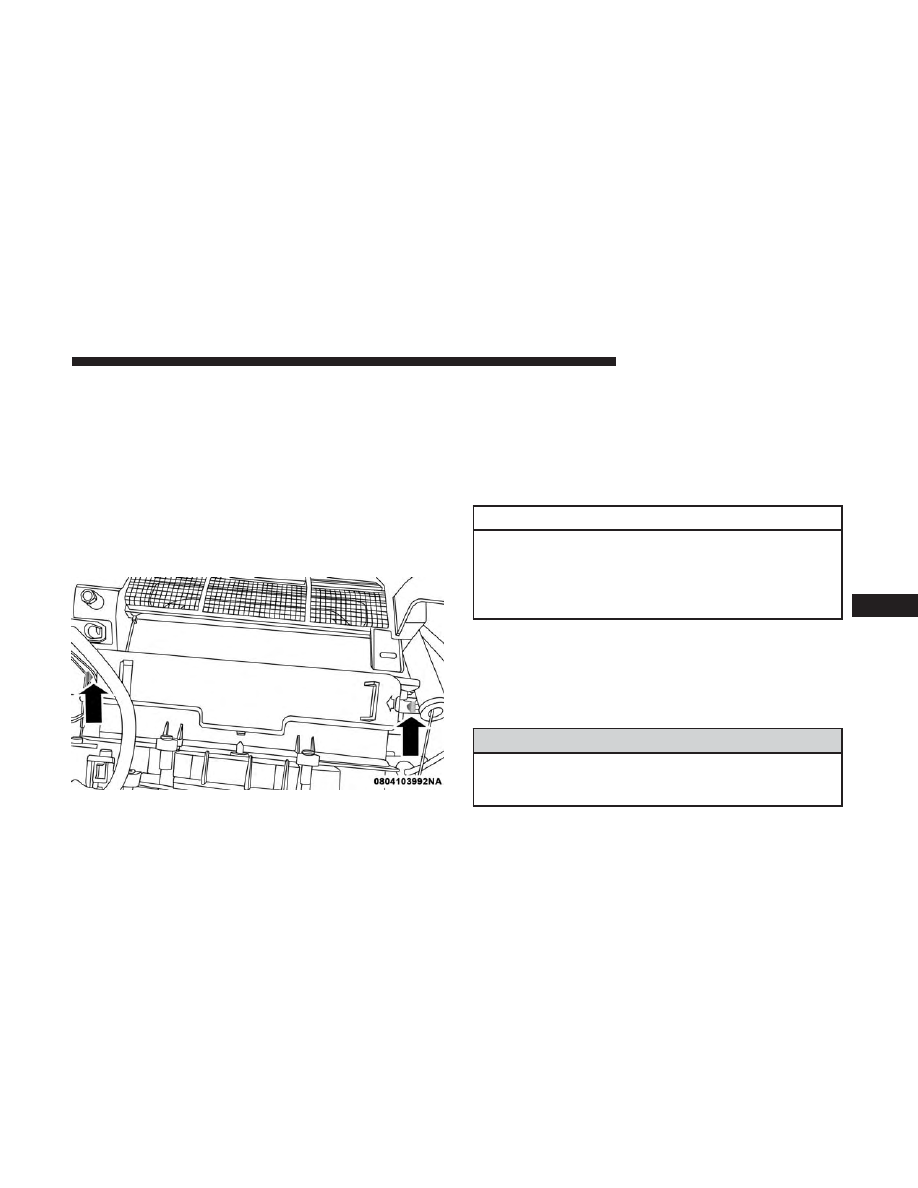

A/C Air Filter Retaining Tabs

SERVICING AND MAINTENANCE

289

WARNING! (Continued)

backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the ve-
hicle with the air induction system (air cleaner, hoses,
etc.) removed. Failure to do so can result in serious
personal injury.

Engine Air Cleaner Filter Selection

The quality of replacement engine air cleaner filters varies
considerably. Only high quality filters should be used to
assure most efficient service. MOPAR engine air cleaner
filters are a high quality filter and are recommended.

Body Lubrication

Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as
MOPAR Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should

also be given to hood latching components to ensure
proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated.

The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR Lock
Cylinder Lubricant directly into the lock cylinder.

Windshield Wiper Blades

Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.

Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.

Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.

290

SERVICING AND MAINTENANCE

NOTE:

Life expectancy of wiper blades varies depending

on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.

Exhaust System

The best protection against carbon monoxide entry into the
vehicle body is a properly maintained engine exhaust
system.

If you notice a change in the sound of the exhaust system;
or if the exhaust fumes can be detected inside the vehicle;
or when the underside or rear of the vehicle is damaged;
have an authorized technician inspect the complete ex-
haust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams or
loose connections could permit exhaust fumes to seep into
the passenger compartment. In addition, have the exhaust
system inspected each time the vehicle is raised for lubri-
cation or oil change. Replace as required.

WARNING!

• Exhaust gases can injure or kill. They contain carbon

monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing CO, refer
to “Safety Tips” in “Safety” for further information.

• A hot exhaust system can start a fire if you park over

materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.

CAUTION!

• The catalytic converter requires the use of unleaded

fuel only. Leaded gasoline will destroy the effective-
ness of the catalyst as an emissions control device
and may seriously reduce engine performance and
cause serious damage to the engine.

(Continued)

SERVICING AND MAINTENANCE

291

CAUTION! (Continued)

• Damage to the catalytic converter can result if your

vehicle is not kept in proper operating condition. In
the event of engine malfunction, particularly involv-
ing engine misfire or other apparent loss of perfor-
mance, have your vehicle serviced promptly. Contin-
ued operation of your vehicle with a severe
malfunction could cause the converter to overheat,
resulting in possible damage to the converter and
vehicle.

Under normal operating conditions, the catalytic converter
will not require maintenance. However, it is important to
keep the engine properly tuned to assure proper catalyst
operation and prevent possible catalyst damage.

NOTE:

Intentional tampering with emissions control sys-

tems can result in civil penalties being assessed against
you.

In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may suggest severe and
abnormal catalyst overheating. If this occurs, stop the
vehicle, turn off the engine and allow it to cool. Service,
including a tune-up to manufacturer’s specifications,
should be obtained immediately.

To minimize the possibility of catalytic converter damage:
• Do not shut off the engine or interrupt the ignition,

when the transmission is in gear and the vehicle is in
motion.

• Do not try to start the engine by pushing or towing the

vehicle.

• Do not idle the engine with any spark plug wires

disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough idle
or malfunctioning operating conditions.

Cooling System

WARNING!

• Turn vehicle off and disconnect the fan motor lead

before working near the radiator cooling fan.

• You or others can be badly burned by hot engine

coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never open a cooling system pressure cap
when the radiator or coolant bottle is hot.

(Continued)

292

SERVICING AND MAINTENANCE

WARNING! (Continued)

• Keep hands, tools, clothing, and jewelry away from

the radiator cooling fan when the hood is raised. The
fan starts automatically and may start at any time,
whether the engine is running or not.

• When working near the radiator cooling fan, discon-

nect the fan motor lead or turn the ignition switch to
the OFF position. The fan is temperature controlled
and can start at any time the ignition switch is in the
ON position.

• You or others can be badly burned by hot engine

coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator is hot.

Coolant Checks

Check engine coolant (antifreeze) protection every 12
months (before the onset of freezing weather, where appli-
cable). If the engine coolant (antifreeze) is dirty or rusty in
appearance, the system should be drained, flushed, and
refilled with fresh engine coolant (antifreeze). Check the
front of the A/C condenser for any accumulation of bugs,

leaves, etc. If dirty, clean by gently spraying water from a
garden hose vertically down the face of the condenser.

Check the coolant recovery bottle tubing for brittle rubber,
cracking, tears, cuts, and tightness of the connection at the
bottle and radiator. Inspect the entire system for leaks.

Cooling System — Drain, Flush And Refill

NOTE:

Some vehicles require special tools to add coolant

properly. Failure to fill these systems properly could lead to
severe internal engine damage. If any coolant is needed to
be added to the system please contact your local autho-
rized dealer.

If the engine coolant (antifreeze) is dirty or contains visible
sediment, have an authorized dealer clean and flush with
OAT coolant (antifreeze) (conforming to MS.90032).

Refer to the “Maintenance Plan” in this section for the
proper maintenance intervals.

Selection Of Coolant

Refer to “Fluids And Lubricants” in “Technical Specifica-
tions” for further information.

SERVICING AND MAINTENANCE

293

CAUTION!

• Mixing of engine coolant (antifreeze) other than

specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,
and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.

• Do not use water alone or alcohol-based engine

coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.

• This vehicle has not been designed for use with

propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.

Adding Coolant

Your vehicle has been built with an improved engine
coolant (OAT coolant conforming to MS.90032) that allows
extended maintenance intervals. This engine coolant (anti-
freeze) can be used up to ten years or 150,000 miles
(240,000 km) before replacement. To prevent reducing this
extended maintenance period, it is important that you use
the same engine coolant (OAT coolant conforming to
MS.90032) throughout the life of your vehicle.

Please review these recommendations for using Organic
Additive Technology (OAT) engine coolant (antifreeze)
that meets the requirements of FCA Material Standard
MS.90032. When adding engine coolant (antifreeze):

• We recommend using MOPAR Antifreeze/Coolant 10

Year/150,000 Mile Formula OAT (Organic Additive
Technology) that meets the requirements of FCA Mate-
rial Standard MS.90032.

• Mix a minimum solution of 50% OAT engine coolant

that meets the requirements of FCA Material Standard
MS.90032 and distilled water. Use higher concentrations
(not to exceed 70%) if temperatures below −34°F (−37°C)
are anticipated. Please contact your authorized dealer
for assistance.

294

SERVICING AND MAINTENANCE

• Use only high purity water such as distilled or deionized

water when mixing the water/engine coolant (anti-
freeze) solution. The use of lower quality water will
reduce the amount of corrosion protection in the engine
cooling system.

NOTE:

• It is the owner’s responsibility to maintain the proper

level of protection against freezing according to the
temperatures occurring in the area where the vehicle is
operated.

• Some vehicles require special tools to add coolant prop-

erly. Failure to fill these systems properly could lead to
severe internal engine damage. If any coolant is needed
to be added to the system, please contact your local
authorized dealer.

• Mixing engine coolant (antifreeze) types is not recom-

mended and can result in cooling system damage. If
HOAT and OAT coolant are mixed in an emergency,
have a authorized dealer drain, flush, and refill with
OAT coolant (conforming to MS.90032) as soon as pos-
sible.

Cooling System Pressure Cap

The cap must be fully tightened to prevent loss of engine
coolant (antifreeze), and to ensure that engine coolant
(antifreeze) will return to the radiator from the coolant
recovery tank.

The cap should be inspected and cleaned if there is any
accumulation of foreign material on the sealing surfaces.

WARNING!

• Do not open hot engine cooling system. Never add

engine coolant (antifreeze) when the engine is over-
heated. Do not loosen or remove the cap to cool an
overheated engine. Heat causes pressure to build up
in the cooling system. To prevent scalding or injury,
do not remove the pressure cap while the system is
hot or under pressure.

• Do not use a pressure cap other than the one speci-

fied for your vehicle. Personal injury or engine
damage may result.

SERVICING AND MAINTENANCE

295

Disposal Of Used Engine Coolant

Used ethylene glycol-based engine coolant (antifreeze) is a
regulated substance requiring proper disposal. Check with
your local authorities to determine the disposal rules for
your community. To prevent ingestion by animals or
children, do not store ethylene glycol-based engine coolant
in open containers or allow it to remain in puddles on the
ground. If ingested by a child or pet, seek emergency
assistance immediately. Clean up any ground spills imme-
diately.

Coolant Level

The coolant expansion bottle provides a quick visual
method for determining that the coolant level is adequate.
With the engine off and cold, the level of the engine coolant
(antifreeze) in the bottle should be between the “MAX” and
“MIN” lines marked on the bottle.

As long as the engine operating temperature is satisfactory,
the coolant bottle need only be checked once a month.

When additional engine coolant (antifreeze) is needed to
maintain the proper level, it should be added to the coolant
bottle. Do not overfill.

Points To Remember

NOTE:

When the vehicle is stopped after a few miles/

kilometers of operation, you may observe vapor coming
from the front of the engine compartment. This is normally
a result of moisture from rain, snow, or high humidity
accumulating on the radiator and being vaporized when
the thermostat opens, allowing hot engine coolant (anti-
freeze) to enter the radiator.

If an examination of your engine compartment shows no
evidence of radiator or hose leaks, the vehicle may be
safely driven. The vapor will soon dissipate.
• Do not overfill the coolant expansion bottle.
• Check the coolant freeze point in the radiator and in the

coolant expansion bottle. If engine coolant (antifreeze)
needs to be added, the contents of the coolant expansion
bottle must also be protected against freezing.

• If frequent engine coolant (antifreeze) additions are

required, the cooling system should be pressure tested
for leaks.

• Maintain engine coolant (antifreeze) concentration at a

minimum of 50% OAT coolant (conforming to MS.90032)
and distilled water for proper corrosion protection of your
engine which contains aluminum components.

296

SERVICING AND MAINTENANCE

• Keep the front of the radiator clean. If your vehicle is

equipped with air conditioning, keep the front of the
condenser clean.

• Do not change the thermostat for Summer or Winter

operation. If replacement is ever necessary, install ONLY
the correct type thermostat. Other designs may result in
unsatisfactory engine coolant (antifreeze) performance,
poor gas mileage, and increased emissions.

Brake System

In order to assure brake system performance, all brake
system components should be inspected periodically. Refer
to the “Maintenance Plan” for the proper maintenance
intervals.

WARNING!

Riding the brakes can lead to brake failure and possi-
bly a collision. Driving with your foot resting or riding
on the brake pedal can result in abnormally high brake
temperatures, excessive lining wear, and possible
brake damage. You would not have your full braking
capacity in an emergency.

Brake Master Cylinder

The fluid level in the master cylinder should be checked
when performing under hood services, or immediately if
the brake system warning light is on.

Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the fluid
level up to the requirements described on the brake fluid
reservoir. Fluid level can be expected to fall as the brake
pads wear. The brake fluid level should be checked when
the pads are replaced. However, low fluid level may be
caused by a leak and a checkup may be needed.

NOTE:

If your vehicle is equipped with a manual trans-

mission

, the brake fluid reservoir supplies fluid to both the

brake system and the clutch release system. The two
systems are separated in the reservoir, and a leak in one
system will not affect the other system. The manual
transmission

clutch release system should not require fluid

replacement during the life of the vehicle. If the brake fluid
reservoir is low and the brake system does not indicate any
leaks or other problems, it may be a result of a leak in the
hydraulic clutch release system. See your local authorized
dealer for service.

SERVICING AND MAINTENANCE

297

Use only manufacturer’s recommended brake fluid. Refer
to “Fluids And Lubricants” in “Technical Specifications”
for further information.

WARNING!

• Use only manufacturer’s recommended brake fluid.

Refer to “Fluids And Lubricants” in “Technical
Specifications” for further information. Using the
wrong type of brake fluid can severely damage your
brake system and/or impair its performance. The
proper type of brake fluid for your vehicle is also
identified on the original factory installed hydraulic
master cylinder reservoir.

• To avoid contamination from foreign matter or mois-

ture, use only new brake fluid or fluid that has been
in a tightly closed container. Keep the master cylin-
der reservoir cap secured at all times. Brake fluid in
a open container absorbs moisture from the air
resulting in a lower boiling point. This may cause it
to boil unexpectedly during hard or prolonged brak-
ing, resulting in sudden brake failure. This could
result in a collision.

(Continued)

WARNING! (Continued)

• Overfilling the brake fluid reservoir can result in

spilling brake fluid on hot engine parts, causing the
brake fluid to catch fire. Brake fluid can also damage
painted and vinyl surfaces, care should be taken to
avoid its contact with these surfaces.

• Do not allow petroleum based fluid to contaminate

the brake fluid. Brake seal components could be
damaged, causing partial or complete brake failure.
This could result in a collision.

CAUTION!

Use of improper brake fluids will affect overall clutch
system performance. Improper brake fluids may dam-
age the clutch system resulting in loss of clutch func-
tion and the ability to shift the transmission.

Manual Transmission — If Equipped

Lubricant Selection

Use only the manufacturers recommended transmission
fluid. Refer to “Fluids And Lubricants” in “Technical
Specifications” for further information.

Please see your authorized dealer for service.

298

SERVICING AND MAINTENANCE

Fluid Level Check

Check the fluid level by removing the fill plug. The fluid
level should be between the bottom of the fill hole and a
point not more than 3/16 inch (4.7 mm) below the bottom
of the hole.

Add fluid, if necessary, to maintain the proper level.

Please see your authorized dealer for service.

Frequency Of Fluid Change

Under normal operating conditions, the fluid installed at
the factory will give satisfactory lubrication for the life of
the vehicle. Fluid changes are not necessary unless lubri-
cant has become contaminated with water.

NOTE:

If contaminated with water, the fluid should be

changed immediately.

Automatic Transmission (Six-Speed) — If Equipped

Selection Of Lubricant (Six-Speed Transmission)

It is important to use the proper transmission fluid to
ensure optimum transmission performance and life. Use
only the manufacturer’s specified transmission fluid. Refer
to “Fluids And Lubricants” in “Technical Specifications”

for fluid specifications. It is important to maintain the
transmission fluid at the correct level using the recom-
mended fluid.

No chemical flushes should be used in any transmission;
only the approved lubricant should be used.

CAUTION!

Using a transmission fluid other than the manufactur-
er’s recommended fluid may cause deterioration in
transmission shift quality and/or torque converter
shudder. Refer to “Fluids And Lubricants” in “Techni-
cal Specifications” for fluid specifications.

Special Additives

The manufacturer strongly recommends against using any
special additives in the transmission.

Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid additives
to the transmission. The only exception to this policy is the
use of special dyes for diagnosing fluid leaks. Avoid using
transmission sealers as they may adversely affect seals.

SERVICING AND MAINTENANCE

299

CAUTION!

Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New Vehicle
Limited Warranty.

Fluid Level Check

The fluid level is preset at the factory and does not require
adjustment under normal operating conditions. Routine
fluid level checks are not required, therefore the transmis-
sion filler tube is capped and no dipstick is provided. Your
authorized dealer can check your transmission fluid level
using special service tools. If you notice fluid leakage or
transmission malfunction, visit you authorized dealer im-
mediately to have the fluid level checked. Operating the
vehicle with an improper fluid level can cause severe
transmission damage.

CAUTION!

If a transmission fluid leak occurs, visit your autho-
rized dealer immediately. Severe transmission damage
may occur. Your authorized dealer has the proper tools
to adjust the fluid level accurately.

Automatic Transmission (CVT) — If Equipped

Selection Of Lubricant (CVT)

It is important to use the proper transmission fluid to
ensure optimum transmission performance and life. Use
only the manufacturer’s specified transmission fluid which
has the special friction coefficient additives necessary for
proper steel belt traction on the drive and driven pulleys.
Refer to “Fluids And Lubricants” in “Technical Specifica-
tions” for fluid specifications. It is important to maintain
the transmission fluid at the correct level using the recom-
mended fluid.

No chemical flushes should be used in any transmission;
only the approved lubricant should be used.

CAUTION!

Using a transmission fluid other than the manufactur-
er’s recommended fluid may cause belt slip and result
in a complete transmission failure! Refer to “Fluids
And Lubricants” in “Technical Specifications” for
fluid specifications.

300

SERVICING AND MAINTENANCE

Special Additives

The manufacturer strongly recommends against using any
special additives in the transmission.

CAUTION!

Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New Vehicle
Limited Warranty.

Fluid Level Check

The fluid level is preset at the factory and does not require
adjustment under normal operating conditions.

Routine fluid level checks are not required, therefore the
transmission filler tube is capped and no dipstick is
provided. Your authorized dealer can check your transmis-
sion fluid level using special service tools. If you notice

fluid leakage or transmission malfunction, visit your au-
thorized dealer immediately to have the transmission fluid
level checked. Operating the vehicle with an improper
fluid level can cause severe transmission damage.

CAUTION!

Fluid And Filter Changes

Refer to the

⬙Maintenance Plan⬙ for the proper maintenance

intervals. In addition, change the fluid and filter if the fluid
becomes contaminated (with water, etc.), or if the transmis-
sion is disassembled for any reason.

Rear Drive Assembly (RDA) — AWD/4WD Models
Only

Lubricant Selection

Use only the manufacturer’s recommended transmission
fluid. Refer to “Fluids And Lubricants” in “Technical
Specifications” for further information.

SERVICING AND MAINTENANCE

301

Fluid Level Check

Visually inspect the unit at each oil change for leakage. If
leakage is detected, check the fluid level by removing the
fill plug. The fluid level should be maintained between the
bottom of the fill hole to 1/8 inch (4 mm) below the fill
hole.

Add fluid, if necessary, to maintain the proper level.

Frequency Of Fluid Change

Refer to the “Maintenance Plan” for the proper mainte-
nance intervals.

Power Transfer Unit (PTU) — AWD/4WD Models
Only

Lubricant Selection

Use only the manufacturer’s recommended fluid. Refer to
“Fluids And Lubricants” in “Technical Specifications” for
further information.

Fluid Level Check

Visually inspect the unit at each oil change for leakage. If
leakage is detected, Check the fluid level by removing the

fill plug. The fluid level should be maintained between the
bottom of the fill hole to 1/8 inch (4 mm) below the fill
hole.

Add fluid, if necessary, to maintain the proper level.

Frequency Of Fluid Change

Refer to the “Maintenance Plan” for the proper mainte-
nance intervals.

RAISING THE VEHICLE

In the case where it is necessary to raise the vehicle, go to
an authorized dealer or service station.

TIRES

Tire Safety Information

Tire safety information will cover aspects of the following
information: Tire Markings, Tire Identification Numbers,
Tire Terminology and Definitions, Tire Pressures and Tire
Loading.

302

SERVICING AND MAINTENANCE

Tire Markings

NOTE:

• P (Passenger) — Metric tire sizing is based on U.S.

design standards. P-Metric tires have the letter “P”
molded into the sidewall preceding the size designation.
Example: P215/65R15 95H.

• European — Metric tire sizing is based on European

design standards. Tires designed to this standard have
the tire size molded into the sidewall beginning with the
section width. The letter

⬙P⬙ is absent from this tire size

designation. Example: 215/65R15 96H.

• LT (Light Truck) — Metric tire sizing is based on U.S.

design standards. The size designation for LT-Metric
tires is the same as for P-Metric tires except for the letters
“LT” that are molded into the sidewall preceding the
size designation. Example: LT235/85R16.

• Temporary spare tires are designed for temporary emer-

gency use only. Temporary high pressure compact spare
tires have the letter “T” or “S” molded into the sidewall
preceding the size designation. Example: T145/80D18
103M.

• High flotation tire sizing is based on U.S. design stan-

dards and it begins with the tire diameter molded into
the sidewall. Example: 31x10.5 R15 LT.

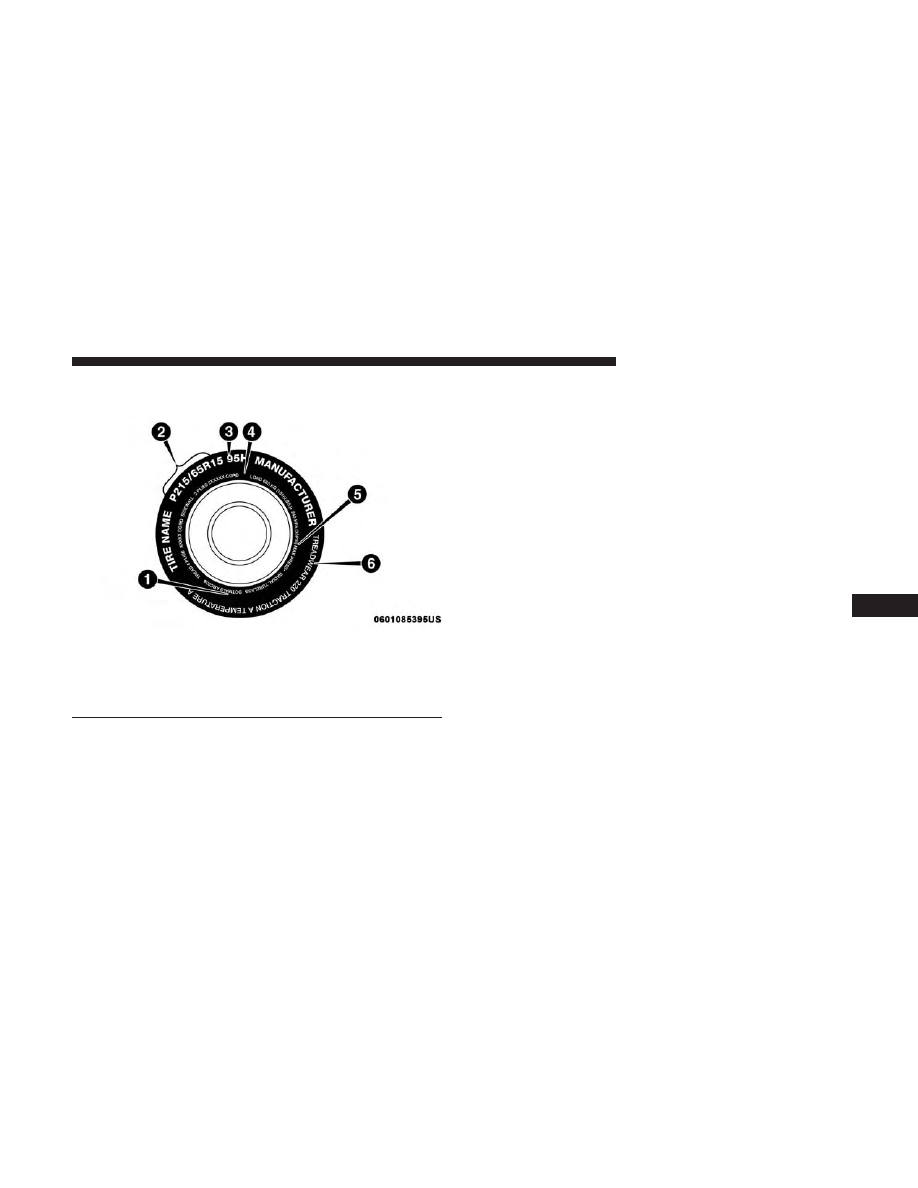

1 — U.S. DOT Safety Standards
Code (TIN)

4 — Maximum Load

2 — Size Designation

5 — Maximum Pressure

3 — Service Description

6 — Treadwear, Traction and
Temperature Grades

SERVICING AND MAINTENANCE

303

Jeep Patriot (2017 year). Instruction - part 19
