Jeep Grand Cherokee (2019 year). Instruction

2. Use a suitable tool to pry the lower trim from the

liftgate.

3. Continue removing the trim.

4. Disconnect the two trim panel lights.

5. Tail lamps are now visible. Rotate socket(s) counter

clockwise.

6. Remove/replace bulb(s).

7. Reinstall the socket(s).

8. Reverse process to reinstall the liftgate trim.

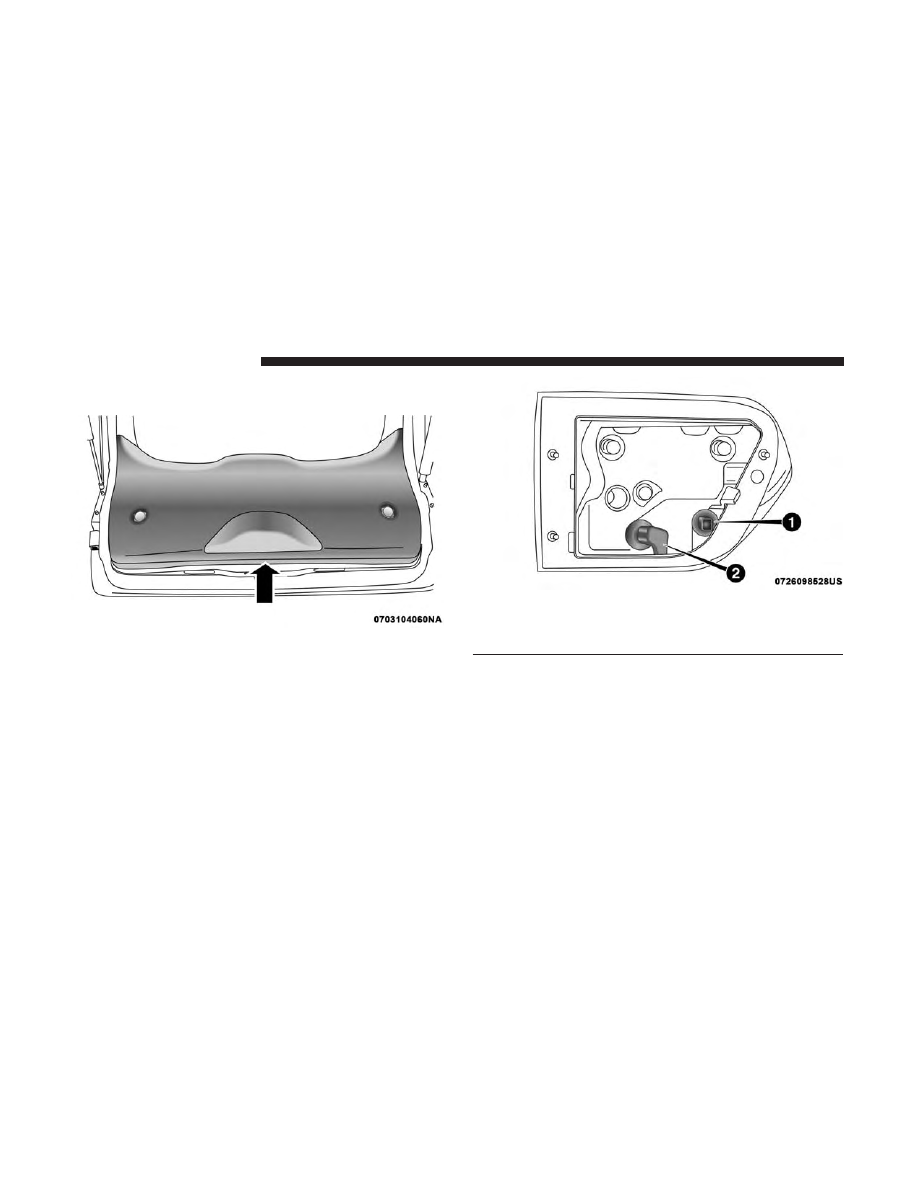

Liftgate Lower Trim

Rear Of Liftgate Tail Lamp

1 — Auxiliary LED Tail Connector – Do Not Remove
2 — Backup Bulb Socket

404

IN CASE OF EMERGENCY

Center High-Mounted Stop Lamp (CHMSL)

The center high mounted stop lamp is an LED. Service at
an authorized dealer.

Rear License Lamp

The rear license lamps are LEDs. See your authorized
dealer for service.

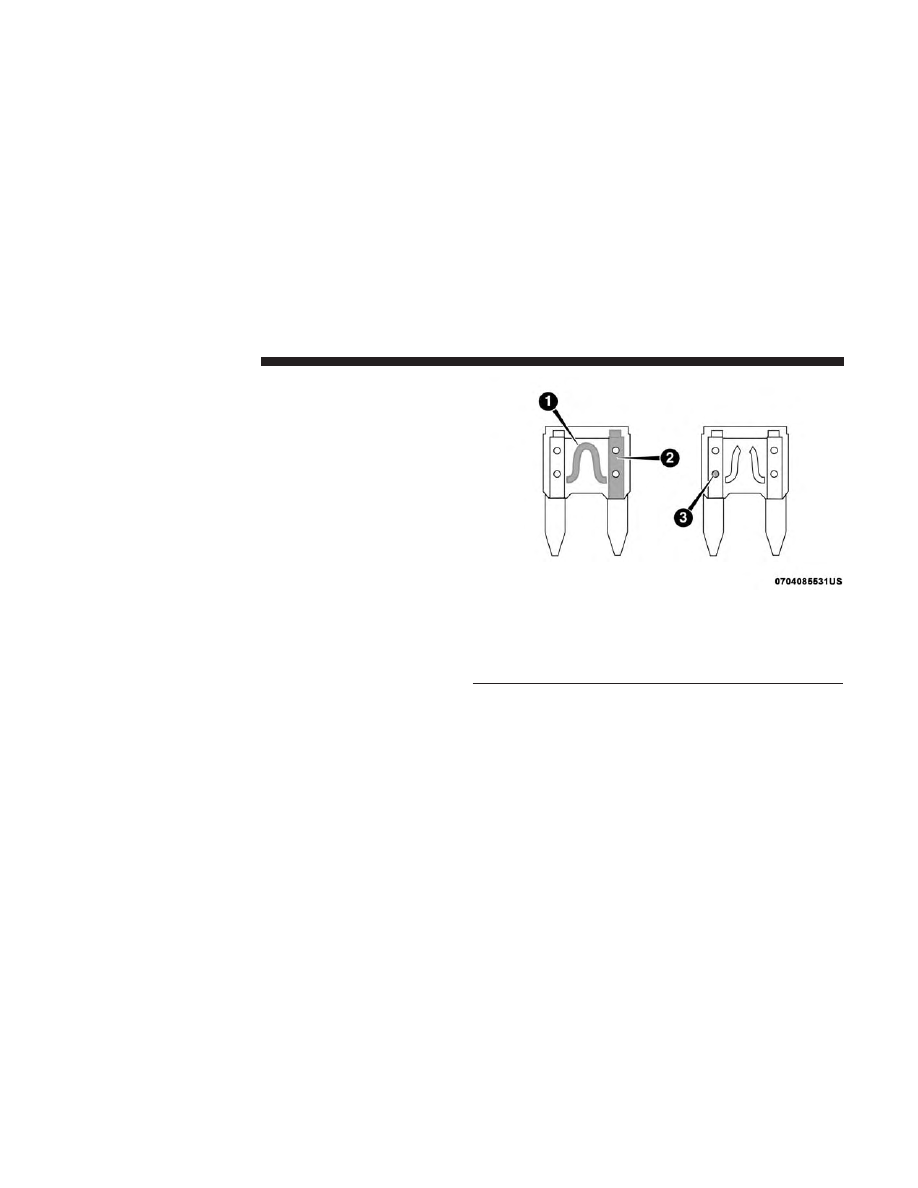

FUSES

WARNING!

• When replacing a blown fuse, always use an appro-

priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Do not
place a fuse inside a circuit breaker cavity or vice
versa. Failure to use proper fuses may result in
serious personal injury, fire and/or property damage.

• Before replacing a fuse, make sure that the ignition is

off and that all the other services are switched off
and/or disengaged.

• If the replaced fuse blows again, contact an autho-

rized dealer.

• If a general protection fuse for safety systems (air

bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.

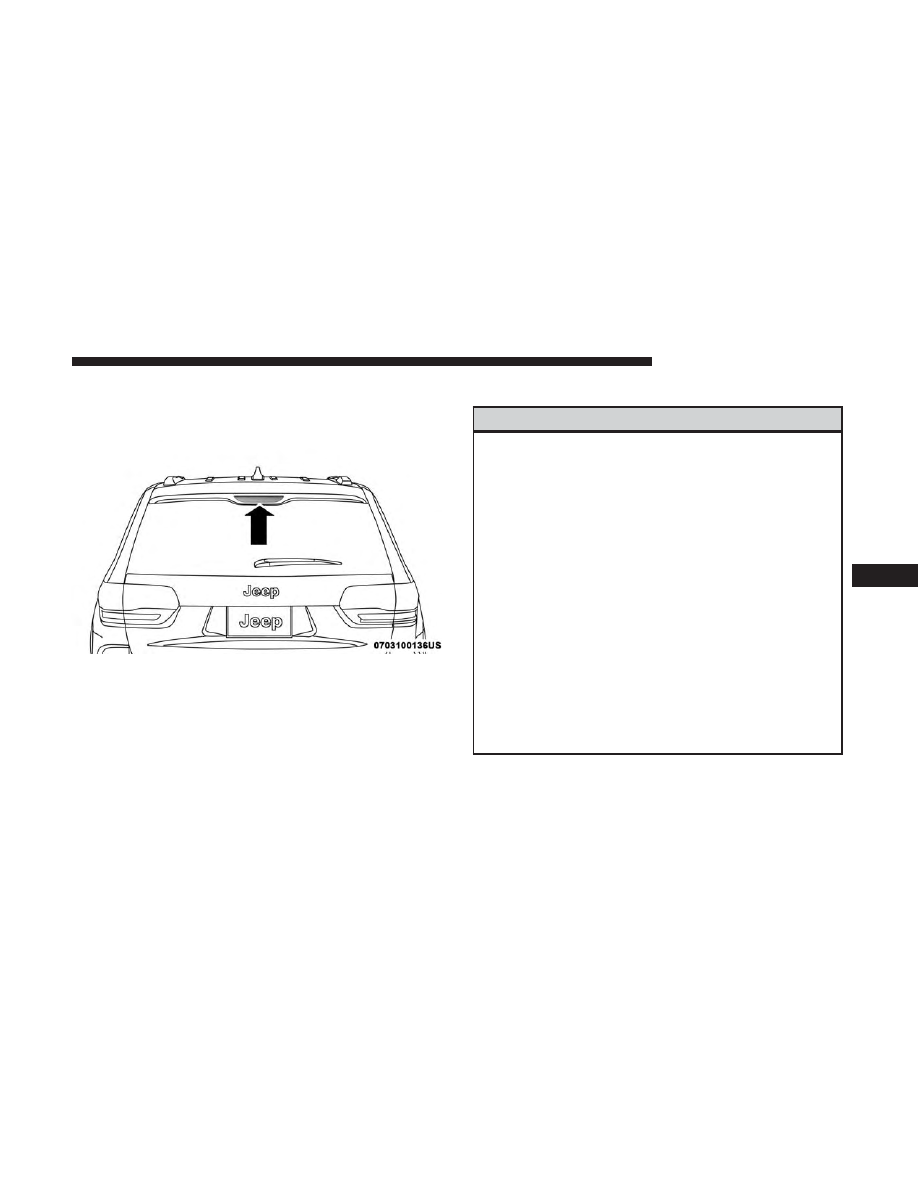

Center High-Mounted Stop Lamp

IN CASE OF EMERGENCY

405

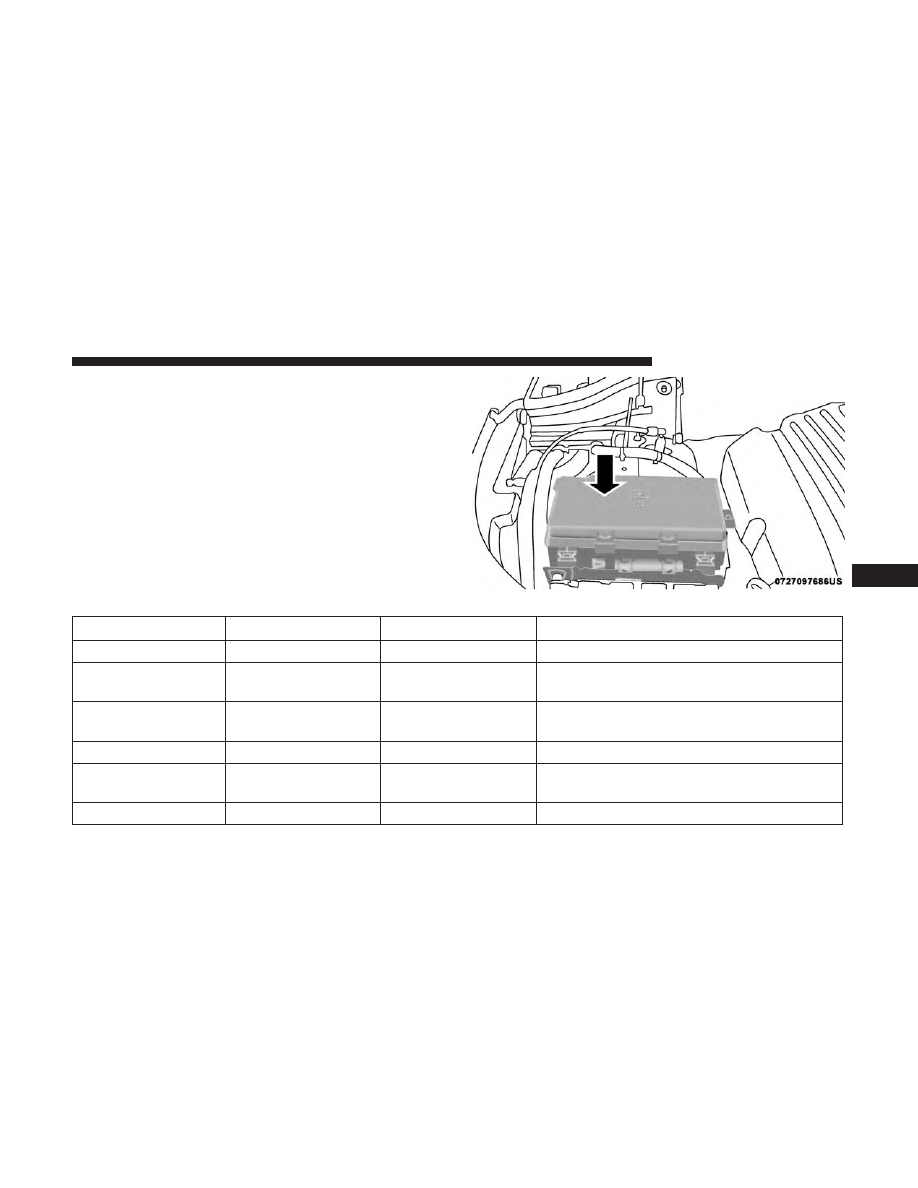

Underhood Fuses

The Power Distribution Center is located in the engine
compartment near the battery. This center contains car-
tridge fuses, micro fuses, relays, and circuit breakers. A
description of each fuse and component may be stamped
on the inside cover, otherwise the cavity number of each
fuse is stamped on the inside cover that corresponds to the
following chart.

Cavity

Cartridge Fuse

Micro Fuse

Description

F03

60 Amp Yellow

–

Radiator Fan — If Equipped

F05

40 Amp Green

–

Compressor for Air Suspension — If

Equipped

F06

40 Amp Green

–

Anti-lock Brakes/Electronic Stability Control

Pump

F07

30 Amp Pink

–

Starter Solenoid

F09

30 Amp Pink

–

Diesel Fuel Heater (Diesel Engine Only)/

Brake Vacuum Pump

F10

40 Amp Green

–

Body Controller/Exterior Lighting #2

Power Distribution Center

IN CASE OF EMERGENCY

407

Cavity

Cartridge Fuse

Micro Fuse

Description

F11

30 Amp Pink

–

Trailer Tow Electric Brake — If Equipped

F12

40 Amp Green

–

Body Controller #3/Power Locks

F13

40 Amp Green

–

Blower Motor Front

F14

40 Amp Green

–

Body Controller #4/Exterior Lighting #1

F15

40 Amp Green

–

LTR (Low Temperature Radiator) Engine

Cooling Pump — If Equipped

F17

30 Amp Pink

–

Headlamp Washer — If Equipped

F19

20 Amp Blue

–

Headrest Solenoid — If Equipped

F20

30 Amp Pink

–

Passenger Door Module

F22

20 Amp Blue

–

Engine Control Module

F23

30 Amp Pink

–

Interior Lights #1

F24

30 Amp Pink

–

Driver Door Module

F25

30 Amp Pink

–

Front Wipers

F26

30 Amp Pink

–

Anti-lock Brakes/Stability Control Module,

ECU and Valves

F28

20 Amp Blue

–

Trailer Tow Backup Lights — If Equipped

F29

20 Amp Blue

–

Trailer Tow Parking Lights — If Equipped

F30

30 Amp Pink

–

Trailer Tow (Receptacle) / Trailer Tow (Sepa-

rate E-Brake) / Trailer Tow (BUX) — If

Equipped

408

IN CASE OF EMERGENCY

Cavity

Cartridge Fuse

Micro Fuse

Description

F32

30 Amp Pink

–

Drive Train Control Module

F34

30 Amp Pink

–

Slip Differential Control — If Equipped

F35

30 Amp Pink

–

Sunroof - If Equipped

F36

30 Amp Pink

–

Rear Defroster

F37

25 Amp Clear

–

Rear Blower Motor — If Equipped

F38

30 Amp Pink

–

Power Inverter 115V AC — If Equipped

F39

30 Amp Pink

–

Power Liftgate — If Equipped

F40

–

10 Amp Red

Daytime Running Lights/Headlamp Level-

ing

F42

–

20 Amp Yellow

Horn

F44

–

10 Amp Red

Diagnostic Port

F45

–

5 Amp Tan

Cyber Security Gateway

F49

–

10 Amp Red

Integrated Central Stack/Climate Control

F50

–

20 Amp Yellow

Air Suspension Control Module/Slip Differ-

ential - If Equipped

F51

–

15 Amp Blue

KIN/RF HUB/Steering Column Lock — If

Equipped

F53

–

20 Amp Yellow

Trailer Tow – Left Turn/Stop Lights — If

Equipped

F56

–

15 Amp Blue

Additional Content (Diesel Engine Only)

IN CASE OF EMERGENCY

409

Cavity

Cartridge Fuse

Micro Fuse

Description

F57

–

20 Amp Yellow

NOX Sensor — If Equipped

F58

–

15 Amp Blue

HID Headlamps LH — If Equipped

F59

–

10 Amp Red

Purging Pump (Diesel Engine Only)

F60

–

15 Amp Blue

Transmission Control Module

F61

–

10 Amp Red

Transmission Control Module/PM Sensor

(Diesel Engine Only)

F62

–

10 Amp Red

Air Conditioning Clutch

F63

–

20 Amp Yellow

Ignition Coils / Ignition Coil Capacitors /

Short Runner Valve Actuator — If Equipped

(Gas) Urea Heater (Diesel)

F64

–

25 Amp Clear

Fuel Injectors/Powertrain

F66

–

10 Amp Red

Sunroof/Rain Sensor/Inside Rear View Mir-

ror / USB Port / DSCR / DTV — If

Equipped

F67

–

15 Amp Blue

CD/DVD/UCI Port/USB Charging Port

F68

–

20 Amp Yellow

Rear Wiper Motor

F69

–

15 Amp Blue

Spotlight Feed — If Equipped

F70

–

20 Amp Yellow

Fuel Pump Motor

F71

–

30 Amp Green

Amplifier/ANCM — If Equipped

F72

–

10 Amp Red

ECM

410

IN CASE OF EMERGENCY

Cavity

Cartridge Fuse

Micro Fuse

Description

F73

–

15 Amp Blue

HID Headlamp RH — If Equipped

F75

–

10 Amp Red

Dual Batt Control — If Equipped

F76

–

10 Amp Red

Anti-lock Brakes/Electronic Stability Control

F77

–

10 Amp Red

Drivetrain Control Module/Front Axle Dis-

connect Module — If Equipped

F78

–

10 Amp Red

Engine Control Module/Electric Power

Steering

F80

–

10 Amp Red

Universal Garage Door Opener/Anti-

Intrusion Module — If Equipped/Siren — If

Equipped

F81

–

20 Amp Yellow

Trailer Tow Right Turn/Stop Lights — If

Equipped

F82

–

10 Amp Red

Steering Column Control Module/Cruise

Control/DTV — If Equipped

F83

–

10 Amp Red

Fuel Door

F84

–

15 Amp Blue

Instrument Cluster

F85

–

10 Amp Red

Airbag Module

F86

–

10 Amp Red

Airbag Module

F87

–

10 Amp Red

Air Suspension — If Equipped

F88

–

15 Amp Blue

Instrument Panel Cluster/SGW/ITBM — If

Equipped

IN CASE OF EMERGENCY

411

Cavity

Cartridge Fuse

Micro Fuse

Description

F90/F91

–

20 Amp Yellow

Power Outlet (Rear Seats) Selectable

F92

–

10 Amp Red

Rear Console Lamp — If Equipped

F93

–

20 Amp Yellow

Cigar Lighter

F94

–

10 Amp Red

Shifter/Transfer Case Module

F95

–

10 Amp Red

Rear Camera / Blind Spot Sensor — If

Equipped

F96

–

10 Amp Red

Rear Seat Heater Switch/Flashlamp Charger

— If Equipped

F97

–

20 Amp Yellow

Rear Heated Seats & Heated Steering Wheel

— If Equipped

F98

–

20 Amp Yellow

Ventilated Seats/Front Heated Seats — If

Equipped

F99

–

10 Amp Red

Climate Control/Driver Assistance Systems

Module/HALF/Park Assist

F100

–

10 Amp Red

Active Damping — If Equipped

F101

–

15 Amp Blue

In Car Temperature Sensor/Humidity Sensor

F102

–

15 Amp Blue

Spare

F103

–

10 Amp Red

Cabin Heater (Diesel Engine Only)/Rear

HVAC — If Equipped

F104

–

20 Amp Yellow

Power Outlets (Instrument Panel/Center

Console/Rear Cargo — If Equipped)

412

IN CASE OF EMERGENCY

CAUTION!

• When installing the power distribution center cover,

it is important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may allow
water to get into the power distribution center and
possibly result in an electrical system failure.

• When replacing a blown fuse, it is important to use

only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.

JACKING AND TIRE CHANGING

WARNING!

• Do not attempt to change a tire on the side of the

vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.

(Continued)

WARNING! (Continued)

• Being under a jacked-up vehicle is dangerous. The

vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.

• Never start or run the engine while the vehicle is on

a jack.

• The jack is designed to be used as a tool for changing

tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should be
jacked on a firm level surface only. Avoid ice or
slippery areas.

IN CASE OF EMERGENCY

413

Jack Location

The scissor-type jack and tire changing tools are located in
the rear cargo area, below the load floor.

NOTE:

The funnel for the Cap-Less Fuel System is located

on top of the spare tire. If your vehicle is out of fuel and an
auxiliary fuel can is needed, insert the funnel into the filler
neck and proceed to fill the vehicle. For vehicles not
equipped with a spare tire, the fuel filler funnel is stored in
the left storage bin under the load floor. For more informa-
tion on the Cap-Less Fuel System, refer to “Refueling The
Vehicle” in “Starting And Operating”.

Spare Tire Stowage

The spare tire is stowed under the load floor in the rear
cargo area and is secured to the body with a special wing
nut.

Preparations For Jacking

CAUTION!

Always lift or jack the vehicle from the correct jacking
points. Failure to follow this information could cause
damage to the vehicle or underbody components.

1. Park the vehicle on a firm, level surface. Avoid ice or

slippery surfaces.

WARNING!

Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the
road to avoid being hit when operating the jack or
changing the wheel.

2. Turn on the Hazard Warning flasher.

3. Apply the parking brake.

4. Place the gear selector into PARK.

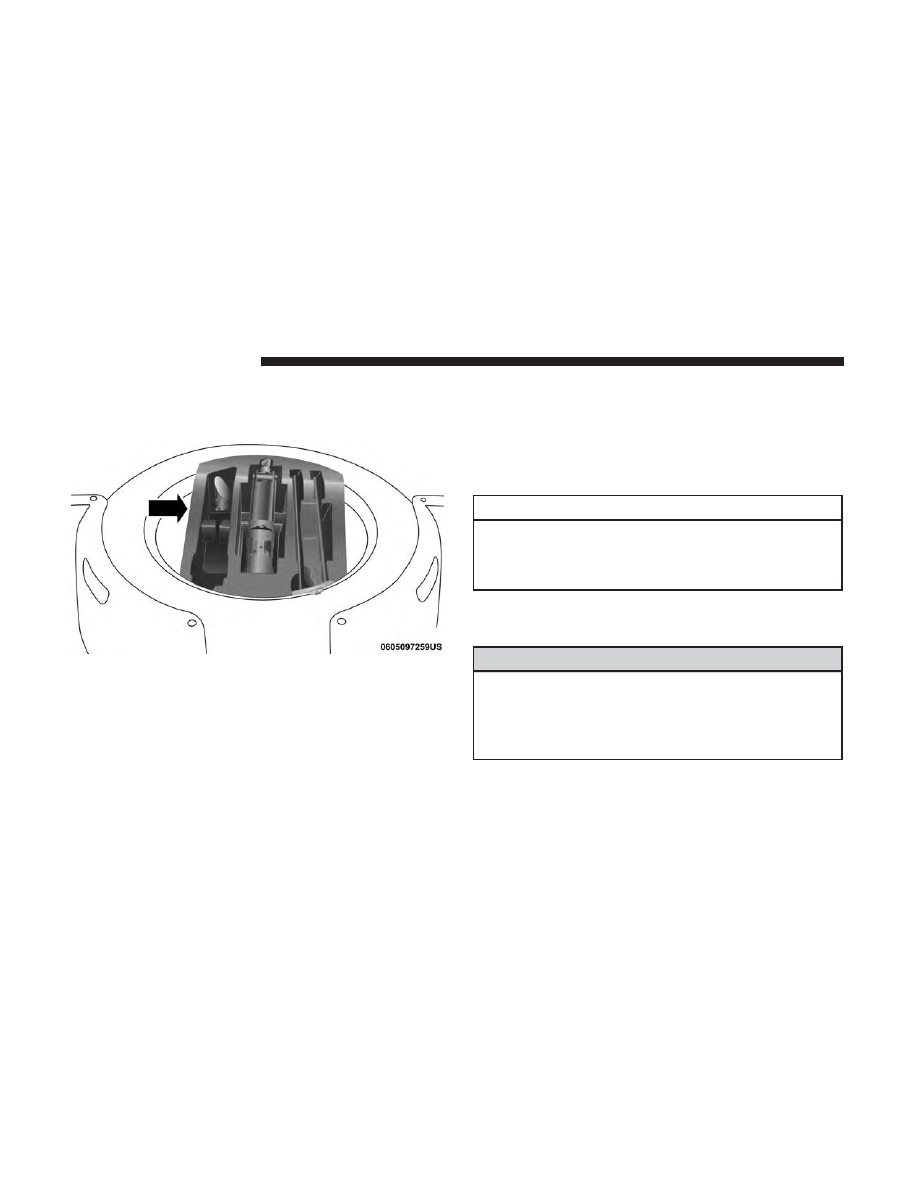

Jack Storage Location

414

IN CASE OF EMERGENCY

5. Turn the ignition OFF.

6. Block both the front and rear of the wheel diagonally

opposite of the jacking position. For ex-
ample, if changing the right front tire, block
the left rear wheel.

NOTE:

Passengers should not remain in the

vehicle when the vehicle is being jacked.

7. For vehicles equipped with Quadra-Lift, refer to

“Quadra-Lift — If Equipped” in “Starting And Operat-
ing” for further information on disabling automatic
leveling.

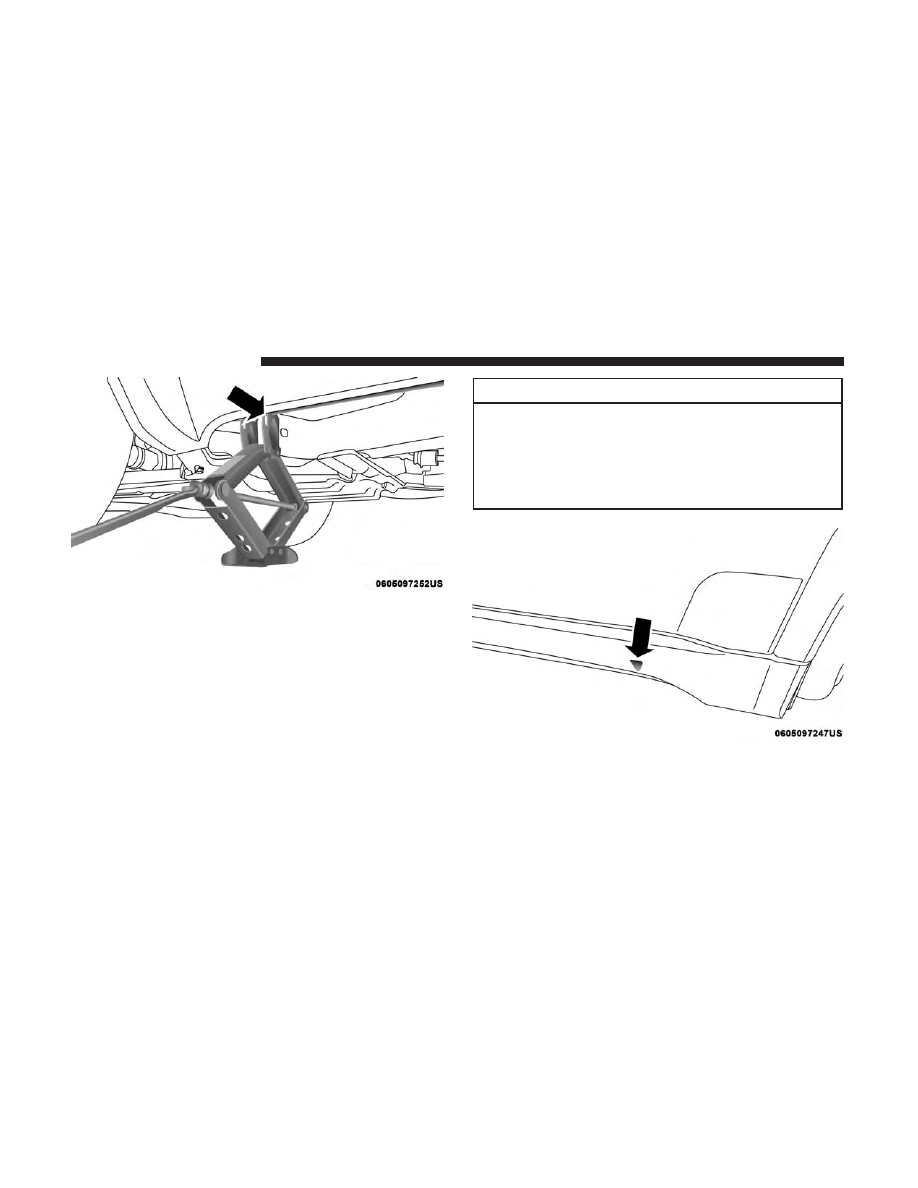

Jacking Instructions

WARNING!

Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
• Always park on a firm, level surface as far from the

edge of the roadway as possible before raising the
vehicle.

• Turn on the Hazard Warning flasher.

(Continued)

WARNING! (Continued)

• Block the wheel diagonally opposite the wheel to be

raised.

• Apply the parking brake firmly and set the transmis-

sion in PARK.

• Never start or run the engine with the vehicle on a

jack.

• Do not let anyone sit in the vehicle when it is on a

jack.

• Do not get under the vehicle when it is on a jack. If

you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.

• Only use the jack in the positions indicated and for

lifting this vehicle during a tire change.

• If working on or near a roadway, be extremely

careful of motor traffic.

• To assure that spare tires, flat or inflated, are securely

stowed, spares must be stowed with the valve stem
facing the ground.

IN CASE OF EMERGENCY

415

CAUTION!

Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.

1. Remove the spare tire, jack, and tools from storage.

2. Loosen (but do not remove) the wheel lug nuts by

turning them to the left, one turn, while the wheel is still
on the ground.

3. Assemble the jack and jacking tools.

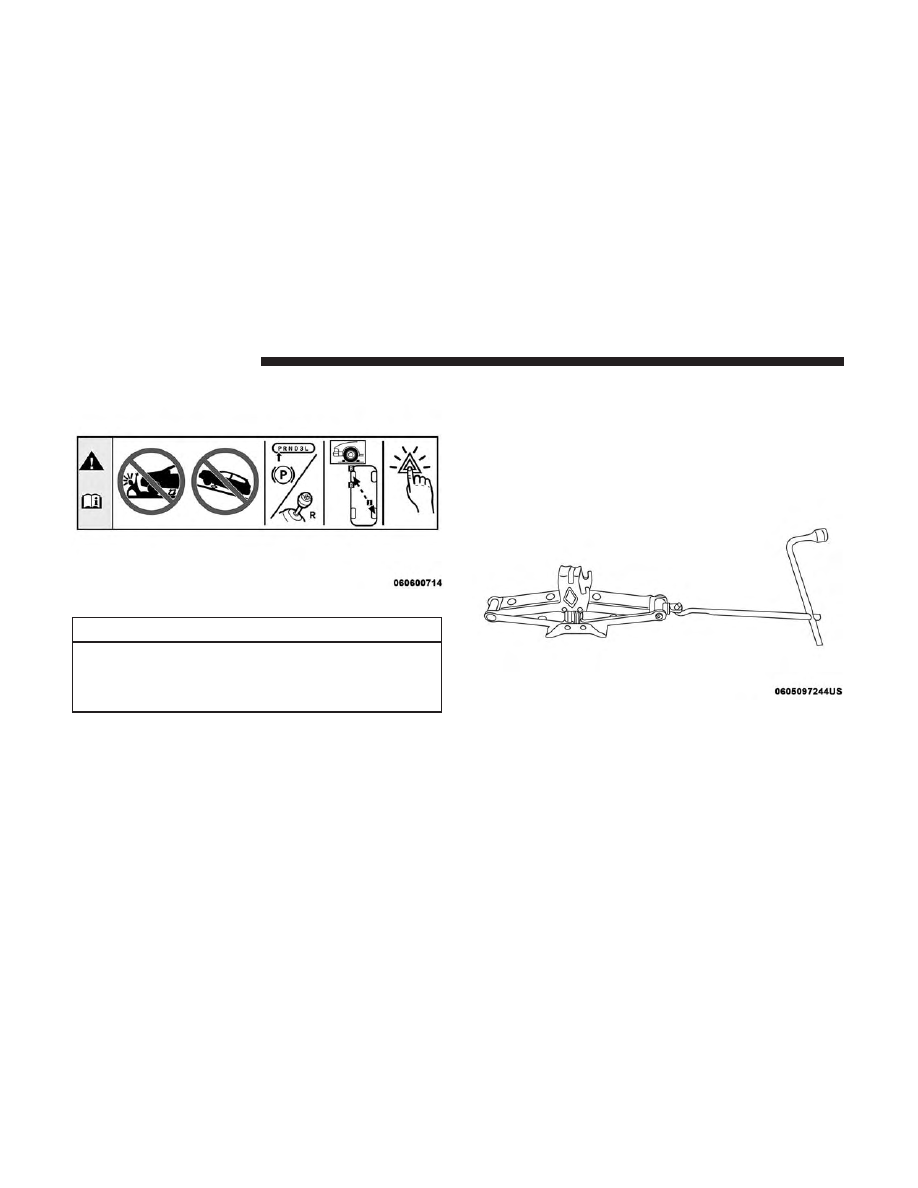

Jack Warning Label

Jack And Tool Assembly

416

IN CASE OF EMERGENCY

5. For a rear tire, place the jack in the slot on the rear

tie-down bracket, just forward of the rear tire (as indi-
cated by the triangular lift point symbol on the sill
molding). Do not raise the vehicle until you are sure
the jack is fully engaged.

CAUTION!

Do NOT raise the vehicle by the body side sill mold-
ing. Be sure the jack is placed in the proper engage-
ment location on the inside of the panel. Damage of the
vehicle may occur if the procedure is not properly
followed.

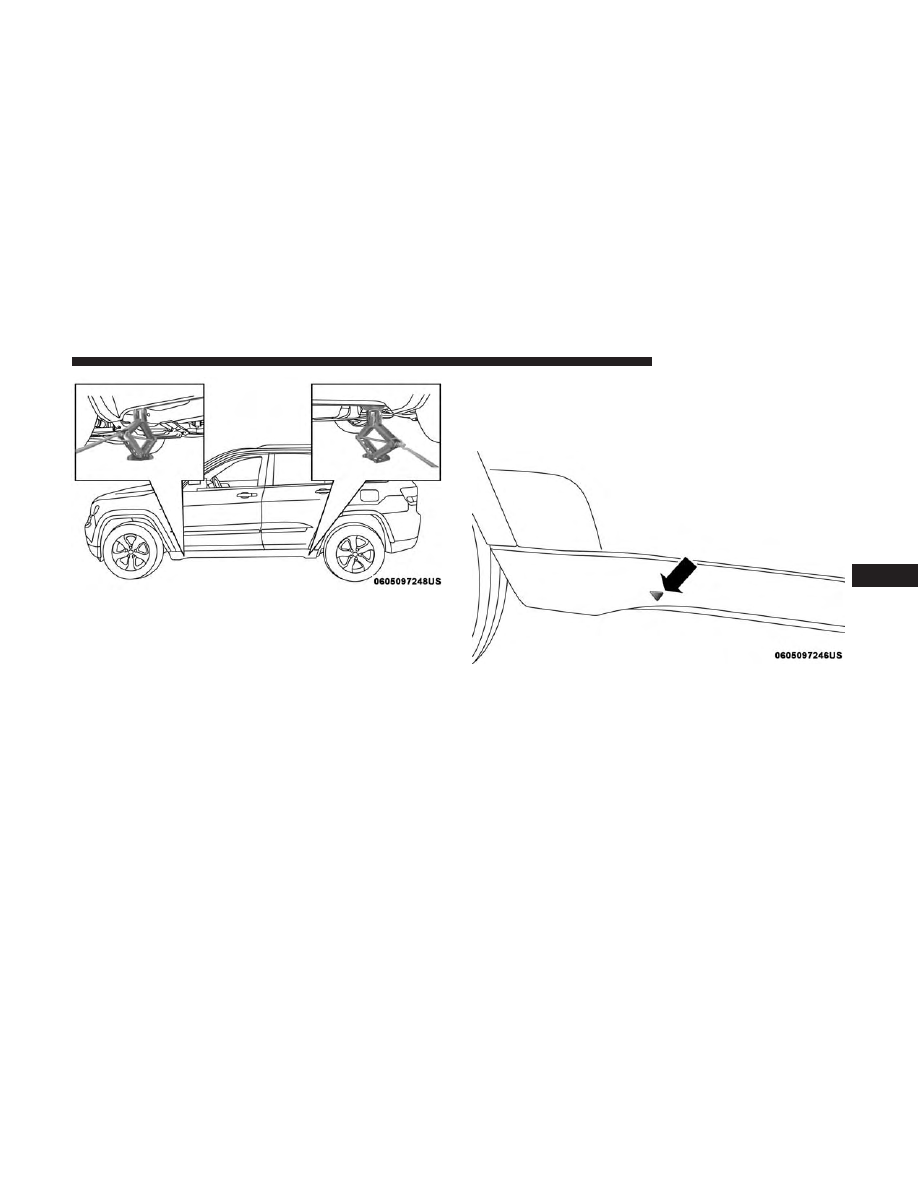

Front Jacking Location

Lift Point Symbol On Sill Molding

418

IN CASE OF EMERGENCY

6. Raise the vehicle by turning the jack screw clockwise.

Raise the vehicle only until the tire just clears the surface
and enough clearance is obtained to install the spare tire.
Minimum tire lift provides maximum stability.

WARNING!

Raising the vehicle higher than necessary can make the
vehicle less stable. It could slip off the jack and hurt
someone near it. Raise the vehicle only enough to
remove the tire.

7. Remove the lug nuts and wheel.

8. Position the spare wheel/tire on the vehicle and install

the lug nuts with the cone-shaped end toward the
wheel. Lightly tighten the nuts.

CAUTION!

Be sure to mount the spare tire with the valve stem
facing outward. The vehicle could be damaged if the
inflatable spare tire is mounted incorrectly.

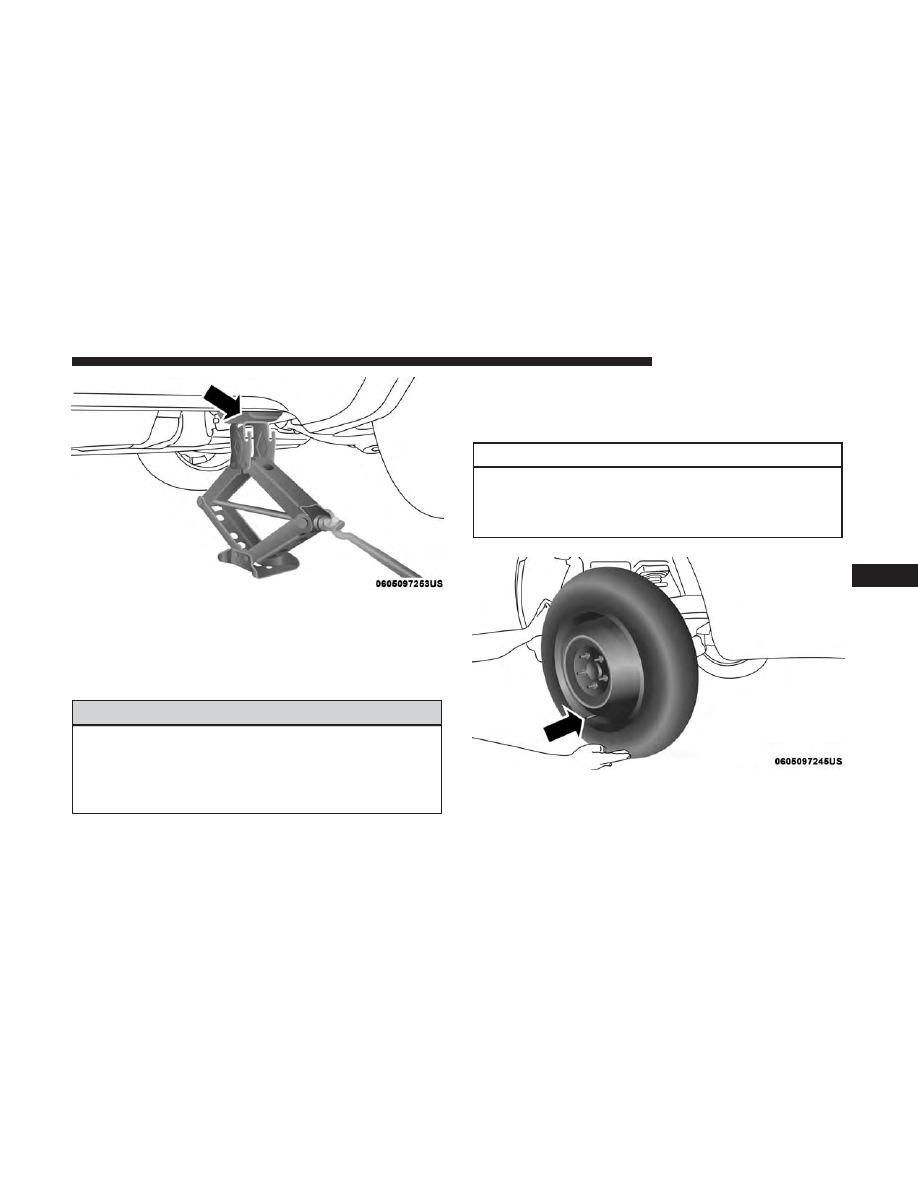

Rear Jacking Location

Mounting Spare Tire

IN CASE OF EMERGENCY

419

Jeep Grand Cherokee (2019 year). Instruction - part 26
