CAUTION! (Continued)

• To avoid damage to the roof rack and vehicle, do not

exceed the maximum roof rack load capacity of 150 lb
(68 kg). Always distribute heavy loads as evenly as
possible and secure the load appropriately.

• Long loads which extend over the windshield, such

as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.

• Place a blanket or other protection between the

surface of the roof and the load.

• Travel at reduced speeds and turn corners carefully

when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift to a load. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.

• The use of Sport Mode is not recommended when

using the Roof Luggage Rack to carry a load.

132

GETTING TO KNOW YOUR VEHICLE

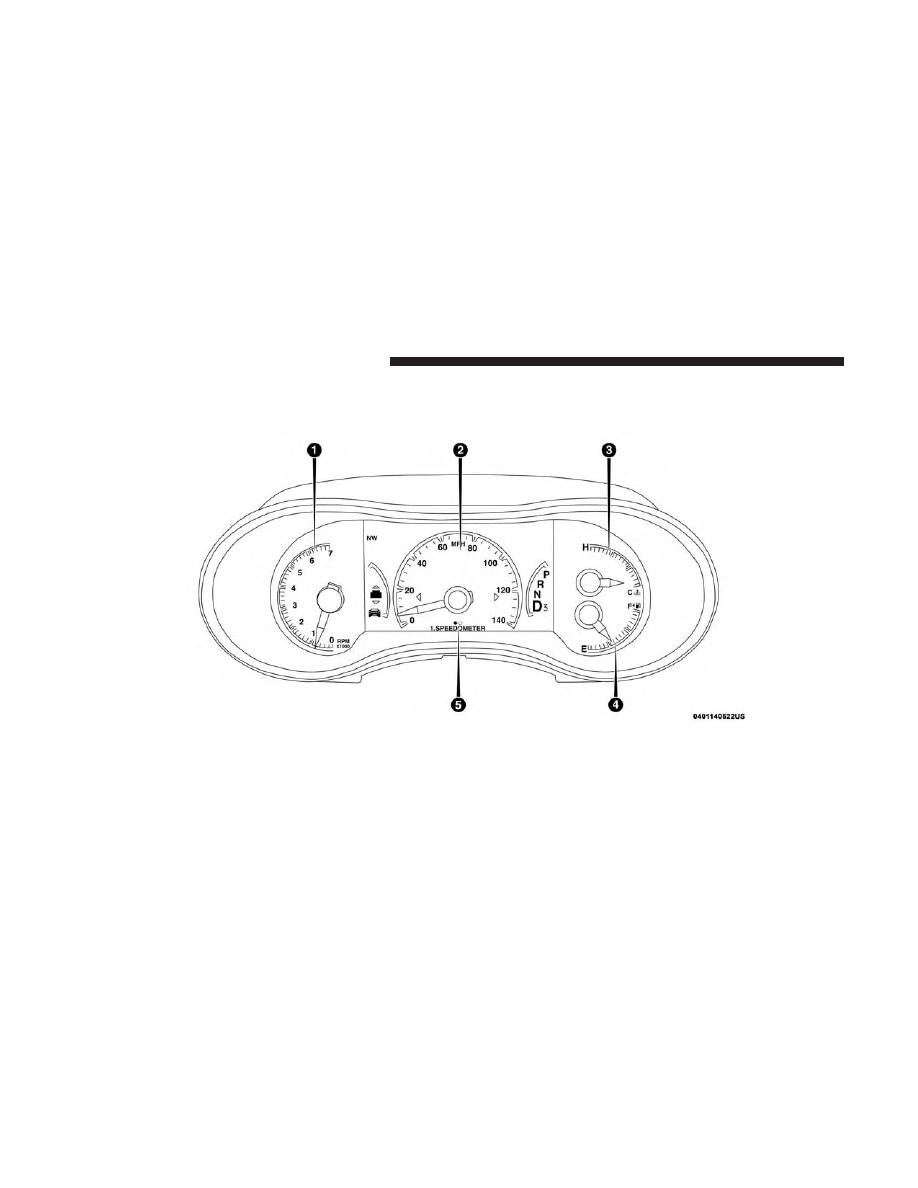

Instrument Cluster Descriptions

1. Tachometer

• Indicates the engine speed in revolutions per minute

(RPM x 1000).

2. Speedometer

• Indicates vehicle speed.

3. Temperature Gauge

• The temperature gauge shows engine coolant tem-

perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.

• The gauge pointer will likely indicate a higher tem-

perature when driving in hot weather or up mountain
grades. It should not be allowed to exceed the upper
limits of the normal operating range.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
service if your vehicle overheats.

CAUTION!

Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.

4. Fuel Gauge

• The pointer shows the level of fuel in the fuel tank

when the ignition is in the ON/RUN position.

•

The fuel pump symbol points to the side of the

vehicle where the fuel door is located.

5. Instrument Cluster Display

• The instrument cluster display features a driver-

interactive display. Refer to “Instrument Cluster Dis-
play” in “Getting To Know Your Instrument Panel” for
further information.

GETTING TO KNOW YOUR INSTRUMENT PANEL

135

INSTRUMENT CLUSTER DISPLAY

Your vehicle will be equipped with an instrument cluster
display, which offers useful information to the driver. With
the ignition in the STOP/OFF mode, opening/closing of a
door will activate the display for viewing, and display the
total miles, or kilometers, in the odometer. Your instrument
cluster display is designed to display important informa-
tion about your vehicle’s systems and features. Using a
driver interactive display located on the instrument panel,
your instrument cluster display can show you how sys-
tems are working and give you warnings when they are
not. The steering wheel mounted controls allow you to
scroll through the main menus and submenus. You can
access the specific information you want and make selec-
tions and adjustments.

Instrument Cluster Display Location And Controls

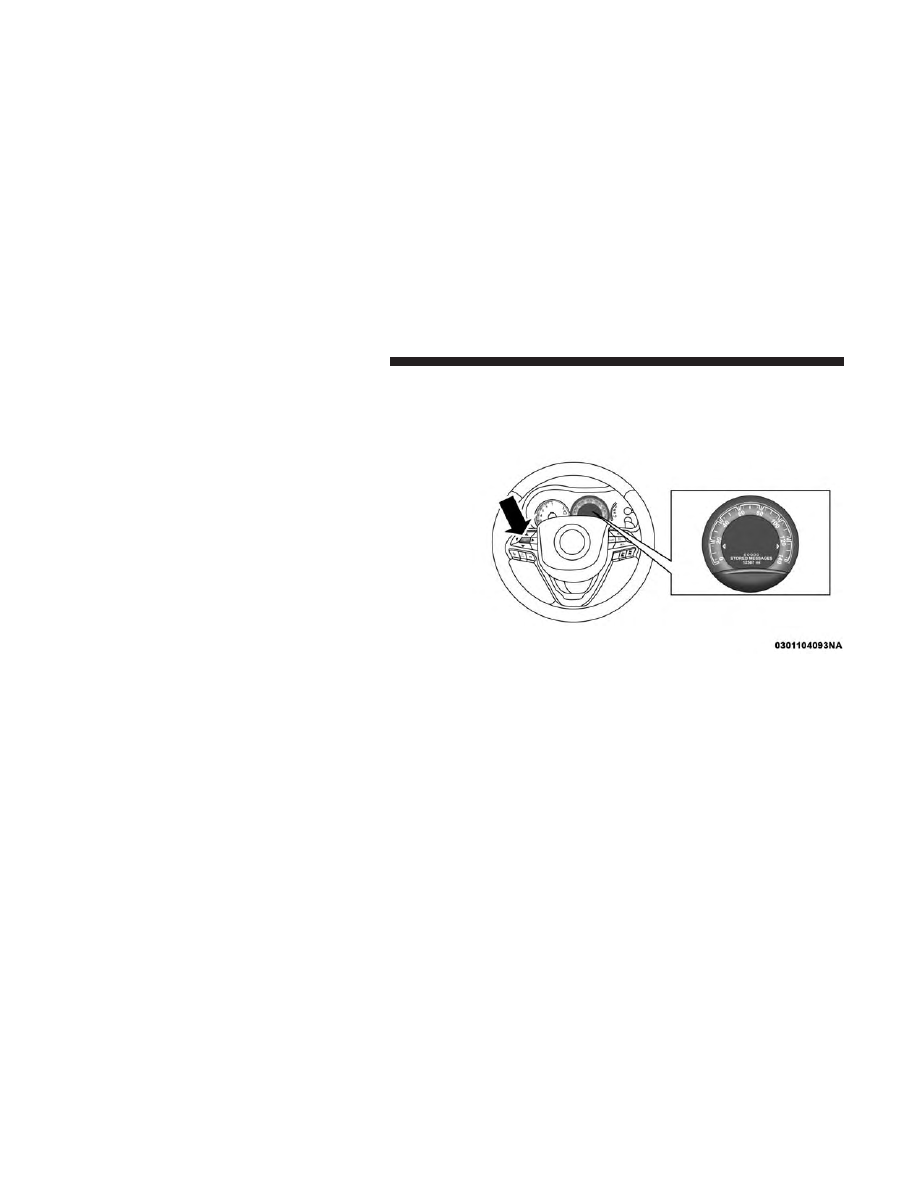

The instrument cluster display is located in the center of
the instrument cluster.

Instrument Cluster Display Location And Controls

136

GETTING TO KNOW YOUR INSTRUMENT PANEL

The Main Menu items selectable in the driver interactive
display consist of the following:
• Speedometer
• Vehicle Info
• Terrain — If Equipped
• Driver Assist — If Equipped

• Fuel Economy
• Trip
• Stop/Start — If Equipped
• Audio
• Stored Messages
• Screen Setup
The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:

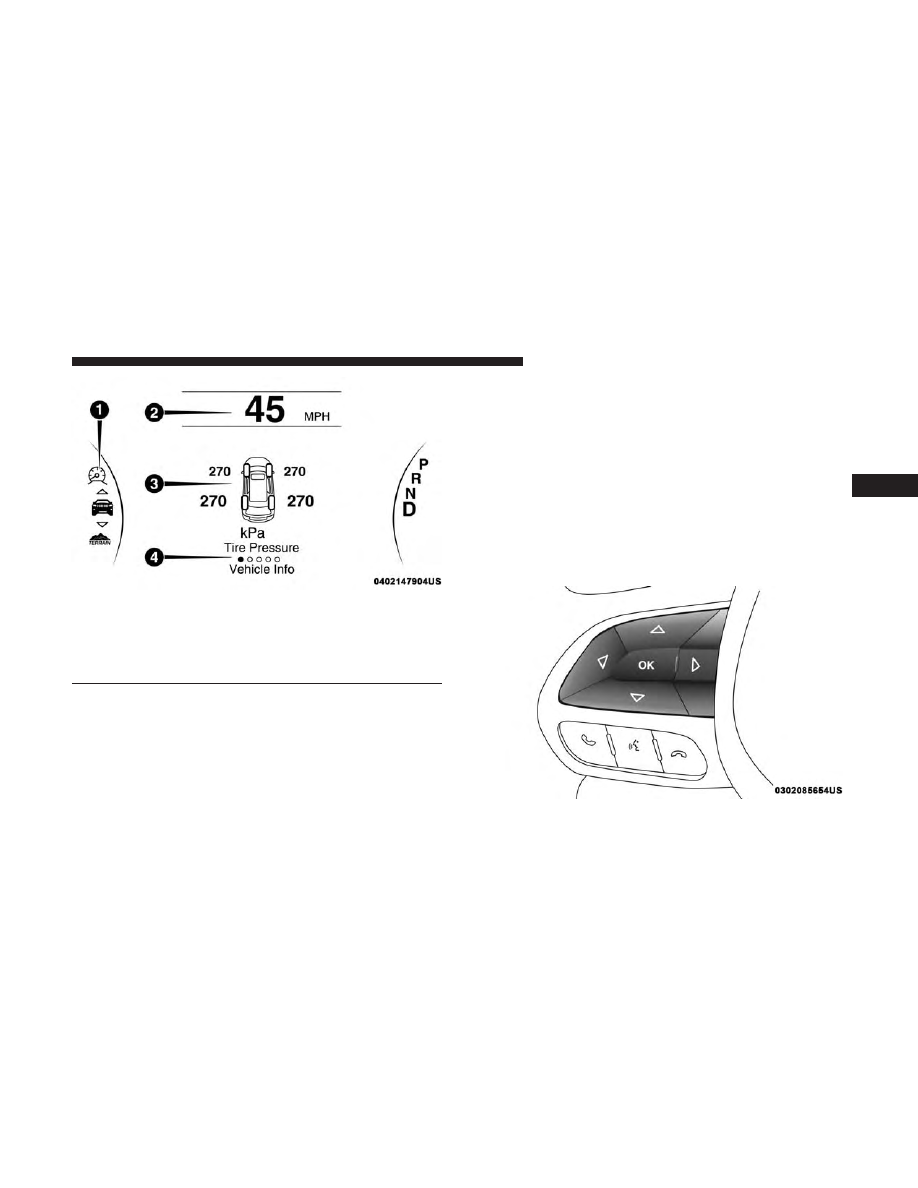

Instrument Cluster Display

1 — Driver Interactive Display
2 — Speedometer Display
3 — Main Display
4 — Menu Name And Menu Page

Instrument Cluster Display Control Buttons

GETTING TO KNOW YOUR INSTRUMENT PANEL

137

• Up Arrow Button

Push and release the up arrow button to scroll
upward through the Main Menu items.

• Down Arrow Button

Push and release the down arrow button to scroll
downward through the Main Menu items.

• Right Arrow Button

Push and release the right arrow button to access
the information screens or submenu screens of a
main menu item.

• Left Arrow Button

Push and release the left arrow button to access
the information screens or submenu screens of a
main menu item.

• OK Button

Push the OK button to access/select the information
screens or submenu screens of a Main Menu item. Push
and hold the OK arrow button for two seconds to reset
displayed/selected features that can be reset.

Oil Change Reset — If Equipped

Your vehicle may be equipped with an engine oil change
indicator system. The “Oil Change Required” message will
display in the instrument cluster display for five seconds
after a single chime has sounded to indicate the next
scheduled oil change interval. The engine oil change indi-
cator system is duty cycle based, which means the engine
oil change interval may fluctuate, dependent upon your
personal driving style.

Unless reset, this message will continue to display each
time you place the ignition in the ON/RUN position. To
turn off the message temporarily, push and release the OK
button. To reset the oil change indicator system (after
performing the scheduled maintenance), refer to the fol-
lowing procedure.

Oil Life Reset

1. Without pushing the brake pedal, place the ignition in

the ON/RUN mode (do not start the engine).

2. Navigate to

⬙Oil Life⬙ submenu in ⬙Vehicle Info⬙ in the

instrument cluster display.

3. Push and hold the OK button until the gauge resets to

100%.

138

GETTING TO KNOW YOUR INSTRUMENT PANEL

Secondary Method For Oil Change Reset Procedure

1. Without pushing the brake pedal, place the ignition in

the ON/RUN position (do not start the engine).

2. Fully press the accelerator pedal, slowly, three times

within ten seconds.

3. Without pushing the brake pedal, place the ignition in

the OFF/LOCK position.

NOTE:

If the indicator message illuminates when you

start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.

Instrument Cluster Display Messages

Includes the following, but not limited to:
• Front Seatbelts Unbuckled
• Driver Seat Belt Unbuckled
• Passenger Seat Belt Unbuckled
• Traction Control Off
• Washer Fluid Low
• Oil Pressure Low
• Oil Change Due

• Fuel Low
• Service Anti-lock Brake System
• Service Electronic Throttle Control
• Service Power Steering
• Cruise Control Off
• Cruise Control Ready
• ACC Driver Override
• Cruise Control Set To XXX MPH
• Tire Pressure Screen With Low Tire(s) “Inflate Tire to

XX”

• Service Tire Pressure System
• Speed Warning Set To XXX MPH
• Speed Warning Exceeded
• Parking Brake Engaged
• Brake Fluid Low
• Service Electronic Braking System
• Engine Temperature Hot
• Lights On

GETTING TO KNOW YOUR INSTRUMENT PANEL

139

• Right Front Turn Signal Light Out
• Right Rear Turn Signal Light Out
• Left Front Turn Signal Light Out
• Left Rear Turn Signal Light Out
• Ignition Or Accessory On
• Vehicle Not In Park
• Remote Start Active Push Start Button — If Equipped
• Remote Start Canceled Fuel Low — If Equipped
• Remote Start Canceled Too Cold — If Equipped
• Remote Start Canceled Door Open — If Equipped
• Remote Start Canceled Hood Open — If Equipped
• Remote Start Canceled Liftgate Open — If Equipped
• Remote Start Canceled Time Expired — If Equipped
• Remote Start Disabled Start To Reset — If Equipped
• Service Air Bag System
• Service Air Bag Warning Light
• Door Open
• Doors Open

• Liftgate Open
• Hood Open
• Shift Not Allowed
• Vehicle Speed Is Too High To Shift To D
• Vehicle Speed Is Too High To Shift To R
• Vehicle Speed Is Too High To Shift To P
• Service Transmission
• Service Shifter
• Service Air Suspension System
• Normal Ride Height Achieved
• Aerodynamic Ride Height Achieved
• Off Road 1 Ride Height Achieved
• Off Road 2 Ride Height Achieved
• Entry/Exit Ride Height Achieved
• Selected Ride Height Not Permitted
• Service Air Suspension System Immediately
• Reduce Speed To Maintain Selected Ride Height
• Air Suspension System Cooling Down Please Wait

140

GETTING TO KNOW YOUR INSTRUMENT PANEL

• Vehicle Cannot Be Lowered Door Open
• Air Suspension Temporarily Disabled
• Battery Low Start Engine To Change Ride Height
For further information on the color warning and indicator
lights in the instrument cluster, refer to “Warning Lights
And Messages” in “Getting To Know Your Instrument
Panel”.

Instrument Cluster Display Menu Items

The instrument cluster display can be used to view the
main menu items for several features. Use the up and
down

arrow buttons to scroll through the driver interactive

display menu options until the desired menu is reached.

NOTE:

Depending on the vehicle’s options, feature set-

tings may vary.

Speedometer

Push and release the up or down arrow button until the
main gauge menu icon is displayed in the instrument
cluster display. Push and release the left or right arrow
button to select the analog or digital type speedometer
display. Push and release the OK button to toggle units
(mph or km/h) of the speedometer.

Accessibility — If Equipped

Accessibility is a feature of the DVD/Blu-ray system that
announces a function prior to performing the action. For
further information refer to “Uconnect Settings” in “Mul-
timedia.”

Vehicle Info

Push and release the up or down arrow button until the
Vehicle Info menu icon is displayed in the instrument
cluster display. Push and release the left or right arrow
button to scroll through the information submenus and
push and release the OK button to select or reset the
resettable submenus.

• Tire Pressure

• Oil Pressure

• Transmission

Temperature

• Oil Life

• Oil Temperature

• Battery Voltage

GETTING TO KNOW YOUR INSTRUMENT PANEL

141

Terrain — If Equipped

Push and release the up or down arrow button until the
Terrain icon/title is highlighted in the instrument cluster
display. Push and release the right or left arrow button to
display the Selec-Terrain, Air Suspension, Drivetrain, and
Wheel Articulation.
• Selec-Terrain: Displays messages concerning Selec-

Terrain status.

• Air Suspension — If Equipped: Displays messages con-

cerning Air Suspension status.

• Drivetrain: Displays information on drivetrain status of

Front Wheel Angle, T-Case, and Axle Lock.

• Wheel Articulation: Displays current wheel articulation.

Driver Assist

Push and release the up or down arrow button until the
Driver Assist menu title is highlighted in the instrument
cluster display.

Adaptive Cruise Control (ACC) Menu — If Equipped

The instrument cluster display displays the current ACC
and LaneSense system settings. The information displayed
depends on the status of ACC and LaneSense.

Push the Adaptive Cruise Control (ACC) on/off button
(located on the steering wheel) until one of the following
displays in the instrument cluster display:

Adaptive Cruise Control Off

When ACC is deactivated, the display will read “Adaptive
Cruise Control Off.”

Adaptive Cruise Control Ready

When ACC is activated but the vehicle speed setting has
not been selected, the display will read “Adaptive Cruise
Control Ready.”

Push and release the SET + or the SET- button (located on
the steering wheel) and the following will display in the
instrument cluster display:

ACC SET

When ACC is set, the set speed will display in the
instrument cluster.

The ACC screen may display once again if any ACC
activity occurs, which may include any of the following:
• Distance Setting Change
• System Cancel
• Driver Override

142

GETTING TO KNOW YOUR INSTRUMENT PANEL

• System Off
• ACC Proximity Warning
• ACC Unavailable Warning

NOTE:

The instrument cluster display will return to the

last display selected after five seconds of no ACC display
activity.

Refer to “Adaptive Cruise Control (ACC) — If Equipped”
in “Starting And Operating” for further information.

LaneSense — If Equipped

The instrument cluster display displays the current Lane-
Sense system settings. The information displayed depends
on LaneSense system status and the conditions that need to
be met. Refer to “LaneSense — If Equipped” in “Starting
And Operating” for further information.

Fuel Economy

Push and release the up or down arrow button until the
Fuel Economy Icon is highlighted in the instrument cluster
display. Push and hold the OK button to reset average fuel
economy feature.

Toggle left or right to select a display with or without
Current Fuel Economy Information.
• Range – The display shows the estimated distance (mi

or km) that can be traveled with the fuel remaining in
the tank. When the Range value is less than 30 miles
(48 km) estimated driving distance, the Range display
will change to a “RANGE LOW” message. Adding a
significant amount of fuel to the vehicle will turn off the
“RANGE LOW” message and a new Range value will
display. Range cannot be reset through the OK button.

NOTE:

Significant changes in driving style or vehicle

loading will greatly affect the actual drivable distance of
the vehicle, regardless of the Range displayed value.
• Average – The display shows the average fuel economy

(MPG, L/100 km, or km/L) since the last reset.

• Current – This display shows the current fuel economy

(MPG, L/100 km, km/L) while driving.

GETTING TO KNOW YOUR INSTRUMENT PANEL

143

Trip Info

Push and release the up or down arrow button until the
Trip menu title is displayed in the instrument cluster
display. Toggle the left or right arrow button to select Trip
A or Trip B. The Trip information will display the follow-
ing:
• Distance – Shows the total distance (mi or km) traveled

for Trip A or Trip B since the last reset.

• Average Fuel Economy – Shows the average fuel

economy (MPG or L/100 km or km/L) of Trip A or Trip
B since the last reset.

• Elapsed Time – Shows the total elapsed time of travel

since Trip A or Trip B has been reset.

Hold the OK button to reset feature information.

Stop/Start – If Equipped

Push and release the up or down arrow button on
the steering wheel to scroll to the Stop/Start menu

in the driver interactive display. This menu will give access
to Stop/Start settings using the left and right arrow
buttons on the steering wheel.

For further information on the use and different modes of
the Stop/Start System accessible through these settings,
refer to “Stop/Start System – If Equipped” in “Starting
And Operating”.

Audio

Push and release the up or down arrow button until the
Audio menu title is displayed in the instrument cluster
display.

Stored Messages

Push and release the up or down arrow button until the
Messages Menu Icon is highlighted in the instrument
cluster display. This feature shows the number of stored
warning messages. Pushing the left or right arrow button
will allow you to scroll through the stored messages.

Screen Setup

Push and release the up or down arrow button until the
Screen Setup Menu Icon/Title is highlighted in the instru-
ment cluster display. Push and release the OK button to
enter the sub-menus and follow the prompts on the screen
as needed. The Screen Setup feature allows you to change
what information is displayed in the instrument cluster as
well as the location that information is displayed.

144

GETTING TO KNOW YOUR INSTRUMENT PANEL

Screen Setup Driver Selectable Items

Gear Display
• Full (default setting)
• Single

Upper Left
• None
• Compass (default setting)
• Outside Temp
• Time
• Range
• Fuel Economy Average
• Fuel Economy Current
• Trip A
• Trip B

Upper Right
• None
• Compass
• Outside Temp (default setting)

• Time
• Range
• Fuel Economy Average
• Fuel Economy Current
• Trip A
• Trip B

Defaults (Restores All Settings To Default Settings)
• Cancel
• Restore

Current Gear
• On
• Off (default setting)

Favorite Menus — Equipped
• Speedometer
• Vehicle Info
• Terrain (show/hide)
• Driver Assist (show/hide)
• Fuel Economy (show/hide)

GETTING TO KNOW YOUR INSTRUMENT PANEL

145

• Trip Info (show/hide)
• Stop/Start
• Audio (show/hide)
• Messages
• Screen Setup

The menu with (show/hide) means user can press OK
button to choose show or hide this menu on the instrument
cluster display.

Battery Saver On/Battery Saver Mode Message —
Electrical Load Reduction Actions (If Equipped)

This vehicle is equipped with an Intelligent Battery Sensor
(IBS) to perform additional monitoring of the electrical
system and status of the vehicle battery.

In cases when the IBS detects charging system failure, or
the vehicle battery conditions are deteriorating, electrical
load reduction actions will take place to extend the driving
time and distance of the vehicle. This is done by reducing
power to or turning off non-essential electrical loads.

Load reduction is only active when the engine is running.
It will display a message if there is a risk of battery
depletion to the point where the vehicle may stall due to
lack of electrical supply, or will not restart after the current
drive cycle.

When load reduction is activated, the message “Battery
Saver On” or “Battery Saver Mode” will appear in the
instrument cluster display.

These messages indicate the vehicle battery has a low state
of charge and continues to lose electrical charge at a rate
that the charging system cannot sustain.

NOTE:
• The charging system is independent from load reduc-

tion. The charging system performs a diagnostic on the
charging system continuously.

• If the Battery Charge Warning Light is on it may indicate

a problem with the charging system. Refer to “Battery
Charge Warning Light” in “Warning Lights And Mes-
sages” located in ”Getting To Know Your Instrument
Panel” for further information.

146

GETTING TO KNOW YOUR INSTRUMENT PANEL

The electrical loads that may be switched off (if equipped),
and vehicle functions which can be effected by load
reduction:
• Heated Seat/Vented Seats/Heated Wheel
• Rear Defroster And Heated Mirrors
• HVAC System
• 150W Power Inverter System
• Audio and Telematics System
Loss of the battery charge may indicate one or more of the
following conditions:
• The charging system cannot deliver enough electrical

power to the vehicle system because the electrical loads
are larger than the capability of charging system. The
charging system is still functioning properly.

• Turning on all possible vehicle electrical loads (e.g.

HVAC to max settings, exterior and interior lights,
overloaded power outlets +12V, 150W, USB ports) dur-
ing certain driving conditions (city driving, towing,
frequent stopping).

• Installing options like additional lights, upfitter electri-

cal accessories, audio systems, alarms and similar de-
vices.

• Unusual driving cycles (short trips separated by long

parking periods).

• The vehicle was parked for an extended period of time

(weeks, months).

• The battery was recently replaced and was not charged

completely.

• The battery was discharged by an electrical load left on

when the vehicle was parked.

• The battery was used for an extended period with the

engine not running to supply radio, lights, chargers,
+12V portable appliances like vacuum cleaner’s, game
consoles and similar devices.

What to do when an electrical load reduction action
message is present (“Battery Saver On” or “Battery Saver
Mode”)

During a trip:
• Reduce power to unnecessary loads if possible:

– Turn off redundant lights (interior or exterior)
– Check what may be plugged in to power outlets +12V,

150W, USB ports

– Check HVAC settings (blower, temperature)
– Check the audio settings (volume)

GETTING TO KNOW YOUR INSTRUMENT PANEL

147

Jeep Grand Cherokee (2019 year). Instruction - part 9
