4. Continue to hold both buttons and observe the indicator

light. The HomeLink indicator will flash slowly and
then rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.

5. At the garage door opener motor (in the garage), locate

the “LEARN” or “TRAINING” button. This can usually
be found where the hanging antenna wire is attached to
the garage door opener/device motor. Firmly push and
release the “LEARN” or “TRAINING” button. On some
garage door openers/devices there may be a light that
blinks when the garage door opener/device is in the
LEARN/TRAIN mode.

NOTE:

You have 30 seconds in which to initiate the next

step after the LEARN button has been pushed.

6. Return to the vehicle and push the programmed

HomeLink button twice (holding the button for two
seconds each time). If the garage door opener/device
activates, programming is complete.

NOTE:

If the garage door opener/device does not activate,

push the button a third time (for two seconds) to complete
the training.

To program the remaining two HomeLink buttons, repeat
each step for each remaining button. DO NOT erase the
channels.

Reprogramming A Single HomeLink Button (Rolling
Code)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

2. Push and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button proceed with “Program-

ming A Rolling Code” step 2 and follow all remaining
steps.

Programming A Non-Rolling Code

For programming Garage Door Openers manufactured
before 1995.

1. Cycle the ignition to the ON/RUN position.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

116

GETTING TO KNOW YOUR VEHICLE

3. Press and hold the HomeLink button you want to

program while you press and hold the hand-held trans-
mitter button.

4. Continue to hold both buttons and observe the indicator

light. The HomeLink indicator will flash slowly and
then rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.

5. Press and hold the programmed HomeLink button and

observe the indicator light.

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pressed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

Reprogramming A Single HomeLink Button (Non-
Rolling Code)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

2. Press and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button, proceed with “Program-

ming A Non-Rolling Code” step 2 and follow all remain-
ing steps.

Canadian/Gate Operator Programming

For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission.

Canadian radio frequency laws require transmitter signals
to time-out (or quit) after several seconds of transmission –
which may not be long enough for HomeLink to pick up
the signal during programming. Similar to this Canadian
law, some U.S. gate operators are designed to time-out in
the same manner.

It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage door
or gate motor.

1. Cycle the ignition to the ON/RUN position.

3

GETTING TO KNOW YOUR VEHICLE

117

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Continue to press and hold the HomeLink button, while

you press and release (“cycle”) your hand-held trans-
mitter every two seconds until HomeLink has success-
fully accepted the frequency signal. The indicator light
will flash slowly and then rapidly when fully trained.

4. Watch for the HomeLink indicator to change flash rates.

When it changes, it is programmed. It may take up to 30
seconds or longer in rare cases. The garage door may
open and close while you are programming.

5. Press and hold the programmed HomeLink button and

observe the indicator light.

NOTE:

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pressed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

If you unplugged the garage door opener/device for
programming, plug it back in at this time.

Reprogramming A Single HomeLink Button (Canadian/
Gate Operator)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

2. Press and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button, proceed with “Canadian/

Gate Operator Programming” step 2 and follow all
remaining steps.

Using HomeLink

To operate, push and release the programmed HomeLink
button. Activation will now occur for the programmed
device (i.e. garage door opener, gate operator, security
system, entry door lock, home/office lighting, etc.). The
hand-held transmitter of the device may also be used at
any time.

118

GETTING TO KNOW YOUR VEHICLE

Security

It is advised to erase all channels before you sell or turn in
your vehicle.

To do this, push and hold the two outside buttons for 20
seconds until the orange indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.

The HomeLink Universal Transceiver is disabled when the
Vehicle Security Alarm is active.

Troubleshooting Tips

If you are having trouble programming HomeLink, here
are some of the most common solutions:
• Replace the battery in the Garage Door Opener hand-

held transmitter.

• Push the LEARN button on the Garage Door Opener to

complete the training for a Rolling Code.

• Did you unplug the device for programming and re-

member to plug it back in?

If you have any problems, or require assistance, please call
toll-free

1-800-355-3515

or,

on

the

Internet

at

HomeLink.com for information or assistance.

WARNING!

• Vehicle exhaust contains carbon monoxide, a danger-

ous gas. Do not run your vehicle in the garage while
programming the transceiver. Exhaust gas can cause
serious injury or death.

• Your motorized door or gate will open and close

while you are programming the universal trans-
ceiver. Do not program the transceiver if people, pets
or other objects are in the path of the door or gate.
Only use this transceiver with a garage door opener
that has a “stop and reverse” feature as required by
Federal safety standards. This includes most garage
door opener models manufactured after 1982. Do not
use a garage door opener without these safety fea-
tures. Call toll-free 1-800-355-3515 or, on the Internet
at HomeLink.com
for safety information or assis-
tance.

3

GETTING TO KNOW YOUR VEHICLE

119

General Information

The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Innovation, Science and Economic Development
Canada license-exempt RSS standard(s). Operation is sub-
ject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

INTERNAL EQUIPMENT

Storage

Glove Compartment

The glove compartment is located on the passenger side of
the instrument panel.

Glove Compartment

120

GETTING TO KNOW YOUR VEHICLE

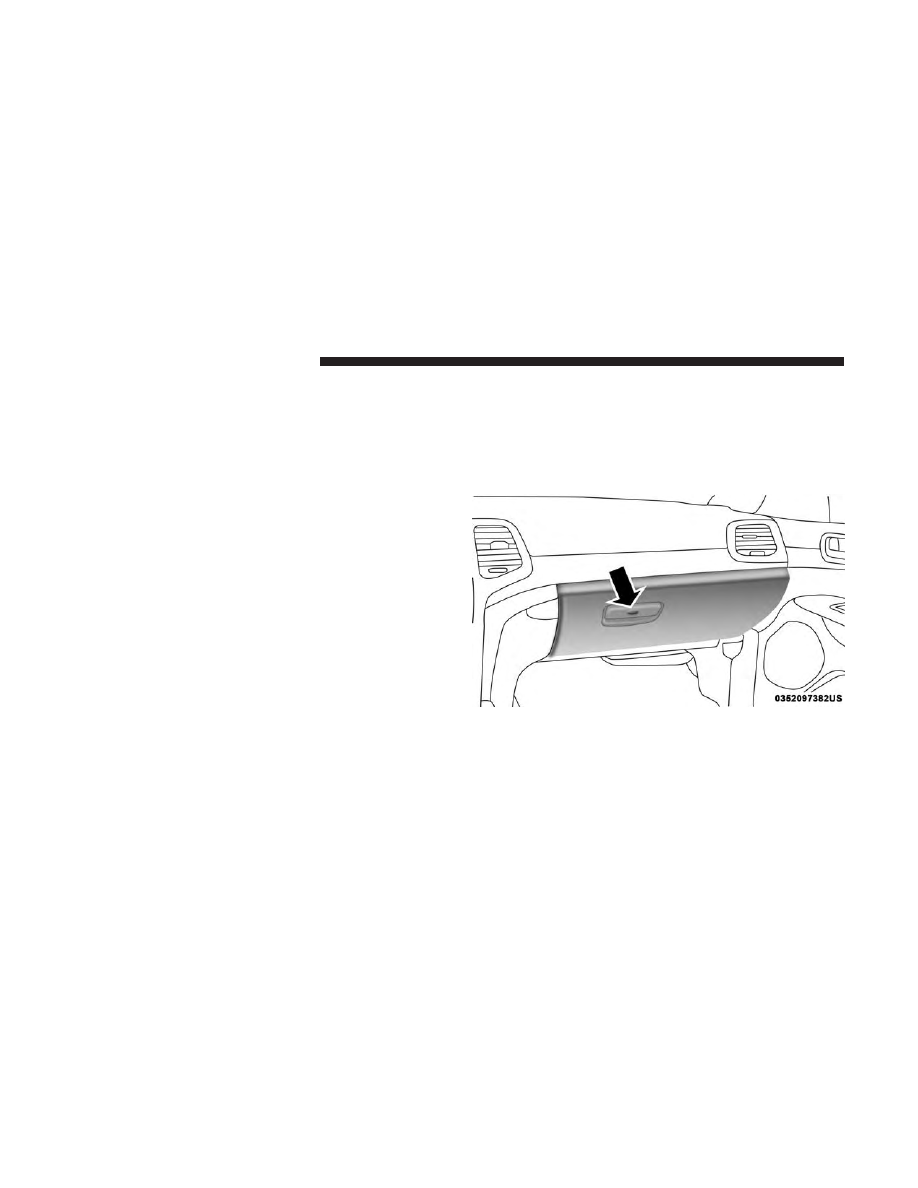

To open the glove compartment, pull the release handle.

WARNING!

Do not operate this vehicle with a glove compartment
in the open position. Driving with the glove compart-
ment open may result in injury in a collision.

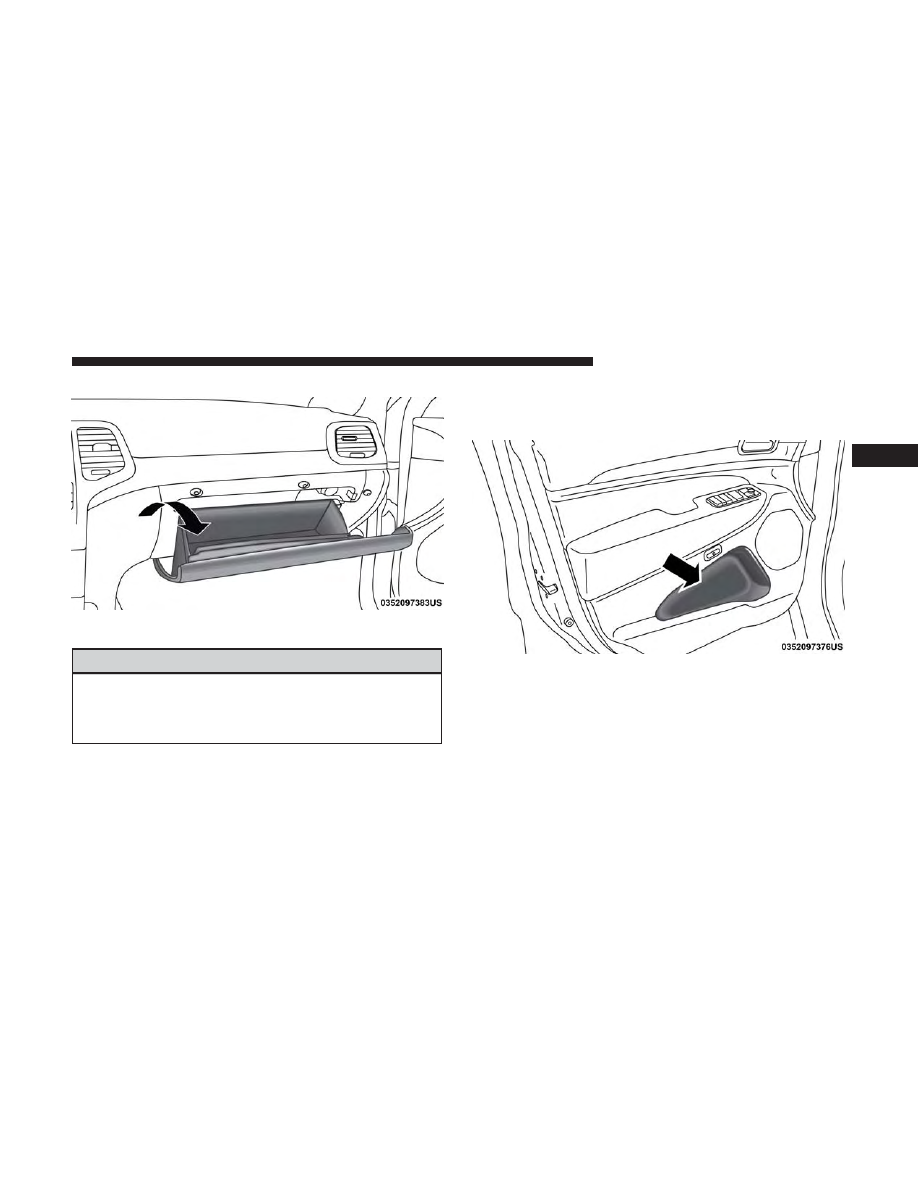

Door Storage

Large storage areas are built into the door panels for easy
access.

Opened Glove Compartment

Door Panel Storage

3

GETTING TO KNOW YOUR VEHICLE

121

Console Features

The center console contains both an upper and a lower
storage area.

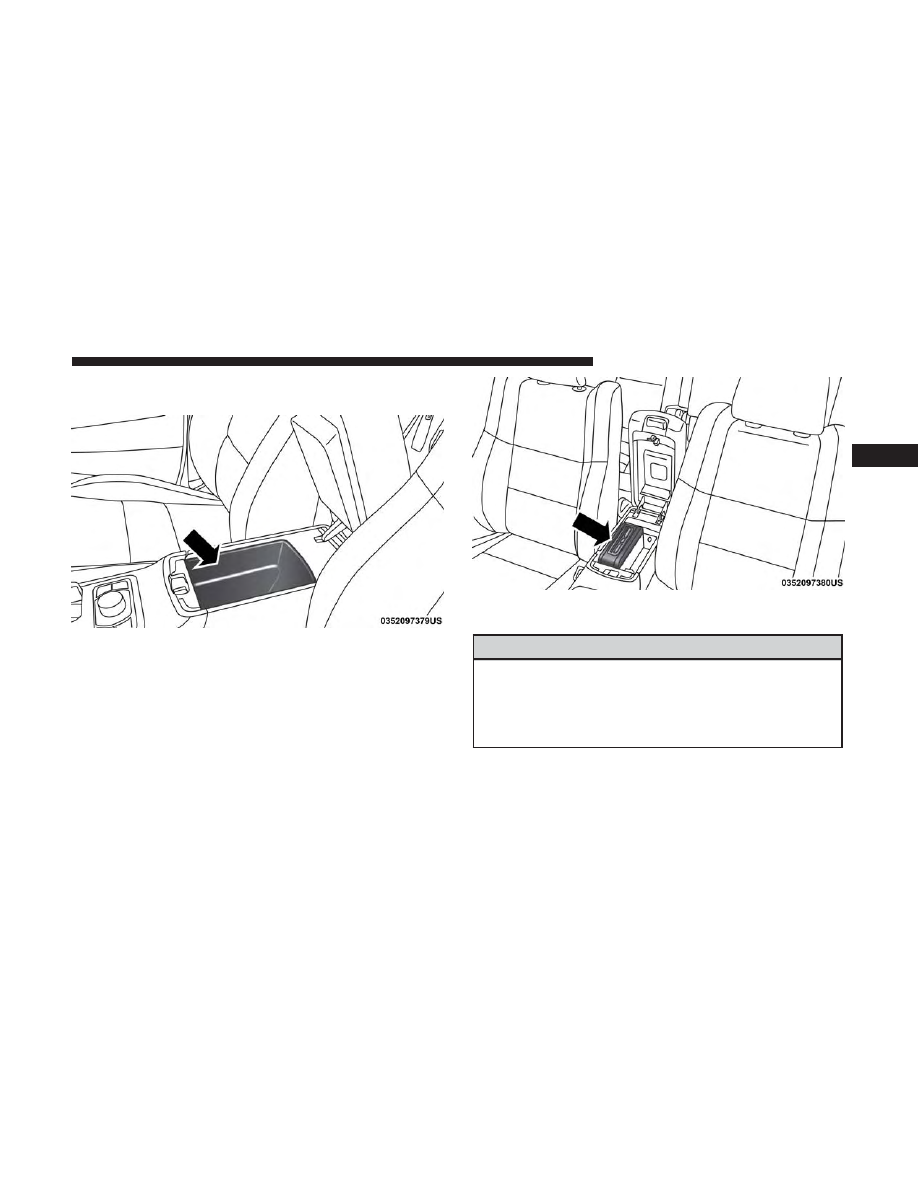

To open the upper storage compartment, pull upward on
the small latch located on the lid.

Storage Compartment

Storage Compartment Latches

122

GETTING TO KNOW YOUR VEHICLE

Lift upward on the larger of the latches to access the lower
storage compartment.

Your vehicle may have an optional CD or DVD player
located in the center console.

WARNING!

Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the console
compartment lid open may result in injury in a colli-
sion.

Lower Storage Compartment

Lower Storage Compartment CD/DVD Player — If

Equipped

3

GETTING TO KNOW YOUR VEHICLE

123

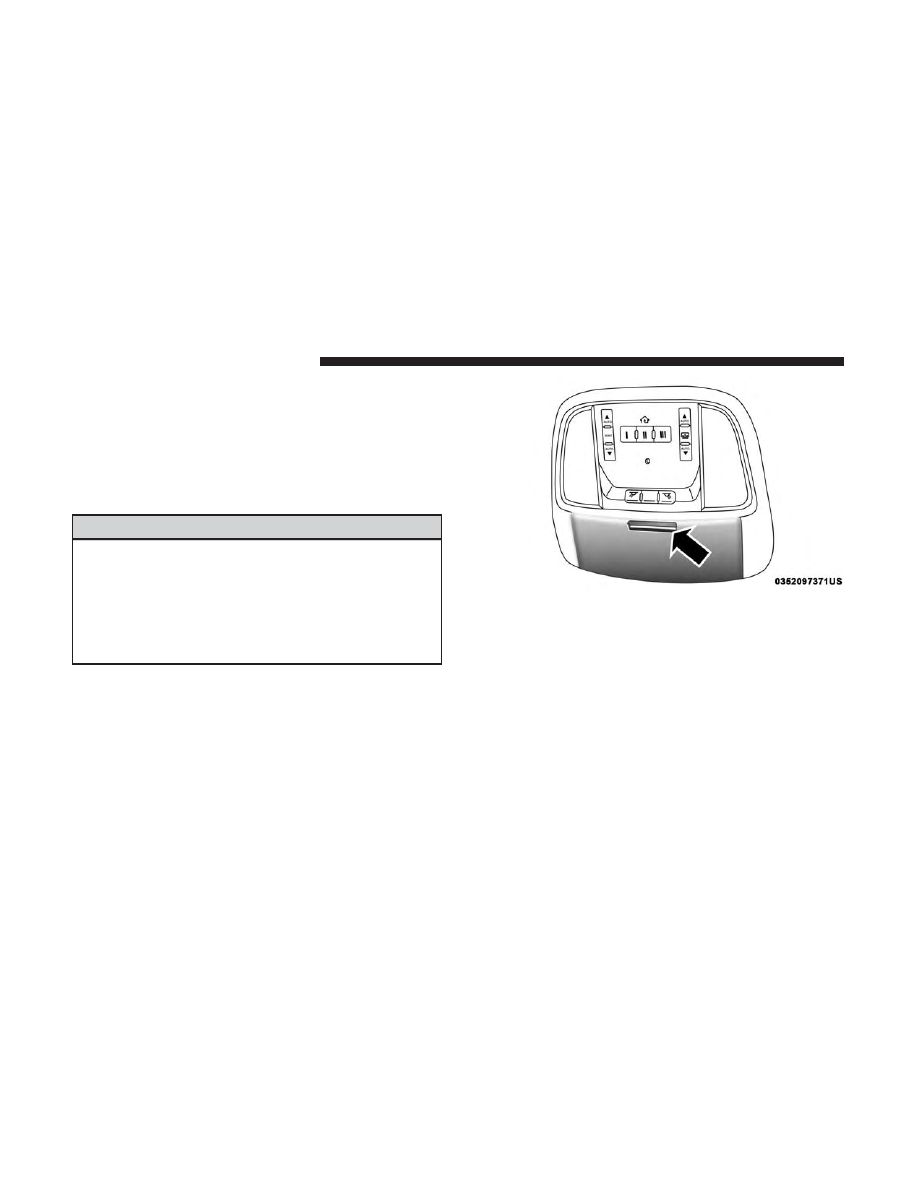

Overhead Console

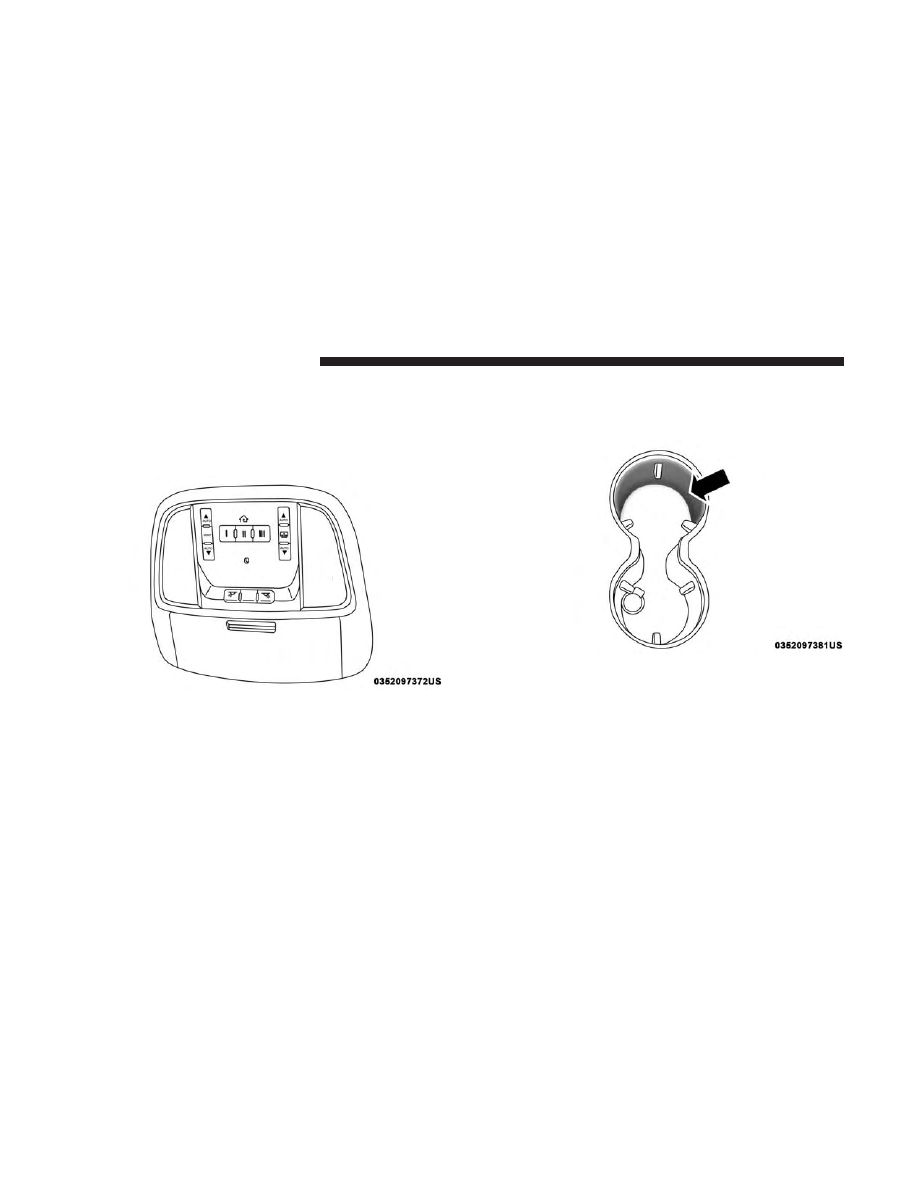

The overhead console contains courtesy/reading lights
and storage for sunglasses. Universal Garage Door Opener
(HomeLink), power liftgate and power sunroof switches
may also be included, if equipped.

Cupholders

There are two cupholders for the front seat passengers
located in the center console.

Overhead Console

Front Cupholders

124

GETTING TO KNOW YOUR VEHICLE

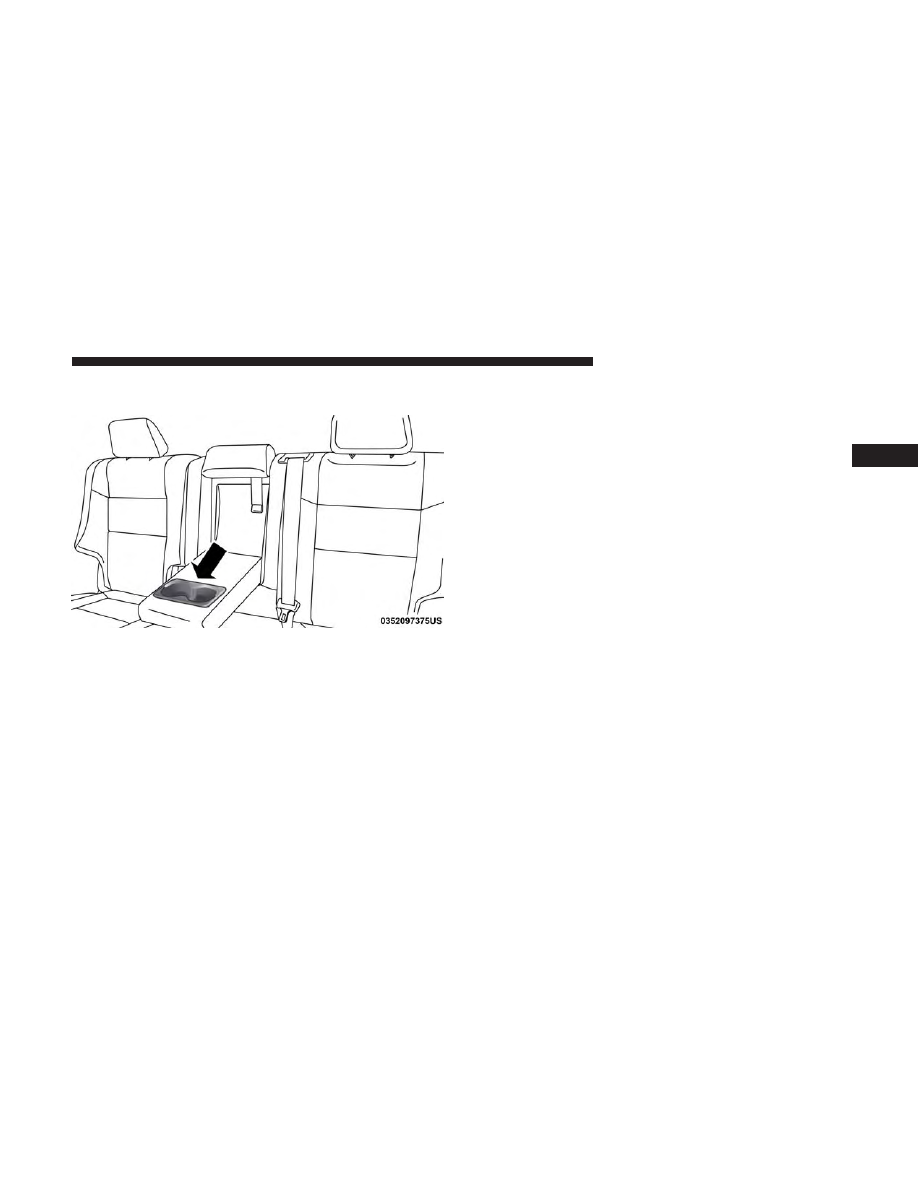

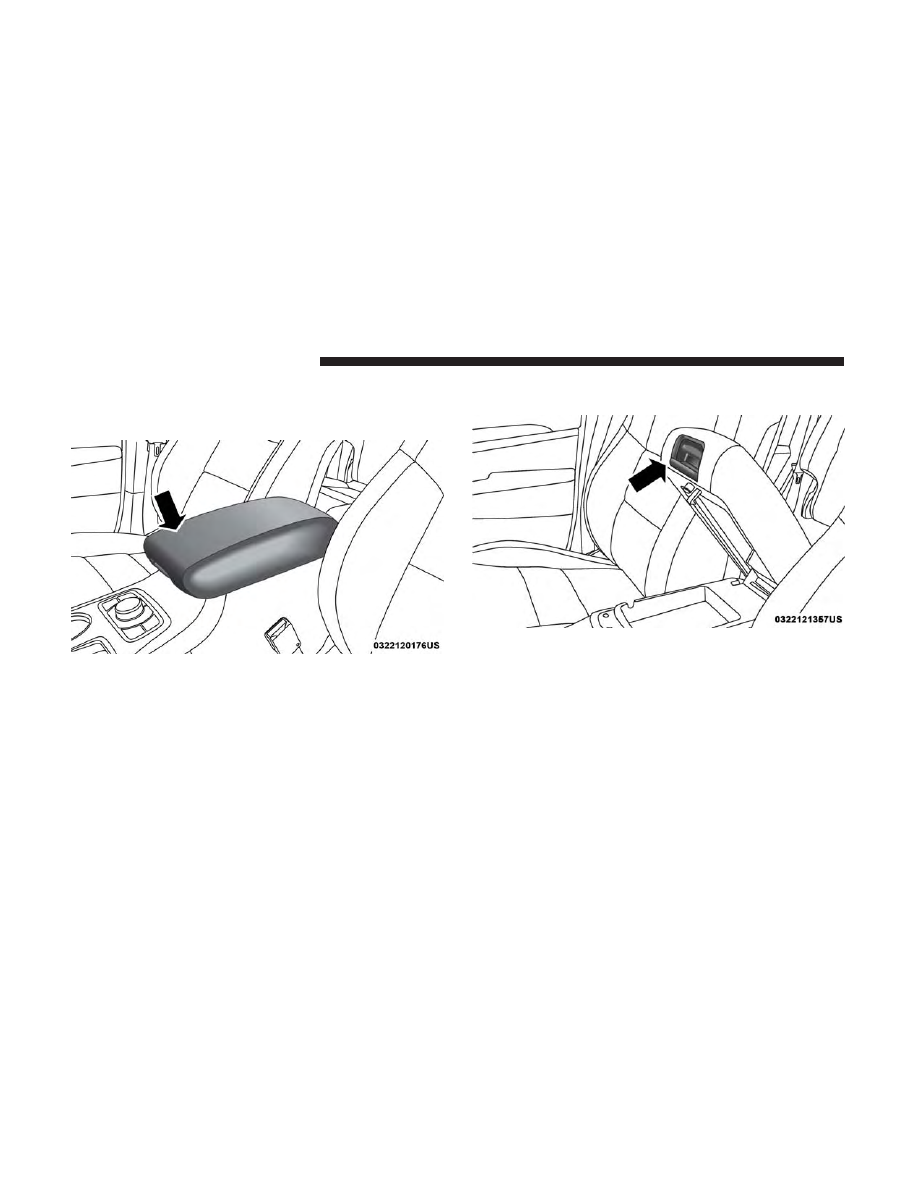

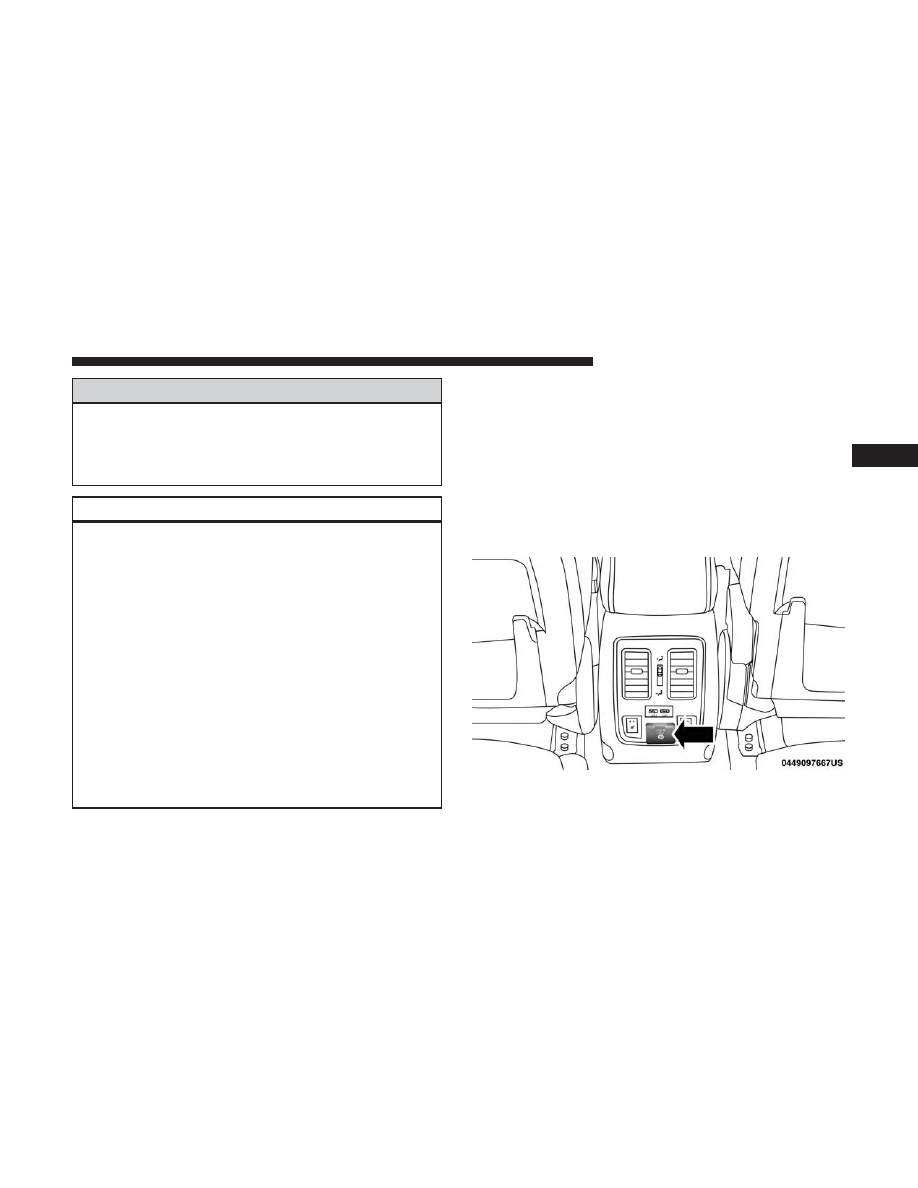

There are two cupholders for the rear seat passengers
located in the fold-down center armrest.

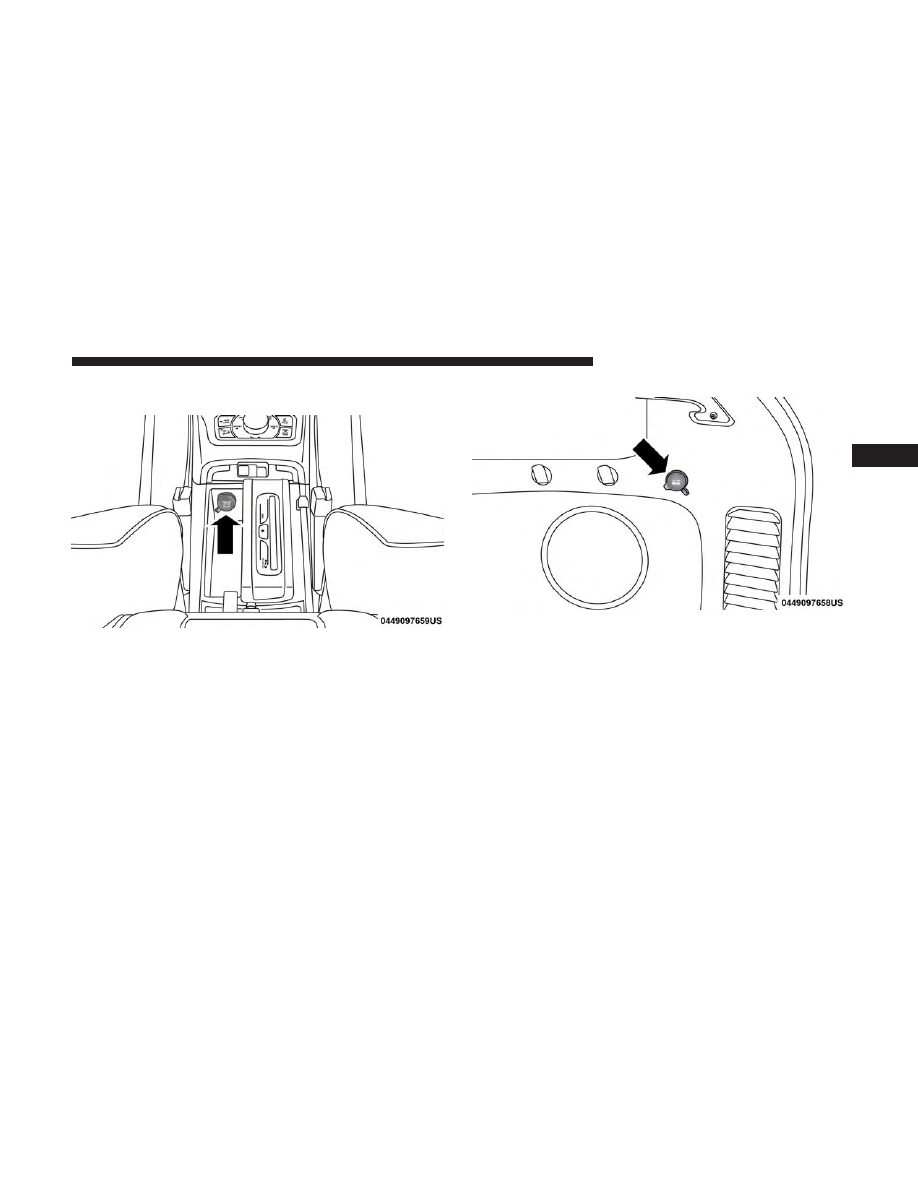

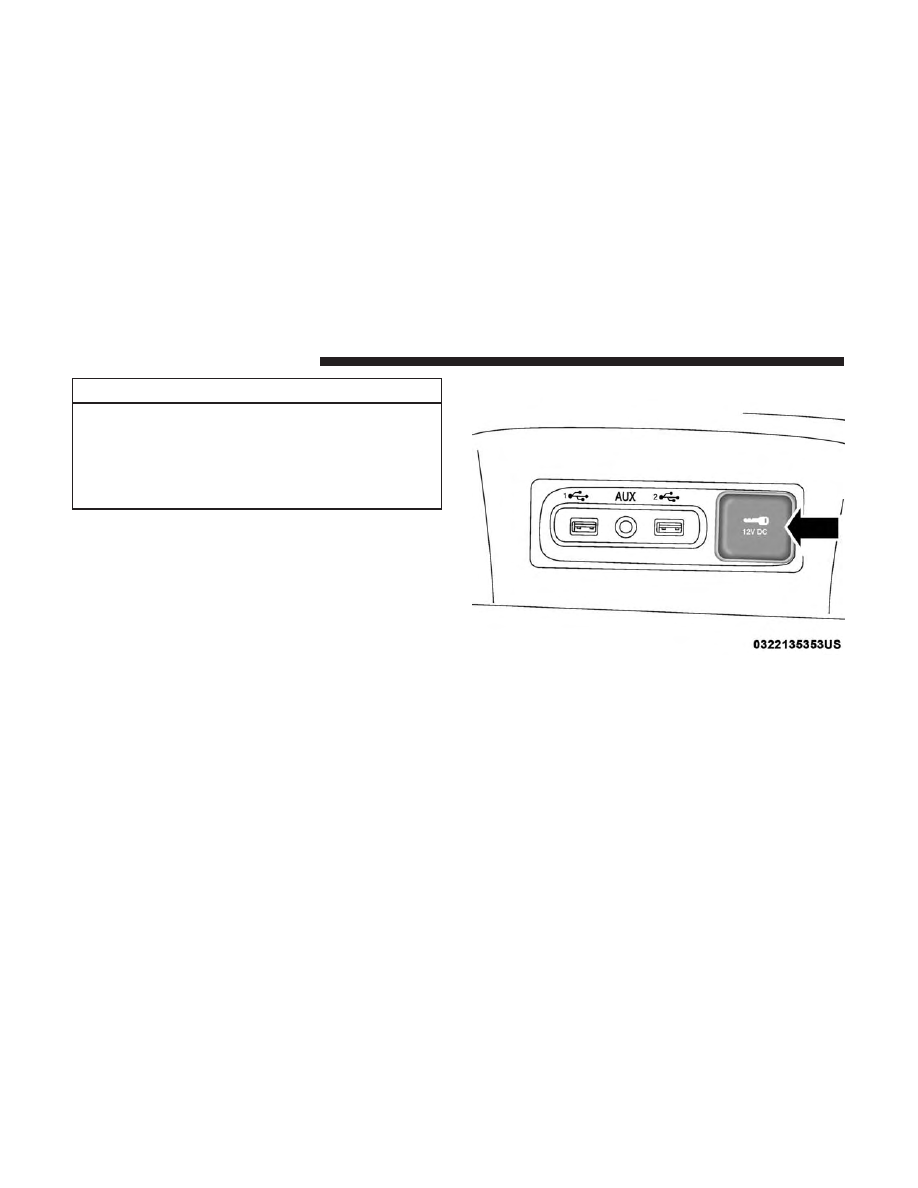

Electrical Power Outlets

Your vehicle is equipped with 12 Volt (15 Amp) power
outlets that can be used to power cellular phones, small
electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a
“battery” symbol to indicate how the outlet is powered.
Power outlets labeled with a “key” are powered when the
ignition is in the ON or ACC position, while the outlets
labeled with a “battery” are connected directly to the
battery and powered at all times.

NOTE:
• All accessories connected to the “battery” powered

outlets should be removed or turned off when the
vehicle is not in use to protect the battery against
discharge.

Rear Cupholders

3

GETTING TO KNOW YOUR VEHICLE

125

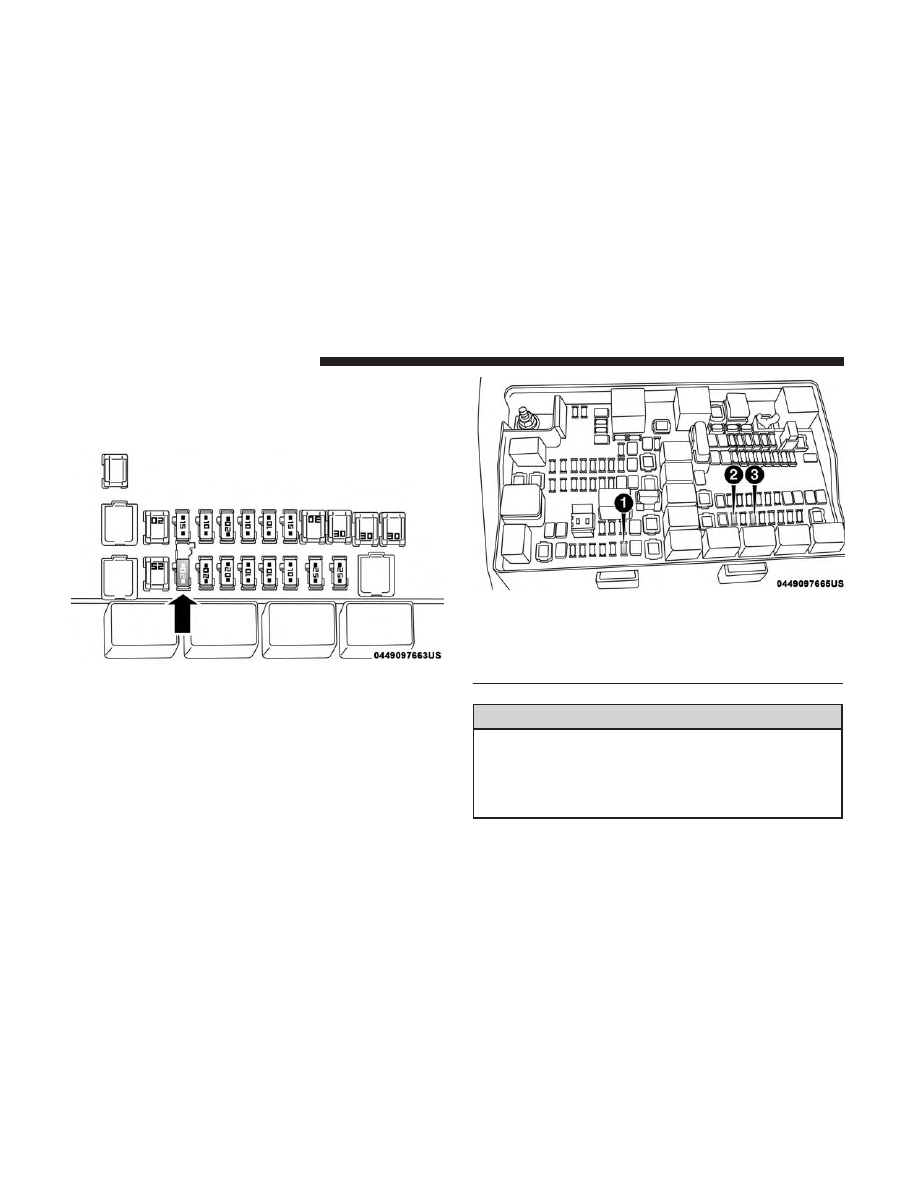

CAUTION!

Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse. Im-
proper use of the power outlet can cause damage not
covered by your New Vehicle Limited Warranty.

The front power outlet is located inside the storage area on
the center stack of the instrument panel. Push inward on
the storage lid to open the compartment and gain access to
this power outlet.

Front Power Outlet

126

GETTING TO KNOW YOUR VEHICLE

In addition to the front power outlet, there is also a power
outlet located in the storage area of the center console.

The rear power outlet is located in the right rear cargo area.

Center Console Outlet

Rear Cargo Power Outlet

3

GETTING TO KNOW YOUR VEHICLE

127

NOTE:

The rear power outlet can be switched from

switched “ignition” only to constant “battery” powered all
the time. See your local authorized dealer for details.

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

(Continued)

Power Outlet Right Rear Quarter Panel Fuse

Power Outlet Fuse Locations

1 — F104 Fuse 20 Amp Yellow Power Outlet Console Bin
2 — F90–F91 Fuse 20 Amp Yellow Power Outlet Right Rear Quarter
Panel
3 — F93 Fuse 20 Amp Yellow Cigar Lighter Instrument Panel

128

GETTING TO KNOW YOUR VEHICLE

WARNING! (Continued)

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with greater caution.

• After the use of high power draw accessories, or long

periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the generator to
recharge the vehicle’s battery.

Power Inverter — If Equipped

There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electronics
and other low power devices requiring power up to 150
Watts.

NOTE:

Certain high-end video game consoles, new com-

puters and power tools will exceed this power limit.

Power Inverter

3

GETTING TO KNOW YOUR VEHICLE

129

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded, the
power inverter will automatically shut down. Once the
electrical device has been removed from the outlet, the
inverter should automatically reset. To avoid overloading
the circuit, check the power ratings on electrical devices
prior to using the inverter.

WARNING!

To avoid serious injury or death:
• Do not insert any objects into the receptacles.

• Do not touch with wet hands.

• Close the lid when not in use.

• If this outlet is mishandled, it may cause an electric

shock and failure.

Sunglasses Bin Door

At the front of the console, a compartment is provided for
storing a pair of sunglasses. The storage compartment
access is a “push/push” design. Push the chrome pad on
the door to open. Push the chrome pad on the door to close.

ROOF LUGGAGE RACK — IF EQUIPPED

The crossbars and siderails are designed to carry the
weight on vehicles equipped with a luggage rack. The load
must not exceed 150 lbs (68 kg), and should be uniformly
distributed over the luggage rack crossbars.

NOTE:

If not equipped with crossbars, your authorized

dealer can order and install Mopar crossbars built specifi-
cally for this roof rack system.

Sunglasses Bin Door

130

GETTING TO KNOW YOUR VEHICLE

Distribute cargo weight evenly on the roof rack crossbars.
The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo inside
the vehicle plus that on the external rack does not exceed
the maximum vehicle load capacity.

To move the crossbars, loosen the attachments, located at
the upper edge of each crossbar, approximately eight turns
using the anti-theft wrench provided with the Mopar
crossbars. Then, move the crossbar to the desired position,
keeping the crossbars parallel to the rack frame. Once the
crossbar is in the desired position, retighten the with the
wrench to lock the crossbar into position.

NOTE:
• To help control wind noise when the crossbars are not in

use, place the front and rear crossbars approximately 24
inches (61 cm) apart. Optimal noise reduction can then
be achieved by adjusting the front crossbar forward or
aft using increments of 1 inch (2.5 cm).

• If any cargo (or any metallic object) is placed over the

satellite radio antenna (if equipped), you may experi-
ence interruption of satellite radio reception. For im-
proved satellite radio reception, avoid placing the rear
crossbar over the satellite radio antenna.

WARNING!

Cargo must be securely tied down before driving your
vehicle. Improperly secured loads can fly off the ve-
hicle, particularly at high speeds, resulting in personal
injury or property damage. Follow the roof rack cau-
tions when carrying cargo on your roof rack.

CAUTION!

• To prevent damage to the roof of your vehicle, do not

carry any loads on the roof rack without the crossbars
installed. The load should be secured and placed on
top of the crossbars, not directly on the roof. If it is
necessary to place the load on the roof, place a
blanket or some other protection between the load
and the roof surface.

(Continued)

3

GETTING TO KNOW YOUR VEHICLE

131















Content   ..  6  7  8  9   ..
