After selecting a mirror move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.

Power mirror preselected positions can be controlled by
the optional Memory Seat Feature. Refer to “Driver
Memory Seat” in this section for details.

Heated Power Mirrors — If Equipped

These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear

window defrost.

Illuminated Vanity Mirrors — If Equipped

To access an illuminated vanity mirror, flip down one of
the visors.

Lift the cover to reveal the mirror. The light will turn on
automatically.

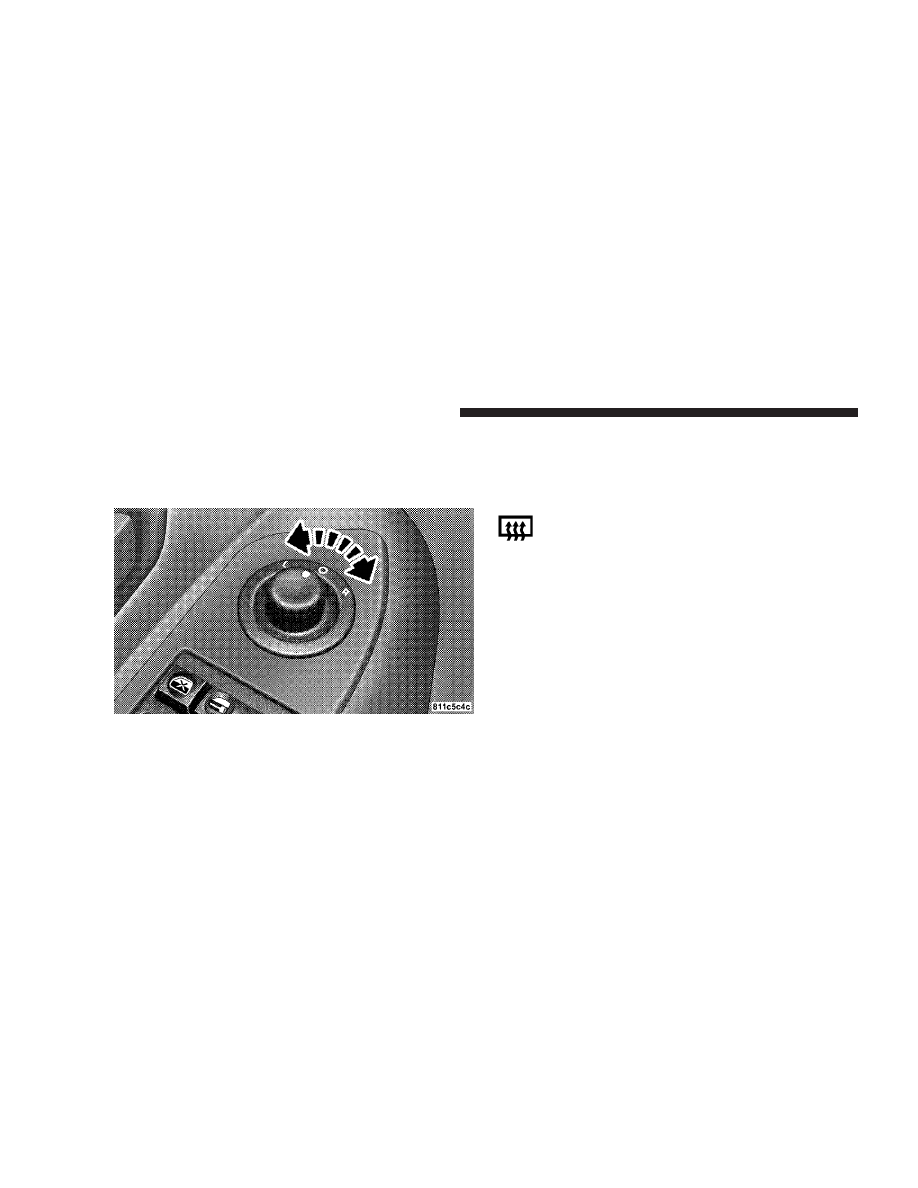

Power Mirror Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

HANDS-FREE COMMUNICATION (UConnect

姞

) —

IF EQUIPPED

NOTE: The sales code RER and REU radios contain an
integrated Hands-Free Communication (UConnect

威)

system. Refer to your “Navigation User’s Manual” for

UConnect

威 system operating instructions for these ra-

dios. Radio sales code can be located on the lower right
corner of the Radio faceplate.

UConnect

威 is a voice-activated, hands-free, in-vehicle

communications system. UConnect

威 allows you to dial a

phone number with your cellular phone using simple
voice commands (e.g.,

⬙Call” ѧ “Mike” ѧ”Work⬙ or ⬙Dial”

ѧ “248-555-1212⬙). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnect

威 system.

NOTE:

The UConnect

威 system requires a cellular phone

equipped with the Bluetooth

威 ⬙Hands-Free Profile,⬙ Ver-

sion 0.96 or higher. See the UConnect

威 website for

supported phones.

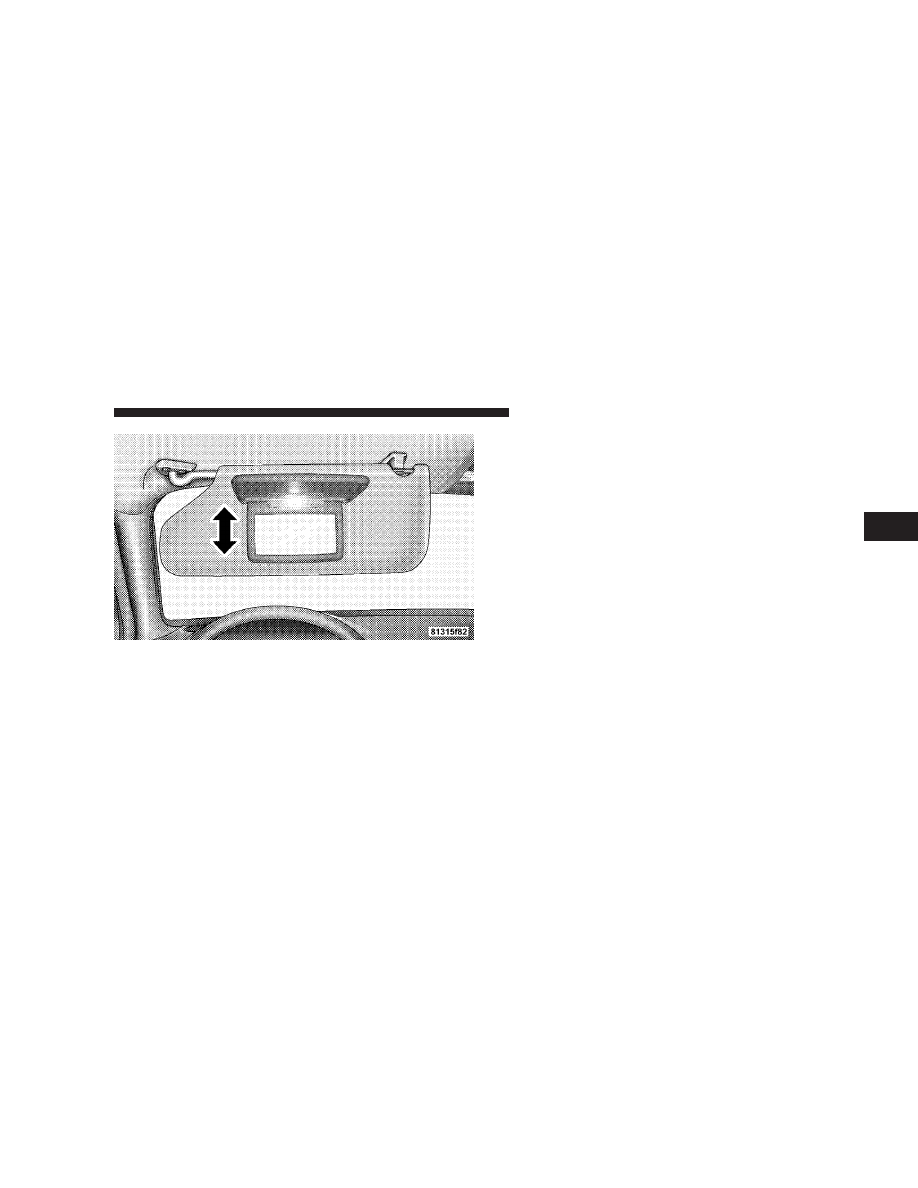

Lighted Vanity Mirror

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

For UConnect

威 customer support, visit the

following websites:

• www.chrysler.com/uconnect
• www.dodge.com/uconnect
• www.jeep.com/uconnect
• or call 1–877–855–8400

UConnect

威 allows you to transfer calls between the

system and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.

The UConnect

威 system is driven through your

Bluetooth

威 “Hands-Free Profile” cellular phone.

UConnect

威 features Bluetooth威 technology - the global

standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so

UConnect

威 works no matter where you stow your cellu-

lar phone (be it your purse, pocket, or briefcase), as long
as your phone is turned on and has been paired to the
vehicle’s UConnect

威 system. The UConnect威 system

allows up to seven cellular phones to be linked to the
system. Only one linked (or paired) cellular phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.

Phone Button

The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons

(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Voice Recognition Button

Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.

The UConnect

威 system can be used with any Hands-Free

Profile certified Bluetooth

威 cellular phone. See the

UConnect

威 website for supported phones. If your cellu-

lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnect

威

features. Refer to your cellular service provider or the
phone manufacturer for details.

The UConnect

威 system is fully integrated with the vehi-

cle’s audio system. The volume of the UConnect

威 system

can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.

The radio display will be used for visual prompts from
the UConnect

威 system such as ⬙CELL⬙ or caller ID on

certain radios.

Operation

Voice commands can be used to operate the UConnect

威

system and to navigate through the UConnect

威 menu

structure. Voice commands are required after most
UConnect

威 system prompts. You will be prompted for a

specific command and then guided through the available
options.

• Prior to giving a voice command, one must wait for

the beep, which follows the

⬙Ready⬙ prompt or another

prompt.

• For certain operations, compound commands can be

used. For example, instead of saying

⬙Setup⬙ and then

⬙Phone Pairing,⬙ the following compound command
can be said:

⬙Setup Phone Pairing.⬙

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• For each feature explanation in this section, only the

combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mand

⬙Phonebook New Entry,⬙ or you can break the

combined form command into two voice commands:

⬙Phonebook⬙ and ⬙New Entry.⬙ Please remember, the
UConnect

威 system works best when you talk in a

normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.

Voice Command Tree
Refer to “Voice Tree” in this section.

Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say

⬙Help⬙ following

the beep. The UConnect

威 system will play all the options

at any prompt if you ask for help.

To activate the UConnect

威 system from idle, simply press

the PHONE button and follow the audible prompts for
directions. All UConnect

威 system sessions begin with a

press of the PHONE button on the radio control head.

Cancel Command
At any prompt, after the beep, you can say

⬙Cancel⬙ and

you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.

Pair (Link) UConnect

威 System to a Cellular Phone

To begin using your UConnect

威 system, you must pair

your compatible Bluetooth

威 enabled cellular phone.

To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
UConnect

威 website may also provide detailed instruc-

tions for pairing.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The following are general phone to UConnect

威 system

pairing instructions:

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Setup Phone Pairing.⬙

• When prompted, after the beep, say ⬙Pair a Phone⬙ and

follow the audible prompts.

• You will be asked to say a four-digit Personal Identi-

fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.

• For identification purposes, you will be prompted to

give the UConnect

威 system a name for your cellular

phone. Each cellular phone that is paired should be
given a unique phone name.

• You will then be asked to give your cellular phone a

priority level between one and seven, with one being
the highest priority. You can pair up to seven cellular
phones to your UConnect

威 system. However, at any

given time, only one cellular phone can be in use,
connected to your UConnect

威 system. The priority

allows the UConnect

威 system to know which cellular

phone to use if multiple cellular phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
UConnect

威 system will use the priority three cellular

phone when you make a call. You can select to use a
lower priority cellular phone at any time (refer to

⬙Advanced Phone Connectivity⬙ in this section).

Dial by Saying a Number

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Dial.⬙

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• The system will prompt you to say the number you

want to call.

• For example, you can say ⬙234-567-8901⬙.
• The UConnect威 system will confirm the phone num-

ber and then dial. The number will appear in the
display of certain radios.

Call by Saying a Name

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

“Call.

⬙

• The system will prompt you to say the name of the

person you want to call.

• After the ⬙Ready⬙ prompt and the following beep, say

the name of the person you want to call. For example,
you can say

⬙John Doe,⬙ where John Doe is a previ-

ously stored name entry in the UConnect

威 phonebook

or downloaded phonebook. To learn how to store a
name in the phonebook, refer to

⬙Add Names to Your

UConnect

威 Phonebook,⬙ in the phonebook.

• The UConnect威 system will confirm the name and

then dial the corresponding phone number, which
may appear in the display of certain radios.

Add Names to Your UConnect

威 Phonebook

NOTE:

Adding names to the UConnect

威 phonebook is

recommended when the vehicle is not in motion.

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook New Entry.⬙

• When prompted, say the name of the new entry. Use of

long names helps the voice recognition and it is
recommended. For example, say

⬙Robert Smith⬙ or

⬙Robert⬙ instead of ⬙Bob.⬙

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• When prompted, enter the number designation (e.g.,

⬙Home,⬙ ⬙Work,⬙ ⬙Mobile,⬙ or ⬙Pager⬙). This will allow
you to store multiple numbers for each phonebook
entry, if desired.

• When prompted, recite the phone number for the

phonebook entry that you are adding.

After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.

The UConnect

威 system will allow you to enter up to 32

names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, UConnect

威 automatically

downloads your mobile phone’s phonebook.

Phonebook Download – Automatic Phonebook
Transfer From Mobile Phone
If equipped and specifically supported by your phone,
UConnect

威 automatically downloads names (text names)

and number entries from the mobile phone’s phonebook.
Specific Bluetooth

威 Phones with Phone Book Access

Profile may support this feature. See UConnect

威 website

for supported phones.

• To call a name from downloaded (or UConnect威)

Phonebook, follow the procedure in “Call by Saying a
Name” section.

• Automatic download and update, if supported, begins

as soon as the Bluetooth

威 wireless phone connection is

made to the UConnect

威, for example, after you start

the vehicle.

• A maximum of 1000 entries per phone will be down-

loaded and updated every time a phone is connected
to the UConnect

威.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Depending on the maximum number of entries down-

loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previous downloaded phonebook is available
for use.

• Only the phonebook of the currently connected mobile

phone is accessible.

• Only the mobile phone’s phonebook is downloaded.

SIM card phonebook is not part of the Mobile phone-
book.

• This downloaded phonebook cannot be edited or

deleted on the UConnect

威. These can only be edited on

the mobile phone. The changes are transferred and
updated to UConnect

威 on the next phone connection.

Phonebook Download — Single Entry
If equipped and supported by your phone, UConnect

威

allows the user to download entries from their phone via

Bluetooth

威. To use this feature, press the PHONE button

and say “Phonebook Download.” The system prompts,
“Ready to accept “V” card entry via Bluetooth

威…” The

system is now ready to accept phonebook entries from
your phone using the Bluetooth

威 Object Exchange Profile

(OBEX). Please see your phone Owner’s Manual for
specific instructions on how to send these entries from
your phone.

NOTE:

• The phone handset must support Bluetooth威 OBEX

transfers of phonebook entries to use this feature.

• Some phones cannot send phonebook entries if they

are already connected to any system via Bluetooth

威,

and you may see a message on the phone display that
the Bluetooth

威 link is busy. In this case, the user must

first disconnect or drop the Bluetooth

威 connection to

the UConnect

威 system, and then send the address

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

book entry via Bluetooth

威. Please see your phone

Owner’s Manual for specific instructions on how to
drop the Bluetooth

威 connection.

• If the phonebook entry is longer than 24 characters, it

will only use the first 24 characters.

Edit UConnect

威 Phonebook Entries

NOTE:

• Editing names in the phonebook is recommended

when the vehicle is not in motion.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook Edit.⬙

• You will then be asked for the name of the phonebook

entry that you wish to edit.

• Next, choose the number designation (home, work,

mobile, or pager) that you wish to edit.

• When prompted, recite the new phone number for the

phonebook entry that you are editing.

After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.

⬙Phonebook Edit⬙ can be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
mobile and a home number, but you can add ”John
Doe’s” work number later using the

⬙Phonebook Edit⬙

feature.

Delete UConnect

威 Phonebook Entry

NOTE:

Editing phonebook entries is recommended

when the vehicle is not in motion.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook Delete.⬙

• After you enter the Phonebook Delete menu, you will

then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can say

⬙List

Names

⬙ to hear a list of the entries in the phonebook

from which you choose. To select one of the entries
from the list, press the VOICE RECOGNITION button
while the UConnect

威 system is playing the desired

entry and say

⬙Delete.⬙

• After you enter the name, the UConnect威 system will

ask you which designation you wish to delete: home,
work, mobile, pager, or all. Say the designation you
wish to delete.

• Note that only the phonebook entry in the current

language is deleted.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

Delete/Erase “All” UConnect

威 Phonebook Entries

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook Erase All.⬙

• The UConnect威 system will ask you to verify that you

wish to delete all the entries from the phonebook.

• After confirmation, the phonebook entries will be

deleted.

• Note that only the phonebook in the current language

is deleted.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Automatic downloaded phonebook entries cannot be

deleted or edited.

List All Names in the UConnect

威 Phonebook

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook List Names.⬙

• The UConnect威 system will play the names of all the

phonebook entries, including the downloaded phone-
book entries, if available.

• To call one of the names in the list, press the VOICE

RECOGNITION button during the playing of the
desired name, and say

⬙Call.⬙

NOTE:

The user can also exercise

⬙Edit⬙ or ⬙Delete⬙

operations at this point.

• The UConnect威 system will then prompt you as to the

number designation you wish to call.

• The selected number will be dialed.

Phone Call Features

The following features can be accessed through the
UConnect

威 system if the feature(s) are available on your

cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the UConnect

威 system. Check with

your cellular service provider for the features that you
have.

Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
UConnect

威 system will interrupt the vehicle audio sys-

tem, if on, and will ask if you would like to answer the
call. Press the PHONE button to accept the call. To reject
the call, press and hold the PHONE button until you hear
a single beep, indicating that the incoming call was
rejected.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
cellular phone. Press the PHONE button to place the
current call on hold and answer the incoming call.

NOTE:

The UConnect

威 system compatible phones in

the market today do not support rejecting an incoming
call when another call is in progress. Therefore, the user
can only answer an incoming call or ignore it.

Making a Second Call While Current Call is in
Progress
To make a second call while you are currently on a call,
press the VOICE RECOGNITION button and say

⬙Dial⬙

⬙Call⬙ followed by the phone number or phonebook

entry you wish to call. The first call will be on hold while
the second call is in progress. To go back to the first call,

refer to

⬙Toggling Between Calls⬙ in this section. To

combine two calls, refer to

⬙Conference Call⬙ in this

section.

Place/Retrieve a Call From Hold
To put a call on hold, press the PHONE button until you
hear a single beep. This indicates that the call is on hold.
To bring the call back from hold, press and hold the
PHONE button until you hear a single beep.

Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the PHONE button until you hear a single beep,
indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at a
time.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Conference Call
When two calls are in progress (one active and one on
hold), press and hold the PHONE button until you hear
a double beep indicating that the two calls have been
joined into one conference call.

Three-Way Calling
To initiate three-way calling, press the VOICE RECOG-
NITION button while a call is in progress, and make a
second phone call, as described under

⬙Making a Second

Call While Current Call is in Progress.

⬙ After the second

call has established, press and hold the PHONE button
until you hear a double beep, indicating that the two calls
have been joined into one conference call.

Call Termination
To end a call in progress, momentarily press the PHONE
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
If the active call is terminated by the far end, a call on

hold may not become active automatically. This is cell
phone-dependent. To bring the call back from hold, press
and hold the PHONE button until you hear a single beep.

Redial

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Redial.⬙

• The UConnect威 system will call the last number that

was dialed from your cellular phone.

NOTE:

This may not be the last number dialed from the

UConnect

威 system.

Call Continuation
Call continuation is the progression of a phone call on the
UConnect

威 system after the vehicle ignition key has been

switched to OFF. Call continuation functionality avail-
able on the vehicle can be any one of three types:

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• After the ignition key is switched to OFF, a call can

continue on the UConnect

威 system either until the call

ends, or until the vehicle battery condition dictates
cessation of the call on the UConnect

威 system and

transfer of the call to the mobile phone.

• After the ignition key is switched to OFF, a call can

continue on the UConnect

威 system for a certain dura-

tion, after which the call is automatically transferred
from the UConnect

威 system to the mobile phone.

• An active call is automatically transferred to the

mobile phone after the ignition key is switched to OFF.

UConnect

姞

System Features

Language Selection
To change the language that the UConnect

威 system is

using:

• Press the PHONE button to begin.

• After the ⬙Ready⬙ prompt and the following beep, say

the name of the language you wish to switch to
English, Espanol, or Francais.

• Continue to follow the system prompts to complete

the language selection.

After selecting one of the languages, all prompts and
voice commands will be in that language.

NOTE:

After every UConnect

威 language change opera-

tion, only the language-specific 32-name phonebook is
usable. The paired phone name is not language-specific
and usable across all languages.

Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:

• Pick up the phone and manually dial the emergency

number for your area.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If the phone is not reachable and the UConnect

威 system

is operational, you may reach the emergency number as
follows:

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Emergency⬙ and the UConnect威 system will instruct
the paired cellular phone to call the emergency num-
ber. This feature is supported in the U.S., Canada, and
Mexico.

NOTE:

• The emergency number dialed is based on the country

where the vehicle is purchased (911 for the U.S. and
Canada and 060 for Mexico). The number dialed may
not be applicable with the available cellular service
and area.

• If supported, this number may be programmable on

some systems. To do this, press the PHONE button
and say ‘Setup’, followed by ‘Emergency’.

• The UConnect威 system does slightly lower your

chances of successfully making a phone call as to that
for the cell phone directly.

WARNING!

Your phone must be turned on and paired to the
UConnect

威 system to allow use of this vehicle feature

in emergency situations, when the cell phone has
network coverage and stays paired to the UConnect

威

system.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Jeep Grand Cherokee SRT8 (2009 year). Instruction - part 6
