Jeep XJ. Manual - part 802





(7) Align shift socket with shaft and slide shaft

through socket and into shift shaft bearing in rear
housing (Fig. 103).

(8) Rotate shift shaft so detent notches in shaft are

facing the TOP of the transmission housing.

CAUTION: Positioning of the shift shaft detent
notch is important. Both of the shaft roll pins can
be installed even when the shaft is 180° off. If this
occurs, the transmission will have to be disassem-
bled again to correct shaft alignment.

(9) Select correct new roll pin for shift shaft lever

(Fig. 104). Shaft lever roll pin is approximately 22
mm (7/8 in.) long. Shift socket roll pin is approxi-
mately 33 mm (1-1/4 in.) long.

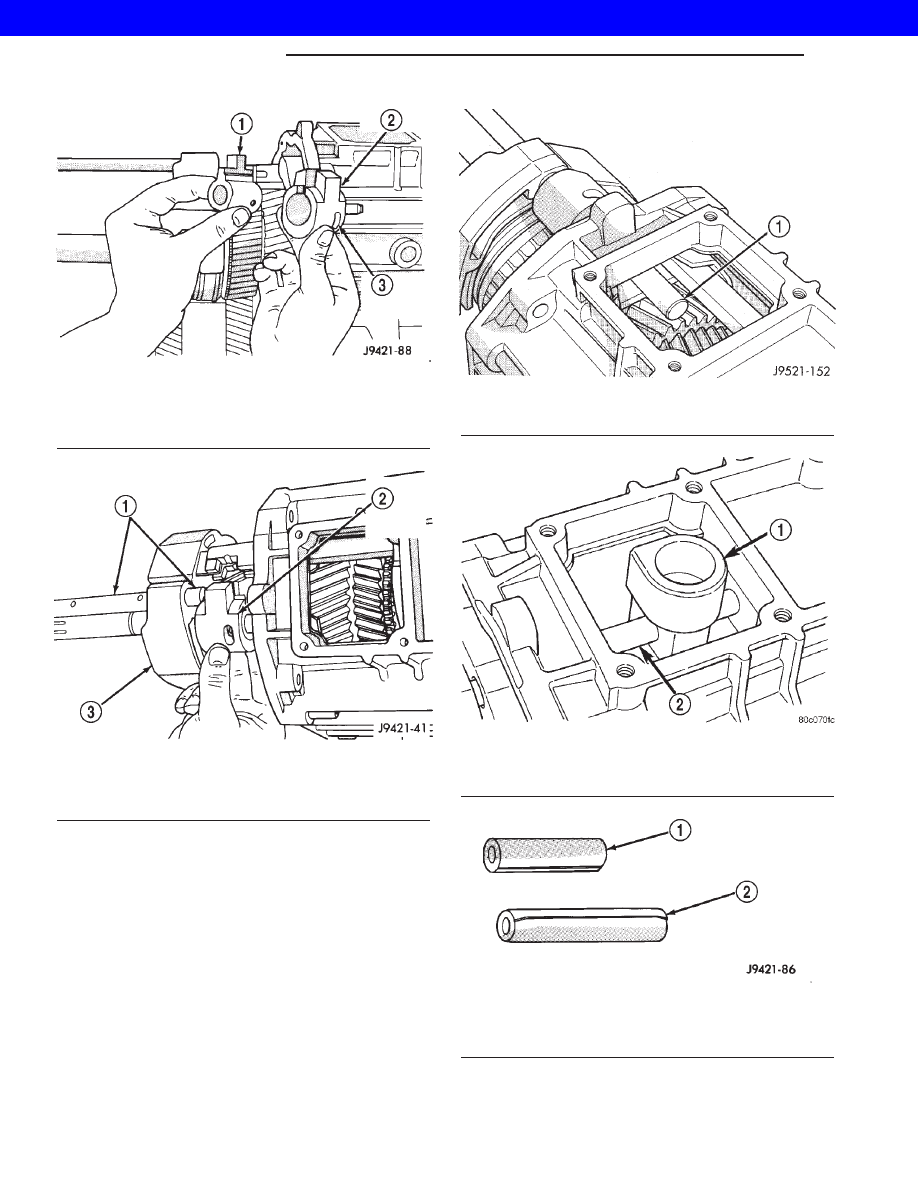

Fig. 100 LEVER AND BUSHING

1 - SHAFT LEVER
2 - LEVER BUSHING
3 - BUSHING LOCK PIN SLOT

Fig. 101 LEVER AND BUSHING ASSENBLY

1 - SHIFT SHAFT
2 - SHAFT LEVER AND BUSHING
3 - 3-4 FORK

Fig. 102 SHAFT IN LEVER OPENING

1 - SHIFT SHAFT

Fig. 103 SHIFT SOCKET

1 - SHIFT SOCKET
2 - SHIFT SHAFT

Fig. 104 ROLL PIN IDENTIFICATION

1 - SHAFT LEVER ROLL PIN
2 - SHIFT SOCKET ROLL PIN

21s - 30

MANUAL NV 3550

XJ

MANUAL NV 3550 (Continued)

2001 JEEP CHEROKEE

(10) Align roll pin holes in shift shaft, lever and

bushing. Then start roll pin into shaft lever by hand
(Fig. 105).

(11) Seat shaft lever roll pin with pin punch (Fig.

106).

CAUTION: The shaft lever roll pin must be flush
with the surface of the lever. The lever bushing will
bind on the roll pin if the pin is not seated flush.

(12) Verify that lock pin slot in lever bushing is

positioned as shown (Fig. 106).

(13) Align roll pin holes in shift socket and shift

shaft. Then start roll pin into shift shaft by hand
(Fig. 107).

(14) Seat roll pin in shift socket with pin punch.

Roll pin must be flush with socket (Fig. 108).

(15) Verify that notches in shift fork arms are

aligned. Realign arms if necessary.

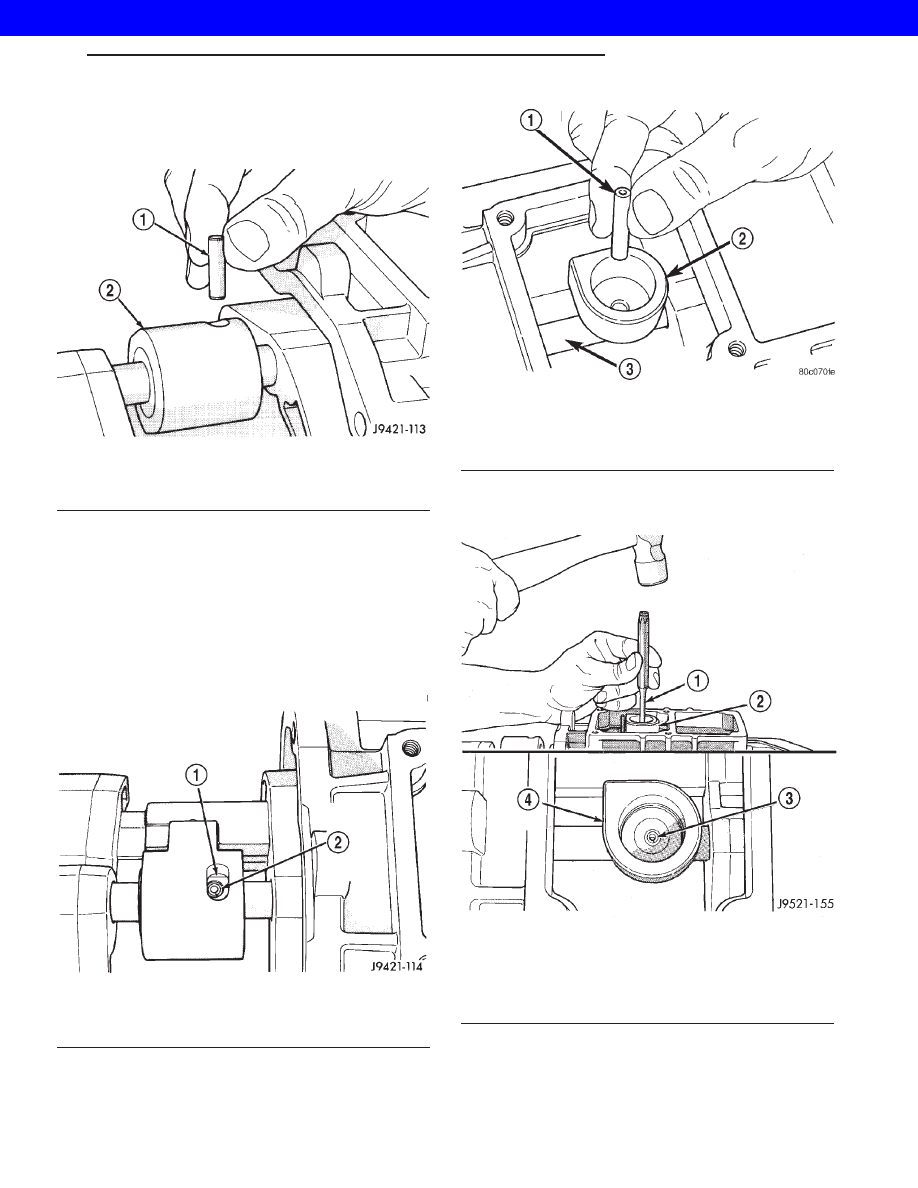

Fig. 105 ROLL PIN IN SHIFT SHAFT

1 - SHAFT LEVER ROLL PIN (” LONG)
2 - LEVER AND BUSHING

Fig. 106 SHIFT SHAFT LEVER ROLL

1 - BUSHING LOCK PIN SLOT
2 - SEAT ROLL PIN FLUSH WITH LEVER

Fig. 107 ROLL PIN IN SHIFT SOCKET

1 - ROLL PIN
2 - SHIFT SOCKET
3 - SHIFT SHAFT

Fig. 108 SEATING SHIFT SOCKET ROLL PIN

1 - PIN PUNCH
2 - SHIFT SOCKET
3 - SEAT ROLL PIN FLUSH
4 - SHIFT SOCKET

XJ

MANUAL NV 3550

21s - 31

MANUAL NV 3550 (Continued)

2001 JEEP CHEROKEE

FRONT HOUSING AND INPUT SHAFT BEARING
RETAINER

(1) Install reverse blocker, retainter and retainer

bolt in front housing.

(2) If previously removed, input shaft bearing in

front housing (Fig. 109). Install snap ring and use
plastic mallet to seat bearing. Bearing goes in from
front side of housing only.

(3) Apply liberal quantity of petroleum jelly to

countershaft front bearing. Then insert bearing in
front housing race (Fig. 109). Large diameter side of
bearing cage goes toward countershaft (Fig. 110).
Small diameter side goes toward bearing race in
housing.

(4) Reach into countershaft front bearing with fin-

ger, and push each bearing roller outward against
race. Then apply extra petroleum jelly to hold rollers
in place. This avoids having rollers becoming dis-
placed during housing installation.

(5) Apply small amount of petroleum jelly to shift

shaft bushing in front housing.

(6) Apply 1/8 in. wide bead of Mopar Gasket

Maker or equivalent, to mating surfaces of front and
rear housings (Fig. 111).

(7) Have helper hold rear housing and geartrain in

upright position. Then install front housing on rear
housing and geartrain.

(8) Work front housing downward onto geartrain

until seated on rear housing.

CAUTION: If the front housing will not seat on the
rear housing, either the shift components are not in
Neutral, or one or more components are mis-

aligned. Do not force the front housing into place.
This will only result in damaged components.

(9) Tap rear housing alignment dowels back into

place with hammer and pin punch. Both dowels
should be flush fit in each housing. Have helper hold
transmission upright while dowels are tapped back
into place.

(10) Place transmission in horizontal position.

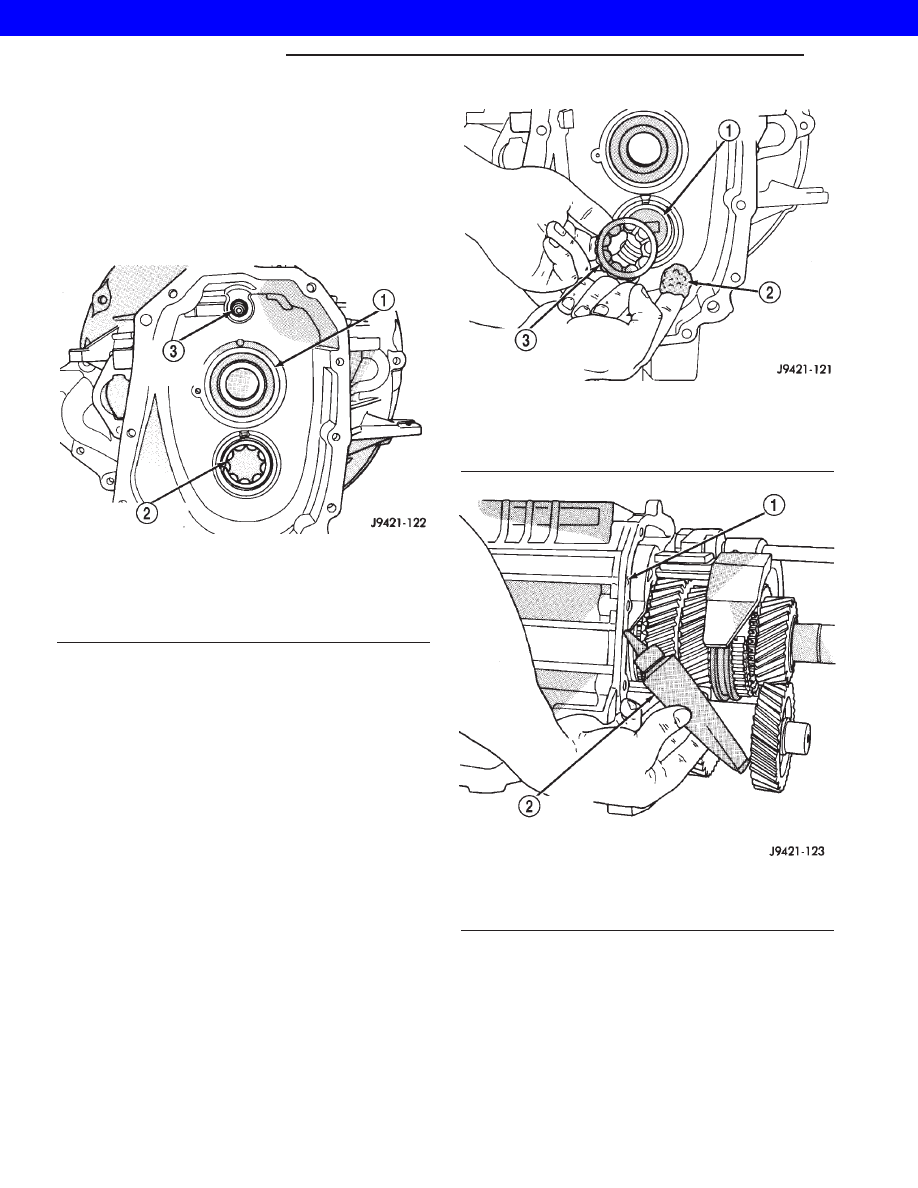

Fig. 109 INPUT SHAFT AND COUNTERSHAFT

FRONT BEARING

1 - INPUT SHAFT BEARING
2 - COUNTERSHAFT FRONT BEARING
3 - SHIFT SHAFT BUSHING

Fig. 110 COUNTERSHAFT FRONT BEARING

1 - BEARING RACE
2 - PETROLEUM JELLY
3 - COUNTERSHAFT FRONT BEARING

Fig. 111 SEAL FRONT/REAR HOUSINGS

1 - HOUSING FLANGE SURFACE
2 - MOPAR GASKET MAKER (OR LOCTITE 518)

21s - 32

MANUAL NV 3550

XJ

MANUAL NV 3550 (Continued)

2001 JEEP CHEROKEE

(11) Apply Mopar Gasket Maker or equivalent to

housing attaching bolts. Apply sealer material sealer
to underside of bolt heads and to bolt shanks and
threads (Fig. 112).

(12) Install and start housing attaching bolts by

hand (Fig. 112). Then tighten bolts to 34 N·m (25 ft.
lbs.).

(13) Install shift shaft bushing lock bolt (Fig. 113).

Apply Mopar Gasket Maker or equivalent, to bolt
threads, shank and underside of bolt head before
installation.

CAUTION: If the lock bolt cannot be fully installed,
do not try to force it into place. Either the shift
shaft is not in Neutral or the shaft bushing (or
lever) is misaligned.

(14) Lubricate

then

install

shift

shaft

detent

plunger in housing bore (Fig. 114). Lubricate plunger
with

petroleum

jelly

or

gear

lubricant.

Verify

plunger is fully seated in detent notch in shift
shaft.

(15) Install detent spring inside plunger (Fig. 114).
(16) Install plug on detent spring and compress

spring. Then drive detent plug into transmission case
until plug seats.

(17) Install backup light switch (Fig. 115).

(18) Install input shaft snap ring (Fig. 116).
(19) Install new oil seal in front bearing retainer

with Installer 6448 (Fig. 117).

(20) Apply bead of Mopar silicone sealer or equiv-

alent to flange surface of front bearing retainer (Fig.
118).

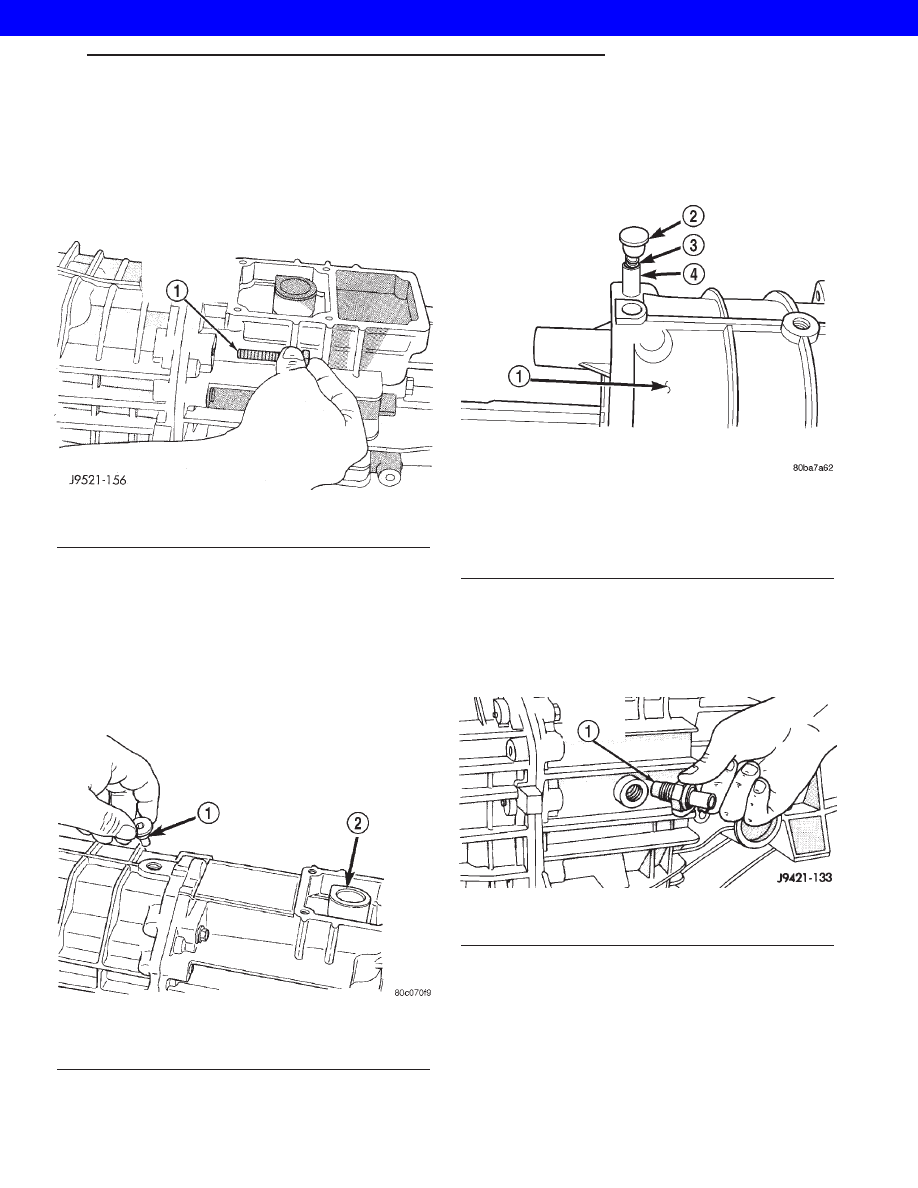

Fig. 112 HOUSING BOLTS

1 - HOUSING ATTACHING BOLTS

Fig. 113 SHIFT SHAFT BUSHING LOCK BOLT

1 - SHIFT SHAFT LOCK BOLT
2 - SHAFT SOCKET

Fig. 114 SHIFT SHAFT DETENT PLUNGER

1 - FRONT HOUSING
2 - PLUG
3 - SPRING
4 - PLUNGER

Fig. 115 BACKUP LIGHT SWITCH

1 - BACKUP LIGHT SWITCH

XJ

MANUAL NV 3550

21s - 33

MANUAL NV 3550 (Continued)

2001 JEEP CHEROKEE
