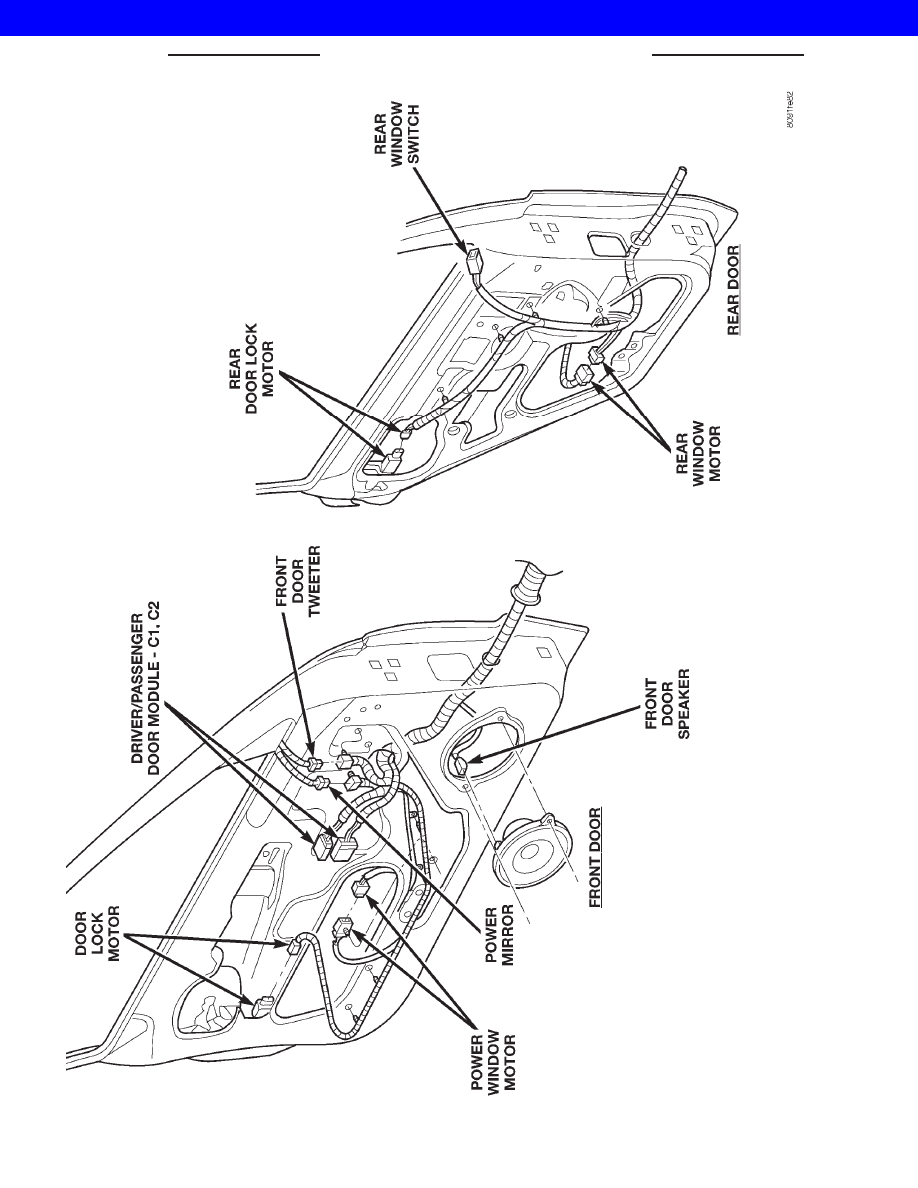

Fig.

24

FRONT

AND

REAR

DOORS

(LEFT

SIDE

SHOWN,

RIGHT

SIDE

SIMILAR)

8Wa - 90 - 34

8Wa-90 CONNECTOR/GROUND LOCATIONS

XJ

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP CHEROKEE

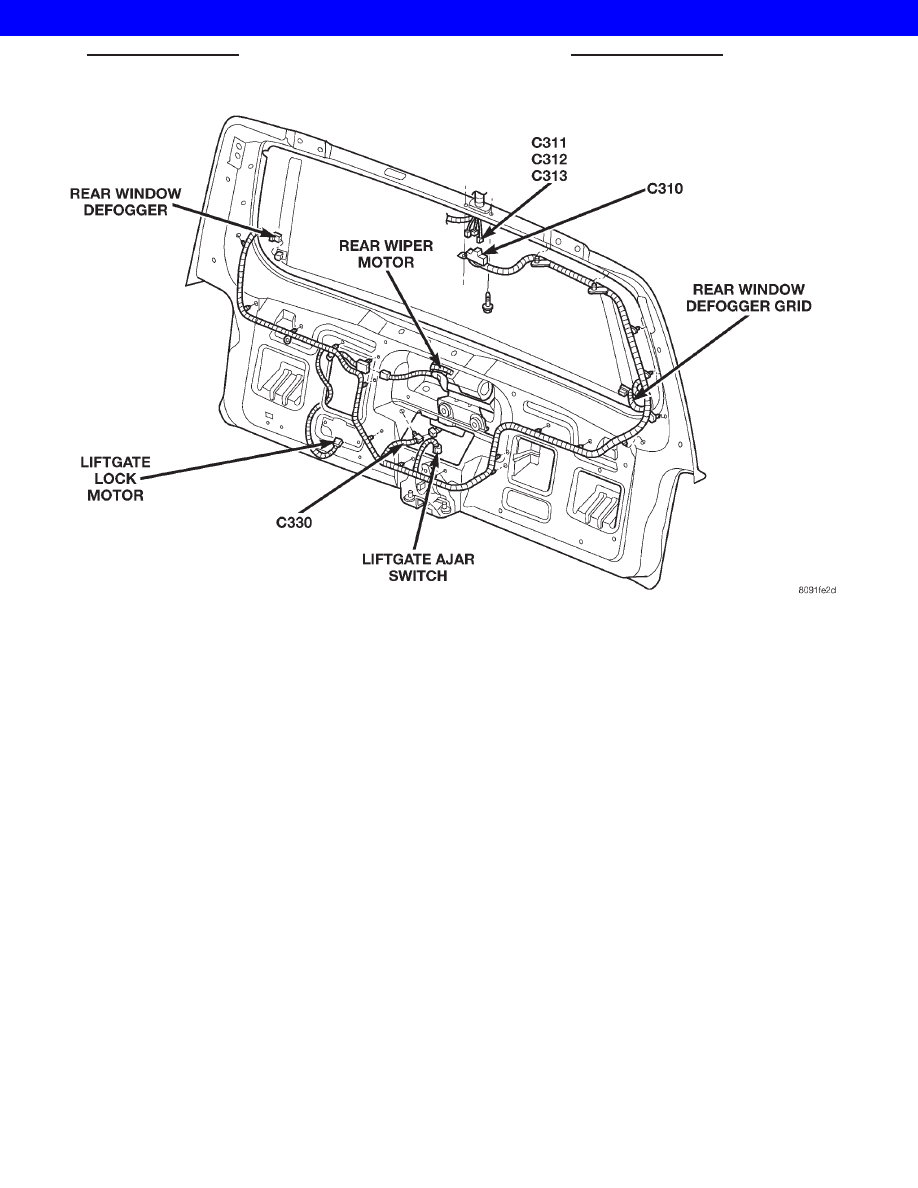

Fig. 25 LIFTGATE

XJ

8Wa-90 CONNECTOR/GROUND LOCATIONS

8Wa - 90 - 35

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP CHEROKEE

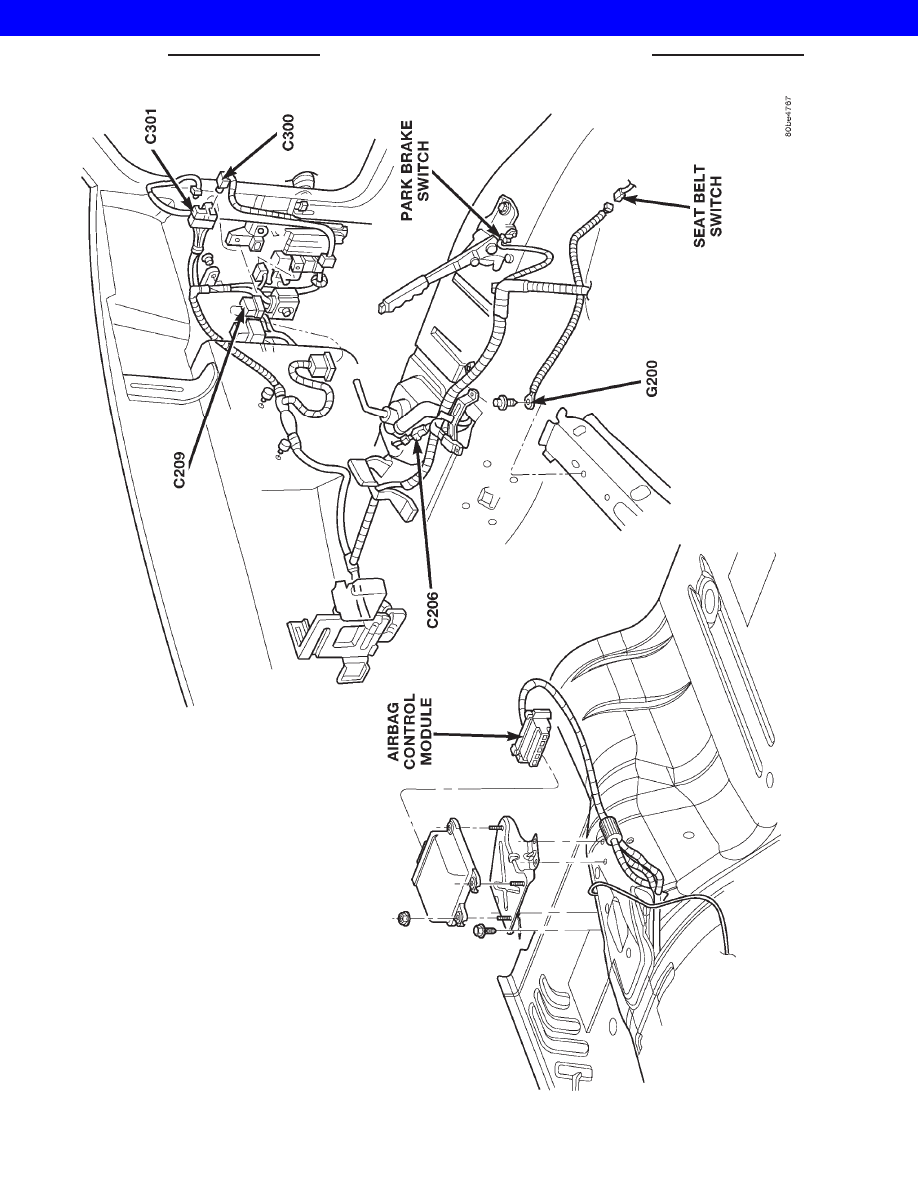

Fig.

26

CENTER

CONSOLE

LHD

8Wa - 90 - 36

8Wa-90 CONNECTOR/GROUND LOCATIONS

XJ

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP CHEROKEE

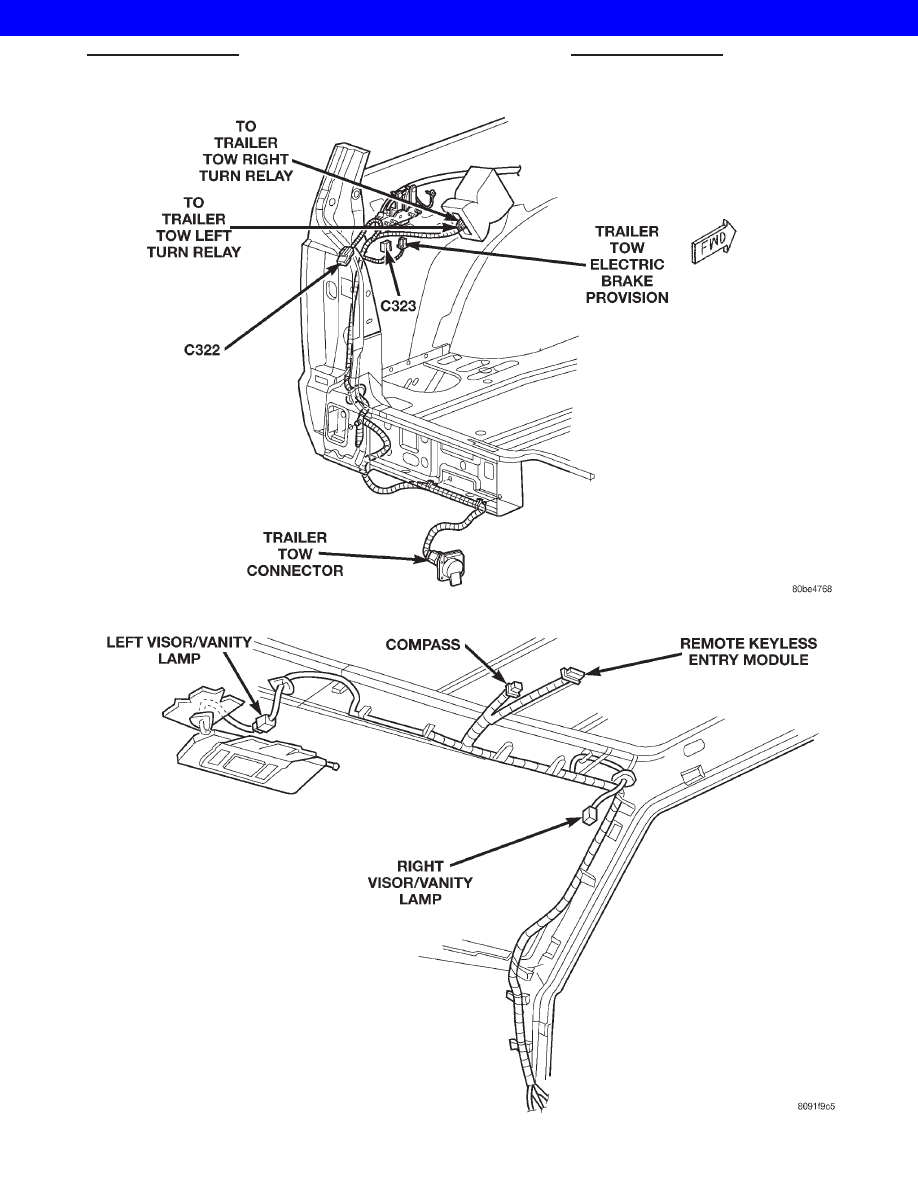

Fig. 27 TRAILER TOW

Fig. 28 HEADLINER

XJ

8Wa-90 CONNECTOR/GROUND LOCATIONS

8Wa - 90 - 37

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP CHEROKEE
