Fig.

16

UNDER

DASH

COMPONENTS

8Wa - 90 - 26

8Wa-90 CONNECTOR/GROUND LOCATIONS

XJ

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP CHEROKEE

Fig.

17

LEFT

SIDE

BODY

LHD

XJ

8Wa-90 CONNECTOR/GROUND LOCATIONS

8Wa - 90 - 27

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP CHEROKEE

Fig.

18

LEFT

SIDE

BODY

RHD

8Wa - 90 - 28

8Wa-90 CONNECTOR/GROUND LOCATIONS

XJ

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP CHEROKEE

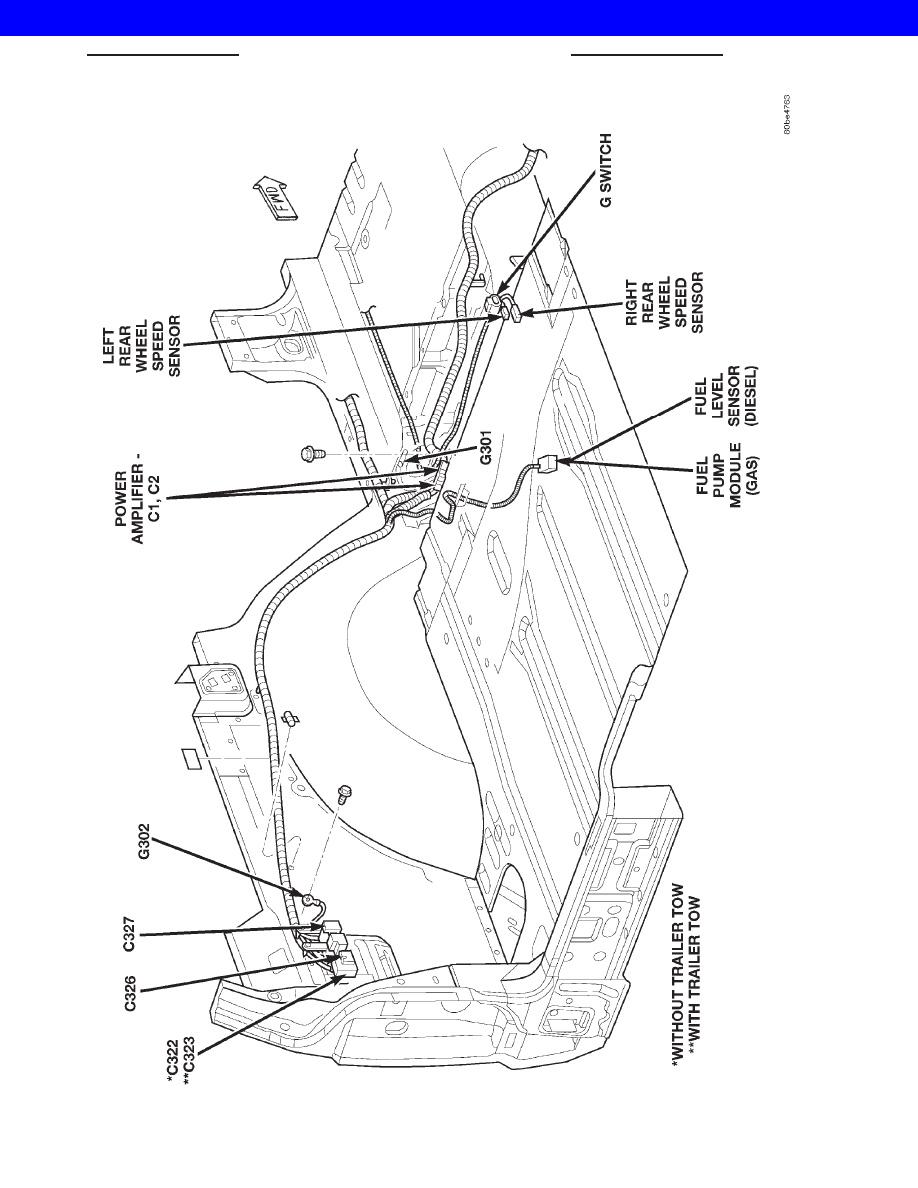

Fig.

19

LEFT

REAR

BODY

XJ

8Wa-90 CONNECTOR/GROUND LOCATIONS

8Wa - 90 - 29

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP CHEROKEE
