(5) Lubricate sector and sleeve with petroleum

jelly and install them on shaft.

(6) Install the manual valve shaft through the

remainder of the transmission case.

(7) Align hole in spacer sleeve with notch in sector.

Then install shift sector roll pin. Tap pin into sector and
shaft and securely stake sleeve to sector and shaft.

(8) Connect park rod to sector (Fig. 76).
(9) Install park rod bracket (Fig. 81). Tighten

bracket bolts to 10 N·m (7 ft. lbs.) torque.

(10) Install valve body, oil screen and oil pan.
(11) Install park/neutral position switch.

ACCUMULATOR PISTONS AND SPRINGS

REMOVAL

(1) Remove valve body.
(2) Remove accumulator pistons with compressed

air (Fig. 82). Apply air through small feed hole next
to each piston bore. Catch each piston in a shop
towel as it exits bore.

CAUTION: Use only enough air pressure to ease each
piston out of the bore. In addition, remove the pistons
one at a time and tag the pistons and springs for
assembly reference. Do not intermix them.

(3) Remove and discard piston O–ring seals. Then

clean pistons and springs with solvent.

INSTALLATION

(1) Inspect pistons, springs and piston bores.

Replace worn damaged pistons. Replace broken, col-

lapsed or distorted springs. Replace case if piston
bores are damaged.

(2) If small cushion spring in any piston must be

replaced, remove spring retainer clip and remove
spring from piston (Fig. 83). A small hooked tool or
small thin blade screwdriver can be used to remove
clip. A thin wall, deep socket, or pin punch can be
used to seat clip after spring replacement.

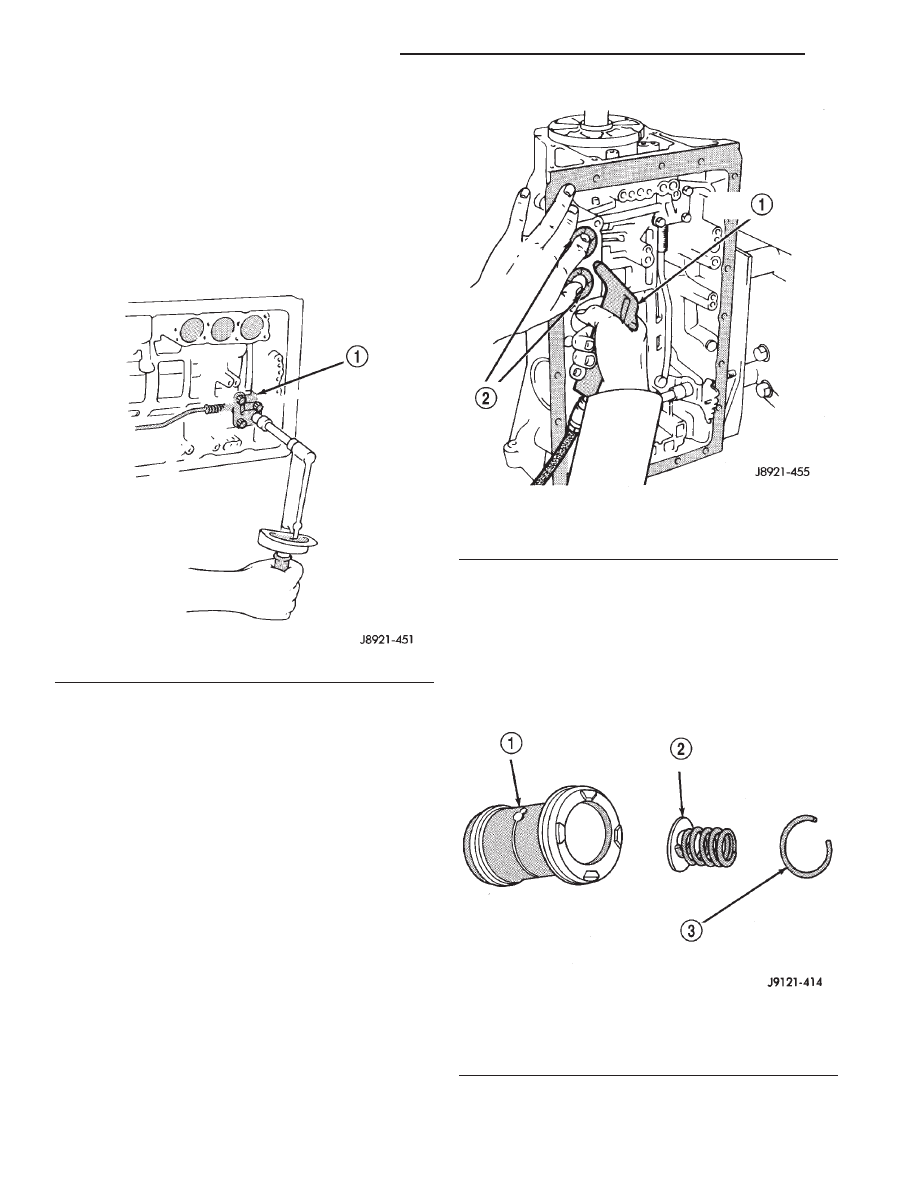

Fig. 81 Installing Park Rod Bracket

1 – PARK ROD BRACKET

Fig. 82 Accumulator Piston Removal

1 – AIR GUN NOZZEL IN FEED HOLE
2 – PISTONS

Fig. 83 Small Cushion Spring Retention

1 – ACCUMULATOR PISTON (TYPICAL)
2 – SMALL CUSHION SPRING
3 – RETAINER CLIP

21 - 264

AW–4 AUTOMATIC TRANSMISSION

XJ

REMOVAL AND INSTALLATION (Continued)

(3) Install new O–ring seals on pistons. Lubricate

seals and pistons and piston bores with transmission
fluid.

(4) Install pistons and springs (Fig. 84).

(5) Install valve body, oil screen and oil pan.

SECOND COAST BRAKE SERVO

REMOVAL

(1) Remove valve body.
(2) Remove servo piston cover snap ring with snap

ring pliers (Fig. 85).

(3) Remove servo piston and cover with com-

pressed air. Apply compressed air through oil hole in
servo boss to ease piston out of bore (Fig. 86).

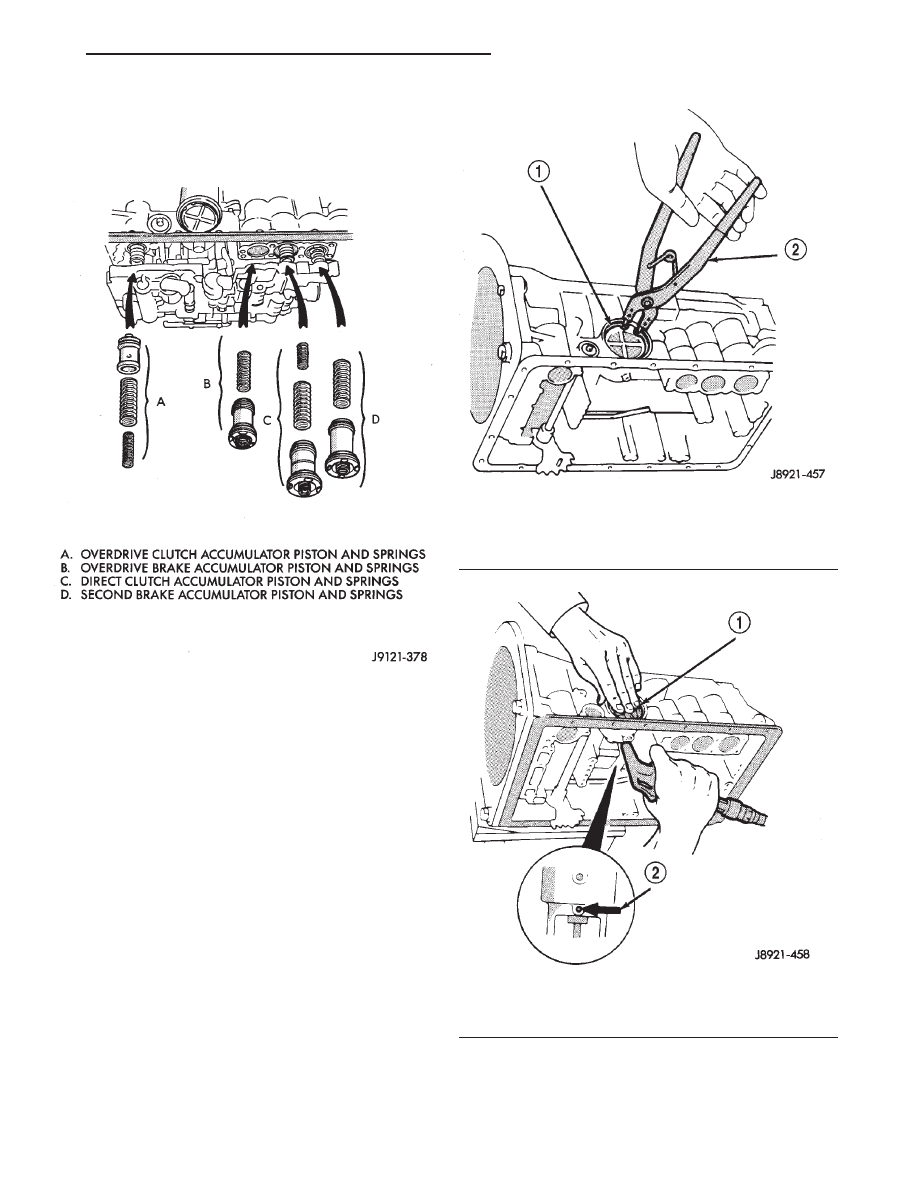

Fig. 84 Accumulator Pistons, Springs And Spacers

Fig. 85 Removing/Installing Servo Piston Cover

Snap Ring

1 – SERVO PISTON COVER SNAP RING
2 – SNAP RING PLIERS

Fig. 86 Removing Servo Cover And Piston

1 – PISTON AND COVER
2 – OIL HOLE

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 265

REMOVAL AND INSTALLATION (Continued)

(4) Remove and discard seal and O–rings from

cover and piston (Fig. 87). Inspect E–ring, piston,
spring and retainer, piston rod and piston spring.
Replace worn or damaged parts.

INSTALLATION

(1) Install new seals on cover and piston.
(2) Lubricate servo components with transmission

fluid.

(3) Assemble and install servo components in case.

Be sure servo piston rod is properly engaged in the
second coast brake band.

(4) Compress cover and piston and install cover

snap ring.

(5) Install valve body, oil screen and oil pan.

PARK ROD AND PAWL

REMOVAL

(1) Remove valve body as outlined in this section.
(2) Remove bolts attaching park rod bracket to

case (Fig. 88).

(3) Remove park rod from manual valve shaft sec-

tor (Fig. 89).

(4) Remove park rod.

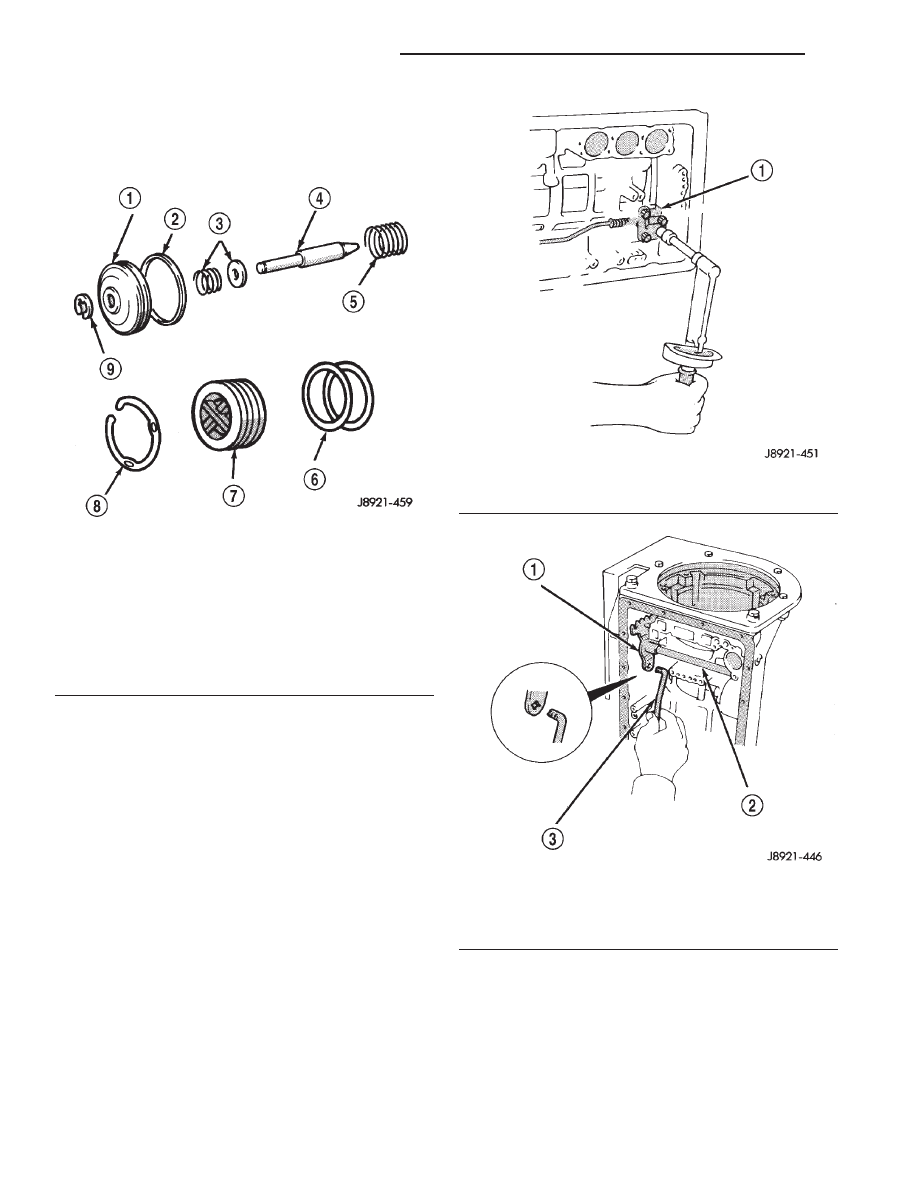

Fig. 87 Second Coast Brake Servo Components

1 – SERVO PISTON
2 – SEAL RING
3 – SPRING AND RETAINER
4 – PISTON ROD
5 – PISTON SPRING
6 – SERVO COVER O-RINGS
7 – SERVO COVER
8 – SNAP RING
9 – E-RING

Fig. 88 Removing/Installing Park Rod Bracket

1 – PARK ROD BRACKET

Fig. 89 Removing/Installing Park Rod

1 – SHIFT SECTOR
2 – MANUAL VALVE SHAFT
3 – PARK ROD

21 - 266

AW–4 AUTOMATIC TRANSMISSION

XJ

REMOVAL AND INSTALLATION (Continued)

(5) Remove park pawl, pin and spring (Fig. 90).

INSTALLATION

(1) Examine park rod, pawl, pin and spring.

Replace any component that is worn or damaged.

(2) Install pawl in case. Insert pin and install spring.

Be sure spring is positioned as shown in Figure 35.

(3) Install park rod and bracket (Fig. 88). Tighten

bracket bolts to 10 N·m (7 ft. lbs.) torque.

(4) Install valve body, oil screen and oil pan.

TRANSMISSION THROTTLE CABLE

REMOVAL

(1) In engine compartment, disconnect cable from

throttle linkage. Then compress cable mounting ears
and remove cable from engine bracket (Fig. 91).

(2) Raise vehicle.
(3) Remove transmission oil pan.
(4) Disengage cable from throttle valve cam (Fig.

92).

(5) Remove cable bracket bolt and remove cable

and bracket from case (Fig. 93).

(6) Remove and discard cable seal.

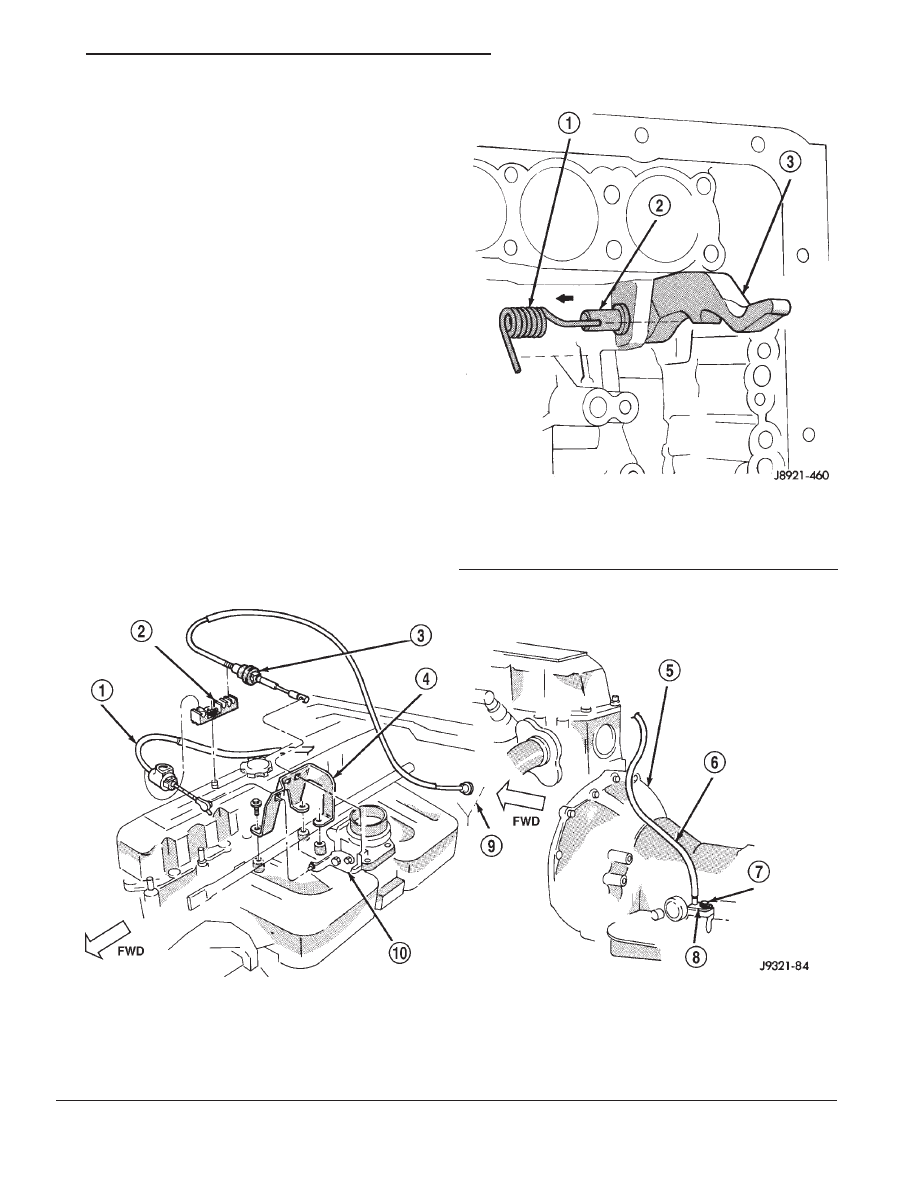

Fig. 91 Transmission Throttle Cable Attachment

1 – THROTTLE CABLE
2 – CABLE GUIDE
3 – ACCELERATOR CABLE
4 – CABLE ENGINE BRACKET
5 – CONVERTER HOUSING

6 – THROTTLE CABLE
7 – CABLE RETAINER SCREW
8 – CABLE BRACKET
9 – DASH PANEL
10 – THROTTLE BODY

Fig. 90 Removing/Installing Park Pawl, Pin And Spring

1 – SPRING
2 – PIN
3 – PARK PAWL

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 267

REMOVAL AND INSTALLATION (Continued)
