(10) Apply bead of Threebond

t Liquid Gasket

TB1281, P/N 83504038 to sealing surface of oil pan.
Sealer bead should be at least 3 mm (1/8 in.) wide.
Then install oil pan and tighten pan bolts to 7.4 N·m
(65 in. lbs.) torque.

(11) Install new gasket on oil pan drain plug and

install plug in pan. Tighten plug to 20 N·m (15 ft.
lbs.) torque.

(12) Fill transmission with Mopar

t Dexron IIE/

Mercon.

TRANSMISSION CONTROL MODULE

The transmission control module is mounted under

the instrument panel. On left hand drive models, it is
at the driver side of the lower finish panel (Fig. 70).
On right hand drive models, it is at the passenger
side of the lower finish panel (Fig. 71).

To remove the module, disconnect the wire har-

ness, remove the mounting screws and remove the

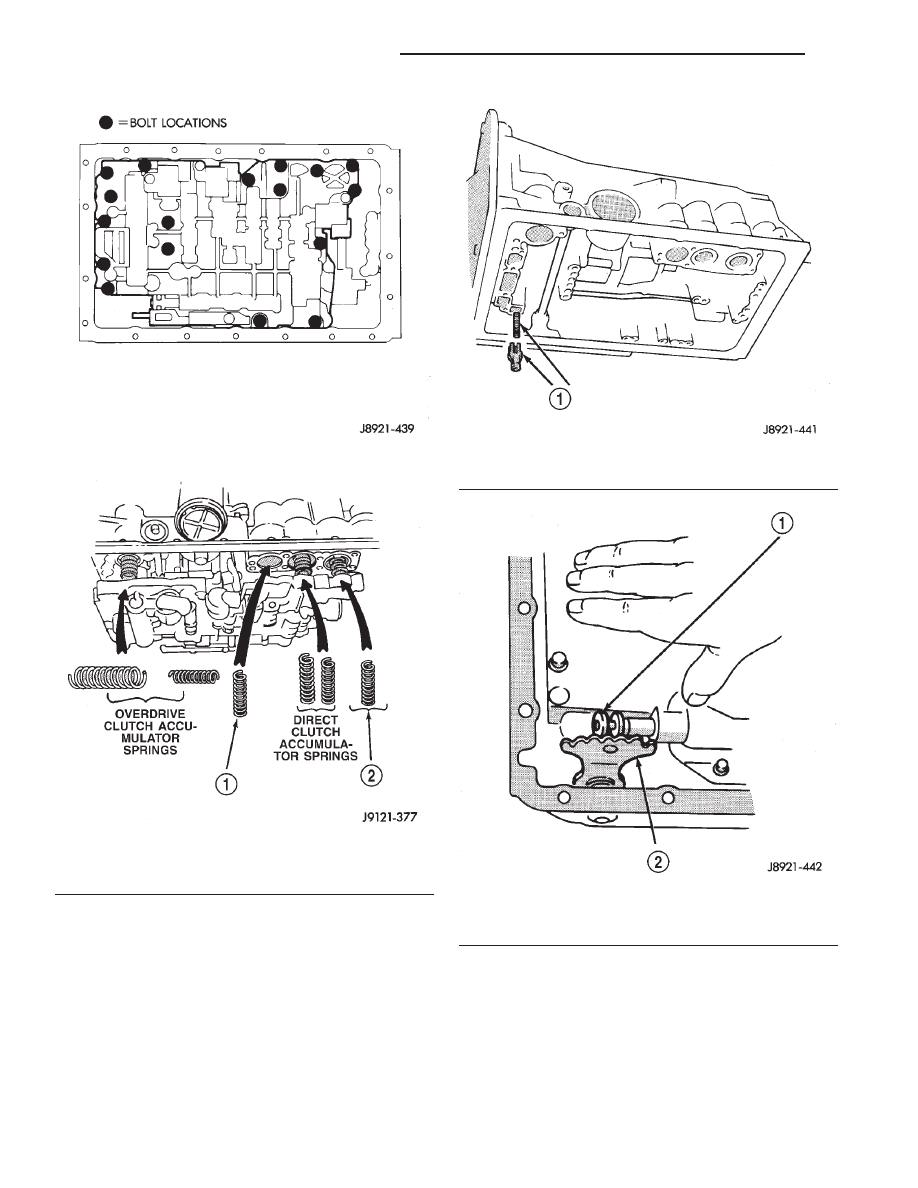

Fig. 65 Transmission Valve Body Bolt Locations

Fig. 66 Accumulator Springs

1 – OVERDRIVE BRAKE ACCUMULATOR SPRING
2 – SECOND BRAKE ACCUMULATOR SPRING

Fig. 67 Removing/Installing Check Ball And Spring

1 – CHECK BALL AND SPRING

Fig. 68 Shift Sector And Manual Valve Alignment

1 – MANUAL VALVE
2 – SHIFT SECTOR

21 - 260

AW–4 AUTOMATIC TRANSMISSION

XJ

REMOVAL AND INSTALLATION (Continued)

module from the finish panel. Tighten the module
mounting screws securely after installation. Also be
sure the wire harness is not twisted, kinked or touch-
ing any body panels.

SOLENOID HARNESS ADAPTER SEAL

REMOVAL

(1) Remove oil pan and oil screen.
(2) Disconnect solenoid wire connectors (Fig. 72).

(3) Remove

bracket

securing

solenoid

harness

adaptor (Fig. 73) to case.

(4) Pull harness adapter and wires out of case.

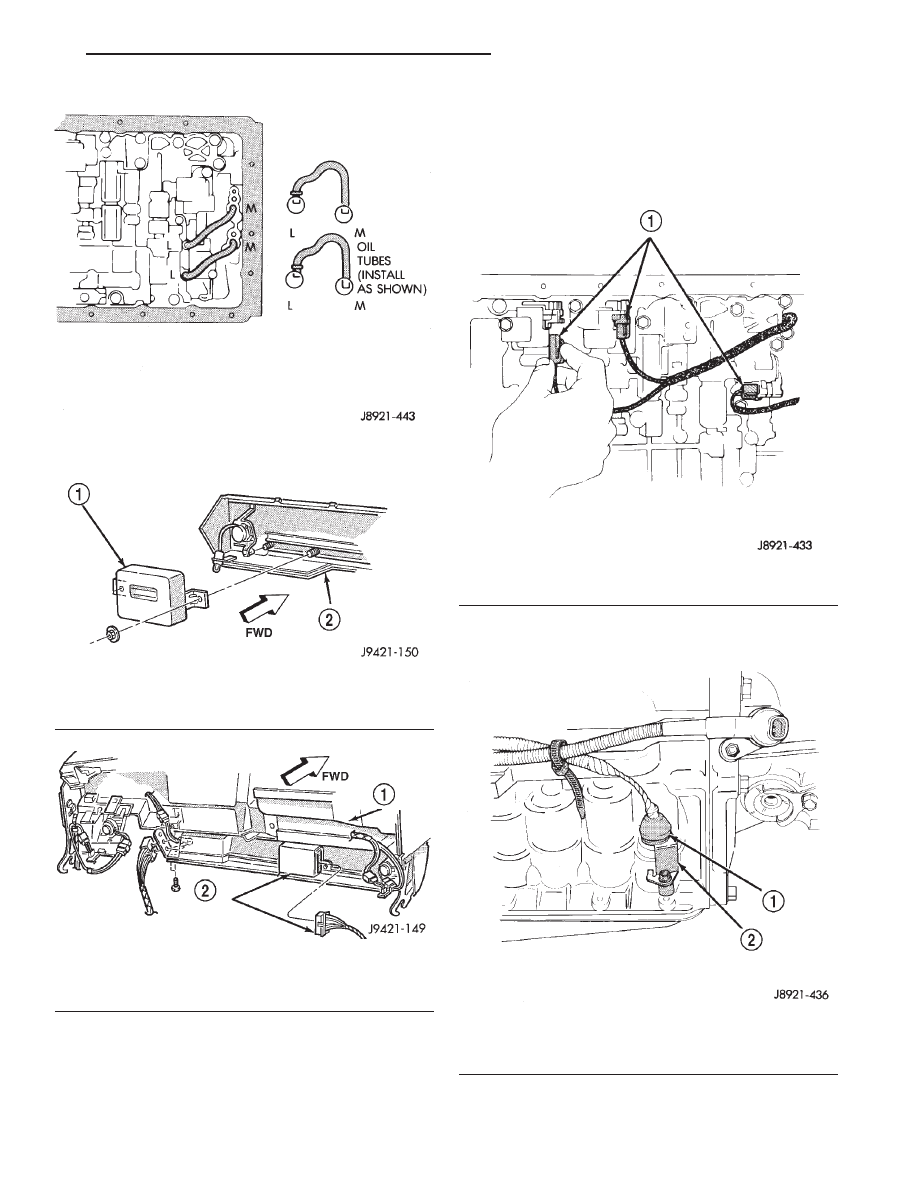

Fig. 69 Installing Transmission Valve Body Oil

Tubes

Fig. 70 TCM Location (Left Hand Drive)

1 – TCM
2 – LOWER FINISH PANEL

Fig. 71 TCM Location (Right Hand Drive)

1 – REAR SIDE OF INSTRUMENT PANEL
2 – TCM AND HARNESS

Fig. 72 Solenoid Wire Connectors

1 – SOLENOID WIRE CONNECTORS

Fig. 73 Harness Adapter Removal/Installation

1 – HARNESS ADAPTER
2 – BRACKET

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 261

REMOVAL AND INSTALLATION (Continued)

(5) Remove and discard adapter O–ring.

INSTALLATION

(1) Lubricate new O–ring and install it on adapter.
(2) Install solenoid wire harness and adapter in

case.

(3) Install adapter bracket and bracket bolt.
(4) Connect wires to solenoids.
(5) Install oil screen.
(6) Apply bead of Threeebond

t Liquid Gasket

TB1281, P/N 83504038, to oil pan seal surface.
Sealer bead should be at least 3 mm (1/8 in.) wide.

(7) Install oil pan on transmission. Tighten pan

bolts to 7 N·m (65 in. lbs.) torque.

(8) Install and tighten oil pan drain plug to 20

N·m (15 ft. lbs.) torque.

(9) Fill transmission with Mopar Dexron IIE/Mer-

con.

MANUAL VALVE SHAFT SEAL

REMOVAL

(1) Remove park/neutral position switch and dis-

connect transmission shift lever (Fig. 74).

(2) Remove oil pan and valve body.
(3) Remove bolts attaching park rod bracket to

case (Fig. 75).

(4) Remove park rod from shift sector (Fig. 76).

(5) Cut spacer sleeve with chisel and remove it

from manual valve shaft (Fig. 77).

(6) Remove pin from shaft and sector with pin

punch.

(7) Remove shaft and sector from case.

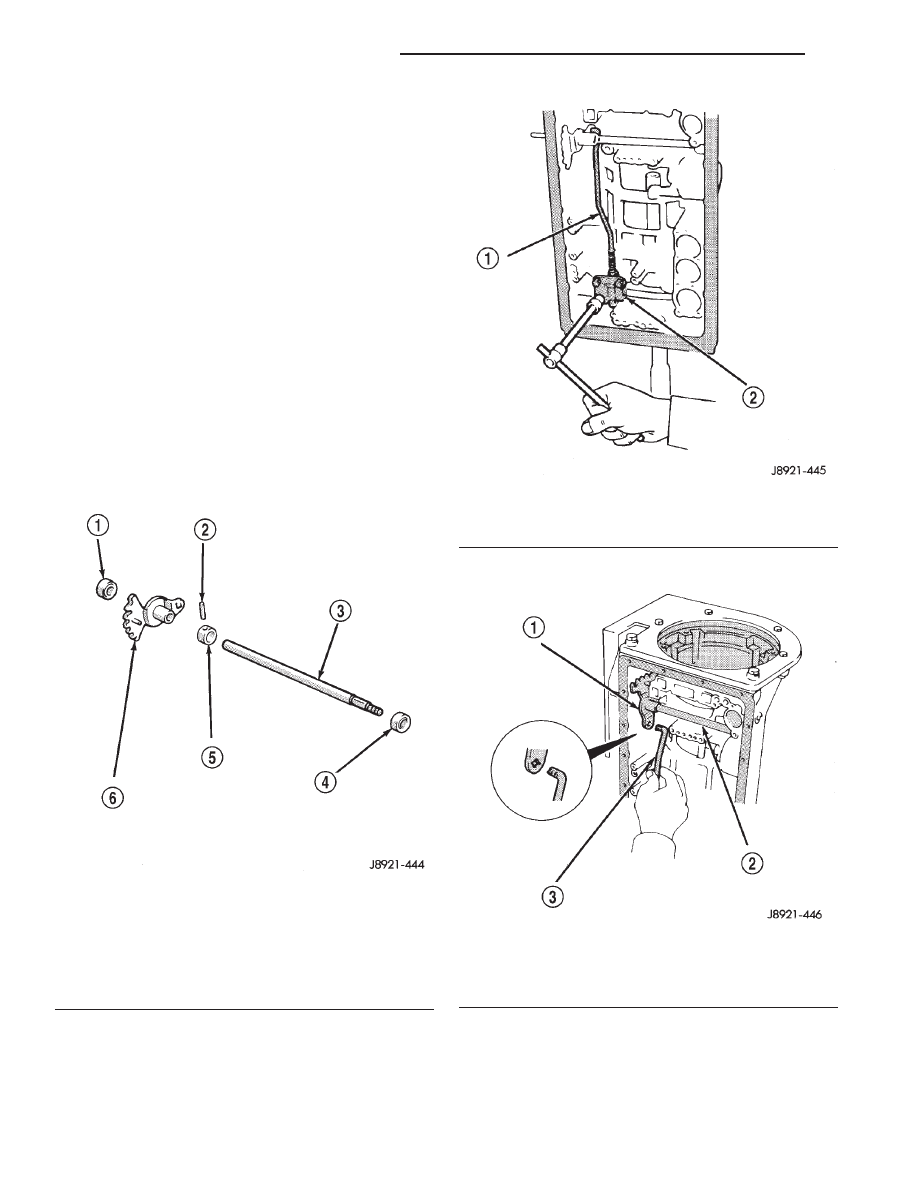

Fig. 74 Manual Valve Shaft And Seals

1 – SHAFT SEAL
2 – PIN
3 – MANUAL VALVE SHAFT
4 – SHAFT SEAL
5 – SPACER SLEEVE
6 – SHIFT SECTOR

Fig. 75 Removing/Installing Park Rod Bracket

1 – PARK ROD
2 – PARK ROD BRACKET

Fig. 76 Removing/Installing Park Rod

1 – SHIFT SECTOR
2 – MANUAL VALVE SHAFT
3 – PARK ROD

21 - 262

AW–4 AUTOMATIC TRANSMISSION

XJ

REMOVAL AND INSTALLATION (Continued)

(8) Pry shaft seals out of case (Fig. 78).

INSTALLATION

(1) Inspect the manual valve shaft and sector.

Replace either component if worn or damaged.

(2) Coat replacement shaft seals with petroleum

jelly and seat them in the case using an appropri-
ately sized driver/socket (Fig. 79).

(3) Install new spacer sleeve on sector (Fig. 80).

(4) Lubricate manual valve shaft with petroleum

jelly and install it through the left side of the trans-
mission case.

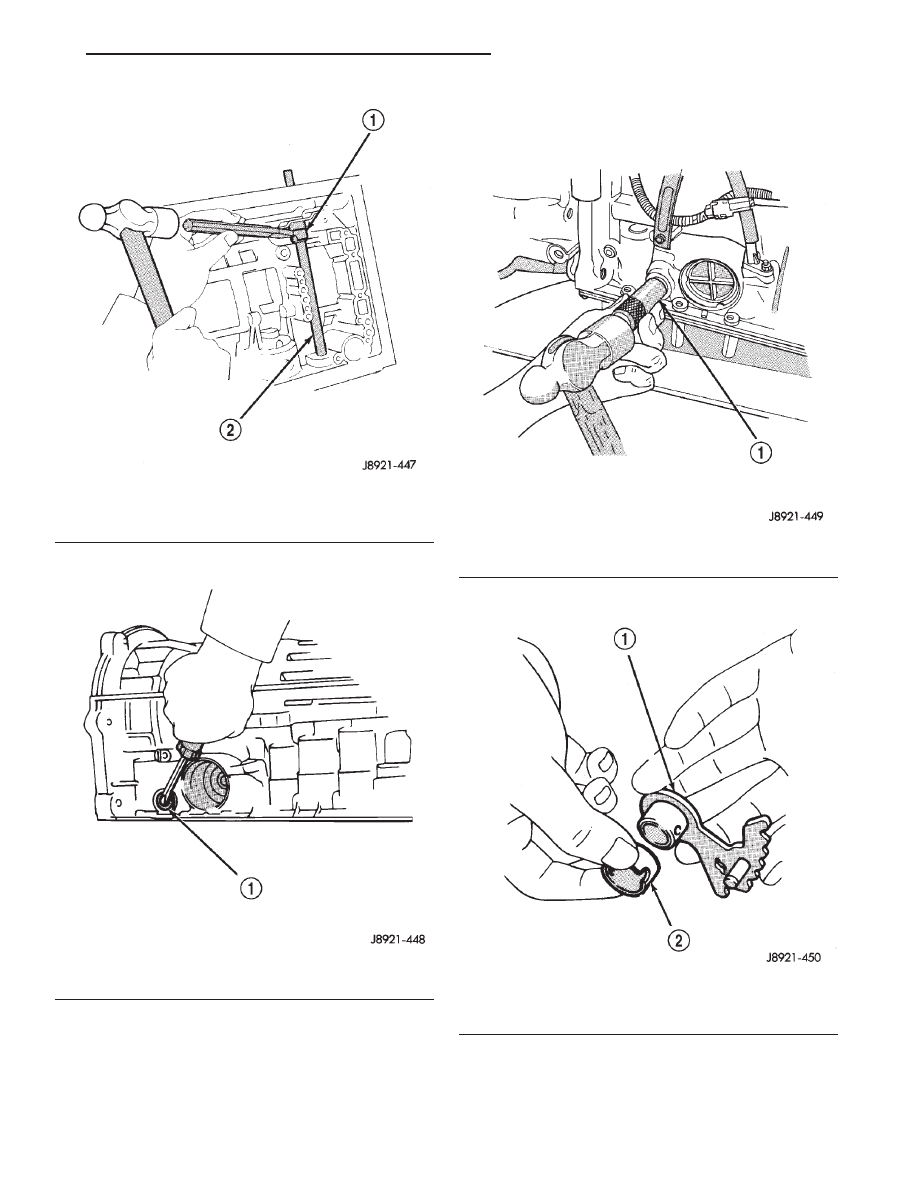

Fig. 77 Cutting Spacer Sleeve

1 – SPACER
2 – MANUAL VALVE SHAFT

Fig. 78 Removing Manual Valve Shaft Seals

1 – MANUAL VALVE SHAFT SEAL

Fig. 79 Installing Manual Valve Shaft Seals

1 – SHAFT SEAL INSTALLER

Fig. 80 Installing Spacer Sleeve On Sector

1 – SHIFT SECTOR
2 – SPACER SLEEVE

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 263

REMOVAL AND INSTALLATION (Continued)
