(4) Remove propeller shafts. Refer to Group 3, Dif-

ferential and Driveline, for proper procedure.

(5) Remove transfer case.
(6) Remove bolts holding adapter housing to trans-

mission case (Fig. 75).

(7) Separate adapter housing from transmission.
(8) Slide adapter housing rearward and off output

shaft (Fig. 75).

INSTALLATION

Clear gasket material from sealing surfaces on

adapter housing and rear of transmission. Replace
output shaft bearing, if necessary.

(1) Install new rear seal in adapter housing. Use

Tool Handle C-4171 and Seal Installer C-3860-A to
install seal.

(2) Place adapter housing gasket in position on

rear of transmission.

(3) Slide adapter housing forward and over output

shaft (Fig. 75).

(4) Guide park shaft into park sprag and push

adapter housing forward until rod passes through
opening behind sprag. It may be necessary to use a
wire to hold sprag to the side for rod to pass through.

(5) Install bolts to hold adapter housing to rear of

transmission.

(6) Install transfer case.
(7) Install propeller shafts.
(8) Install rear transmission mount and skid plate.
(9) Lower vehicle and verify transmission fluid

level. Add fluid as necessary.

SPEEDOMETER ADAPTER

Rear axle gear ratio and tire size determine speed-

ometer pinion requirements.

REMOVAL

(1) Raise vehicle.
(2) Disconnect wires from vehicle speed sensor.
(3) Remove adapter clamp and screw (Fig. 76).
(4) Remove speed sensor and speedometer adapter

as assembly.

(5) Remove speed sensor retaining screw and

remove sensor from adapter.

(6) Remove speedometer pinion from adapter.
(7) Inspect sensor and adapter O-rings (Fig. 76).

Remove and discard O-rings if worn or damaged.

(8) Inspect terminal pins in speed sensor. Clean

pins with Mopar

t electrical spray cleaner if dirty or

oxidized. Replace sensor if faulty, or pins are loose,
severely corroded, or damaged.

INSTALLATION

(1) Thoroughly clean adapter flange and adapter

mounting surface in housing. Surfaces must be clean

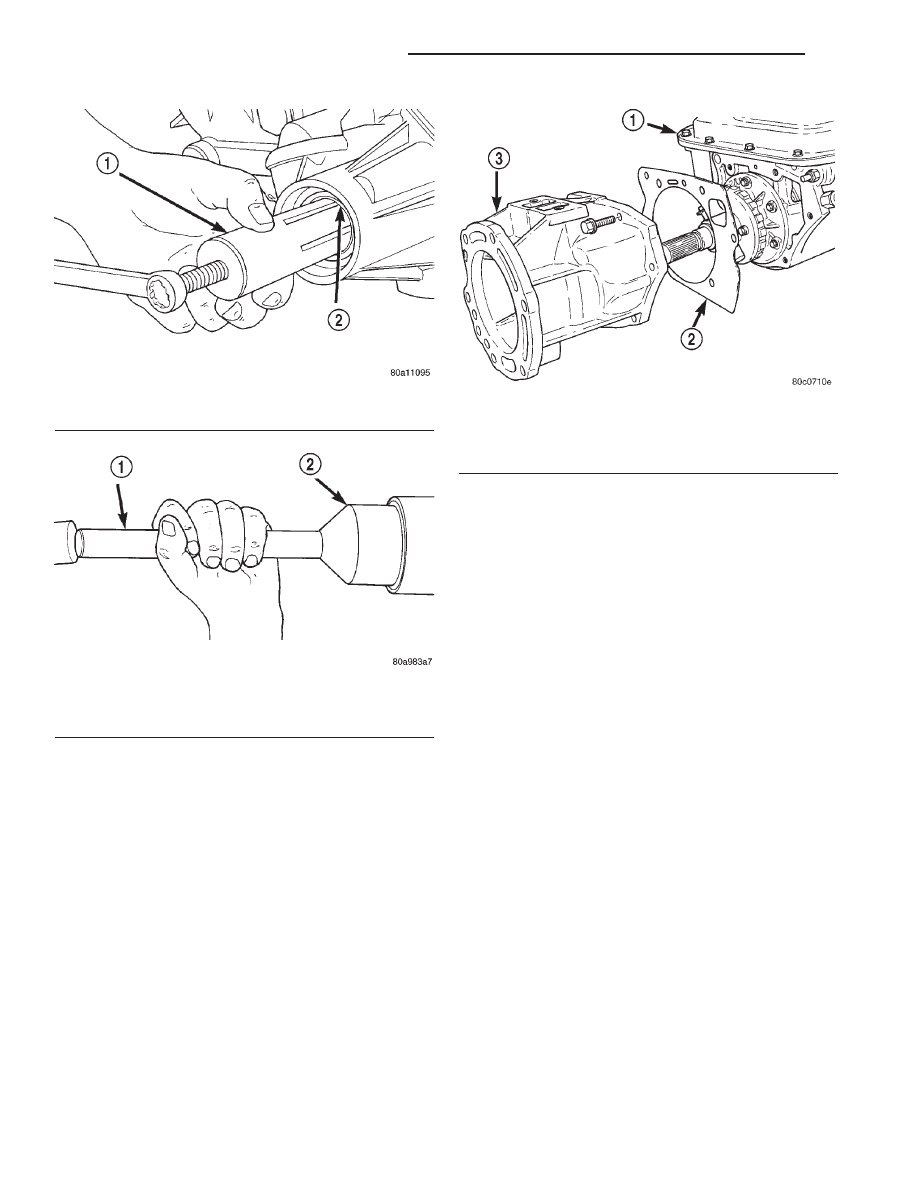

Fig. 73 Bushing Removal—Typical

1 – REMOVER 6957
2 – EXTENSION HOUSING BUSHING

Fig. 74 Extension Housing Seal Installation

1 – SPECIAL TOOL C-4171
2 – SPECIAL TOOL C-3995–A

Fig. 75 Adapter Housing

1 – TRANSMISSION
2 – GASKET
3 – ADAPTER HOUSING

21 - 148

AUTOMATIC TRANSMISSION—30RH

XJ

REMOVAL AND INSTALLATION (Continued)

for proper adapter alignment and speedometer oper-
ation.

(2) Install new O-rings on speed sensor and speed-

ometer adapter if necessary (Fig. 76).

(3) Lubricate sensor and adapter O-rings with

transmission fluid.

(4) Install vehicle speed sensor in speedometer

adapter. Tighten sensor attaching screw to 2-3 N·m
(15-27 in. lbs.) torque.

(5) Install speedometer pinion in adapter.
(6) Count number of teeth on speedometer pinion.

Do this before installing assembly in housing. Then
lubricate pinion teeth with transmission fluid.

(7) Note index numbers on adapter body (Fig. 77).

These numbers will correspond to number of teeth on
pinion.

(8) Install speedometer assembly in housing.
(9) Rotate adapter until required range numbers

are at 6 o’clock position. Be sure range index num-
bers correspond to number of teeth on pinion gear.

(10) Install speedometer adapter clamp and retain-

ing screw. Tighten clamp screw to 10-12 N·m (90-110
in. lbs.) torque.

(11) Connect wires to vehicle speed sensor.
(12) Lower vehicle and top off transmission fluid

level, if necessary.

PARK/NEUTRAL POSITION SWITCH

REMOVAL

(1) Raise vehicle and position drain pan under

switch.

(2) Disconnect switch wires.
(3) Remove switch from case.

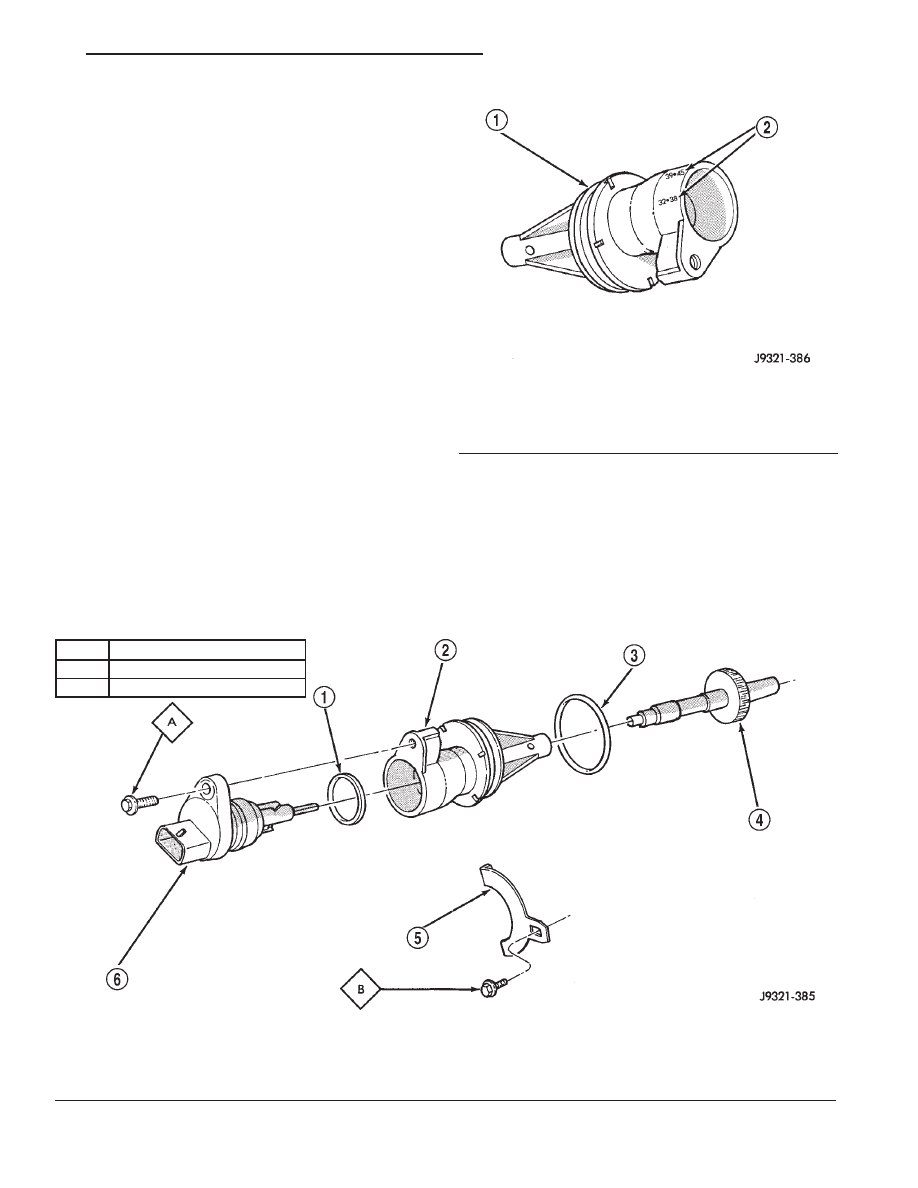

Fig. 76 Speedometer Pinion Adapter Components

1 – SENSOR O-RING
2 – SPEEDOMETER ADAPTER
3 – ADAPTER O-RING

4 – SPEEDOMETER PINION
5 – ADAPTER CLAMP
6 – VEHICLE SPEED SENSOR

ITEM

TORQUE

A

2-3 N·m (15-27 in. lbs.)

B

10-12 N·m (90-110 in. lbs.)

Fig. 77 Index Numbers On Speedometer Pinion

Adapter

1 – SPEEDOMETER ADAPTER
2 – INDEX NUMBER LOCATION

XJ

AUTOMATIC TRANSMISSION—30RH

21 - 149

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

(1) Move shift lever to Park and Neutral positions.

Verify that switch operating lever fingers are cen-
tered in switch opening in case (Fig. 78).

(2) Install new seal on switch and install switch in

case. Tighten switch to 34 N·m (25 ft. lbs.) torque.

(3) Test continuity of new switch with 12V test

lamp.

(4) Connect switch wires and lower vehicle.
(5) Top off transmission fluid level.

GEARSHIFT CABLE

REMOVAL

(1) Shift transmission into Park.
(2) Remove shift lever bezel and necessary console

parts for access to shift lever assembly.

(3) Disconnect cable at shift lever and feed cable

through dash panel opening to underside of vehicle.

(4) Raise vehicle.
(5) Disengage cable eyelet at transmission shift

lever and pull cable adjuster out of mounting
bracket. Then remove old cable from vehicle.

INSTALLATION

(1) Route cable through hole in dash panel. Fully

seat cable grommet into dash panel.

(2) Place the auto transmission manual shift con-

trol lever in “Park” detent (rearmost) position and
rotate prop shaft to ensure transmission is in park.

(3) Connect shift cable to shifter mechanism by

snapping cable retaining ears into shifter bracket
and press cable end fitting onto lever ball stud.

(4) Place the floor shifter lever in park position.

Ensure that the pawl is seated within the confines of
the adjustment gauge clip.

(5) Snap the cable into the transmission bracket so

the retaining ears are engaged and connect cable end
fitting onto the manual control lever ball stud.

(6) Lock shift cable into position by pushing

upward on the adjusting lock button.

(7) Remove and discard the shift cable adjustment

gauge clip from the park gate of the shifter.

BRAKE TRANSMISSION SHIFT INTERLOCK

REMOVAL

(1) Remove lower steering column cover. Refer to

Group 8E, Instrument Panel and Gauges, for proper
procedure.

(2) Remove lower steering column shroud. Refer to

Group 19, Steering, for proper procedure.

(3) Remove tie strap near the solenoid retaining

the brake transmission interlock cable to the steering
column.

(4) Disengage wire connector from solenoid.
(5) With the ignition removed or in the unlocked

position, disengage lock tab holding cable end to
steering column (Fig. 79).

(6) Pull cable end from steering column.
(7) Remove the floor console and related trim.

Refer to Group 23, Body, for proper procedure.

(8) Disconnect the cable eyelet from the bellcrank

(Fig. 80).

(9) Disconnect and remove the cable from the shift

bracket.

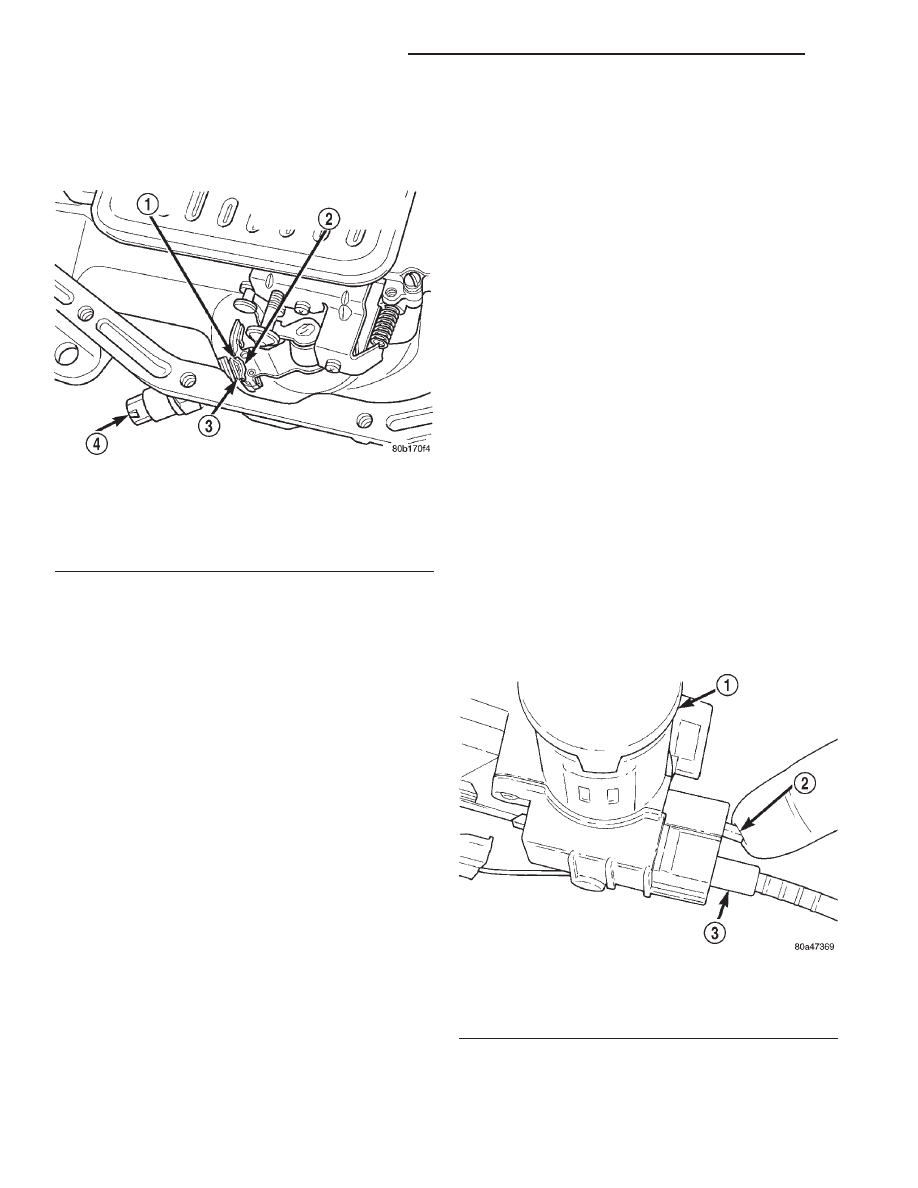

Fig. 78 Park/Neutral Position Switch

1 – NEUTRAL CONTACT
2 – MANUAL LEVER AND SWITCH PLUNGER IN REVERSE

POSITION

3 – PARK CONTACT
4 – SWITCH

Fig. 79 Brake/Park Interlock Cable

1 – IGNITION LOCK
2 – LOCK TAB
3 – CABLE END

21 - 150

AUTOMATIC TRANSMISSION—30RH

XJ

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

(1) Route replacement cable behind instrument

panel and under floor console area to shift mecha-
nism (Fig. 80).

(2) Insert cable end into opening in steering col-

umn hub under ignition lock. Push cable inward
until lock tab engages.

(3) Connect the cable end eyelet onto shifter

bellcrank pin.

(4) Place gear selector in PARK.
(5) Push the spring-loaded cable adjuster forward

and snap cable into bracket.

(6) Adjust the brake transmission shifter interlock

cable. Refer to the Adjustment portion of this section
for proper procedures.

(7) Verify that the cable adjuster lock clamp is

pushed downward to the locked position.

(8) Test the park-lock cable operation.
(9) Install the floor console and related trim.

(10) Install tie strap to hold cable to base of steer-

ing column.

(11) Install lower steering column shroud and igni-

tion lock.

(12) Install lower steering column cover.

VALVE BODY

REMOVAL

(1) Raise vehicle.
(2) Remove oil pan and drain fluid.
(3) Loosen clamp bolts and remove throttle and

manual valve levers from manual lever shaft.

(4) Remove park/neutral position switch.
(5) Remove filter from valve body.
(6) Depress retaining clip and pull solenoid wire

from case connector (Fig. 81).

(7) Remove valve body attaching screws.
(8) Lower valve body enough to remove accumula-

tor piston and piston spring (Fig. 82).

Fig. 80 Cable and Shifter

1 – SHIFT MECHANISM
2 – LOCK-TAB
3 – IGNITION LOCK INTERLOCK
4 – STEERING COLUMN
5 – SOLENOID
6 – WIRE CONNECTOR

7 – LEVER
8 – MOUNT BRACKET
9 – SHIFT CABLE
10 – AUTOMATIC TRANSMISSION
11 – TIE STRAP
12 – PARK/BRAKE INTERLOCK CABLE

XJ

AUTOMATIC TRANSMISSION—30RH

21 - 151

REMOVAL AND INSTALLATION (Continued)
