Use compressed air to blow out the oil passages in

the rocker arms and push rods.

INSPECTION

Inspect the pivot surface area of each rocker arm.

Replace any that are scuffed, pitted, cracked or
excessively worn.

Inspect the valve stem tip contact surface of each

rocker arm and replace any rocker arm that is deeply
pitted.

Inspect each push rod end for excessive wear and

replace as required. If any push rod is excessively
worn because of lack of oil, replace it and inspect the
corresponding hydraulic tappet for excessive wear.

Inspect the push rods for straightness by rolling

them on a flat surface or by shining a light between
the push rod and the flat surface.

A wear pattern along the length of the push rod is

not normal. Inspect the engine cylinder head for
obstruction if this condition exists.

PISTONS AND CONNECTING ROD ASSEMBLY

INSPECTION—PISTONS

(1) Piston Diameter: Size: 91.93-91.94mm (3.6191-

3.6196 in.) Maximum wear limit.05mm (.0019 in.).

(2) Check piston pin bores in piston for roundness.

Make 3 checks at 120° intervals. Maximum out of
roundness.05mm (.0019in.).

(3) The

piston

diameter

should

be

measured

approximately 15 mm (.590 in.) up from the base.

(4) Skirt wear should not exceed 0.1 mm (.00039

in.).

(5) The clearance between the cylinder liner and

piston should not exceed 0.25 mm (.0009 in.).

(6) Make sure the weight of the pistons does not

differ by more than 5 g.

INSPECTION—CONNECTING ROD

(1) Assemble bearing shells and bearing caps to

their respective connecting rods ensuring that the
serrations on the cap and reference marks are
aligned.

(2) Tighten bearing cap bolts to 29N·m (21 ft. lbs.)

plus 60°.

(3) Check and record internal diameter of crank

end of connecting rod.

NOTE: When changing connecting rods, all four
must have the same weight and be stamped with
the same number. Replacement connecting rods
will only be supplied in sets of four.

Connecting rods are supplied in sets of four since

they all must be of the same weight category. Max
allowable weight difference is 18 gr.

NOTE: On one side of the big end of the con-rod
there is a two-digit number which refers to the
weight category. On the other side of the big end
there is a four digit number on both the rod and the
cap. These numbers must both face the camshaft
as well as the recess on the piston crown (Fig. 75).
Lightly heat the piston in oven. Insert piston pin in
position and secure it with provided snap rings.

The Four digit numbers marked on con rod

big end and rod cap must be on the same side
as the camshaft (Fig. 75).
After having coated
threads with Molyguard, tighten con rod bolts to 29
N·m (21 ft. lbs.) plus 60°.

INSPECTION—PISTON PIN

(1) Measure the diameter of piston pin in the cen-

ter and both ends.

(2) Piston pin diameter is 29.990 to 29.996mm

(1.1807 to 1.1809 in.).

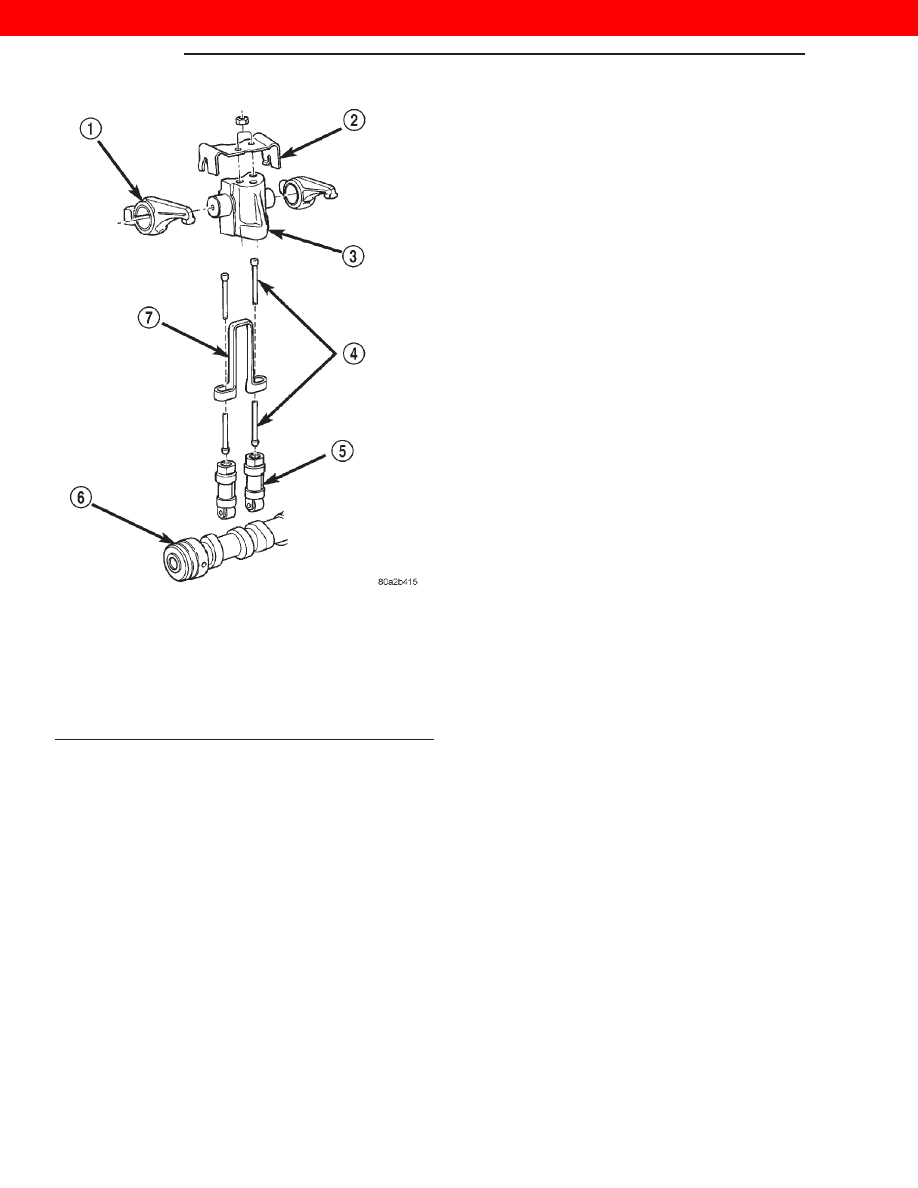

Fig. 73 Rocker Arm Components

1 – ROCKER ARM
2 – SPRING PLATE
3 – ROCKER SUPPORT
4 – PUSH ROD
5 – HYDRAULIC TAPPET
6 – CAMSHAFT
7 – ANTIROTATION BRACKET

9 - 44

ENGINE

XJ

CLEANING AND INSPECTION (Continued)

2000 JEEP CHEROKEE

INSPECTION—CRANKSHAFT JOURNALS

(1) Using a micrometer, measure and record crank-

shaft connecting rod journals, take reading of each
journal 120° apart. Crankshaft journal diameter is
53.84 to 53.955mm (2.1196 to 2.1242 in.).

(2) Crankshaft journals worn beyond limits or

show signs of out of roundness must be reground or
replaced. Minimum reground diameter is 53.69mm
(2.1137 in.).

BEARING-TO-JOURNAL CLEARANCE

Compare internal diameters of connecting rod with

crankshaft journal diameter. Maximum clearance
between connecting rod and crankshaft journals.022
to.076mm (.0008 to.0029 in.).

CYLINDER WALL LINER ASSEMBLY

INSPECTION

The cylinder walls should be checked for out-of-

round and taper with dail bore gauge. The cylinder
bore out-of-round is 0.100 mm (.0039 inch) maximum
and cylinder bore taper is 0.100 mm (0.0039 inch)
maximum. If the cylinder walls are badly scuffed or
scored, new liners should be installed and honed, and
new pistons and rings fitted.

Measure the cylinder bore at three levels in direc-

tions A and B (Fig. 77). Top measurement should be
10 mm ( 3/8 inch) down and bottom measurement
should be 10 mm ( 3/8 inch.) up from bottom of bore.

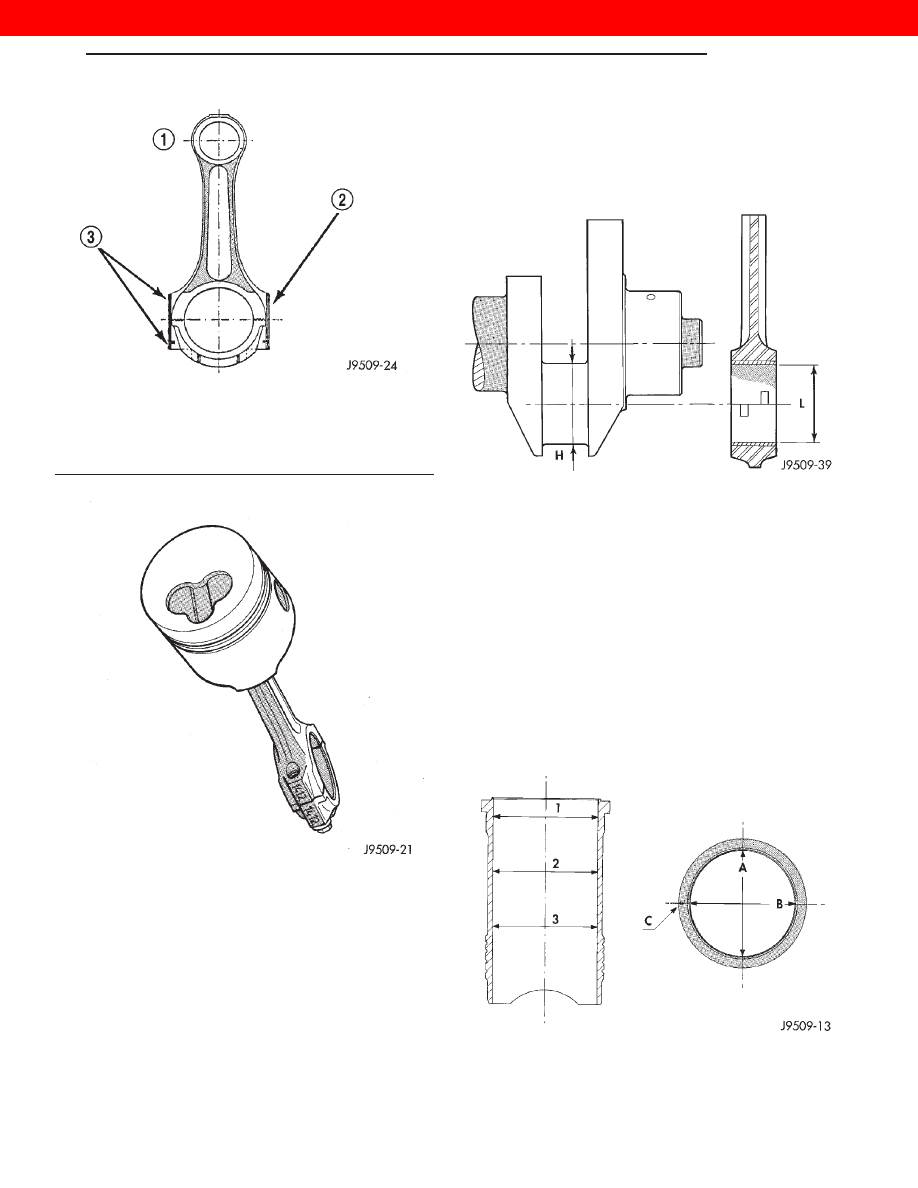

Fig. 74 Connecting Rod Identification

1 – CAMSHAFT SIDE
2 – 2–DIGIT NUMBER FOR WEIGHT CATEGORY
3 – 4–DIGIT REFERENCE NUMBERS FOR CORRECT

ASSEMBLING

Fig. 75 Piston and Connecting Rod Assembly

Fig. 76 Bearing Clearance

Fig. 77 Liner Inspection

XJ

ENGINE

9 - 45

CLEANING AND INSPECTION (Continued)

2000 JEEP CHEROKEE

OIL PUMP

CLEANING

Wash all parts in a suitable solvent and inspect

carefully for damage or wear.

INSPECTION

(1) Before installing oil pump check pump bore

depth in block (A) and pump body height (B) (Fig.
78).

Difference

between

A

and

B

should

be

0.020-0.082 mm.

(2) Check clearance between rotors (Fig. 80).

SPECIFICATIONS

ENGINE SPECIFICATIONS

DESCRIPTION

SPECIFICATIONS

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425 CX2
Number of cylinders . . . . . . . . . . . . . . . . . . . . . . . 4
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 mm
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 mm
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . 2499.5cc
Injection order . . . . . . . . . . . . . . . . . . . . . . 1–3–4–2
Compression ratio . . . . . . . . . . . . . . 21 : 1 (+/− 0.5)
Gasket . . . . . . . . . . . . . . . . . . . . . . . . Asbestos free

Crankshaft
Front journal diameter
Nominal . . . . . . . . . . . . . . . . . . . 62.985-63.005 mm
−0.25 . . . . . . . . . . . . . . . . . . . . . 62.735-62.755 mm
−0.125 . . . . . . . . . . . . . . . . . . . . 62.860-62.880 mm
Front bearing diameter
Nominal . . . . . . . . . . . . . . . . . . . 63.043-63.088 mm
−0.25 . . . . . . . . . . . . . . . . . . . . . . . . . 62.793-62.838
−0.125 . . . . . . . . . . . . . . . . . . . . 62.919-62.964 mm
Clearance between journal and

bearing: 0.038-0.103 mm

Center journal diameter
Nominal . . . . . . . . . . . . . . . . . . . 63.005-63.020 mm
−0.25 . . . . . . . . . . . . . . . . . . . . . 62.755-62.770 mm
−0.125 . . . . . . . . . . . . . . . . . . . . 62.880-62.895 mm

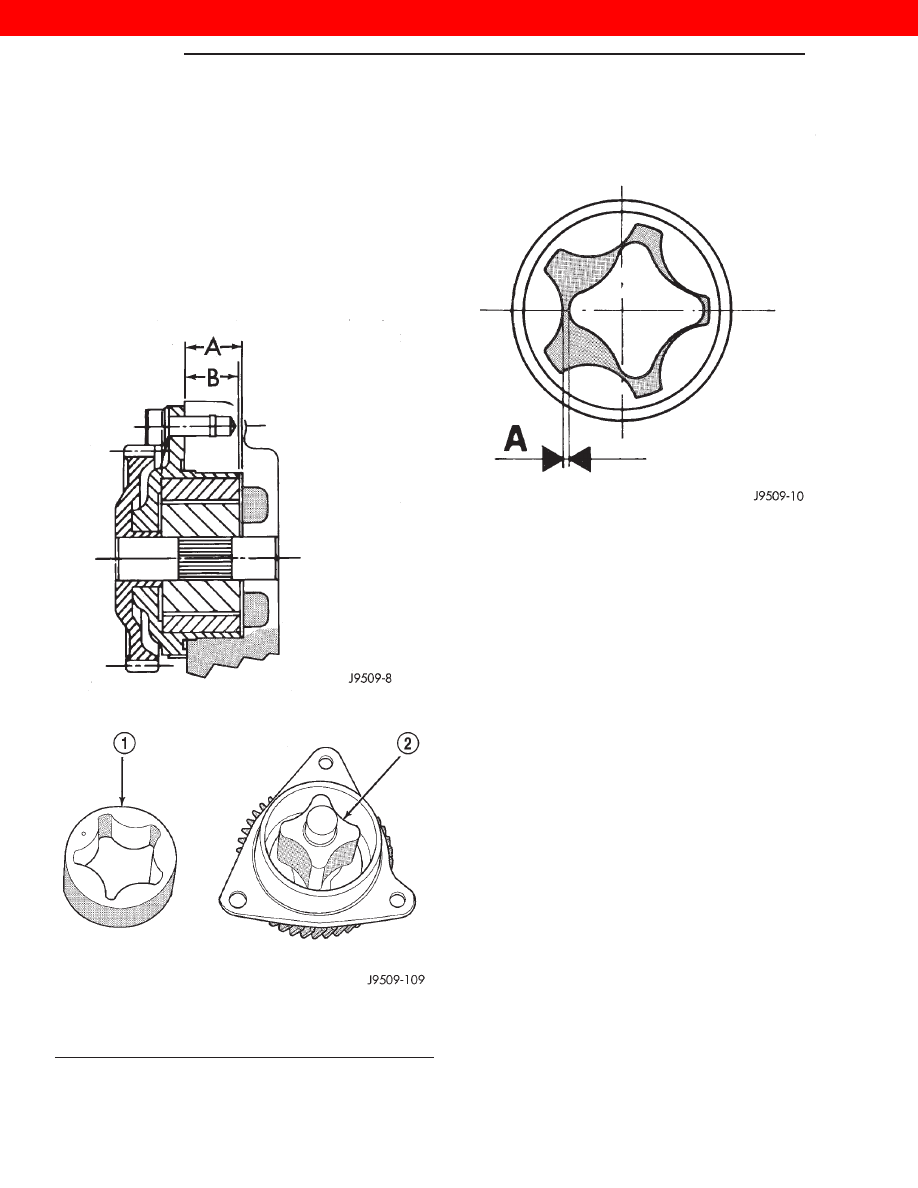

Fig. 78 Oil Pump Bore Depth

Fig. 79 Oil Pump Inner and Outer Rotors

1 – OUTER ROTOR
2 – INNER ROTOR

Fig. 80 Checking Rotor Clearance

9 - 46

ENGINE

XJ

CLEANING AND INSPECTION (Continued)

2000 JEEP CHEROKEE

DESCRIPTION

SPECIFICATIONS

Center bearing diameter
Nominal . . . . . . . . . . . . . . . . . . . 63.050-63.093 mm
−0.25 . . . . . . . . . . . . . . . . . . . . . 62.800-62.843 mm
−0.125 . . . . . . . . . . . . . . . . . . . . 62.925-62.968 mm
Clearance between journal and

bearing: 0.030-0.088 mm

Rear journal diameter
Nominal . . . . . . . . . . . . . . . . . . . 79.980-80.000 mm
−0.25 . . . . . . . . . . . . . . . . . . . . . 79.730-79.750 mm
−0.125 . . . . . . . . . . . . . . . . . . . . 79.855-79.875 mm
Rear bearing diameter
Nominal . . . . . . . . . . . . . . . . . . . 80.045-80.070 mm
−0.25 . . . . . . . . . . . . . . . . . . . . . 79.795-79.820 mm
−0.125 . . . . . . . . . . . . . . . . . . . . 79.920-79.945 mm
Clearance between journal and

bearing: 0.045-0.090 mm

Wear limit: 0.200 mm. . . . . . . . . . . . . . . . . . . . . . . .
Connecting rod journal
Nominal . . . . . . . . . . . . . . . . . . . 53.940-53.955 mm
−0.25 . . . . . . . . . . . . . . . . . . . . . 53.690-53.705 mm
−0.125 . . . . . . . . . . . . . . . . . . . . 53.815-53.830 mm
Connecting rod bearing
Nominal . . . . . . . . . . . . . . . . . . . 53.977-54.016 mm
−0.25 . . . . . . . . . . . . . . . . . . . . . 53.727-53.766 mm
−0.125 . . . . . . . . . . . . . . . . . . . . 53.852-53.891 mm
Clearance between journal and

bearing: 0.022-0.076 mm

Wear limit: 0.200 mm
Crankshaft end play . . . . . . . . . . . . . . . . . . . . . . . .
End play . . . . . . . . . . . . . . . . . . . . 0.080-0.280 mm
Adjustment . . . . . . . . . . . . . . . . . . Thrust washers
Thrust washers available: . . . . . . . . . 2.31-2.36 mm

2.41-2.46 mm
2.51-2.56 mm

Main bearing carriers
Internal diameter
Front . . . . . . . . . . . . . . . . . . . . . 67.025-67.050 mm
Center . . . . . . . . . . . . . . . . . . . . 66.670-66.687 mm
Rear . . . . . . . . . . . . . . . . . . . . . . 85.985-86.005 mm

Liners
Internal diameter . . . . . . . . . . . . 91.997-92.015 mm
Protrusion . . . . . . . . . . . . . . . . . . . . . 0.01-0.06 mm
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . Shims
Available shims: . . . . . . . . . . . . . . . . . . . . 0.15 mm

0.17 mm
0.20 mm
0.23 mm
0.25 mm

Cylinder head
Minimum thickness . . . . . . . . . . . . 89.95-90.05 mm
Gaskets thickness . . . . 1.41 mm +/− 0.08, 0 notches

1.61 mm +/− 0.08, 1 notch

1.51 mm +/− 0.08, 2 notches

DESCRIPTION

SPECIFICATIONS

End plates:
Height . . . . . . . . . . . . . . . . . . . . . . 89.92−90.00 mm
Connecting rods
Weight (without the crank bearing): 966 grams
Small end bearing
Internal diameter
Minimum . . . . . . . . . . . . . . . . . . . . . . . 30.035 mm
Maximum . . . . . . . . . . . . . . . . . . . . . . . 30.050 mm
Crankshaft bearings
Standard Internal diameter . . . 53.977−54.016 mm

Pistons
Skirt diameter . . . . . . . . . . . . . . 91.918-91.932 mm
(measured at approximately 10 mm above the

bottom of the skirt).

Piston clearance: . . . . . . . . . . . . . . 0.065-0.083 mm
Top of piston to cylinder head . . . . . . 0.80-0.89 mm
Piston protrusion . . . . . . . . . . 0.53 - 0.62 Fit gasket

Number (1.41), 0 notches or holes

0.73 - 0.82 Fit gasket

Number (1.61), 1 notch or hole

0.63 - 0.72 Fit gasket

Number (1.51), 2 notches or holes

Piston pins
Type . . . . . . . . . . . . . . . . . . . . . . . . . Fully floating
Pin diameter . . . . . . . . . . . . . . . 29.992-29.996 mm
Clearance . . . . . . . . . . . . . . . . . . . . 0.004-0.012 mm

Piston rings
Clearance in groove:
Top . . . . . . . . . . . . . . . . . . . . . . . . . 0.080-0.130 mm
Second . . . . . . . . . . . . . . . . . . . . . . 0.070-0.110 mm
Oil control . . . . . . . . . . . . . . . . . . . 0.040-0.080 mm
Fitted gap:
Top . . . . . . . . . . . . . . . . . . . . . . . . . 0.30 - 0.45 mm
Second . . . . . . . . . . . . . . . . . . . . . . . 0.30 - 0.45 mm
Oil control . . . . . . . . . . . . . . . . . . . . 0.25 - 0.50 mm

Camshaft
Journal diameter, front . . . . . . . . 53.495-53.51 mm
Bearing clearance . . . . . . . . . . . . . 0.030-0.095 mm
Center . . . . . . . . . . . . . . . . . . . . . . 53.45-53.47 mm
Bearing clearance . . . . . . . . . . . . . . . 0.07-0.14 mm
Rear . . . . . . . . . . . . . . . . . . . . . . . . 53.48-53.50 mm
Bearing clearance . . . . . . . . . . . . . . . 0.04-0.11 mm

Tappets
Outside diameter . . . . . . . . . . . . 22.195-22.212 mm

Rocker gear
Shaft diameter . . . . . . . . . . . . . . . 21.979-22.00 mm
Bush internal diameter . . . . . . . 22.020-22.041 mm
Assembly clearance . . . . . . . . . . . . 0.020-0.062 mm

Valves
Intake valve:
Opens . . . . . . . . . . . . . . . . . . . . . . . . 26° B. T. D. C.
Closes . . . . . . . . . . . . . . . . . . . . . . . 58° A. B. D. C.

XJ

ENGINE

9 - 47

SPECIFICATIONS (Continued)

2000 JEEP CHEROKEE















Content   ..  322  323  324  325   ..
