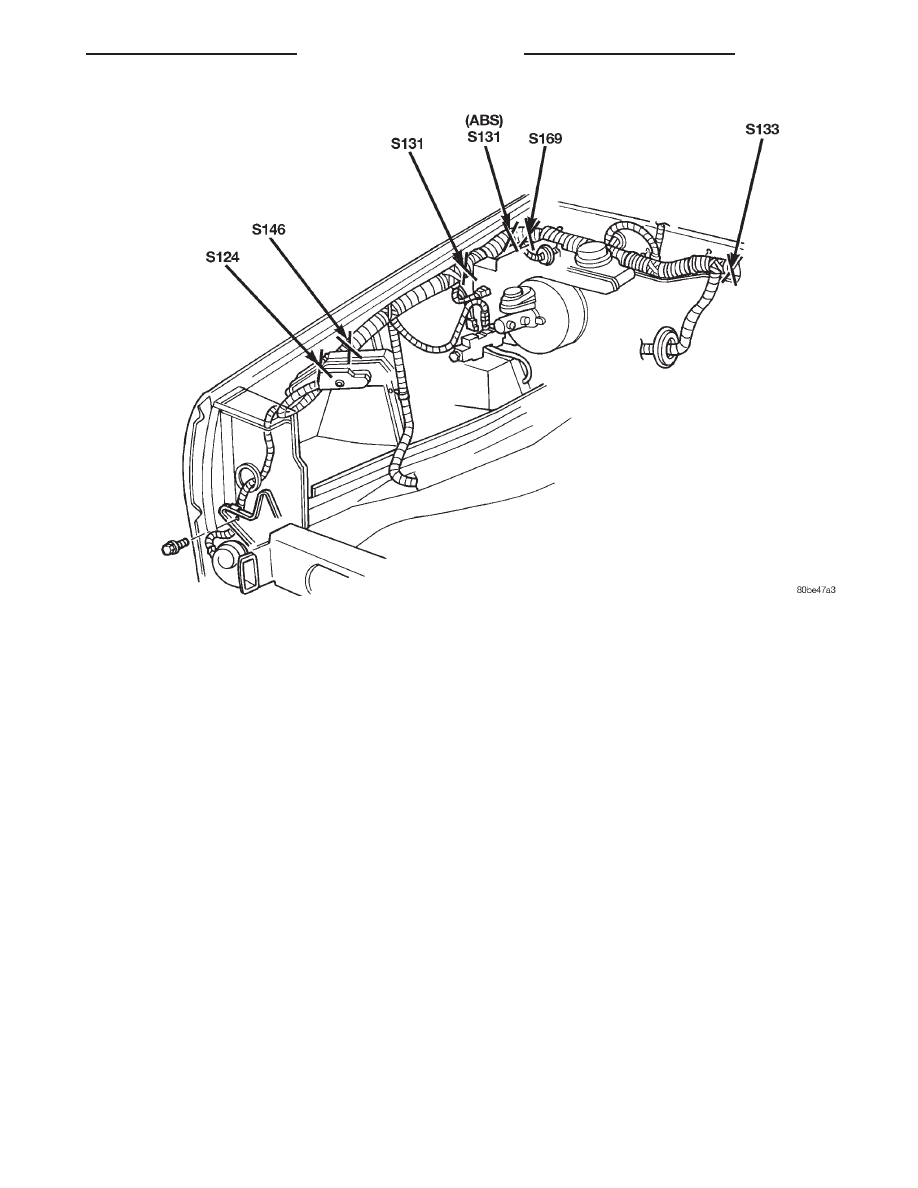

Fig.

24

Left

Engine

Compartment

Splices

Diesel

LHD

8W - 95 - 26

8W - 95 SPLICE LOCATIONS

XJ

DESCRIPTION AND OPERATION (Continued)

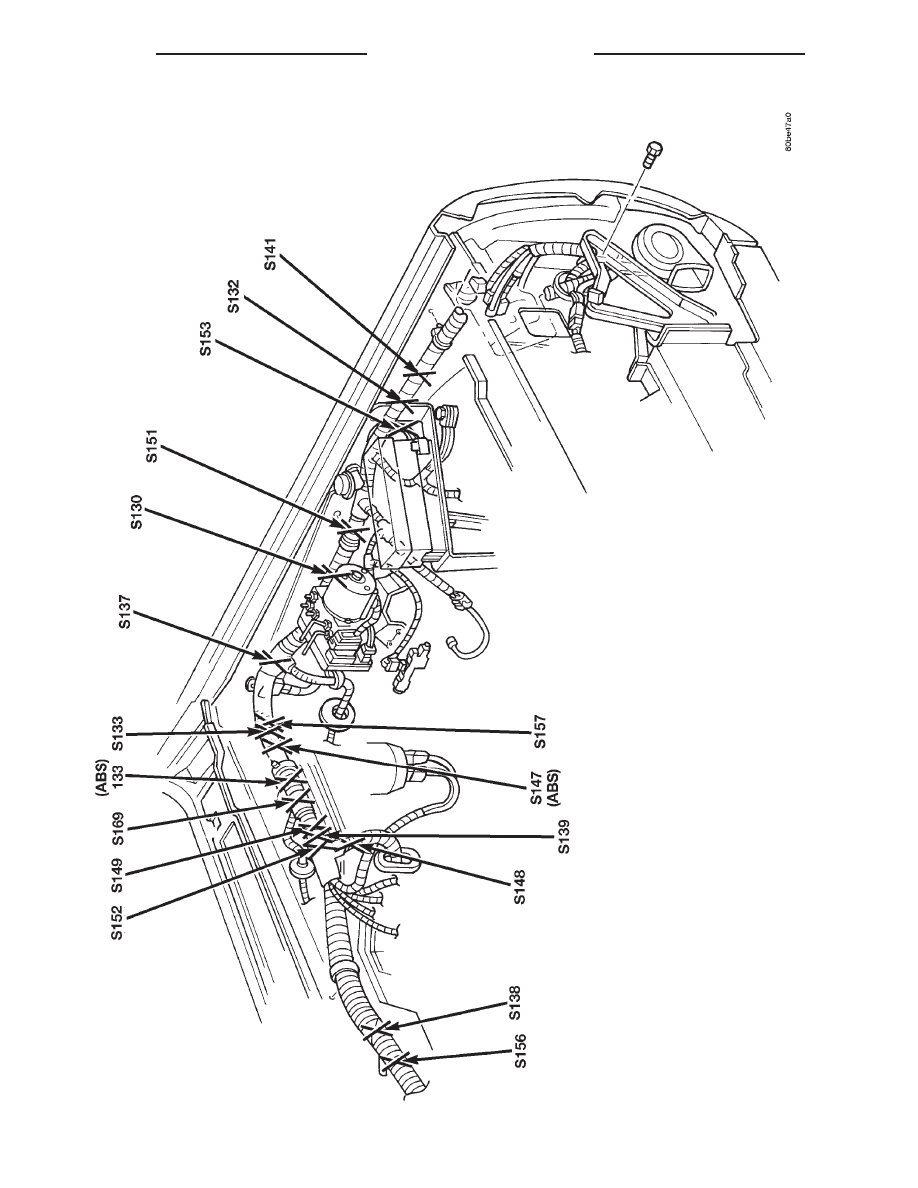

Fig.

25

Left

Engine

Compartment

Splices

Diesel

RHD

XJ

8W - 95 SPLICE LOCATIONS

8W - 95 - 27

DESCRIPTION AND OPERATION (Continued)

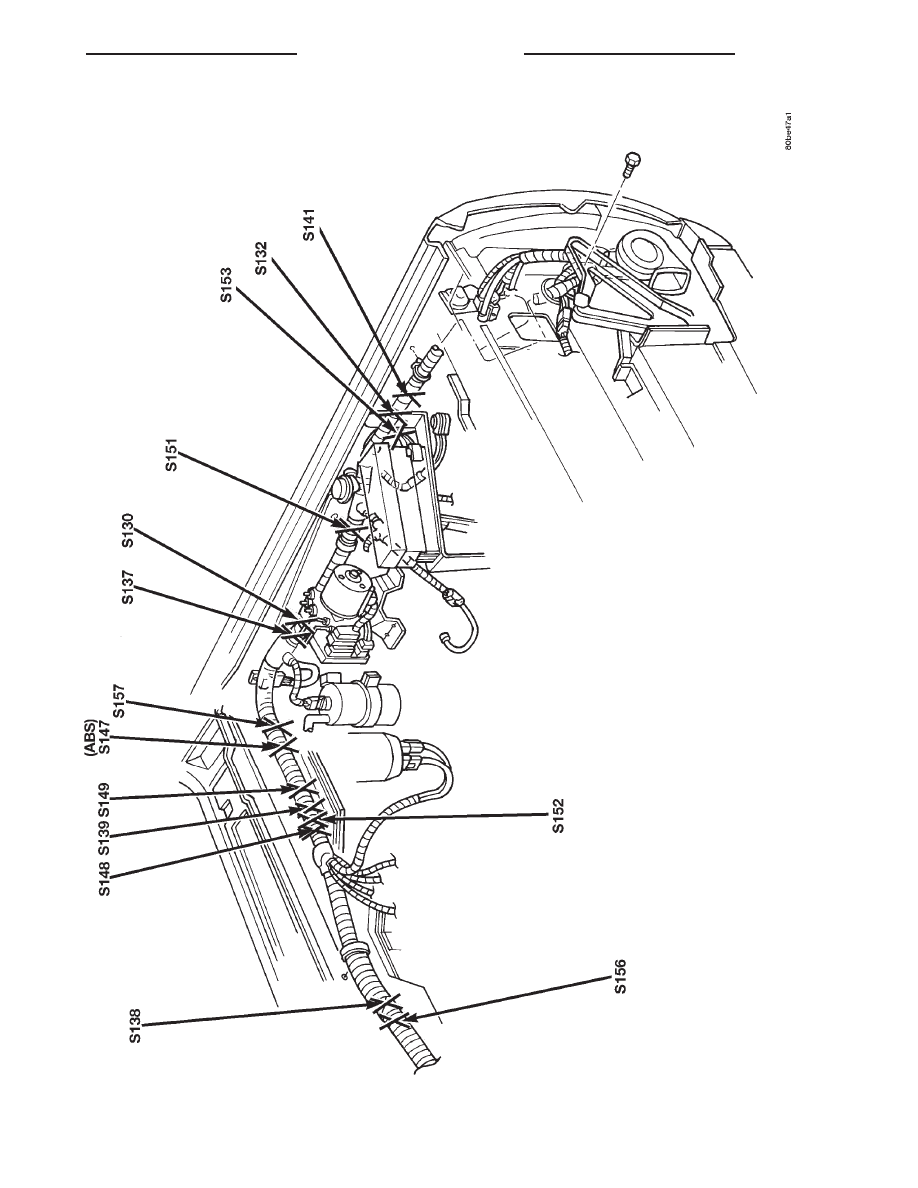

Fig.

26

Right

Engine

Compartment

Splices

Diesel

LHD

8W - 95 - 28

8W - 95 SPLICE LOCATIONS

XJ

DESCRIPTION AND OPERATION (Continued)

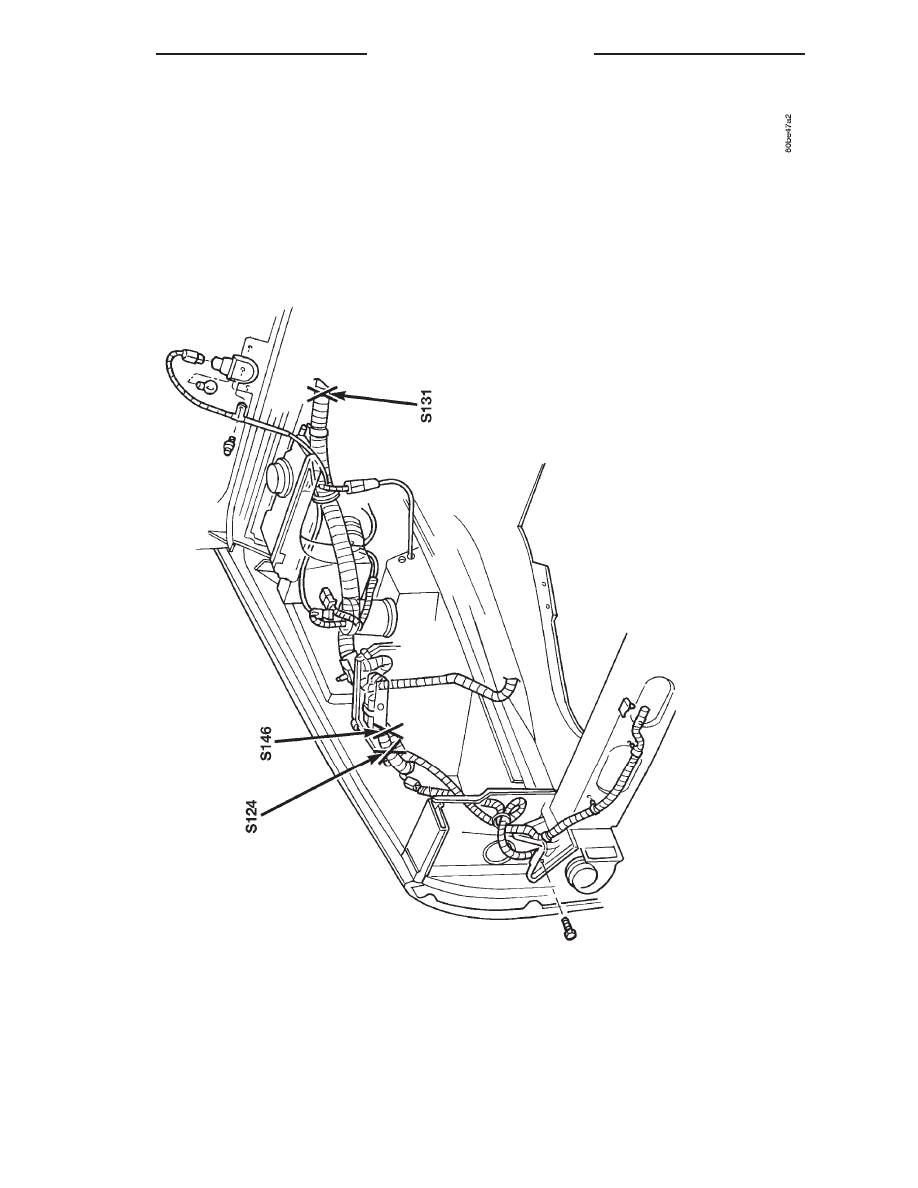

Fig. 27 Right Engine Compartment Splices Diesel RHD

XJ

8W - 95 SPLICE LOCATIONS

8W - 95 - 29

DESCRIPTION AND OPERATION (Continued)
