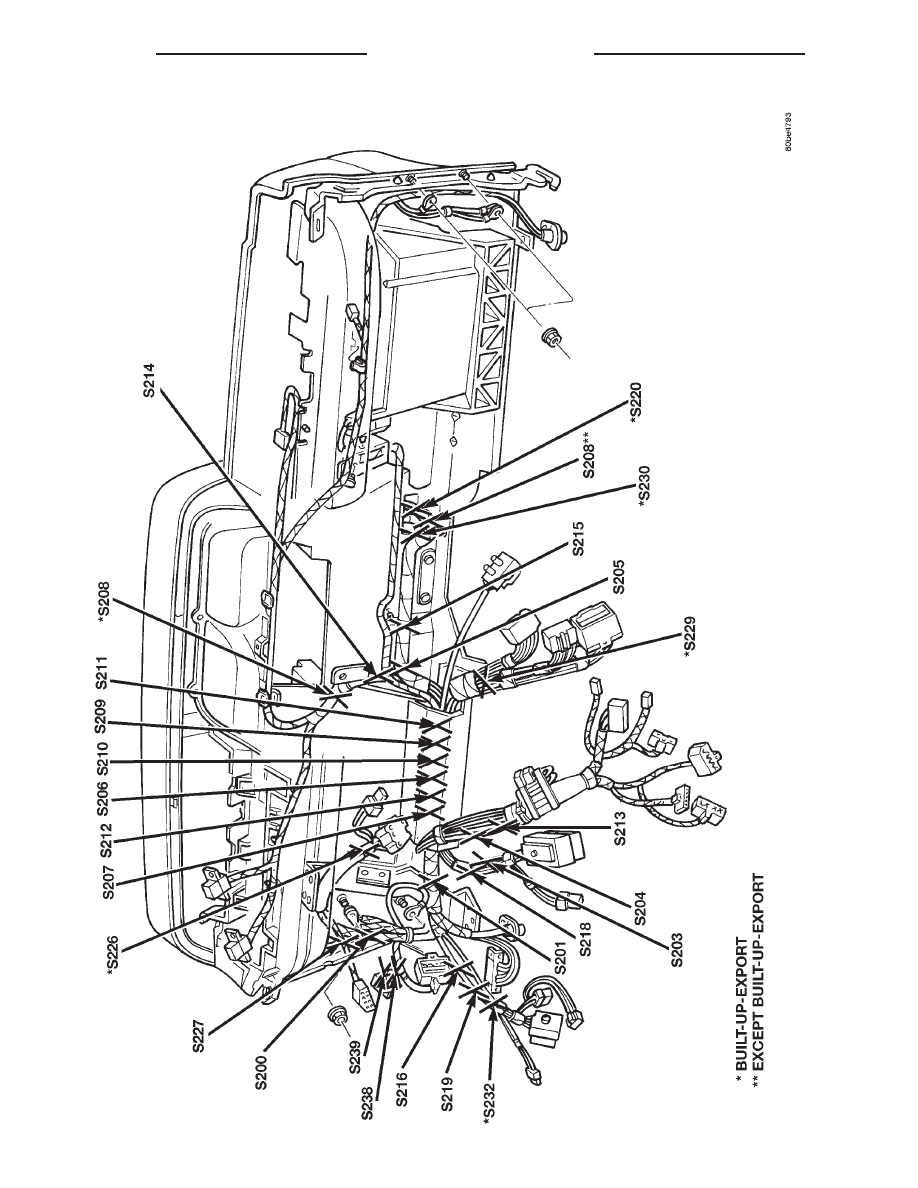

Fig.

13

Instrument

Panel

W

iring

Splices

RHD

8W - 95 - 18

8W - 95 SPLICE LOCATIONS

XJ

DESCRIPTION AND OPERATION (Continued)

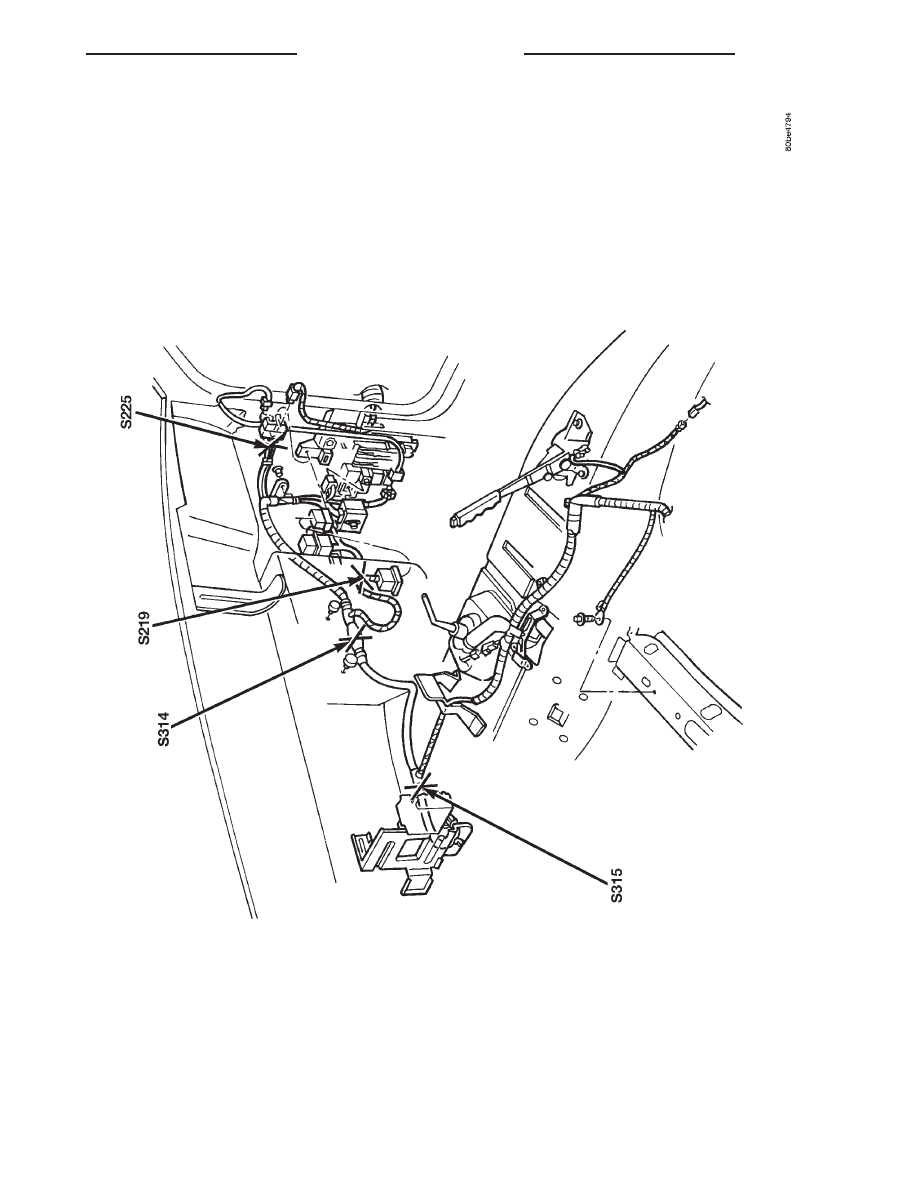

Fig.

14

Instrument

Panel

to

Body

Harness

Splices

XJ

8W - 95 SPLICE LOCATIONS

8W - 95 - 19

DESCRIPTION AND OPERATION (Continued)

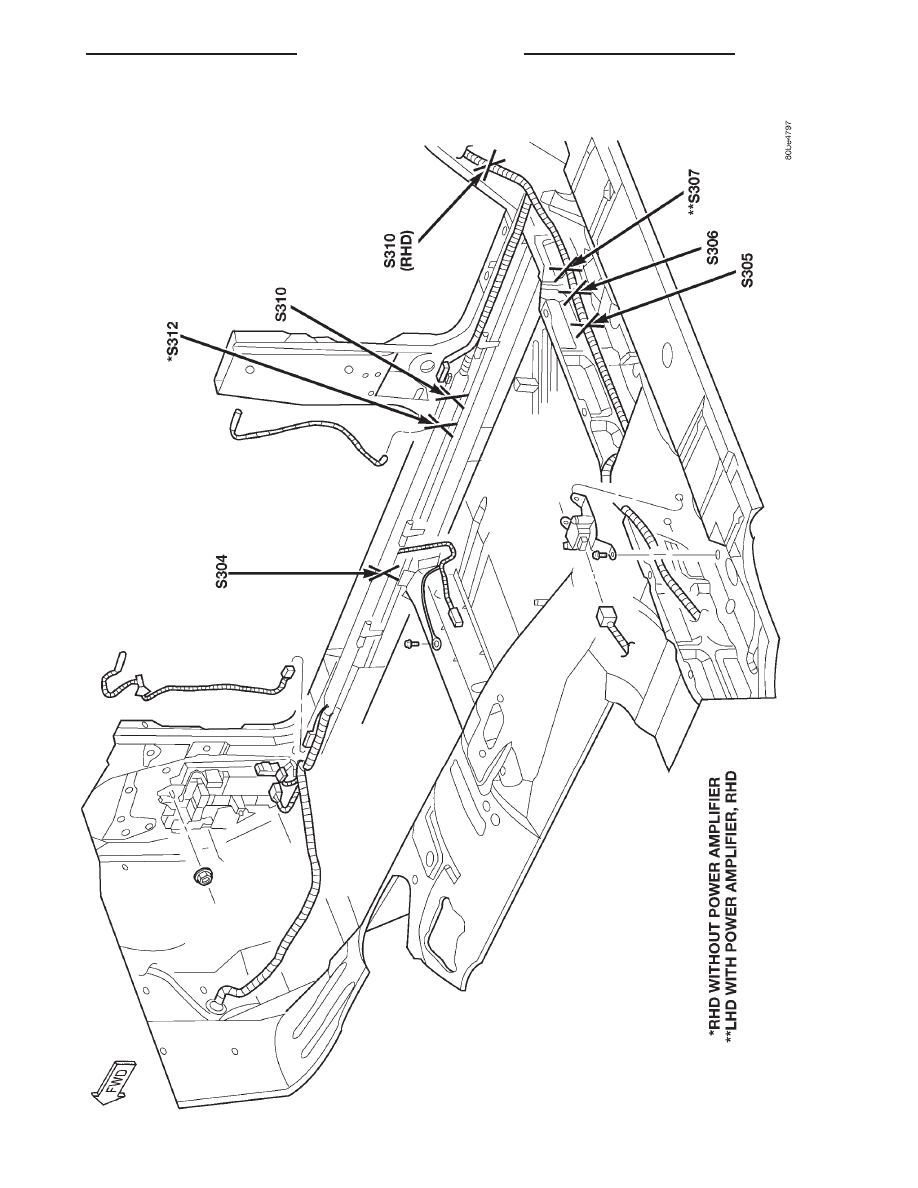

Fig.

15

Left

Side

Body

Harness

Splices

8W - 95 - 20

8W - 95 SPLICE LOCATIONS

XJ

DESCRIPTION AND OPERATION (Continued)

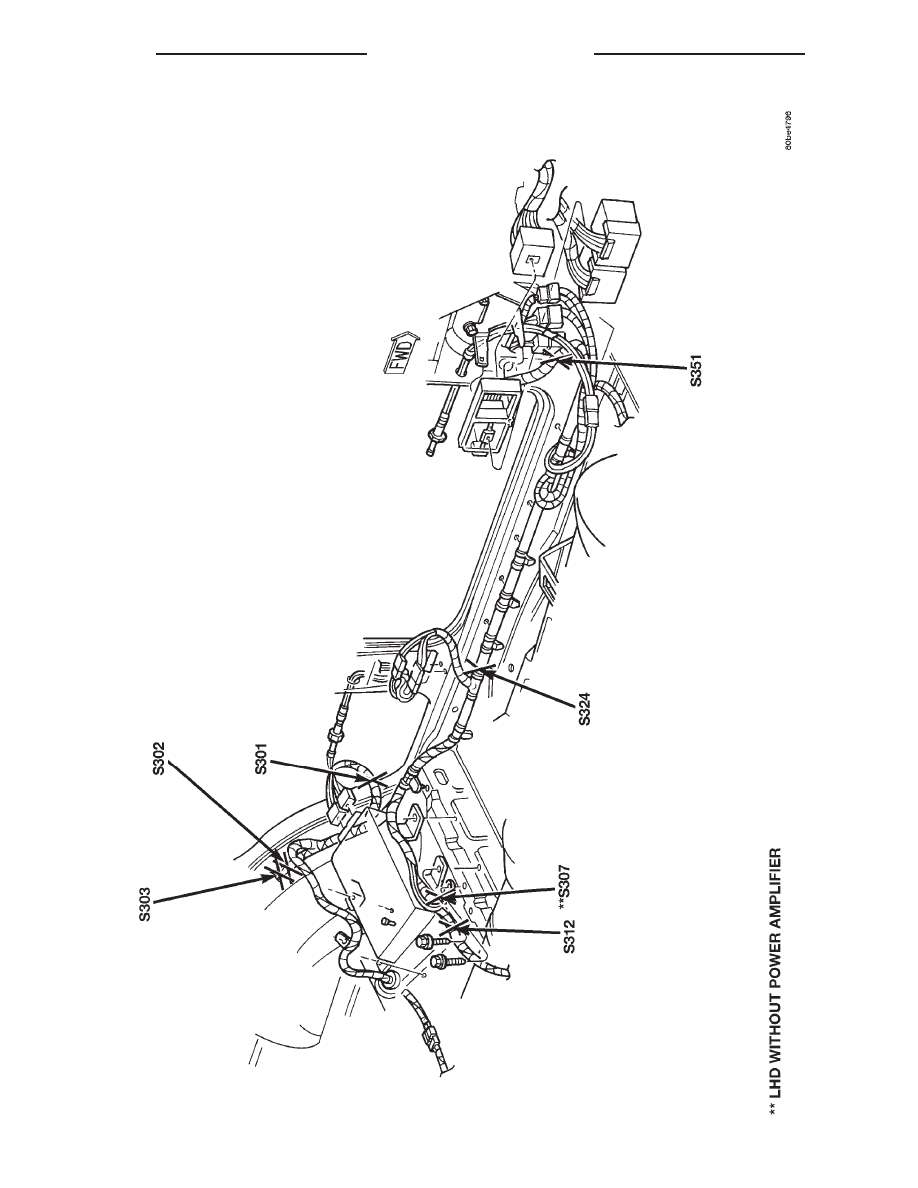

Fig.

16

Right

Side

Body

Harness

Splices

XJ

8W - 95 SPLICE LOCATIONS

8W - 95 - 21

DESCRIPTION AND OPERATION (Continued)
