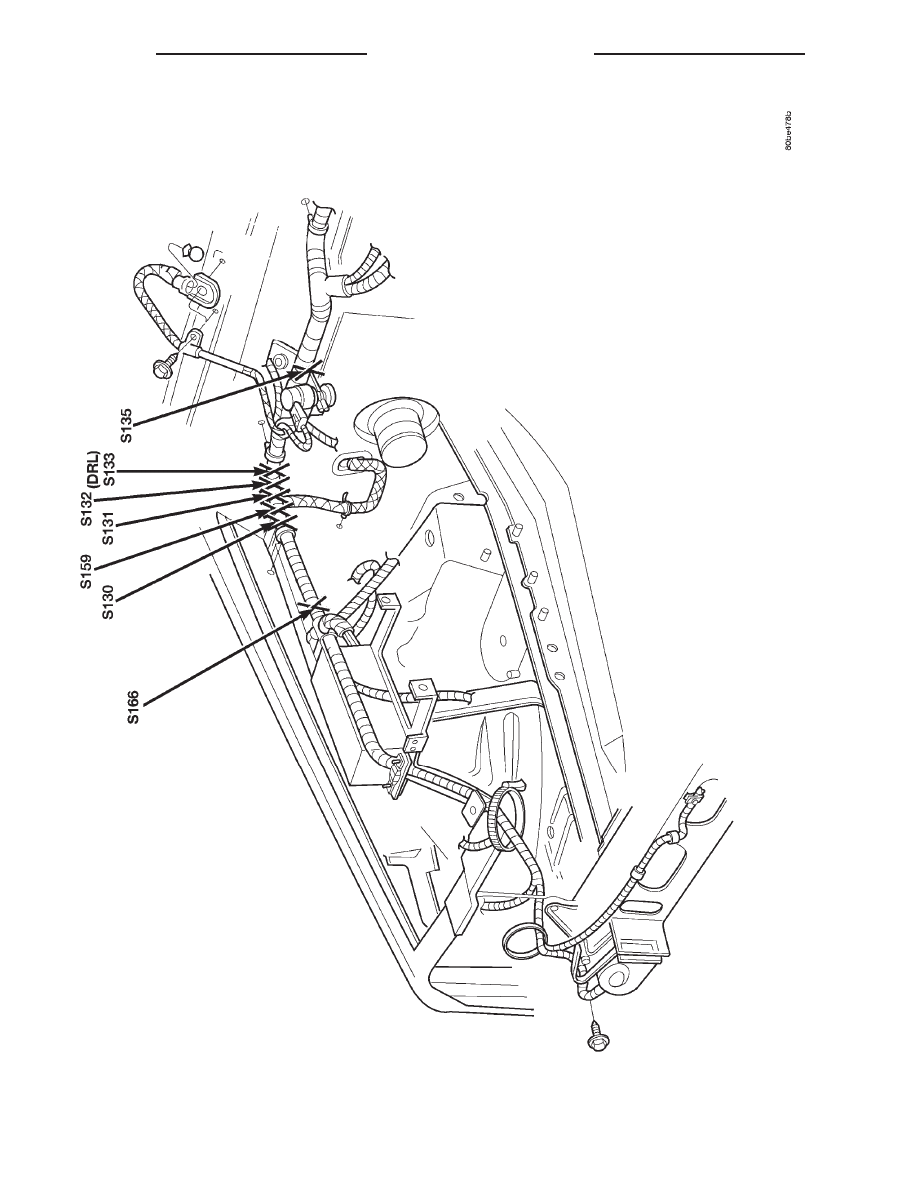

Fig.

5

Left

Engine

Compartment

Splices

2.5L

Engine

LHD

8W - 95 - 10

8W - 95 SPLICE LOCATIONS

XJ

DESCRIPTION AND OPERATION (Continued)

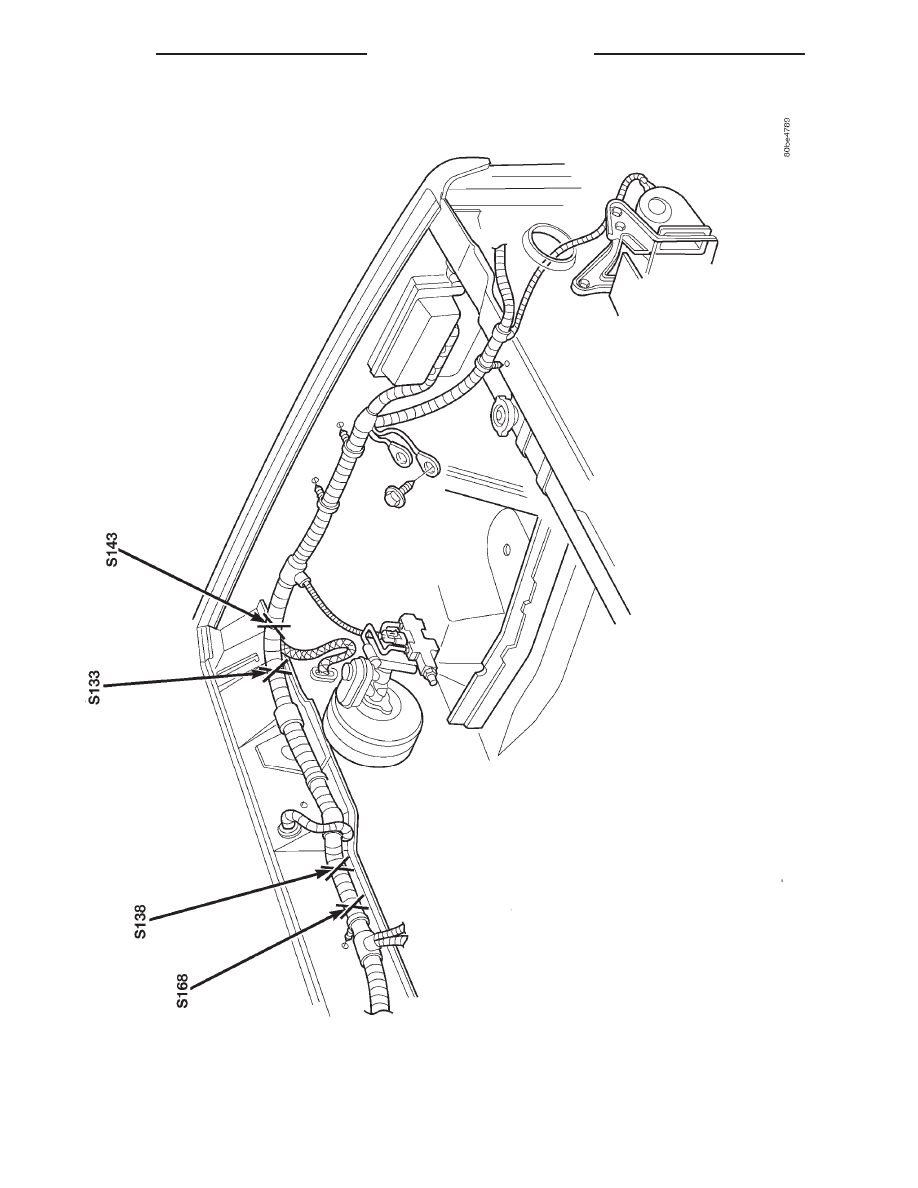

Fig.

6

Left

Engine

Compartment

Splices

2.5L

Engine

RHD

XJ

8W - 95 SPLICE LOCATIONS

8W - 95 - 11

DESCRIPTION AND OPERATION (Continued)

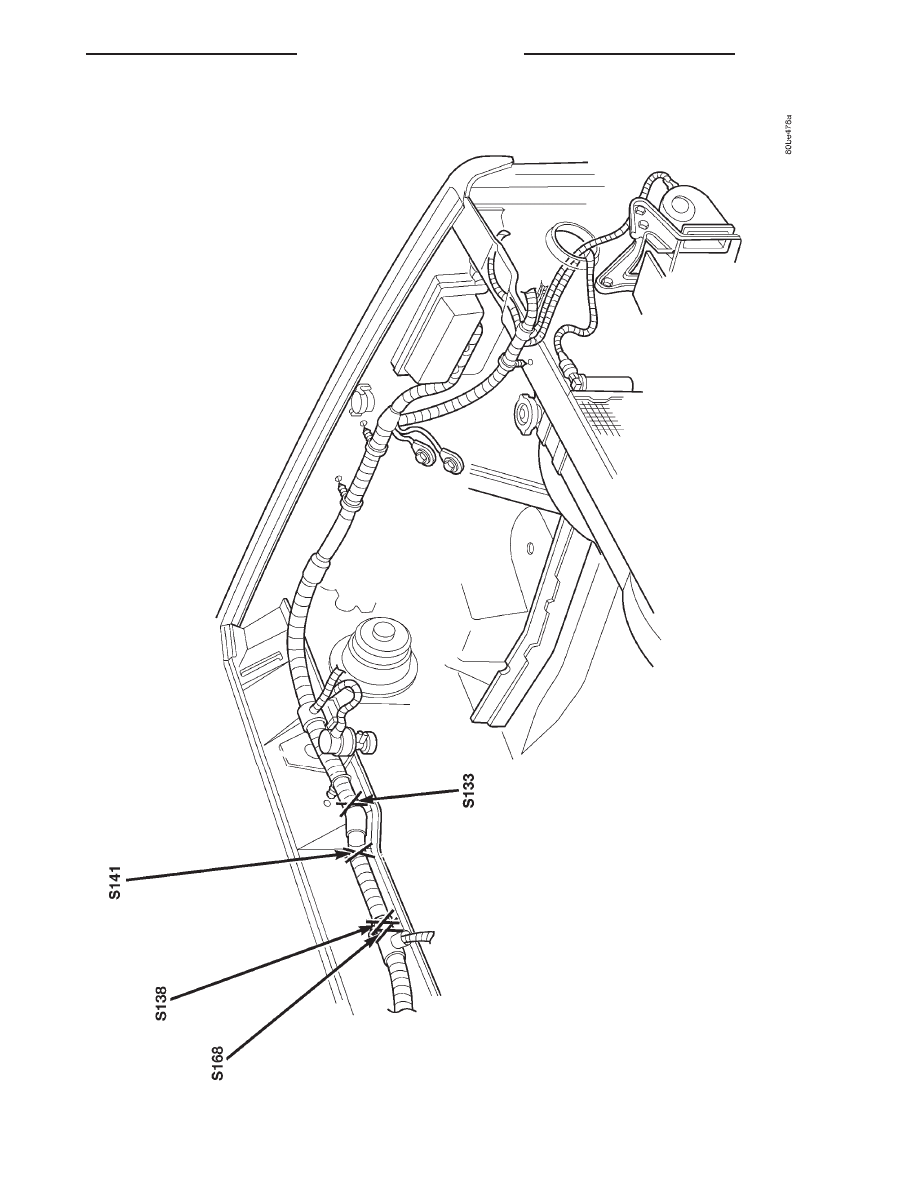

Fig.

7

Right

Engine

Compartment

Splices

2.5L

Engine

LHD

8W - 95 - 12

8W - 95 SPLICE LOCATIONS

XJ

DESCRIPTION AND OPERATION (Continued)

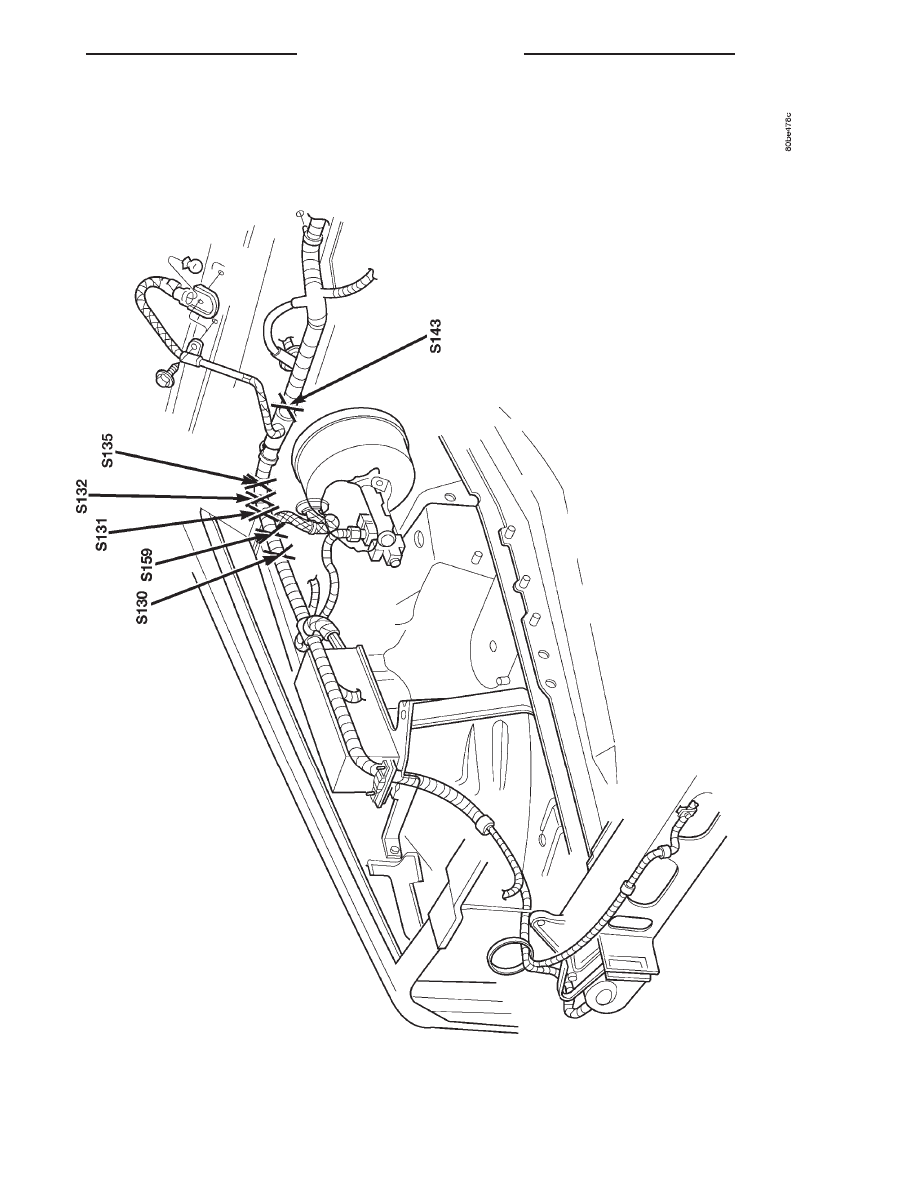

Fig.

8

Right

Engine

Compartment

Splices

2.5L

Engine

RHD

XJ

8W - 95 SPLICE LOCATIONS

8W - 95 - 13

DESCRIPTION AND OPERATION (Continued)
