VISOR VANITY LAMP

REMOVAL

(1) Fold down sunvisor.
(2) Starting at the base of the lamp assembly and

working right-to-left, use a small flat blade, carefully
pry lamp from visor.

(3) Disconnect visor lamp wire connector and

remove from vehicle.

INSTALLATION

(1) Position visor lamp at visor and connect visor

lamp wire connector.

(2) Position visor lamp in visor and press into

place.

8L - 18

LAMPS

XJ

REMOVAL AND INSTALLATION (Continued)

LAMP SYSTEMS

TABLE OF CONTENTS

page

page

REMOVAL AND INSTALLATION

SENTINEL HEADLAMP DELAY MODULE . . . . . . . 19

DAYTIME RUNNING LAMP MODULE . . . . . . . . . . 19

REMOVAL AND INSTALLATION

SENTINEL HEADLAMP DELAY MODULE

REMOVAL

(1) Remove the knee blocker.
(2) Remove the screw that attaches the module to

the inside of the instrument panel (Fig. 1).

(3) Disconnect the wire harness connector and

remove the module from the instrument panel.

INSTALLATION

(1) Position the module inside the I/P and connect

the wire harness connector to the module.

(2) Install the screw that attaches the module to

the inside of the instrument panel.

(3) Install the knee blocker.

DAYTIME RUNNING LAMP MODULE

REMOVAL

The Daytime Running Lights (DRL) module is

located on the right fender inner panel adjacent to
the dash panel (Fig. 2).

(1) Disconnect the wire harness connector from the

module.

(2) Remove the screws that attach the module to

the fender inner panel.

(3) Remove the module from the fender inner

panel.

INSTALLATION

(1) Position the module on the right fender inner

panel.

(2) Install

the

attaching

screws.

Tighten

the

screws securely.

(3) Connect the wire harness connector to the mod-

ule.

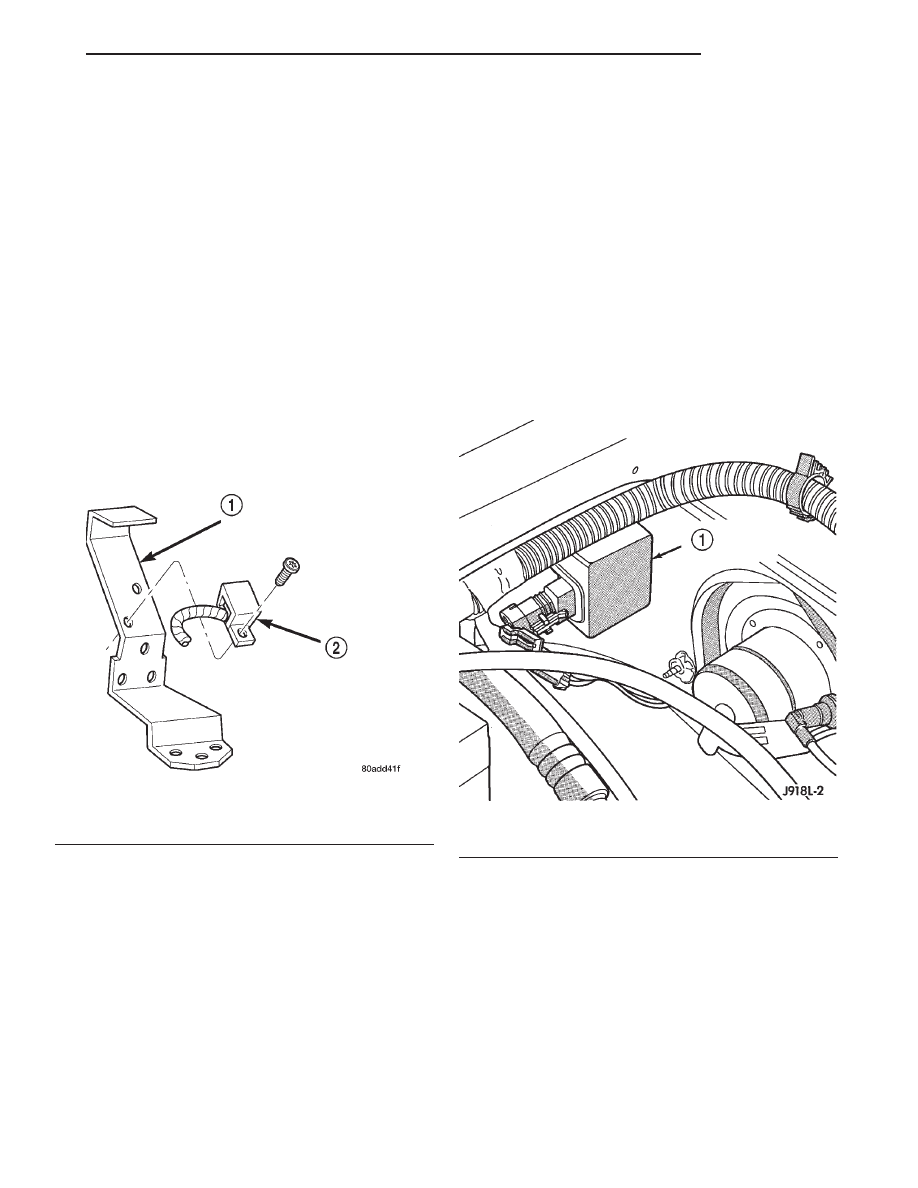

Fig. 1 Headlamp Delay Module

1 – BRACKET
2 – HEADLAMP DELAY MODULE

Fig. 2 Daytime Running Lamp Module

1 – DAYTIME RUNNING LIGHT MODULE

XJ

LAMPS

8L - 19

BULB APPLICATION

TABLE OF CONTENTS

page

page

SPECIFICATIONS

EXTERIOR LAMPS. . . . . . . . . . . . . . . . . . . . . . . . 20

INTERIOR LAMPS . . . . . . . . . . . . . . . . . . . . . . . . 20

SPECIFICATIONS

EXTERIOR LAMPS

CAUTION: Do not use bulbs that have a higher can-
dle power than the bulb listed in the Bulb Applica-
tion Table. Damage to lamp can result. Do not touch
halogen bulbs with fingers or other oily surfaces.
Bulb life will be reduced.

The following Bulb Application Table lists the lamp

title on the left side of the column and trade number
or part number on the right.

LAMP

BULB

Back-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3157
Center High Mounted Stoplamp . . . . . . . . . . . . 921
Fog lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . H3
Front Side Marker . . . . . . . . . . . . . . . . . . . . . . 168
Headlamp/Sealed Beam . . . . . . . . . . . . . . 6054BLL
License Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Park/Turn Signal . . . . . . . . . . . . . . . . . . . . . . . 3157
Tail/Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3157
Rear Turn Signal . . . . . . . . . . . . . . . . . . . . . . . 3157

INTERIOR LAMPS

CAUTION: Do not use bulbs that have a higher can-
dle power than the bulb listed in the Bulb Applica-
tion Table. Damage to lamp can result.

Service procedures for most of the lamps in the

instrument panel, Instrument cluster and switches
are located in Group 8E, Instrument Panel and
Gauges. Some components have lamps that can only
be serviced by an Authorized Service Center (ASC)
after the component is removed from the vehicle.

The following Bulb Application Tables lists the

lamp title on the left side of the column and trade
number or part number on the right.

LAMP

BULB

Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 561
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 561
Dome/Reading . . . . . . . . . . . . . . . . . . . . . . . . . . 906
Overhead Console . . . . . . . . . . . . . . . . . . . . . . . 912
Under Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Vanity Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Underpanel Courtesy . . . . . . . . . . . . . . . . . . . . 168

INDICATOR LAMPS

LAMP

BULB

A/C Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Anti-lock Brake . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Brake Warning . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Check Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Check Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Cigar Lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Coolant Temp High . . . . . . . . . . . . . . . . . . . . . . 194
Cruise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Fasten Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . 74
Four Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . 74
Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Heater Control . . . . . . . . . . . . . . . . . . . . . . . . . . 74
High Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Low Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Low Oil Pressure . . . . . . . . . . . . . . . . . . . . . . . 194
Low Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . 74
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ASC
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Transfer Case . . . . . . . . . . . . . . . . . . . . . . . . . . 658
Transmission Floor Shift . . . . . . . . . . . . . . . . . . 658
Turn Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Upshift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

8L - 20

LAMPS

XJ

LAMPS

TABLE OF CONTENTS

page

page

LAMP DIAGNOSIS . . . . . . . . . . . . . . . . . . . . . . . . . 1
HEADLAMP AND FOG LAMP ALIGNMENT. . . . . . .
3
LAMP BULB SERVICE . . . . . . . . . . . . . . . . . . . . . .
6

LAMP SERVICE. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
BULB APPLICATION . . . . . . . . . . . . . . . . . . . . . . . 1
1

LAMP DIAGNOSIS

TABLE OF CONTENTS

page

page

DESCRIPTION AND OPERATION

HEADLAMP LEVELING MOTOR. . . . . . . . . . . . . . . 1

DIAGNOSIS AND TESTING

DIAGNOSTIC PROCEDURES . . . . . . . . . . . . . . . . 1

DIAGNOSIS AND TESTING . . . . . . . . . . . . . . . . . . 2

DESCRIPTION AND OPERATION

HEADLAMP LEVELING MOTOR

DESCRIPTION

Vehicles equipped with a remote headlamp leveling

system use two leveling motors attached to each
headlamp mounting bracket. They are located just
behind

the

headlamp

assemblies

and

must

be

accessed from underneath the vehicle.

OPERATION

This system allows the driver to adjust the vertical

headlamp aim from the interior of the vehicle to com-
pensate for passenger or cargo load. A headlamp lev-
eling switch is located in the instrument panel and
controls the headlamp leveling motor function.

DIAGNOSIS AND TESTING

DIAGNOSTIC PROCEDURES

When a vehicle experiences problems with the

headlamp system, verify the condition of the battery
connections, fuses, charging system, headlamp bulbs,
wire connectors, relay, high beam switch, dimmer
switch, and headlamp switch. Refer to Group 8W,
Wiring Diagrams for component locations and circuit
information.

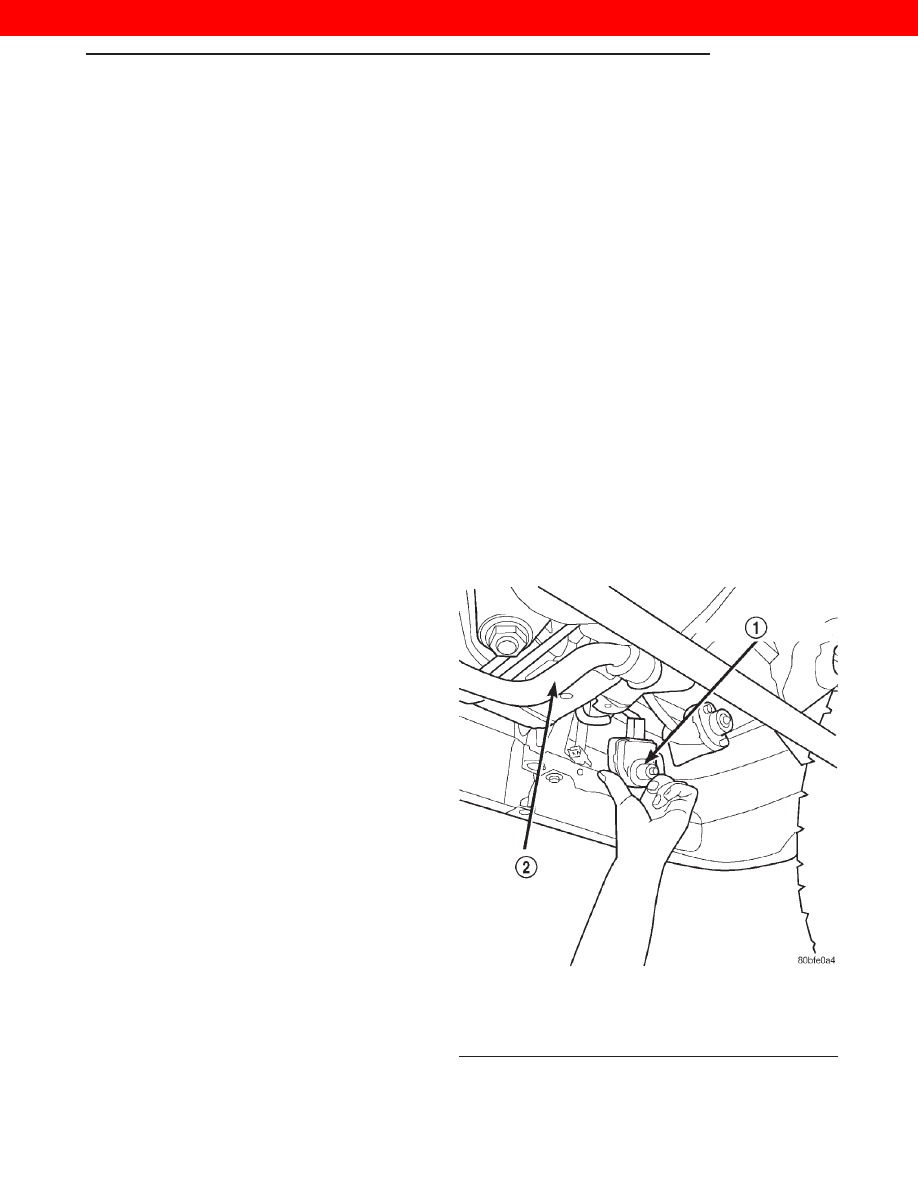

Fig. 1 Headlamp Leveling Motor Position &

Orientation

1 – HEADLAMP LEVELING MOTOR
2 – FRONT STABILIZER BAR

XJ

LAMPS

8L - 1

2000 JEEP CHEROKEE
