Jeep Wrangler TJ. Manual - part 556





(14) Repeat the previous steps on the inside area

of the hard top.

(15) Featheredge the repaired surface area.
(16) Prime the repaired surface area with PPG

t

Epoxy Primer, or an equivalent product.

(17) Apply surface primer to the surface area.
(18) Prime the surface area for the color coat.
(19) Apply color coat to the repaired surface area.

HARD TOP FRACTURE REPAIR

If it has been determined that the hard top can be

repaired. The following required materials and proce-
dures are to be used.

(1) Use a grinder to remove the paint and outline

the damaged area. Use a grade 150 grit disc for paint
removal.

(2) Grind the outlined surface area again with a

240 grit disc to prevent coarse scratches from appear-
ing in the final finish.

(3) If cracks extend from the damaged area, it will

be necessary to stop drill the cracks with a 3-mm
(1/8-in) diameter drill bit. This will prevent the crack
and/or fracture from spreading and allow repair
material to be effective.

(4) Bevel the edges of the crack/fracture on both

sides with a rotary file.

NOTE: The edges should be beveled on the inside
and outside of the top to ensure sufficient surface
area for good bonding.

(5) Complete the repairs with fiberglass cloth and

resin as described in the hard top hole repair proce-
dure. (Refer to 23 - BODY/REMOVABLE TOP -
STANDARD PROCEDURE)

HARD TOP SAG REPAIR

Inspect the roof/hard top assembly for the presence

of sag, or if the customer complains of water accumu-
lation on the roof. Perform the following procedure to
repair.

(1) Disengage latches at windshield frame (Fig. 1).

NOTE: The two forward bolts/nuts are not captured.
Do not lose the nuts when removing.

(2) Remove the six bolts that attach the hard top

to the body (Fig. 2).

(3) Depress tab on rear wiper motor connector and

pull downward to disengage (Fig. 3).

(4) Make two marks on the inside of the hard top

6 cm (2.5 in.) on both sides of the center roof rib,
directly above the sport bar.

(5) Move the hard top back about 10 cm (4 in.) to

expose the inner rib section.

(6) Clean the roof area with isopropyl alcohol.
(7) Install the foam repair blocks by removing the

protective backing tape from the adhesive side. The
foam blocks must be centered above the sport bar
pad.

(8) Move the hard top assembly back into position

and centered at the windshield frame.

(9) Inspect the hard top seals for damage and

replace, if necessary.

(10) Inspect the windshield header seal and make

sure it is clean, undamaged, and free of debris.

(11) Carefully position the hard top assembly on

the vehicle making sure that the latches are not
pinched between the windshield frame and top.

CAUTION: Do not over tighten the top bolts. Over
tightening can cause cracking of the hardtop
assembly.

(12) Loosely install the six bolts. Ensure that the

top is centered on the vehicle and locators are in
place in the body side slots and tighten the bolts to
17 N·m (150 in. lbs.).

(13) Connect the wire wiper motor harness connec-

tor.

(14) Connect the rear washer fluid hose.
(15) Engage the latches at windshield frame and

snap the clamps home.

23 - 66

REMOVEABLE TOP

TJ

REMOVEABLE TOP (Continued)

HARD TOP

REMOVAL

(1) Disengage latches at windshield frame (Fig. 1).

NOTE: The two forward bolts/nuts are not captured.
Do not lose the nuts when removing.

(2) Remove the six bolts that attach the hard top

to the body (Fig. 2).

(3) Depress tab on rear wiper motor connector and

pull downward to disengage (Fig. 3).

(4) Disconnect the rear washer fluid hose. Cap the

hose to prevent washer fluid leakage (Fig. 4).

CAUTION: Protect the lower edges of the top from
potential damage, cracks, paint chips, gouges and
scratches that are not covered under warranty.

(5) Carefully remove the hard top assembly from

the vehicle.

INSTALLATION

(1) Inspect the hard top seals for damage and

replace, if necessary.

(2) Inspect the windshield header seal and make

sure it is clean, undamaged, and free of debris.

(3) Carefully position the hard top assembly on the

vehicle making sure that the latches are not pinched
between the windshield frame and top.

CAUTION: Do not over tighten the top bolts. Over
tightening can cause cracking of the hardtop
assembly.

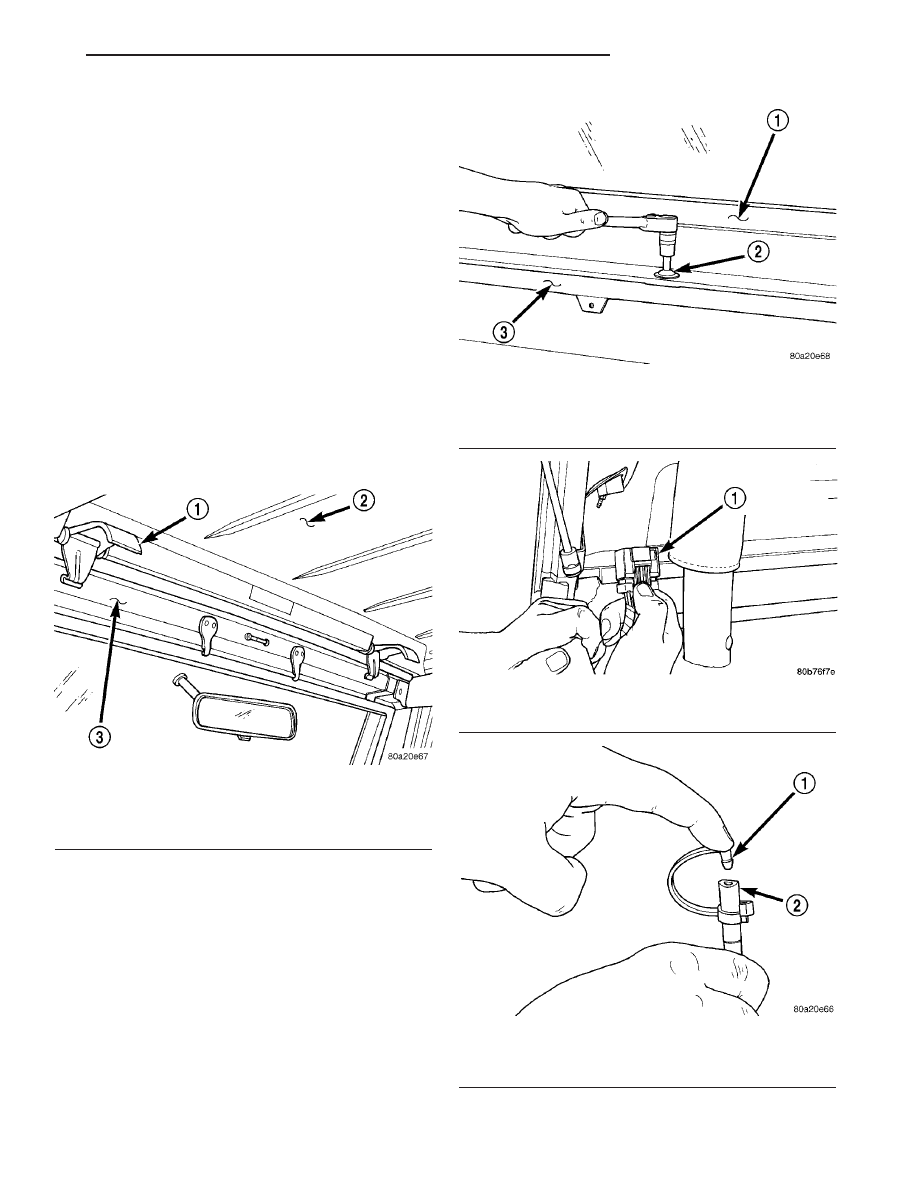

Fig. 1 HARD TOP LATCH

1 - LATCH
2 - HARD TOP
3 - WINDSHIELD FRAME

Fig. 2 HARD TOP REMOVAL

1 - HARD TOP
2 - HOLD DOWN BOLT
3 - BODY RAIL

Fig. 3 REAR WIPER WIRE HARNESS CONNECTOR

1 - WIPER MOTOR CONNECTOR

Fig. 4 REAR WASHER FLUID TUBE

1 - WASHER HOSE CAP
2 - REAR WASHER SUPPLY HOSE - BODY HALF

TJ

REMOVEABLE TOP

23 - 67

(4) Loosely install the six bolts. Ensure that the

top is centered on the vehicle and tighten the bolts to
17 N·m (150 in. lbs.).

(5) Connect the wire wiper motor harness connec-

tor.

(6) Connect the rear washer fluid hose.
(7) Engage the latches at windshield frame and

snap the clamps home.

SOFT TOP

REMOVAL

(1) Disengage the retainers attaching the rear win-

dow to the body.

(2) Remove rear window, unzipping from right to

left.

(3) Disengage J-straps at soft top rear corners

(Fig. 5).

(4) Unzip quarter windows, disengage J-strap and

remove quarter windows.

(5) Starting at the rear of the upper door opening

frame and working forward, disengage drip rail
retainers attaching the soft top to the door opening
frame.

(6) Unlatch top at windshield frame.
(7) Lower the top to the rearward position.
(8) Remove the screws attaching the roof bows to

the pivot bracket (Fig. 6).

(9) Lift up bows at pivot bracket to disengage from

pivot bracket.

(10) Remove the top (Fig. 7).

INSTALLATION

(1) Position the top on the vehicle.
(2) Install the screws attaching the roof bows to

the pivot bracket. (The front bow is attached to the
pivot bracket on the upper outward location).

(3) Raise the top.
(4) Position latch in windshield frame.
(5) Install the quarter windows.
(6) Working from front to rear, engage the J-straps

attaching the quarter window to the body.

(7) Install rear window.
(8) Engage drip rail retainers above door opening

frame.

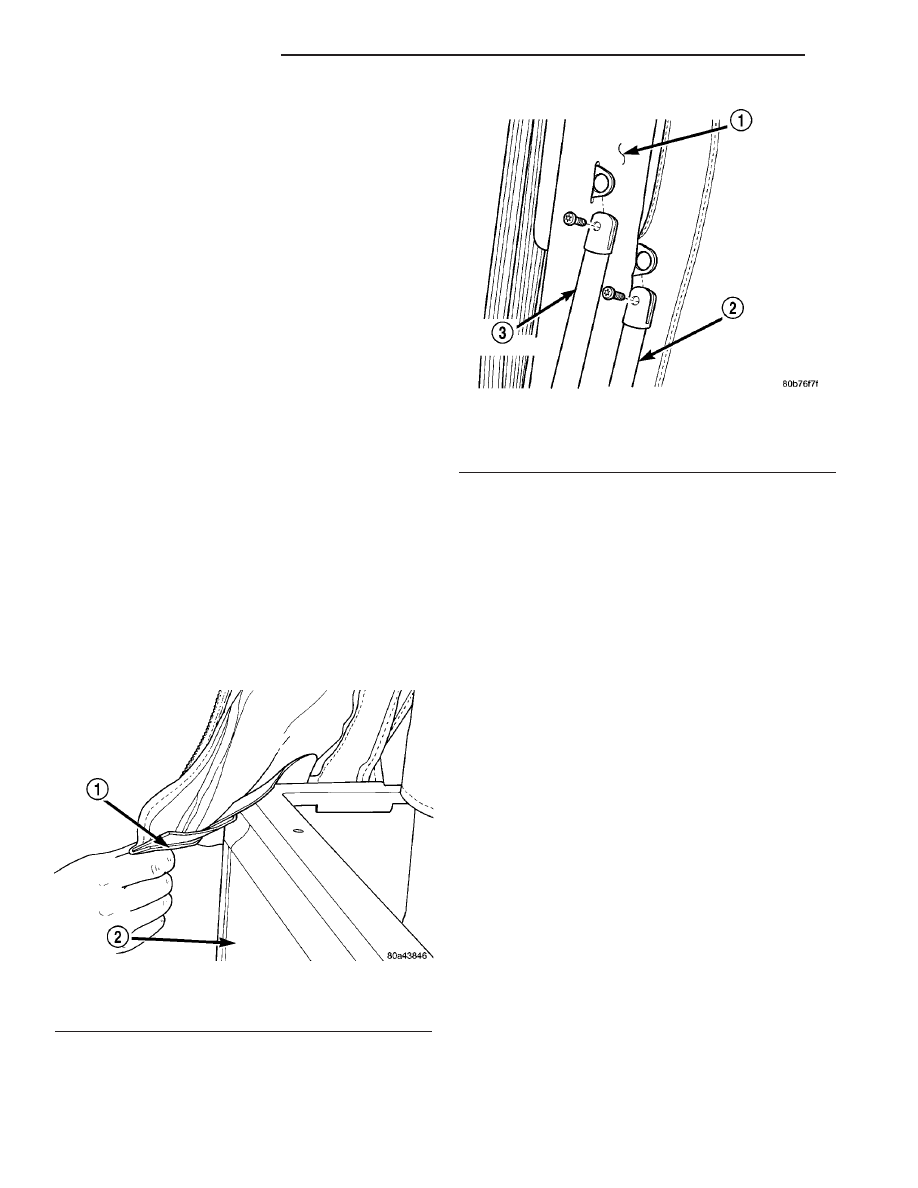

Fig. 5 SOFT TOP J-STRAPS

1 - SOFT TOP CORNER J-STRAP
2 - QUARTER PANEL

Fig. 6 ROOF BOW REMOVAL

1 - SPORT BAR
2 - REAR ROOF BOW
3 - SIDE ROOF BOW

23 - 68

REMOVEABLE TOP

TJ

HARD TOP (Continued)

(9) Working from front to rear, engage J-straps at

soft top rear corners.

(10) Engage the retainers attaching the rear win-

dow to the body.

(11) Close latch at windshield frame.

SOFT TOP FABRIC

REMOVAL

(1) Disengage the snaps attaching the soft top fab-

ric to the rear roof bow.

(2) Disengage the hook and loop fastener attaching

soft top fabric to the center roof bow.

(3) Lower the soft top.

(4) Remove the screws attaching the soft top fabric

to the front roof bow and fold back fabric.

(5) Separate the soft top fabric from the frame.

INSTALLATION

(1) Position the soft top fabric on the frame.
(2) Install the screws attaching the soft top fabric

to the front roof bow.

(3) Engage the hook and loop fastener attaching

soft top fabric to the center roof bow.

(4) Engage the snaps attaching the soft top fabric

to the rear roof bow.

(5) Raise and secure the soft top.

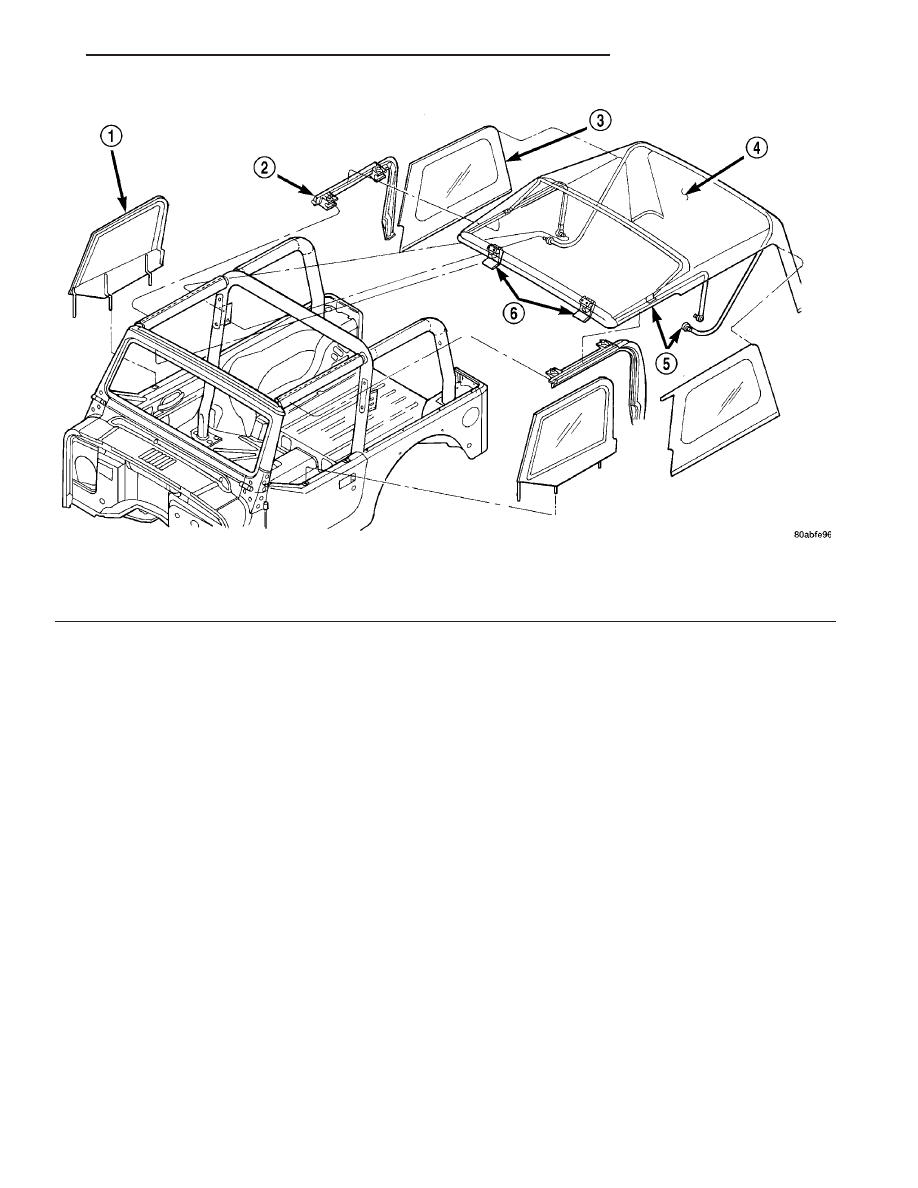

Fig. 7 SOFT TOP

1 - HALF DOOR WINDOW
2 - DOOR OPENING FRAME
3 - QUARTER WINDOW

4 - SOFT TOP
5 - ROOF BOW
6 - LATCH REINFORCEMENT

TJ

REMOVEABLE TOP

23 - 69

SOFT TOP (Continued)
