(17) Position fuel fill bezel to body. Install eight

screws (4) (Fig. 22) and tighten.

(18) Fill fuel tank. Install filler cap.
(19) Connect negative battery cable to battery.
(20) Start vehicle and inspect for leaks.

INLET FILTER

REMOVAL

The fuel pump inlet filter (strainer) is located on

the bottom of fuel pump module (Fig. 23). The fuel
pump module is located on top of fuel tank.

(1) Remove fuel tank. Refer to Fuel Tank Removal/

Installation.

(2) Remove fuel pump module. Refer to Fuel Pump

Module Removal/Installation.

(3) Remove filter by prying from bottom of module

with 2 screwdrivers. Filter is snapped to module.

(4) Clean bottom of pump module.

INSTALLATION

The fuel pump inlet filter (strainer) is located on

the bottom of fuel pump module (Fig. 24). The fuel
pump module is located on top of fuel tank.

(1) Snap new filter to bottom of module.

(2) Install fuel pump module. Refer to Fuel Pump

Module Removal/Installation.

(3) Install fuel tank. Refer to Fuel Tank Removal/

Installation.

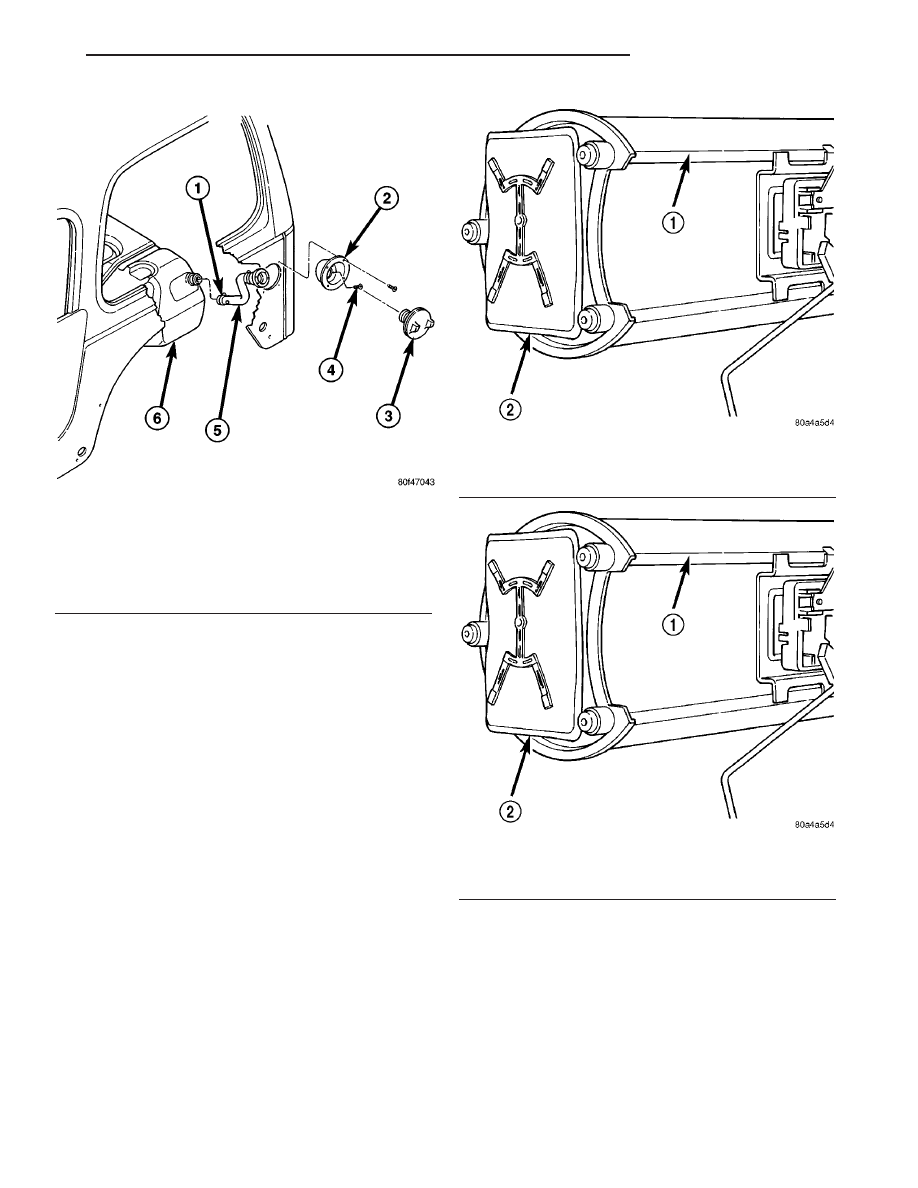

Fig. 22 FUEL FILL HOSE AT BODY

1 - FILLER HOSE CLAMP
2 - BEZEL
3 - FUEL FILLER CAP
4 - BEZEL SCREWS (8)
5 - FUEL FILLER HOSE
6 - FUEL TANK

Fig. 23 Fuel Pump Inlet Filter

1 - FUEL PUMP MODULE
2 - FUEL PUMP INLET FILTER

Fig. 24 Fuel Pump Inlet Filter

1 - FUEL PUMP MODULE
2 - FUEL PUMP INLET FILTER

TJ

FUEL DELIVERY

14 - 15

FUEL TANK (Continued)

QUICK CONNECT FITTING

DESCRIPTION

Different types of quick-connect fittings are used to

attach the various fuel system components, lines and
tubes. These are: a single-button type, a two-button
type, a pinch type, a single-tab type, a two-tab type
or a plastic retainer ring type. Some are equipped
with safety latch clips. Some may require the use of
a special tool for disconnection and removal. Refer to
Quick-Connect Fittings Removal/Installation for more
information.

CAUTION: Before separating a quick-connect fitting,
pay attention to what type of fitting is being used
by referring to Quick-Connect Fitting Removal. This
will prevent unnecessary fitting or fitting latch
breakage.

CAUTION: The interior components (o-rings, clips)
of quick-connect fittings are not serviced sepa-
rately, but new plastic spacers and latches are
available for some types. If service parts are not
available, do not attempt to repair the damaged fit-
ting or fuel line (tube). If repair is necessary, replace
the complete fuel line (tube) assembly.

STANDARD PROCEDURE - QUICK-CONNECT
FITTINGS

Different types of quick-connect fittings are used to

attach the various fuel system components, lines and
tubes. These are: a single-button type, a two-button
type, a pinch type, a single-tab type, a two-tab type
or a plastic retainer ring type. Some are equipped
with safety latch clips. Some may require the use of
a special tool for disconnection and removal.

DISCONNECTING

WARNING: THE FUEL SYSTEM IS UNDER A CON-
STANT PRESSURE (EVEN WITH ENGINE OFF).
BEFORE SERVICING ANY FUEL SYSTEM HOSE,
FITTING OR LINE, FUEL SYSTEM PRESSURE MUST
BE RELEASED. REFER TO FUEL SYSTEM PRES-
SURE RELEASE PROCEDURE.

CAUTION: Before separating a quick-connect fitting,
pay attention to what type of fitting is being used

by referring to Quick-Connect Fitting Removal. This
will prevent unnecessary fitting or fitting latch
breakage.

CAUTION: The interior components (o-rings, clips)
of quick-connect fittings are not serviced sepa-
rately, but new plastic spacers and latches are
available for some types. If service parts are not
available, do not attempt to repair the damaged fit-
ting or fuel line (tube). If repair is necessary, replace
the complete fuel line (tube) assembly.

(1) Perform fuel pressure release procedure. Refer

to Fuel Pressure Release Procedure.

(2) Disconnect negative battery cable from battery.
(3) Clean fitting of any foreign material before dis-

assembly.

(4) Single–Button Type Fitting: This type of fit-

ting is equipped with a single push-button located on
the quick-connect fitting (Fig. 25). The push-button is
attached to two internal latches (Fig. 26). To discon-
nect, press on button with your thumb and unlatch
fitting from fuel line. Special tools are not required
for disconnection. DO NOT ATTEMPT TO PRY OR
PULL UP ON PUSH-BUTTON. LATCHES WILL
BE BROKEN.

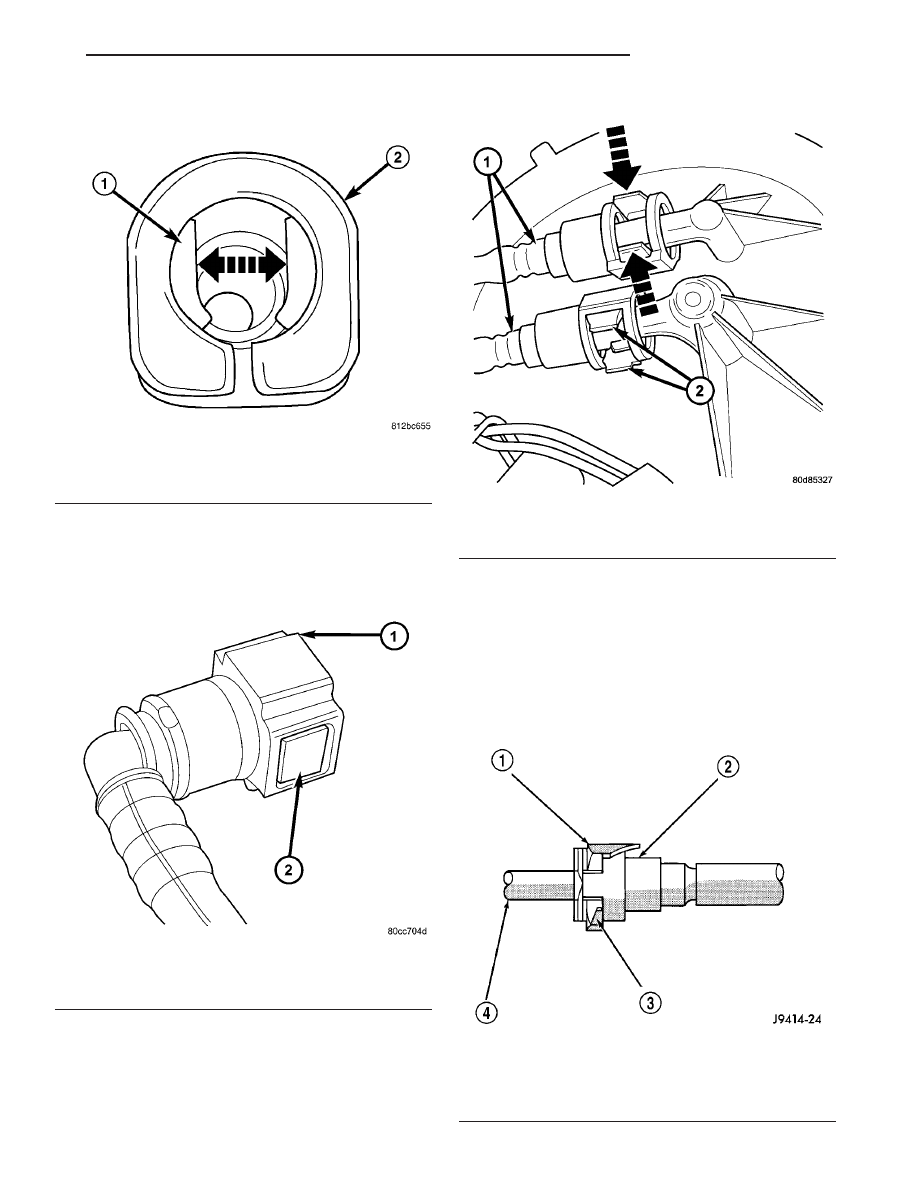

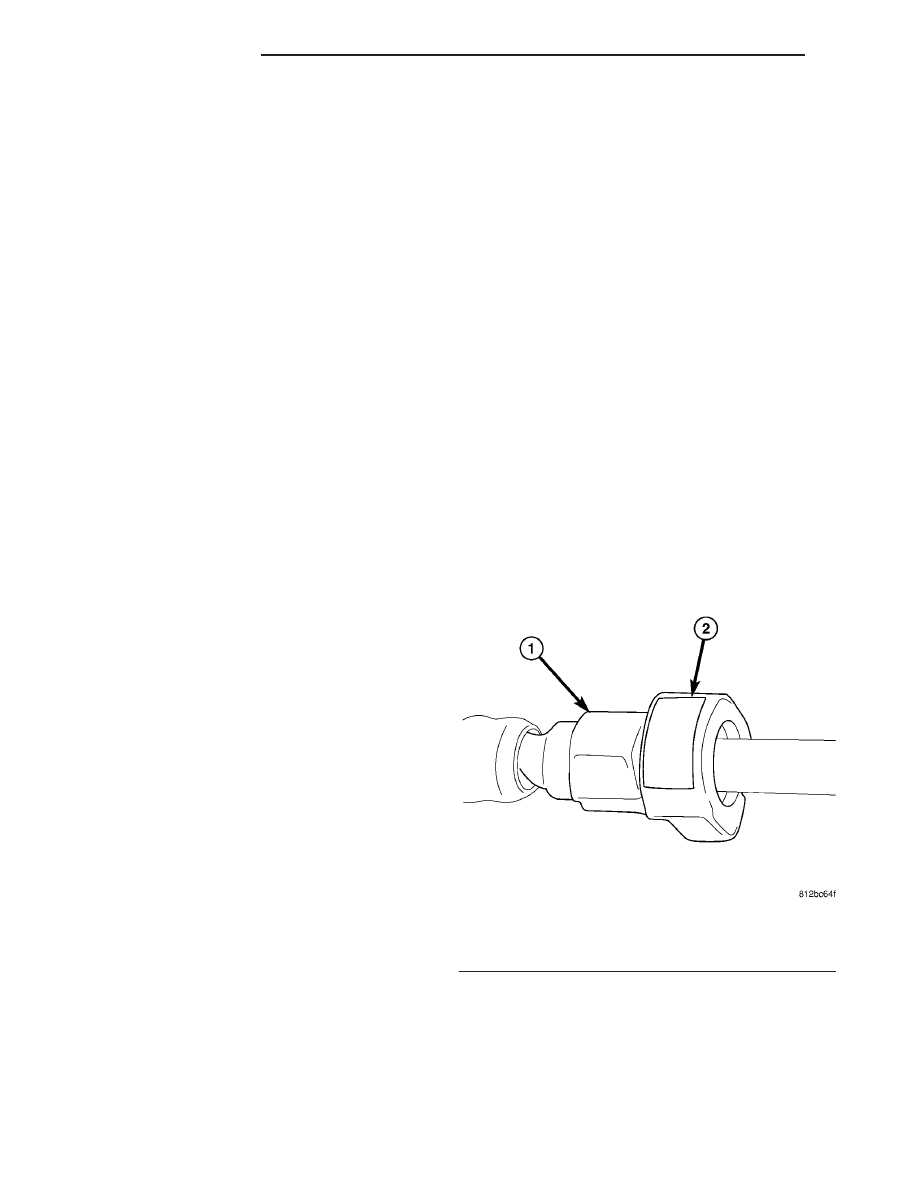

Fig. 25 SINGLE BUTTON FITTING

1 - QUICK-CONNECT FITTING
2 - SINGLE PUSH-BUTTON

14 - 16

FUEL DELIVERY

TJ

(5) 2–Button Type Fitting: This type of fitting is

equipped with a push-button located on each side of
quick-connect fitting (Fig. 27). Press on both buttons
simultaneously for removal. Special tools are not
required for disconnection.

(6) Pinch-Type Fitting: This fitting is equipped

with two finger tabs. Pinch both tabs together while
removing fitting (Fig. 28). Special tools are not
required for disconnection.

(7) Single-Tab Type Fitting: This type of fitting

is equipped with a single pull tab (Fig. 29). The tab
is removable. After tab is removed, quick-connect fit-
ting can be separated from fuel system component.
Special tools are not required for disconnection.

Fig. 29 SINGLE-TAB TYPE FITTING

1 - PULL TAB
2 - QUICK-CONNECT FITTING
3 - PRESS HERE TO REMOVE PULL TAB
4 - INSERTED TUBE END

Fig. 26 FITTING LATCHES

1 - LATCHES
2 - QUICK-CONNECT FITTING

Fig. 27 2-BUTTON TYPE FITTING

1 - QUICK-CONNECT FITTING
2 - PUSH-BUTTONS (2)

Fig. 28 PINCH TYPE QUICK-CONNECT FITTING

1 - QUICK-CONNECT FITTINGS
2 - PINCH TABS

TJ

FUEL DELIVERY

14 - 17

QUICK CONNECT FITTING (Continued)

(a) Press release tab on side of fitting to release

pull tab (Fig. 30). If release tab is not pressed
prior to releasing pull tab, pull tab will be
damaged.

(b) While pressing release tab on side of fitting,

use screwdriver to pry up pull tab (Fig. 30).

(c) Raise pull tab until it separates from quick-

connect fitting (Fig. 31).
(8) Two-Tab Type Fitting: This type of fitting is

equipped with tabs located on both sides of fitting
(Fig. 32). The tabs are supplied for disconnecting
quick-connect fitting from component being serviced.

(a) To disconnect quick-connect fitting, squeeze

plastic retainer tabs (Fig. 32) against sides of

quick-connect fitting with your fingers. Tool use is
not required for removal and may damage plastic
retainer.

(b) Pull fitting from fuel system component

being serviced.

(c) The plastic retainer will remain on compo-

nent being serviced after fitting is disconnected.

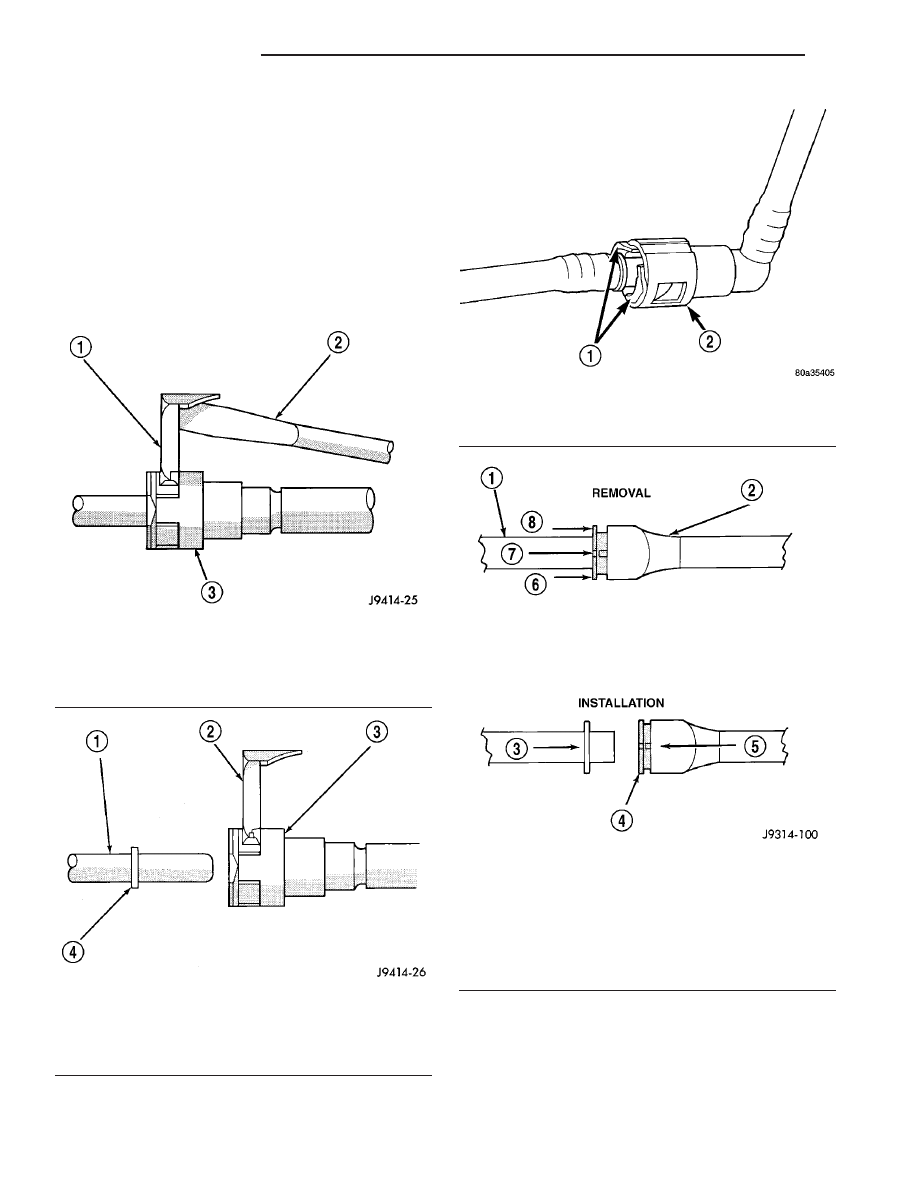

Fig. 30 DISCONNECTING SINGLE-TAB TYPE

FITTING

1 - PULL TAB
2 - SCREWDRIVER
3 - QUICK-CONNECT FITTING

Fig. 31 REMOVING PULL TAB

1 - FUEL TUBE OR FUEL SYSTEM COMPONENT
2 - PULL TAB
3 - QUICK-CONNECT FITTING
4 - FUEL TUBE STOP

Fig. 32 TYPICAL 2–TAB TYPE FITTING

1 - TAB(S)
2 - QUICK-CONNECT FITTING

Fig. 33 PLASTIC RETAINER RING TYPE FITTING

1 - FUEL TUBE
2 - QUICK CONNECT FITTING
3 - PUSH
4 - PLASTIC RETAINER
5 - PUSH
6 - PUSH
7 - PUSH
8 - PUSH

14 - 18

FUEL DELIVERY

TJ

QUICK CONNECT FITTING (Continued)
