8W-01 WIRING DIAGRAM INFORMATION

TABLE OF CONTENTS

page

page

WIRING DIAGRAM INFORMATION

DESCRIPTION

DESCRIPTION - HOW TO USE WIRING

DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

DESCRIPTION - CIRCUIT INFORMATION

. . . . 5

DESCRIPTION - CIRCUIT FUNCTIONS

. . . . . . 6

DESCRIPTION - SECTION IDENTIFICATION

AND INFORMATION . . . . . . . . . . . . . . . . . . . . 6

DESCRIPTION - CONNECTOR, GROUND

AND SPLICE INFORMATION . . . . . . . . . . . . . . 7

WARNINGS - GENERAL

. . . . . . . . . . . . . . . . . . . 7

DIAGNOSIS AND TESTING - WIRING

HARNESS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

STANDARD PROCEDURE

STANDARD PROCEDURE -

ELECTROSTATIC DISCHARGE (ESD)
SENSITIVE DEVICES . . . . . . . . . . . . . . . . . . . 8

STANDARD PROCEDURE - TESTING OF

VOLTAGE POTENTIAL . . . . . . . . . . . . . . . . . . . 9

STANDARD PROCEDURE - TESTING FOR

CONTINUITY . . . . . . . . . . . . . . . . . . . . . . . . . . 9

STANDARD PROCEDURE - TESTING FOR A

SHORT TO GROUND . . . . . . . . . . . . . . . . . . . 9

STANDARD PROCEDURE - TESTING FOR A

SHORT TO GROUND ON FUSES
POWERING SEVERAL LOADS . . . . . . . . . . . 10

STANDARD PROCEDURE - TESTING FOR A

VOLTAGE DROP . . . . . . . . . . . . . . . . . . . . . . 10

SPECIAL TOOLS

WIRING/TERMINAL

. . . . . . . . . . . . . . . . . . . . 10

CONNECTOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 11

DIODE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 14

TERMINAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 14

WIRE

STANDARD PROCEDURE - WIRE SPLICING

. . 15

WIRING DIAGRAM
INFORMATION

DESCRIPTION

DESCRIPTION - HOW TO USE WIRING
DIAGRAMS

DaimlerChrysler Corporation wiring diagrams are

designed to provide information regarding the vehi-
cles wiring content. In order to effectively use the
wiring

diagrams

to

diagnose

and

repair

DaimlerChrysler Corporation vehicles, it is important
to understand all of their features and characteris-
tics.

Diagrams are arranged such that the power (B+)

side of the circuit is placed near the top of the page,
and the ground (B-) side of the circuit is placed near
the bottom of the page (Fig. 1).

All switches, components, and modules are shown

in the at rest position with the doors closed and the
key removed from the ignition (Fig. 2).

Components are shown two ways. A solid line

around a component indicates that the component is
complete. A dashed line around the component indi-
cates that the component is being shown is not com-
plete.

Incomplete

components

have

a

reference

number to indicate the page where the component is
shown complete.

It is important to realize that no attempt is made

on the diagrams to represent components and wiring
as they appear on the vehicle. For example, a short
piece of wire is treated the same as a long one. In
addition, switches and other components are shown
as simply as possible, with regard to function only.

SYMBOLS

International symbols are used throughout the wir-

ing diagrams. These symbols are consistent with
those being used around the world (Fig. 3).

TJ

8W-01 WIRING DIAGRAM INFORMATION

8W - 01 - 1

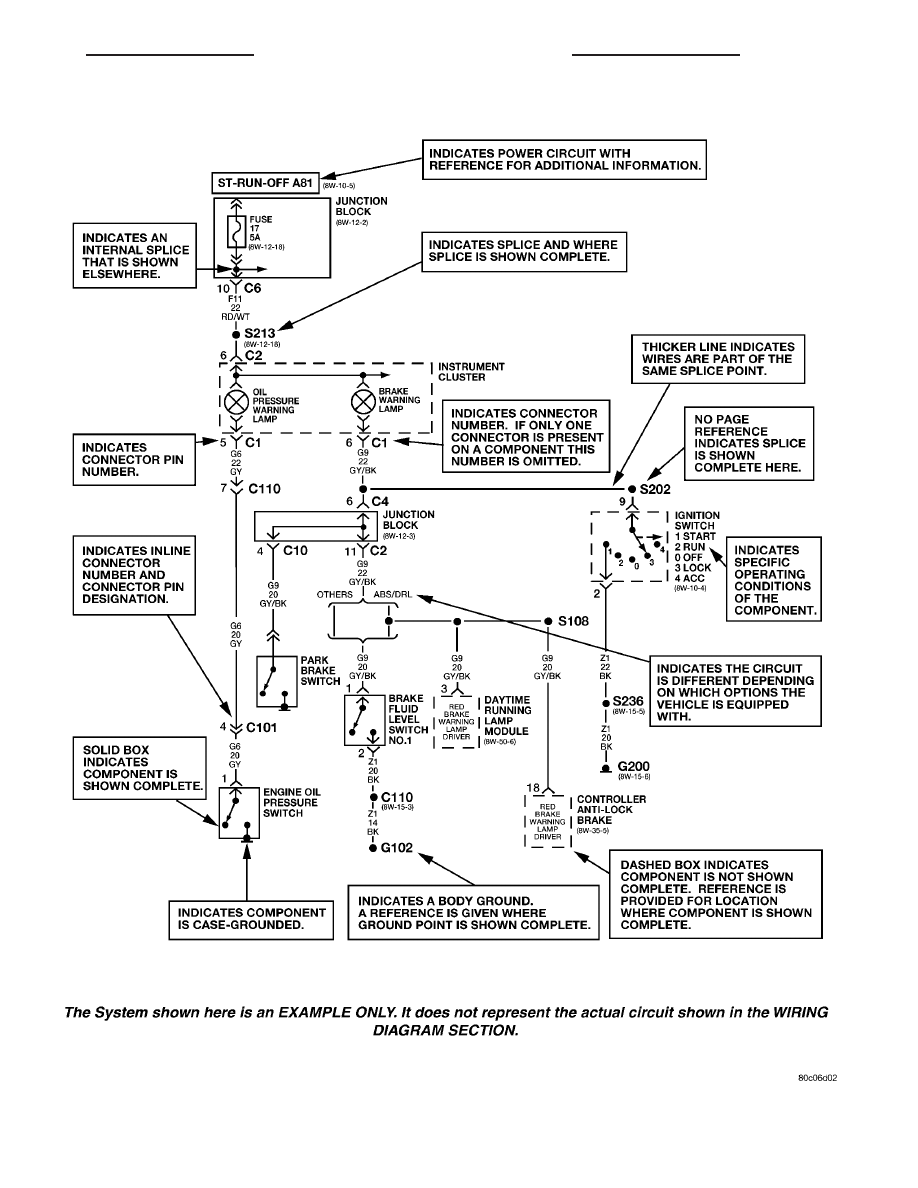

Fig. 1 WIRING DIAGRAM EXAMPLE 1

8W - 01 - 2

8W-01 WIRING DIAGRAM INFORMATION

TJ

WIRING DIAGRAM INFORMATION (Continued)

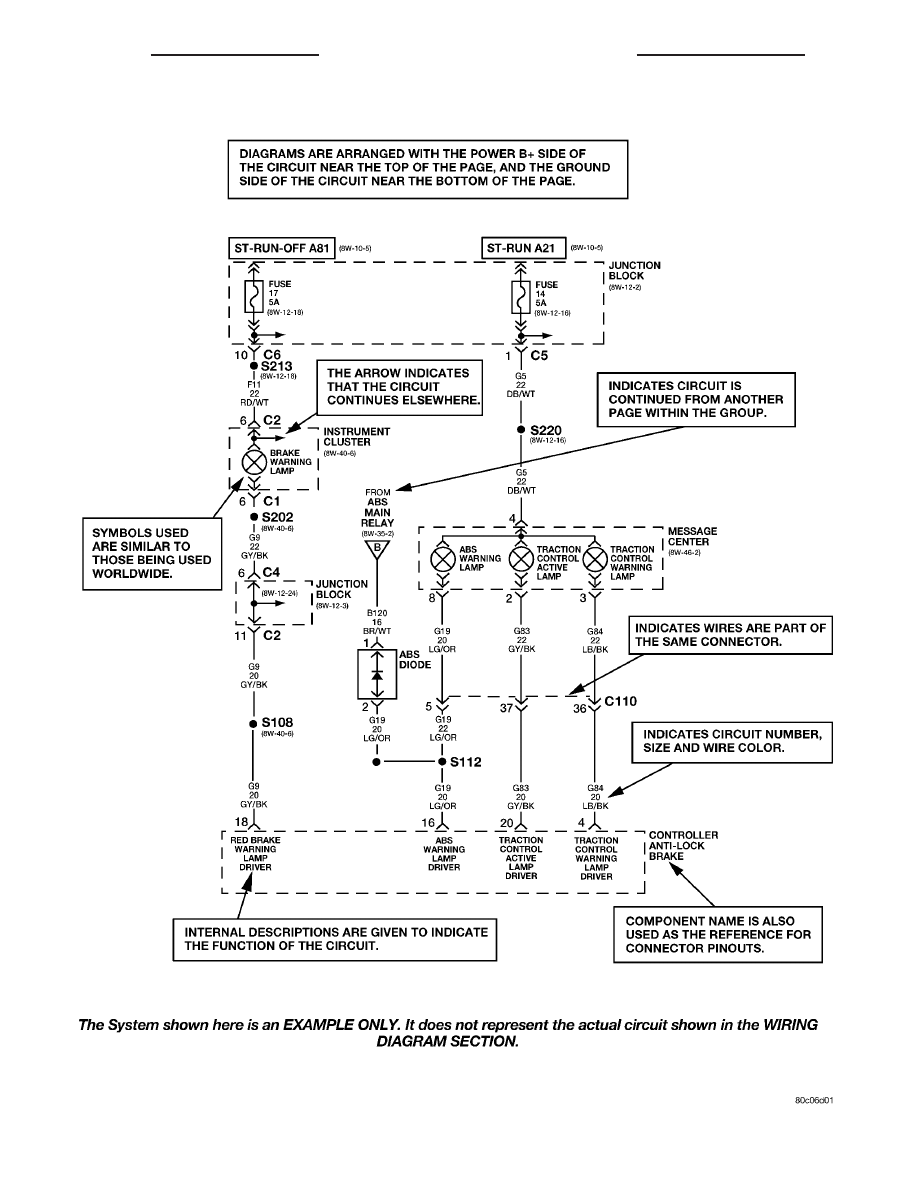

Fig. 2 WIRING DIAGRAM EXAMPLE 2

TJ

8W-01 WIRING DIAGRAM INFORMATION

8W - 01 - 3

WIRING DIAGRAM INFORMATION (Continued)

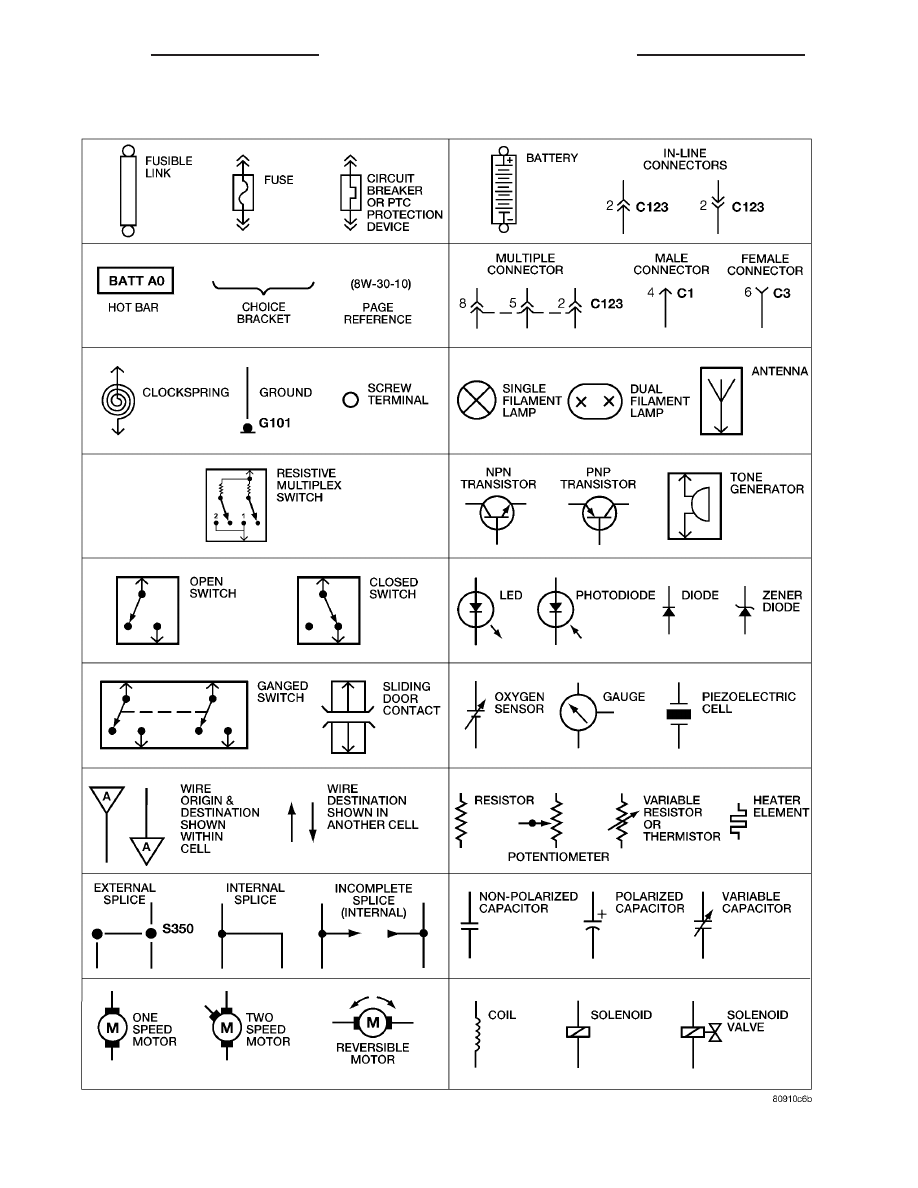

Fig. 3 WIRING DIAGRAM SYMBOLS

8W - 01 - 4

8W-01 WIRING DIAGRAM INFORMATION

TJ

WIRING DIAGRAM INFORMATION (Continued)
