Jeep Wrangler TJ. Manual - part 271





AUDIO/VIDEO

TABLE OF CONTENTS

page

page

AUDIO

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

DIAGNOSIS AND TESTING - AUDIO

. . . . . . . . . . 1

AMPLIFIED SUBWOOFER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 3

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

DIAGNOSIS AND TESTING - AMPLIFIED

SUBWOOFER

. . . . . . . . . . . . . . . . . . . . . . . . . 3

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 3

ANTENNA BODY & CABLE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 4

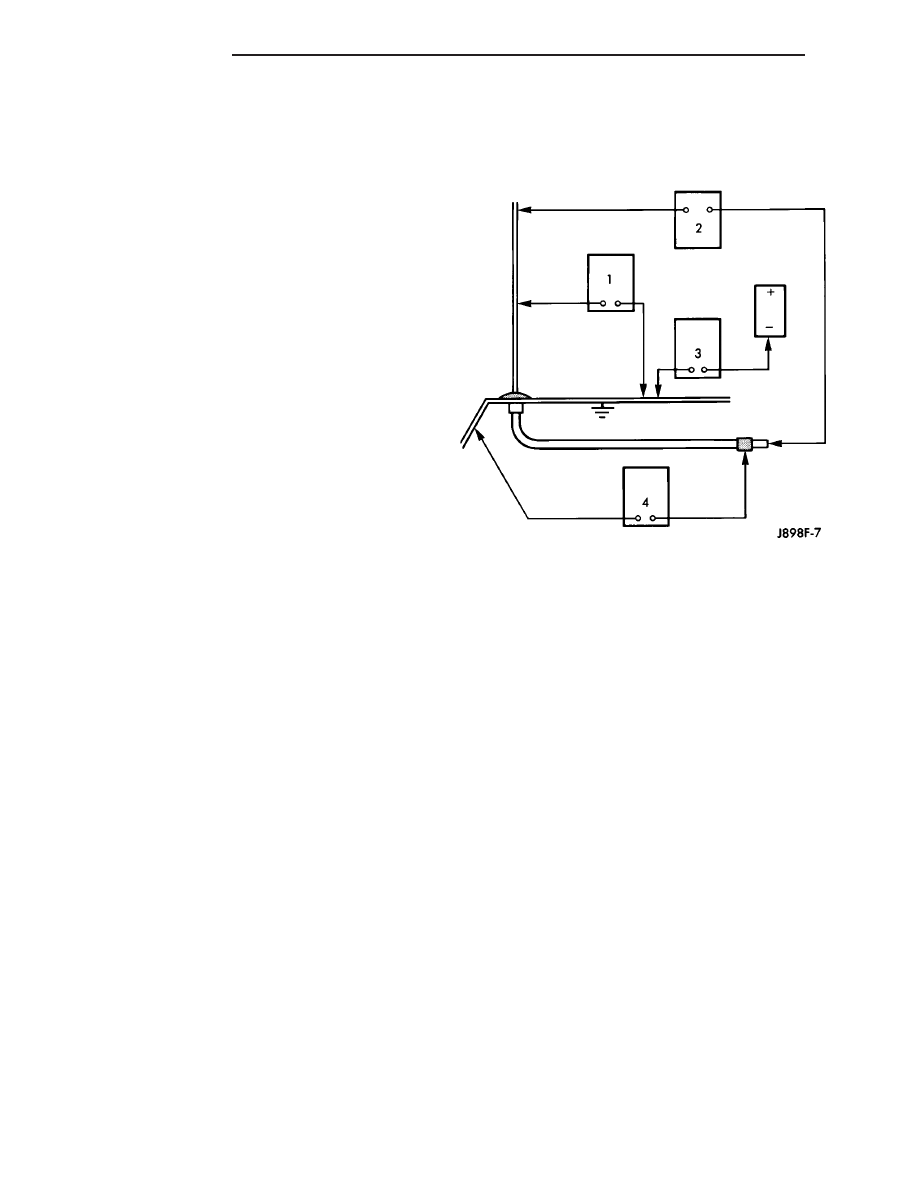

DIAGNOSIS AND TESTING - ANTENNA BODY

AND CABLE

. . . . . . . . . . . . . . . . . . . . . . . . . . 4

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 5

RADIO

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 6

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 7

RADIO NOISE SUPPRESSION COMPONENTS

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 7

DIAGNOSIS AND TESTING - RADIO NOISE

SUPPRESSION COMPONENTS

. . . . . . . . . . . 7

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 8

SPEAKER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 8

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

DIAGNOSIS AND TESTING - SPEAKER

. . . . . . . 8

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 10

AUDIO

DESCRIPTION

Several

combinations

of

radio

receivers

and

speaker systems are offered.

The audio system includes the following compo-

nents:

• Amplified sub woofer (if equipped)

• Antenna

• Radio noise suppression components

• Radio receiver

• Speakers
Certain functions and features of the audio system

rely upon resources shared with other electronic
modules in the vehicle over the Programmable Com-
munication Interface (PCI) bus network. The data
bus network allows the sharing of sensor informa-
tion. For diagnosis of these electronic modules or of
the data bus network, the use of a DRB III

t scan tool

and the proper Diagnostic Procedures manual are
recommended.

OPERATION

The audio system components are designed to pro-

vide audio entertainment and information through
the reception, tuning and amplification of locally
broadcast radio signals in both the Amplitude Modu-
lating (AM) and Frequency Modulating (FM) com-
mercial frequency ranges.

The audio system components operate on battery

current received through a fuse in the Junction Block
(JB) on a fused ignition switch output (run-acc) cir-
cuit so that the system will only operate when the
ignition switch is in the Run or Accessory positions.

DIAGNOSIS AND TESTING - AUDIO

Any diagnosis of the Audio system should

begin with the use of the DRB III

diagnostic

tool. For information on the use of the DRB
III

t, refer to the appropriate Diagnostic Service

Manual.

For complete circuit diagrams, refer to the appro-

priate wiring information.

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

(REFER

TO

ELECTRICAL/RESTRAINTS)

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

OR

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

TJ

AUDIO/VIDEO

8A - 1

Audio System Diagnosis

CONDITION

POSSIBLE CAUSE

CORRECTION

NO AUDIO.

1. Fuse inoperative.

1. Check radio fuse and Ignition-Off Draw fuse in Power
Distribution Center. Replace fuses, if required.

2. Radio connector
damaged.

2. Check for loose or corroded radio connector. Repair, if
required.

3. Wiring damaged.

3. Check for battery voltage at radio connector. Repair wiring, if
required.

4. Ground damaged.

4. Check for continuity between radio chassis and a known good
ground. There should be continuity. Repair ground, if required.

5. Radio inoperative.

5. Exchange or replace radio, if required.

6. Speakers inoperative.

6. Refer to speaker diagnosis.

NO DISPLAY.

1. Fuse inoperative.

1. Check radio fuse and Ignition-Off Draw fuse in Power
Distribution Center. Replace fuses, if required.

2. Radio connector
damaged.

2. Check for loose or corroded radio connector. Repair, if
required.

3. Wiring damaged.

3. Check for battery voltage at radio connector. Repair wiring, if
required.

4. Ground damaged.

4. Check for continuity between radio chassis and a known good
ground. There should be continuity. Repair ground, if required.

5. Radio inoperative.

5. Exchange or replace radio, if required.

CLOCK WILL
NOT KEEP SET
TIME.

1. Fuse inoperative.

1. Check ignition-off draw fuse. Replace fuse, if required.

2. Radio connector
damaged.

2. Check for loose or corroded radio connector. Repair, if
required.

3. Wiring damaged.

3. Check for battery voltage at radio connector. Repair wiring, if
required.

4. Ground damaged.

4. Check for continuity between radio chassis and a known good
ground. There should be continuity. Repair ground, if required.

5. Radio inoperative.

5. Exchange or replace radio, if required.

POOR RADIO
RECEPTION.

1. Antenna inoperative.

1. See antenna diagnosis, in this group. Repair or replace
antenna, if required.

2. Ground damaged.

2. Check for continuity between radio chassis and a known good
ground. There should be continuity. Repair ground, if required..

3. Radio inoperative.

3. Exchange or replace radio, if required.

NO/POOR TAPE
OPERATION.

1. Tape damaged.

1. Insert known good tape and test operation.

2. Foreign objects behind
tape door.

2. Remove foreign objects and test operation.

3. Dirty cassette tape
head.

3. Clean head with Mopar Cassette Head Cleaner.

4. Radio inoperative

4. Exchange or replace radio, if required.

8A - 2

AUDIO/VIDEO

TJ

AUDIO (Continued)

Audio System Diagnosis

CONDITION

POSSIBLE CAUSE

CORRECTION

NO COMPACT
DISC
OPERATION

1. CD damaged.

1. Insert known good CD and test operation.

2. Foreign material on
CD.

2. Clean CD and test operation.

3. Condensation on CD
or optics.

3. Allow temperature of vehicle interior to stabilize and test
operation.

4. Radio inoperative

4. Exchange or replace radio, if required.

AMPLIFIED SUBWOOFER

DESCRIPTION

The available amplified subwoofer is mounted

within the center console. The amplified subwoofer is
rated at 80 watts. The amplified subwoofer should be
checked if there is no bass output noted from the
center console speaker. The amplified subwoofer can
not be repaired or adjusted, and if faulty or damaged,
the unit must be replaced.

OPERATION

The amplified subwoofer provides low frequency

bass and receives inputs from the front and rear
speaker circuits.

DIAGNOSIS AND TESTING - AMPLIFIED
SUBWOOFER

Any diagnosis of the Audio system should

begin with the use of the DRB III

diagnostic

tool. For information on the use of the DRB
III

t, refer to the appropriate Diagnostic Service

Manual.

For complete circuit diagrams, refer to the appro-

priate wiring information.

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

TO

ELECTRICAL,

RESTRAINTS

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

OR

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

CAUTION: The speaker output of the radio is a
“floating ground” system. Do not allow any speaker
lead to short to ground, as damage to the radio
may result.

(1) Turn the ignition switch to the On position.

Turn the radio receiver on. Adjust the balance and
fader controls to check the performance of each indi-
vidual speaker. Note the speaker locations that are
not performing correctly.

(2) Disconnect the wire harness connector from the

amplified subwoofer. Turn the ignition switch to the
ON position. Turn the radio ON. Check the radio
choke relay wire harness connector. If not OK, repair
shorted or open wires as necessary. If OK, go to
(STEP #3).

(3) Turn the radio off. Turn the ignition switch to

the Off position. Disconnect and isolate the battery
negative cable. Remove the radio and the amplified
subwoofer. Check both the speaker feed (+) circuit
and return (–) circuit cavities for the inoperative
speaker location(s) from the radio wire harness con-
nectors and to the amplified subwoofer for continuity.
In each case, there should be continuity. If not OK,
repair the shorted speaker feed (+) and/or return (–)
circuit(s) to the speaker as required. If OK, replace
the amplified subwoofer.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the center console (Refer to 23 -

BODY/INTERIOR/CENTER

CONSOLE

-

REMOVAL).

(3) Disconnect wire harness retainer.
(4) Disconnect wire harness connector.
(5) Remove the mounting screws from the side of

the console.

(6) Open console lid and remove the retaining fas-

teners from the console.

(7) Remove amplified subwoofer from console.

INSTALLATION

(1) Install amplified subwoofer to console.
(2) Install retaining fasteners to the top of the con-

sole.

TJ

AUDIO/VIDEO

8A - 3

AUDIO (Continued)

(3) Install the mounting screws to the side of the

console.

(4) Connect wire harness connector and retainer.
(5) Install the center console (Refer to 23 - BODY/

INTERIOR/CENTER CONSOLE - INSTALLATION).

(6) Connect the battery negative cable.

ANTENNA BODY & CABLE

DESCRIPTION

All models use a fixed-length stainless steel rod-

type antenna mast, installed on the right front cowl
side panel of the vehicle. The antenna mast is con-
nected to the center wire of the coaxial antenna
cable, and is not grounded to any part of the vehicle.

To eliminate static, the antenna base must have a

good ground. The antenna coaxial cable shield (the
outer wire mesh of the cable) is grounded to the
antenna base and the radio chassis.

The antenna coaxial cable has an additional dis-

connect, located behind the right end of the instru-
ment panel between the radio and the right cowl side
panel. This additional disconnect allows the instru-
ment panel assembly to be removed and installed
without removing the radio.

DIAGNOSIS AND TESTING - ANTENNA BODY
AND CABLE

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

(REFER

TO

ELECTRICAL/RESTRAINTS)

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

OR

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

The following four tests are used to diagnose the

antenna with an ohmmeter:

• Test 1 - Mast to ground test

• Test 2 - Tip-of-mast to tip-of-conductor test

• Test 3 - Body ground to battery ground test

• Test 4 - Body ground to coaxial shield test.
The ohmmeter test lead connections for each test

are shown in Antenna Tests (Fig. 1).

NOTE: This model has a two-piece antenna coaxial
cable. Tests 2 and 4 must be conducted in two
steps to isolate an antenna cable problem. First,
test the primary antenna cable (integral to the
antenna body and cable) from the coaxial cable
connector behind the right side of the instrument
panel between the radio and the right side cowl
panel, to the antenna body. Then, test the second-
ary antenna cable (instrument panel antenna cable)

from the coaxial connector behind the right side of
the instrument panel between the radio and the
right side cowl panel, to the coaxial cable connec-
tor at the radio.

TEST 1

Test 1 determines if the antenna mast is insulated

from the base. Proceed as follows:

(1) Unplug the antenna coaxial cable connector

from the radio chassis and isolate.

(2) Connect one ohmmeter test lead to the tip of

the antenna mast. Connect the other test lead to the
antenna base. Check for continuity.

(3) There should be no continuity. If continuity is

found, replace the faulty or damaged antenna base
and cable assembly.

TEST 2

Test 2 checks the antenna for an open circuit as

follows:

(1) Unplug the antenna coaxial cable connector

from the radio chassis.

(2) Connect one ohmmeter test lead to the tip of

the antenna mast. Connect the other test lead to the
center pin of the antenna coaxial cable connector.

(3) Continuity should exist (the ohmmeter should

only register a fraction of an ohm). High or infinite
resistance indicates damage to the base and cable
assembly. Replace the faulty base and cable, if
required.

TEST 3

Test 3 checks the condition of the vehicle body

ground connection. This test should be performed
with the battery positive cable removed from the bat-

Fig. 1 Antenna Tests

8A - 4

AUDIO/VIDEO

TJ

AMPLIFIED SUBWOOFER (Continued)















Content   ..  269  270  271  272   ..
