Jeep Wrangler TJ. Manual - part 68

VEHICLE SPEED SENSOR - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K6 18VT/WT

5V SUPPLY

2

K4 20BK/LB

SENSOR GROUND 1

3

G7 18WT/OR

VEHICLE SPEED SENSOR SIGNAL

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

63

CONNECTOR PINOUTS

NOTES

64

10.0

SCHEMATIC DIAGRAMS

10.1

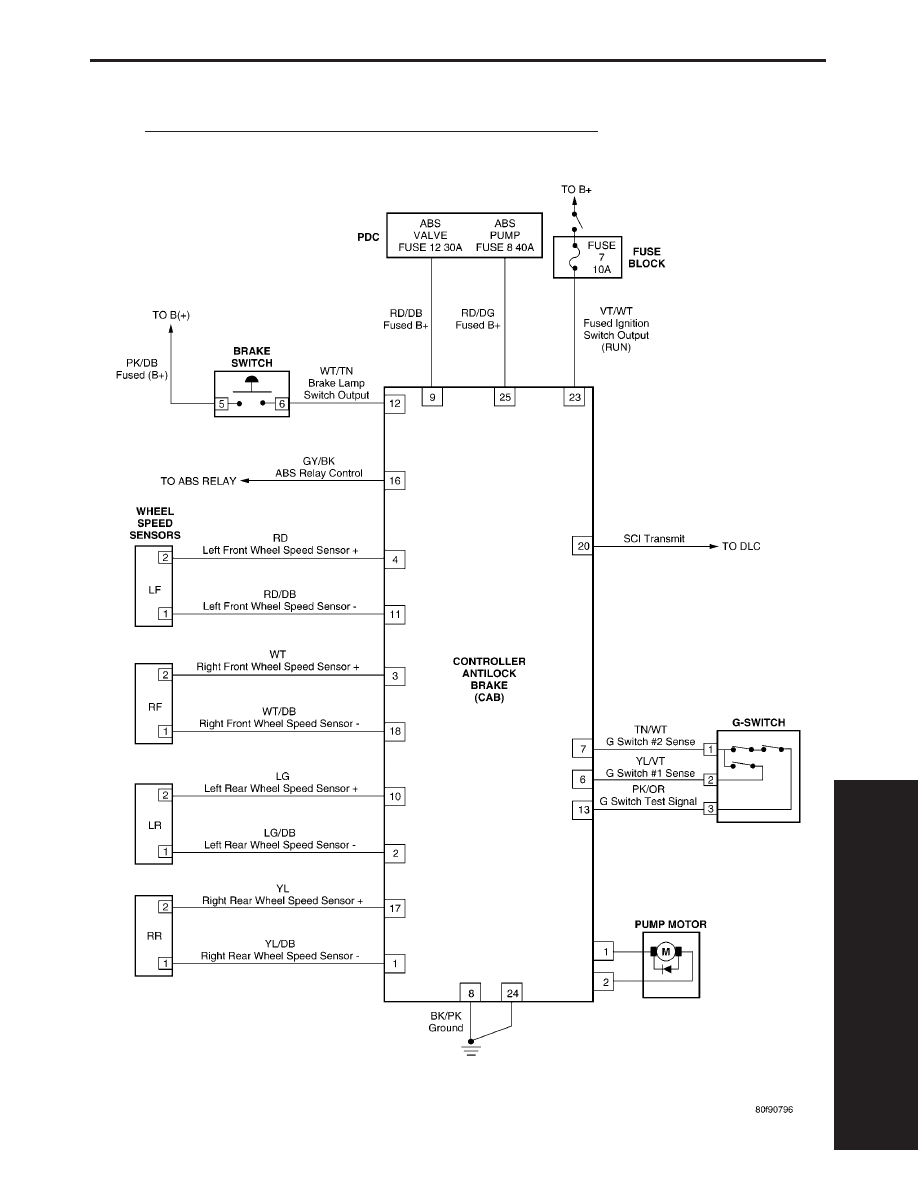

TEVES MARK 20I CONTROLLER ANTILOCK BRAKE - ABS

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

65

SCHEMATIC DIAGRAMS

10.2

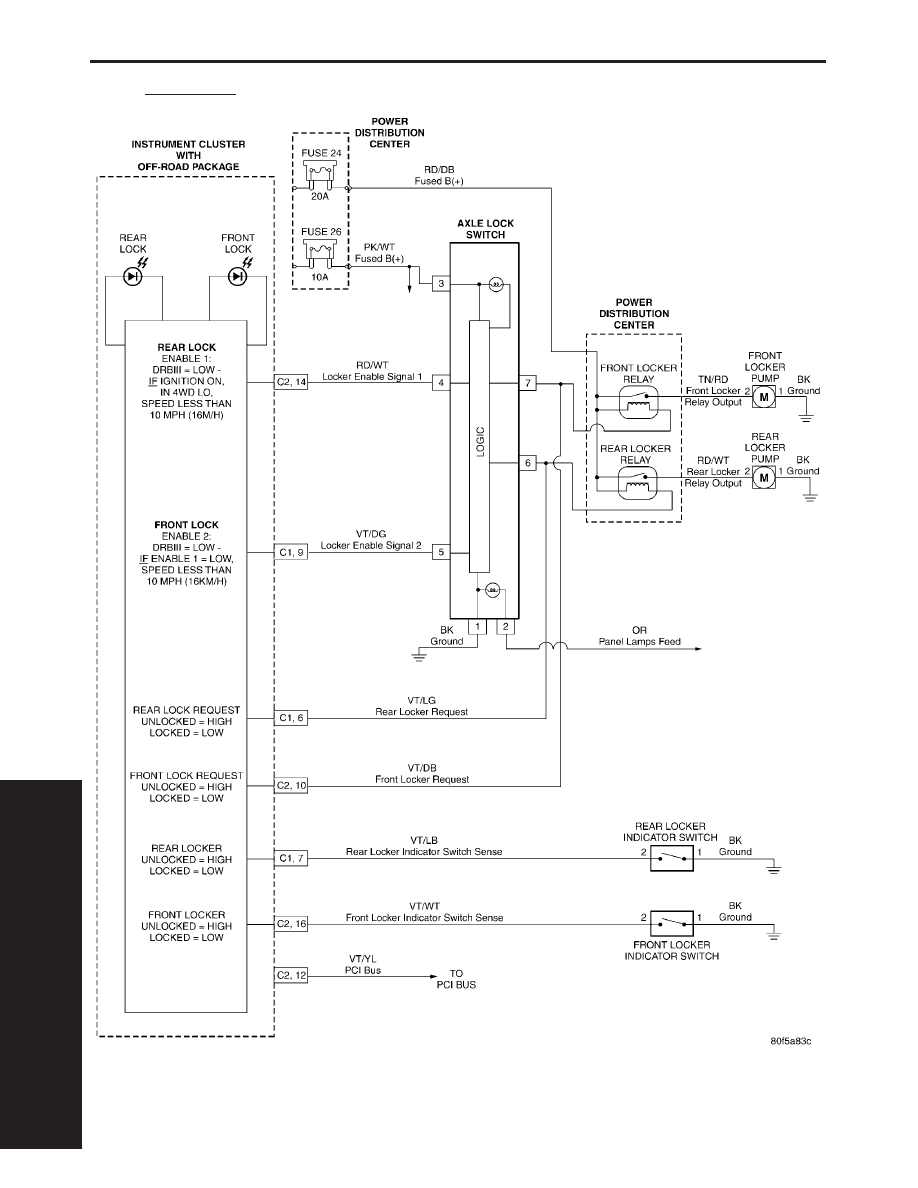

AXLE LOCK
