Jeep Liberty KJ. Manual - part 732





When Monitored:
With the ignition on and the ECM Low Speed Rad Fan Relay command off.

Set Condition:
The ECM does not detect voltage on the Low Speed Rad Fan Relay Control circuit.

Possible Causes

INTERMITTENT CONDITION

ASD RELAY OUTPUT CIRCUIT OPEN

LOW SPEED RADIATOR FAN RELAY

(N201) LOW SPEED RADIATOR FAN CONTROL CIRCUIT SHORTED TO GROUND

(N201) LOW SPEED RADIATOR FAN CONTROL CIRCUIT OPEN

ENGINE CONTROL MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the DRB at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the scan tool, actuate the Low Speed Radiator Fan Relay.

Does the Radiator Fan cycle on and off?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

ASD RELAY OUTPUT CIRCUIT OPEN

Turn the ignition off.

Remove the Low Speed Radiator Fan Relay from the PDC.

Turn the ignition on.

Using a 12-volt test light connected to ground, check the ASD Relay Output circuit.

Did the test light illuminate brightly?

Yes

>> Go To 3

No

>> Repair the ASD Relay Output circuit for an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

3.

LOW SPEED RADIATOR FAN RELAY

Turn the ignition off.

Install a known good relay in place of the Low Speed Radiator Fan Relay.

Turn the ignition on.

With the scan tool, actuate the Low Speed Rad Fan Relay.

Does the Radiator Fan cycle on and off?

Yes

>> Replace the Low Speed Radiator Fan Relay.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 4

9 - 986

ENGINE DIESEL DIAG

KJ

4.

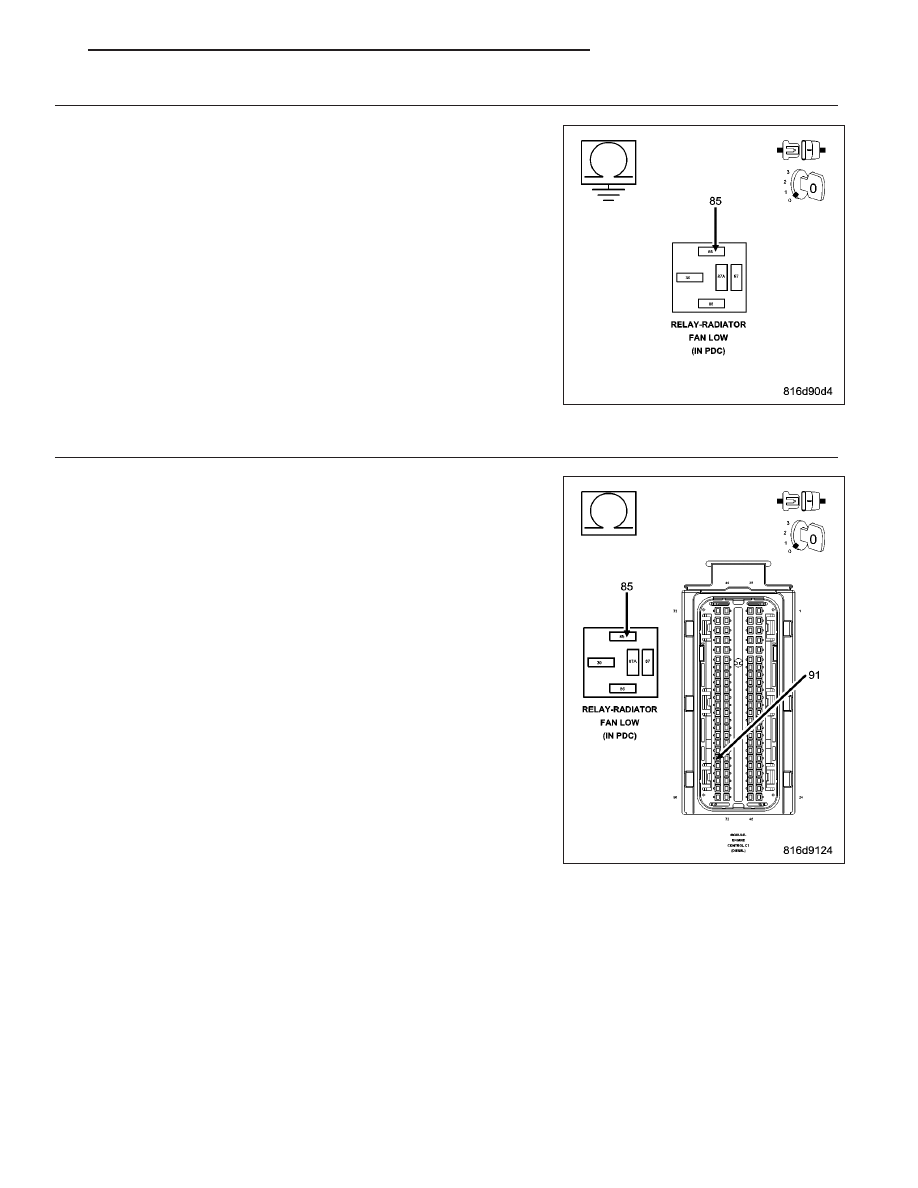

(N201) LOW SPEED RADIATOR FAN CONTROL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Remove the Low Speed Radiator Fan Relay from the PDC.

Disconnect the ECM C1 harness connectors.

Measure the resistance between ground and the (N201) Low Speed
Radiator Fan Control circuit at the PDC.

Is the resistance above 1000 ohms?

Yes

>> Go To 5

No

>> Repair the (N201) Low Speed Radiator Fan Control circuit

for a short to ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

5.

(N201) LOW SPEED RADIATOR FAN CONTROL CIRCUIT OPEN

Measure the resistance of the (N201) Low Speed Radiator Fan Control
circuit between the PDC and the ECM C1 harness connector.

Is the resistance below 10.0 ohms?

Yes

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Repair the Low Speed Radiator Fan Control circuit for an

open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

KJ

ENGINE DIESEL DIAG

9 - 987

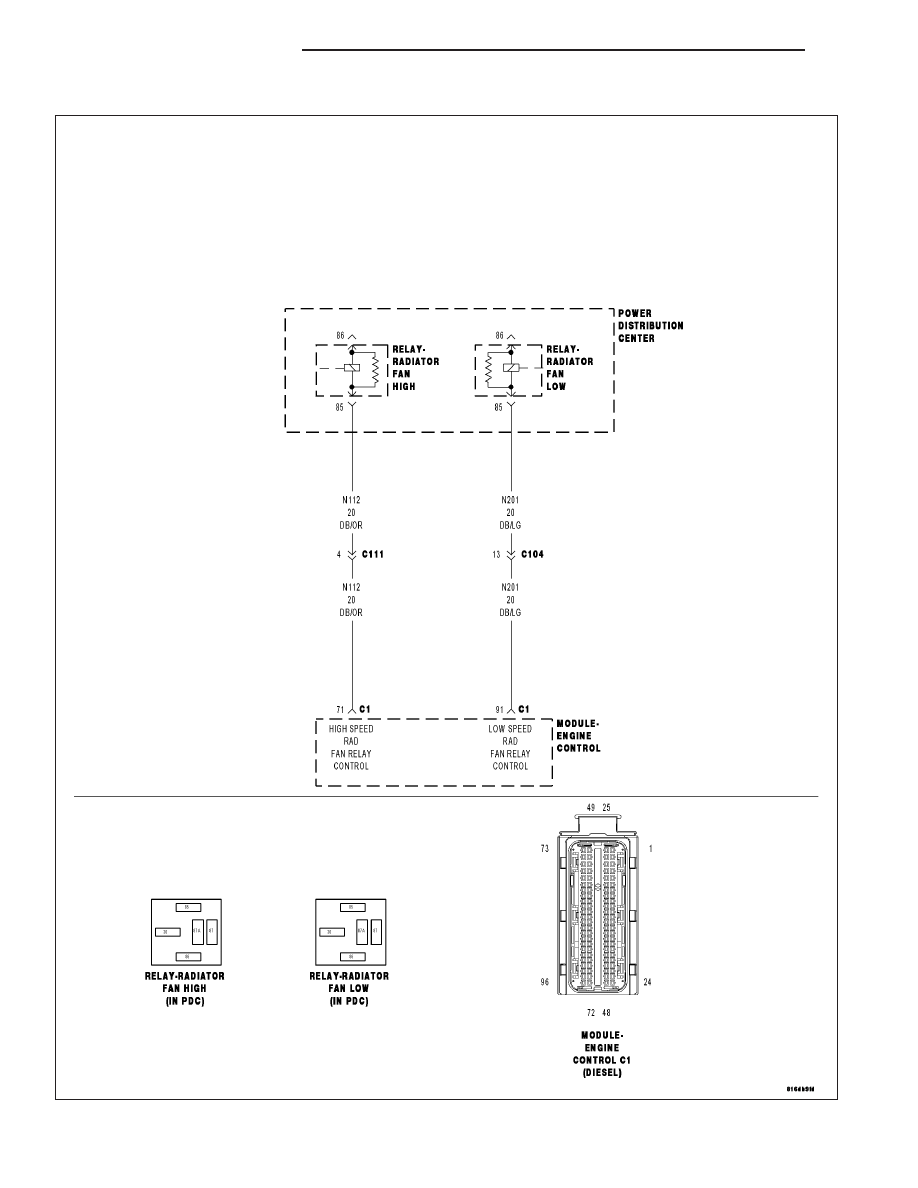

P0481-FAN 2 CONTROL CIRCUIT SHORT CIRCUIT

For a complete wiring diagram Refer to Section 8W

9 - 988

ENGINE DIESEL DIAG

KJ

When Monitored:
With the ignition on and the ECM High Speed Rad Fan Relay command on.

Set Condition:
The ECM detects a short circuit on the High Speed Rad Fan Relay Control circuit.

Possible Causes

INTERMITTENT CONDITION

HIGH SPEED RADIATOR FAN RELAY

(N112) HIGH SPEED RADIATOR FAN CONTROL CIRCUIT SHORTED TO VOLTAGE

ENGINE CONTROL MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the scan tool, actuate the High Speed Radiator Fan Relay.

Does the Radiator Fan cycle on and off?

Yes

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

No

>> Go To 2

2.

HIGH SPEED RADIATOR FAN RELAY

Turn the ignition off.

Install a known good relay in place of the High Speed Radiator Fan Relay.

Turn the ignition on.

With the scan tool, actuate the High Speed Radiator Fan Relay.

Does the Radiator Fan cycle on and off?

Yes

>> Replace High Speed Radiator Fan Relay.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 3

KJ

ENGINE DIESEL DIAG

9 - 989
