Jeep Liberty KJ. Manual - part 731





P0481-FAN 2 CONTROL CIRCUIT EXCESSIVE CURRENT

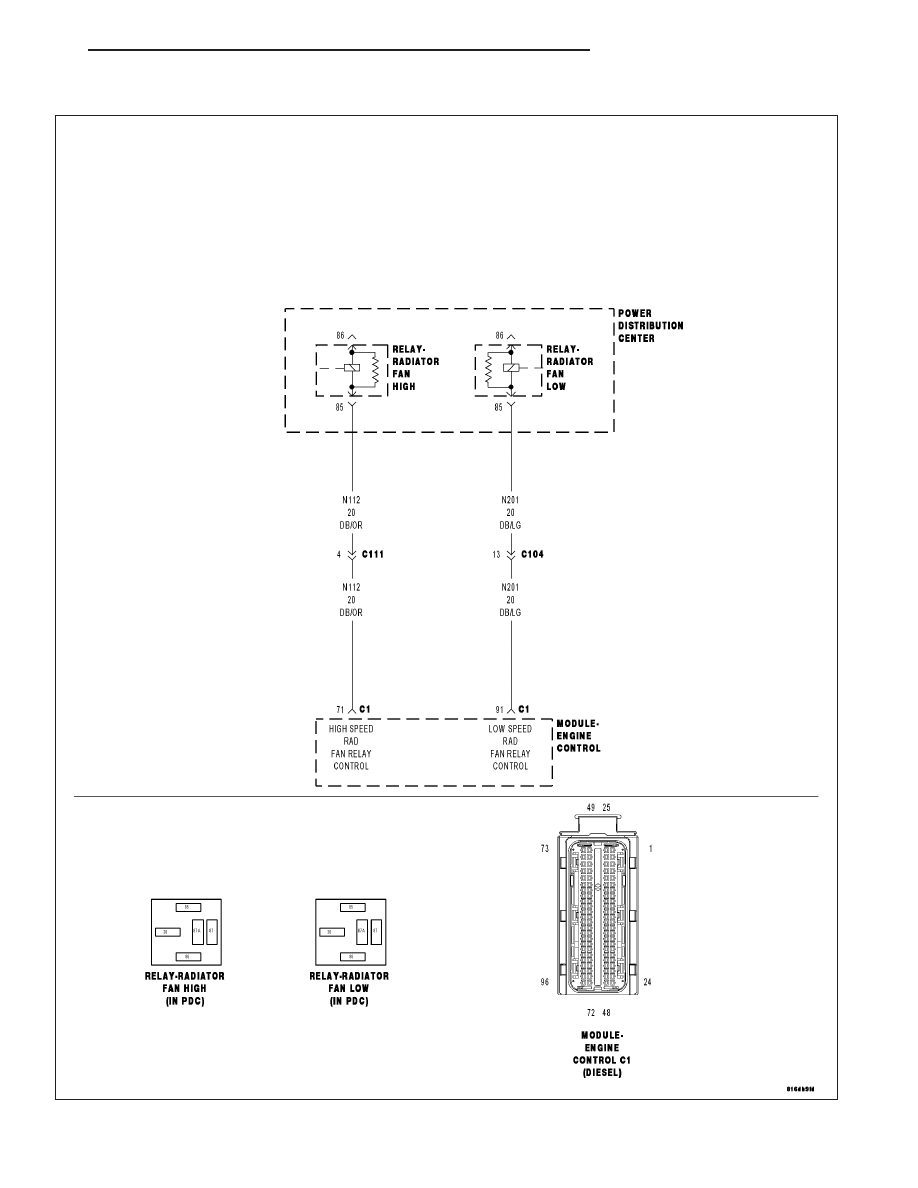

For a complete wiring diagram Refer to Section 8W

9 - 982

ENGINE DIESEL DIAG

KJ

When Monitored:
With the ignition on.

Set Condition:
The ECM detects excessive current on the Low Speed Rad Fan Relay Control circuit.

Possible Causes

INTERMITTENT CONDITION

LOW SPEED RADIATOR FAN RELAY

(N201) LOW SPEED RADIATOR FAN CONTROL CIRCUIT SHORTED TO VOLTAGE

ENGINE CONTROL MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the scan tool, actuate the Low Speed Radiator Fan Relay.

Does the Radiator Fan cycle on and off?

Yes

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

No

>> Go To 2

2.

LOW SPEED RADIATOR FAN RELAY

Turn the ignition off.

Install a know good relay in place of the Low Speed Radiator Fan Relay.

Turn the ignition on.

With the scan tool, actuate the Low Speed Radiator Fan Relay.

Does the Radiator Fan cycle on and off?

Yes

>> Replace the Low Speed Radiator Fan Relay.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 3

KJ

ENGINE DIESEL DIAG

9 - 983

3.

(N201) LOW SPEED RADIATOR FAN CONTROL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the ECM harness connectors.

Remove the Low Speed Radiator Fan Relay from the PDC.

Remove the ASD Relay from the PDC.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
Relay connector.

Turn the ignition on.

Measure the voltage of (N201) Low Speed Radiator Fan Control circuit.

Is the voltage below 1.0 volt?

Yes

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Repair the (N201) Low Speed Radiator Fan Control circuit

for a short to voltage.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

9 - 984

ENGINE DIESEL DIAG

KJ

P0481-FAN 2 CONTROL CIRCUIT OPEN CIRCUIT

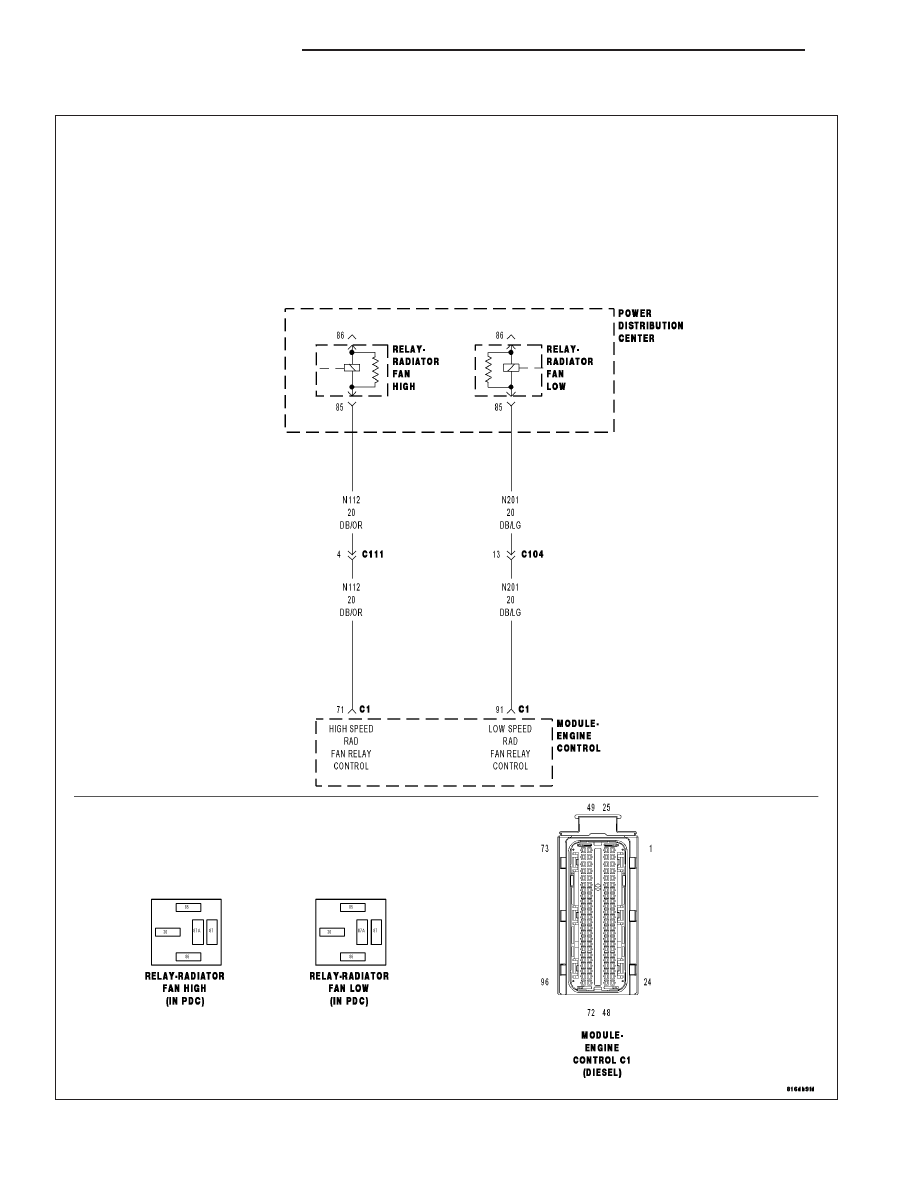

For a complete wiring diagram Refer to Section 8W

KJ

ENGINE DIESEL DIAG

9 - 985
