Jeep Liberty KJ. Manual - part 677





5.

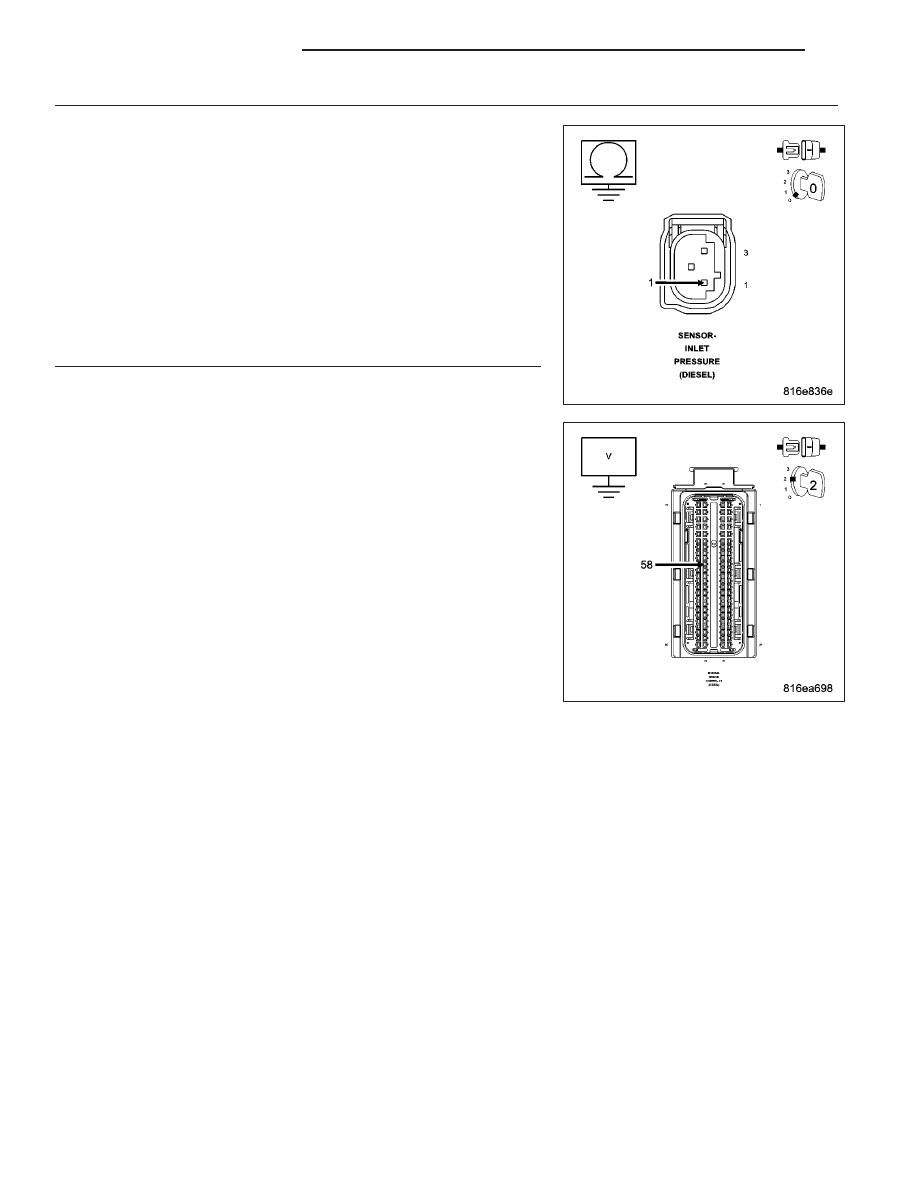

INLET PRESSURE SENSOR GROUND CIRCUIT OPEN

Turn the ignition off.

Disconnect the Inlet Pressure Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance of the Inlet Pressure Sensor Ground circuit.

Is the resistance below 10.0 ohms?

Yes

>> Go To 6

No

>> Repair the Inlet Pressure Sensor Ground circuit for an

open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

6.

INLET PRESSURE SENSOR

Turn the ignition off.

NOTE: Ensure all harness connectors are connected.
Turn the ignition on.

Measure the voltage of the Inlet Pressure Sensor Signal circuit by back
probing ECM harness connector.

Is the voltage above 4.85 volts?

Yes

>> Replace the Inlet Pressure Sensor.

Perform ROAD TEST VERIFICATION - VER-2.

No

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 766

ENGINE DIESEL DIAG

KJ

P0105-INLET PRESSURE SENSOR SIGNAL VOLTAGE TOO LOW

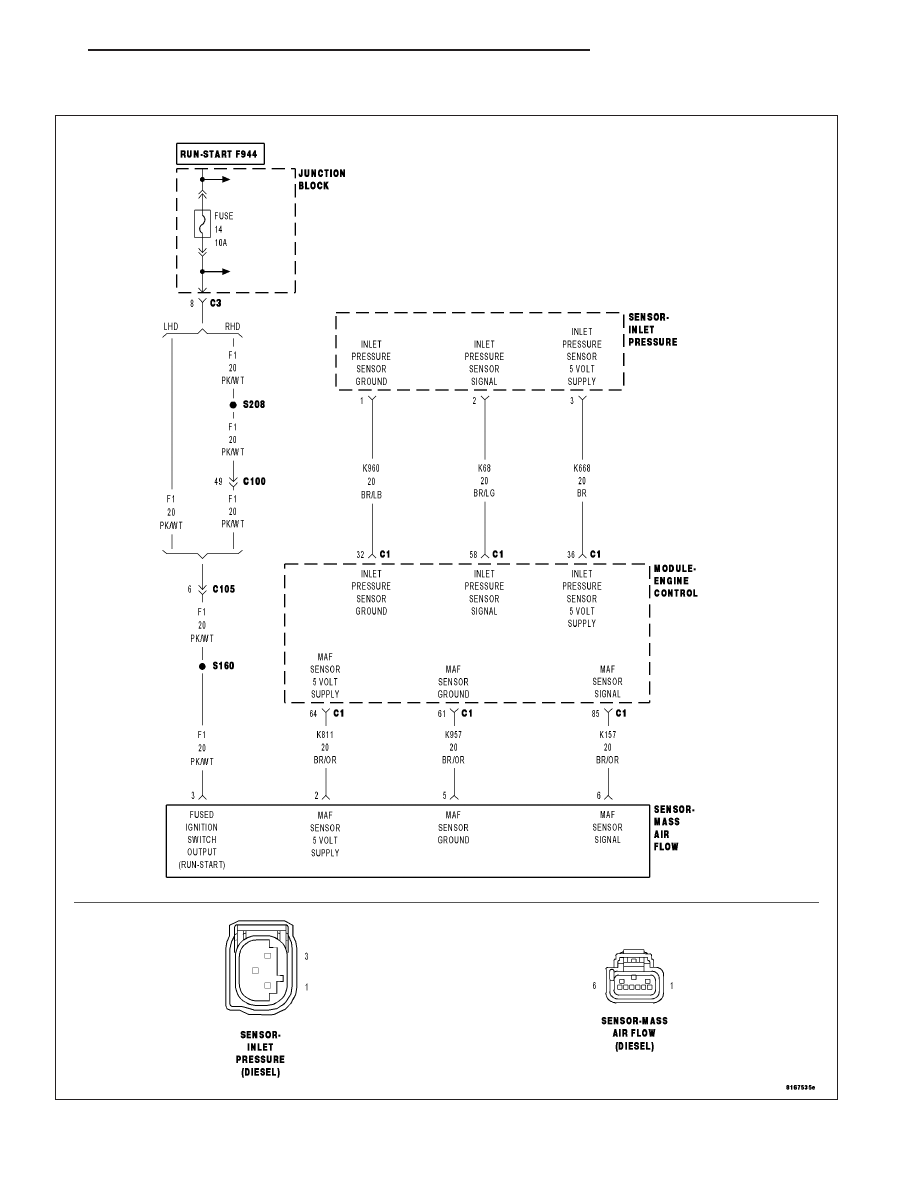

For a complete wiring diagram Refer to Section 8W

KJ

ENGINE DIESEL DIAG

9 - 767

When Monitored:
With the ignition on.

Set Condition:
The Inlet Pressure Sensor signal is below 0.25 volt for 2.0 seconds.

Possible Causes

INTERMITTENT CONDITION

INLET PRESSURE SENSOR 5 VOLT SUPPLY

INLET PRESSURE SENSOR

INLET PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

INLET PRESSURE SENSOR SIGNAL AND GROUND CIRCUITS SHORTED TOGETHER

ENGINE CONTROL MODULE

INLET PRESSURE SENSOR SIGNAL CIRCUIT OPEN

Diagnostic Test

1.

CHECKING FOR CURRENT DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.

NOTE: Ensure all turbocharger inlet and outlet tubes are connected properly, without damage and restric-
tion before continuing with this test.
Turn the ignition on.

With the scan tool, erase ECM DTCs.

Cycle the ignition key on and off several times, leaving the key on for at least 10 seconds at a time.

With the scan tool, read ECM DTCs.

Did this DTC set again?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

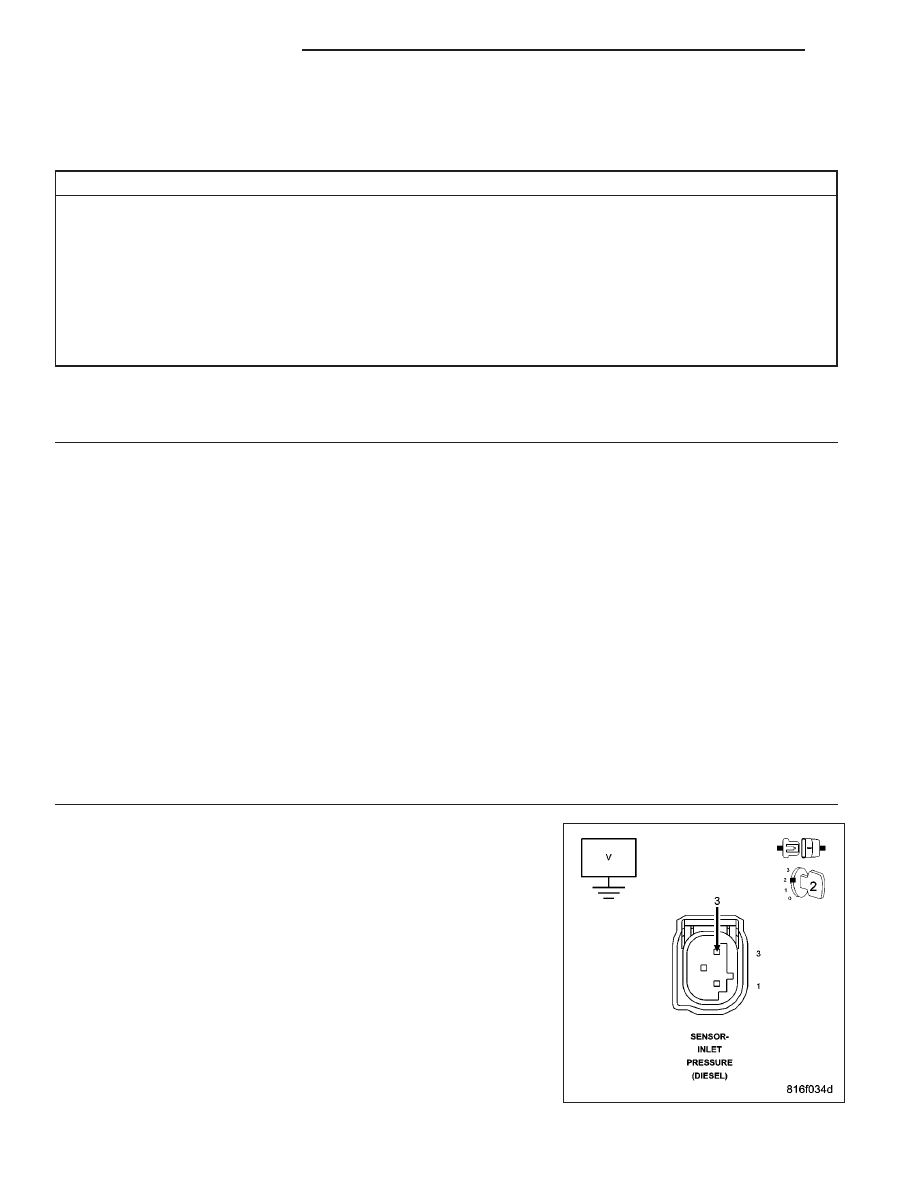

INLET PRESSURE SENSOR 5 VOLT SUPPLY VOLTAGE

Turn the ignition off.

Disconnect the Inlet Pressure Sensor harness connector.

Turn the ignition on.

Measure the voltage between ground and the Inlet Pressure Sensor 5
Volt Supply circuit.

Is the voltage above 4.8 volts?

Yes

>> Go To 3

No

>> Repair the Inlet Pressure Sensor 5 Volt Supply circuit for an

open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 768

ENGINE DIESEL DIAG

KJ

3.

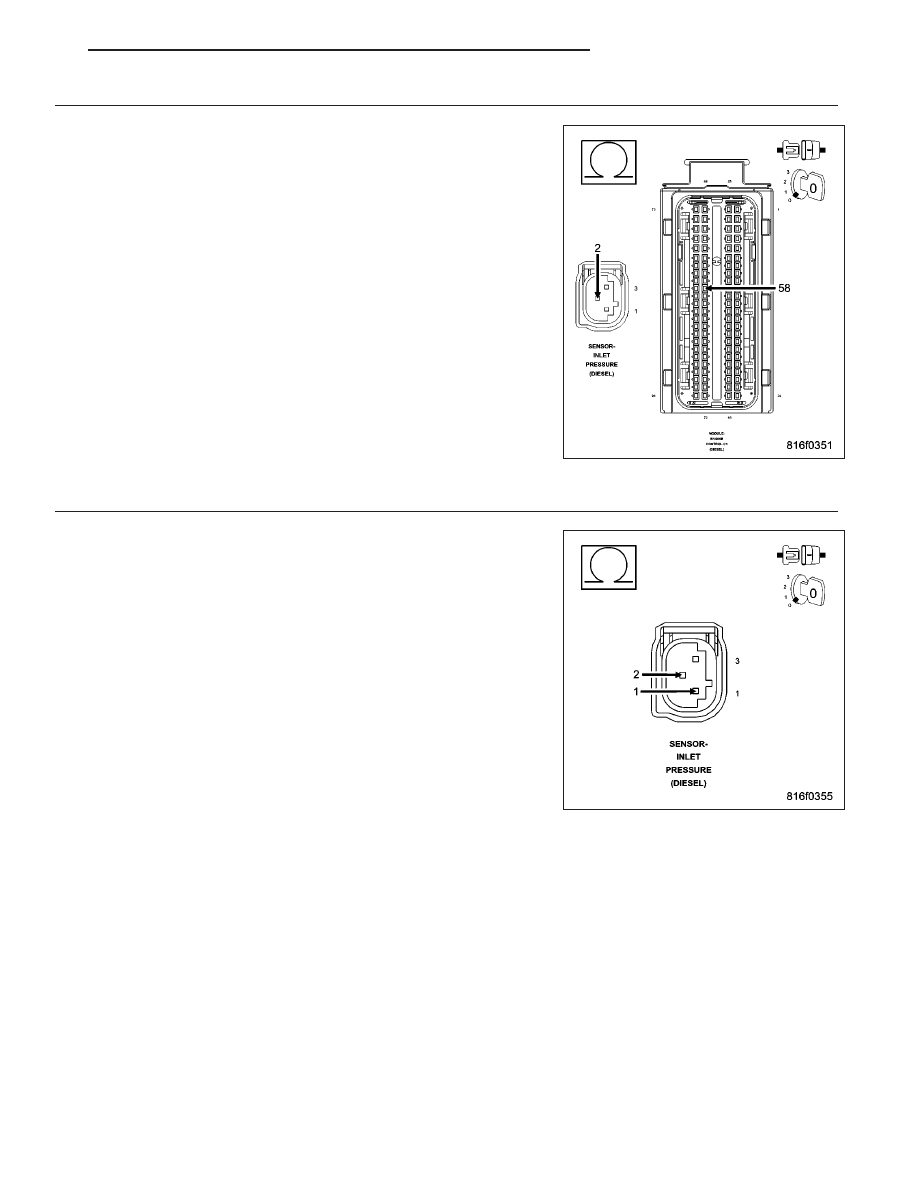

INLET PRESSURE SENSOR SIGNAL CIRCUIT OPEN

Turn the ignition off.

Disconnect the Inlet Pressure Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance of the Inlet Pressure Sensor Signal circuit.

Is the resistance below 10.0 ohms?

Yes

>> Go To 4

No

>> Repair the Inlet Pressure Sensor Signal circuit for an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

4.

INLET PRESSURE SENSOR SIGNAL AND GROUND CIRCUITS SHORTED TOGETHER

Measure the resistance between the Inlet Pressure Sensor Signal circuit
and Inlet Pressure Sensor Ground circuit.

Is the resistance above 1000 ohms?

Yes

>> Go To 5

No

>> Repair the Inlet Pressure Sensor Signal circuit for a short to

the Inlet Pressure Sensor Ground circuit.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

KJ

ENGINE DIESEL DIAG

9 - 769
