Jeep Liberty KJ. Manual - part 673





2.

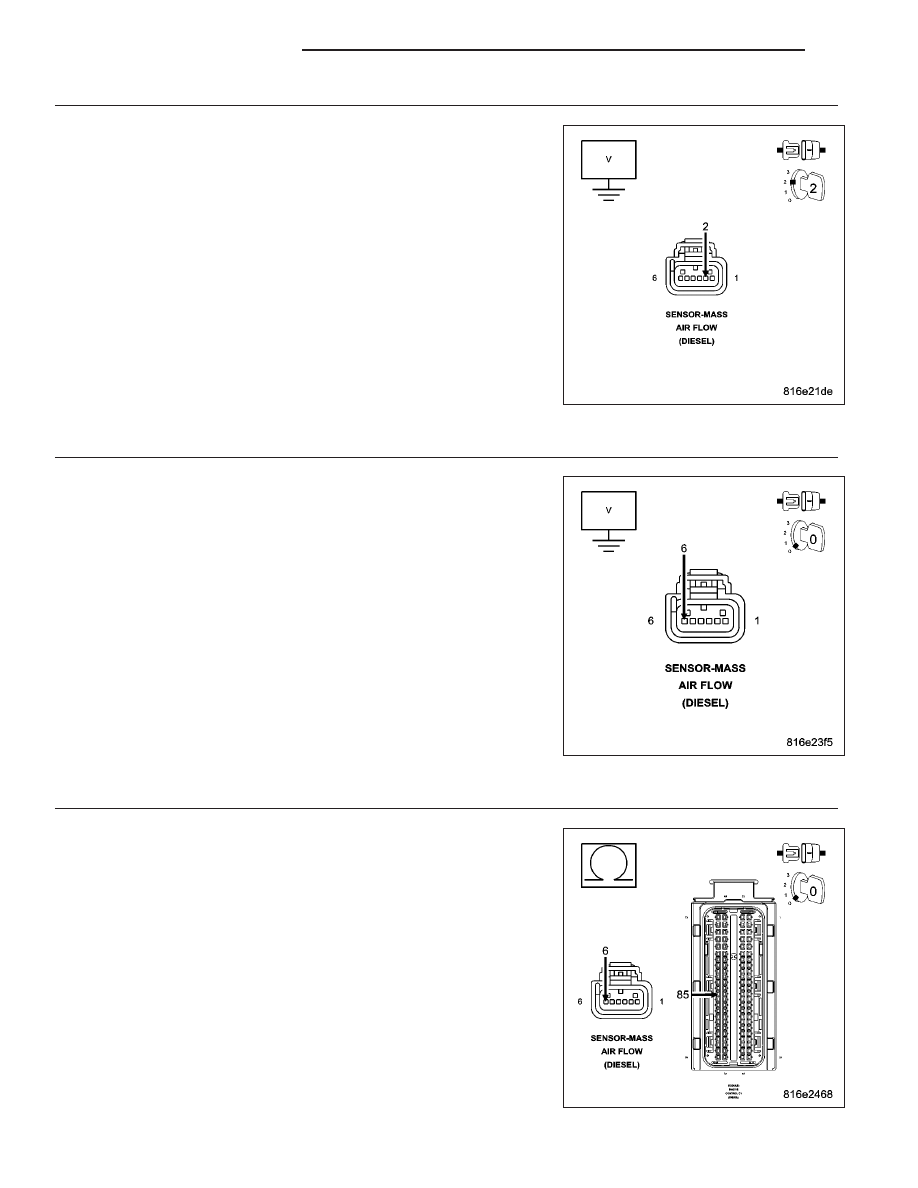

VERIFY SENSOR 5 VOLT SUPPLY

NOTE: A malfunctioning EGR system can cause this DTC to set.
Refer to symptom Checking the EGR System in the Driveability
category to check EGR system operation.
Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Turn the ignition on.

Measure the voltage of the MAF Sensor 5 Volt Supply circuit in MAF
Sensor harness connector.

Is the voltage between 4.8 and 5.2 volts?

Yes

>> Go To 3

No

>> Go To 11

3.

MAF SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Disconnect the ECM harness connectors.

Remove the ASD Relay from the PDC.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
Relay connector.

Turn the ignition on.

Measure the voltage of the MAF Sensor Signal circuit.

Is the voltage above 1.0 volt?

Yes

>> Repair the MAF Sensor Signal circuit for a short to voltage.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 4

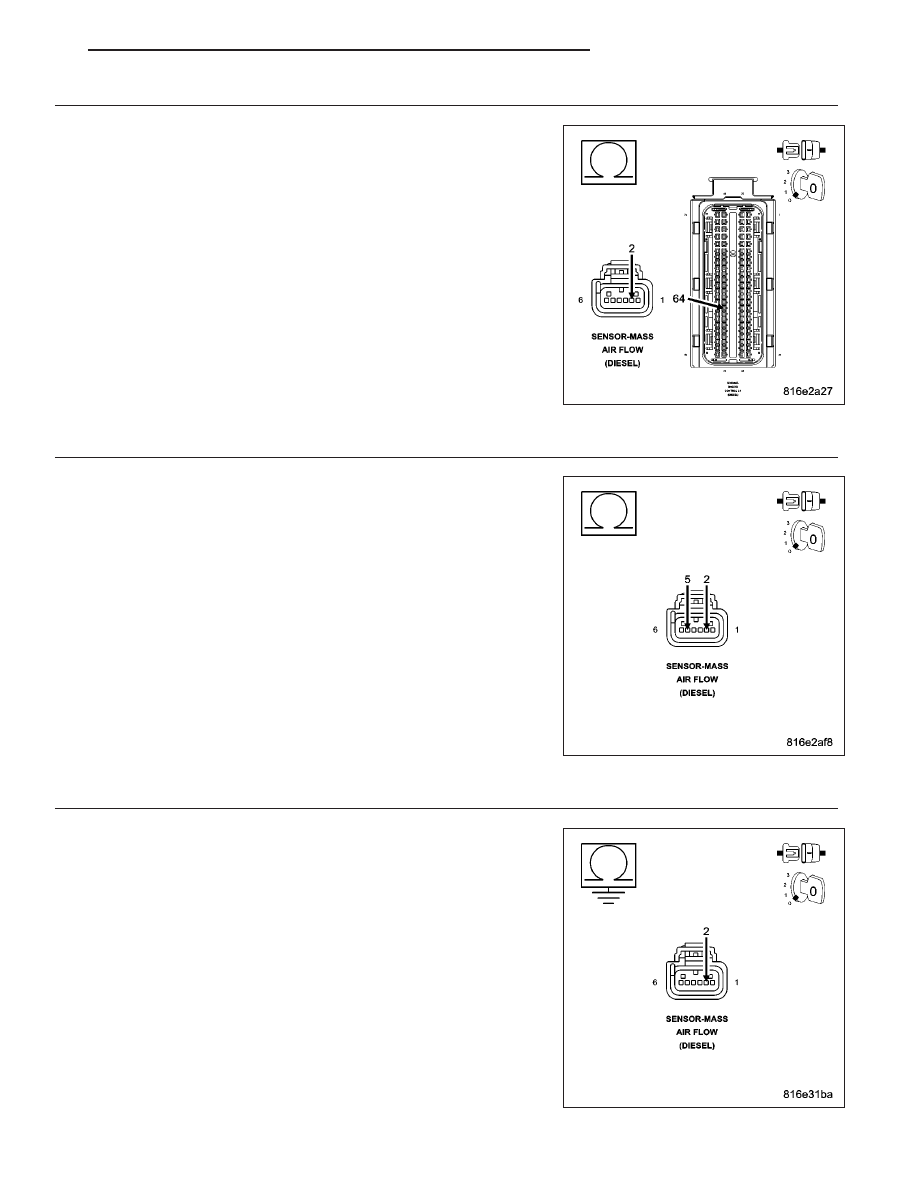

4.

MAF SENSOR SIGNAL CIRCUIT OPEN

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance of the MAF Sensor Signal circuit.

Is the resistance below 10.0 ohms?

Yes

>> Go To 5

No

>> Repair the MAF Sensor Signal circuit for an open

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 750

ENGINE DIESEL DIAG

KJ

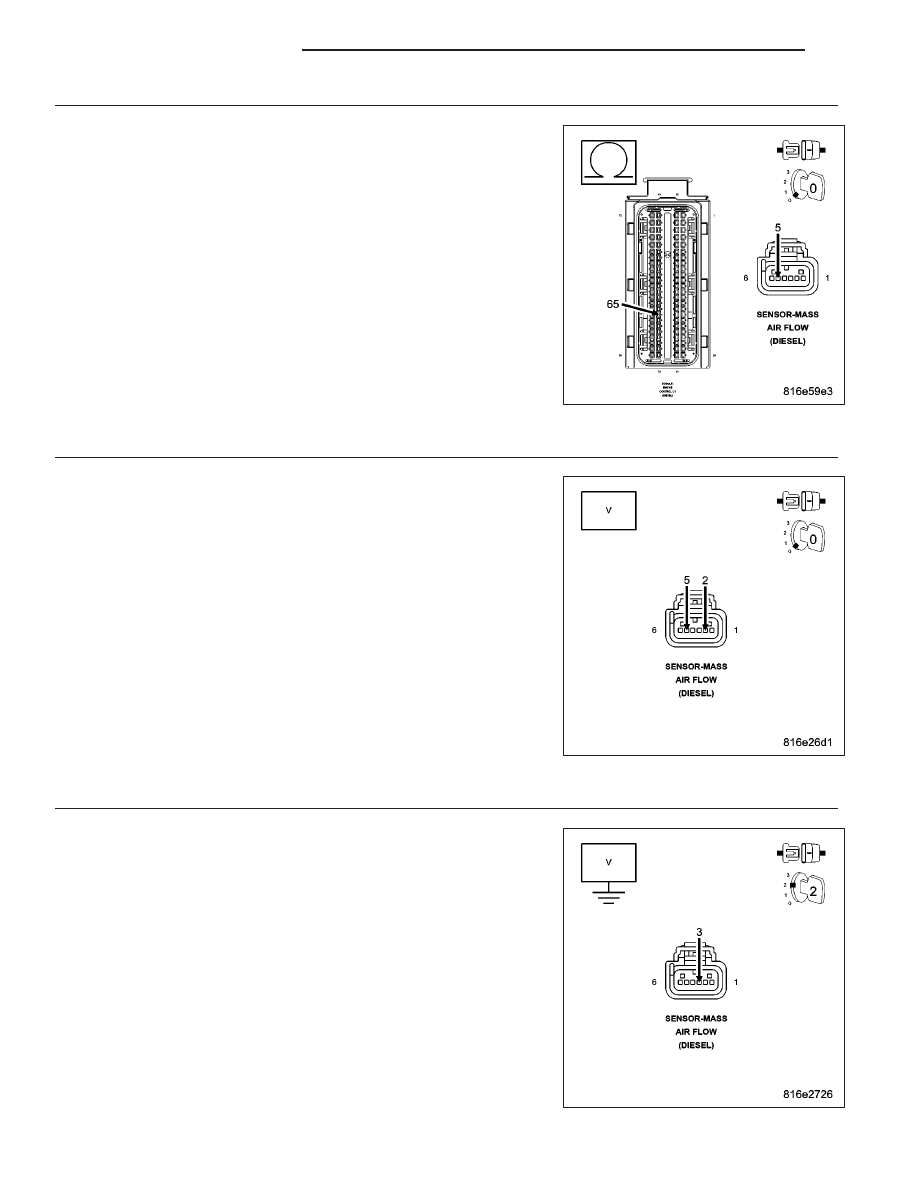

5.

MAF SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance between ground and the MAF Sensor Signal
circuit.

Is the resistance below 1000 ohms?

Yes

>> Repair the MAF Sensor Signal circuit for a short to ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 6

6.

MAF SENSOR SIGNAL CIRCUIT SHORTED TO THE MAF SENSOR GROUND CIRCUIT

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance between the MAF Sensor Signal circuit and the
MAF Sensor Ground circuit at of the MAF Sensor harness connector.

Is the resistance below 1000 ohms?

Yes

>> Repair the MAF Sensor Signal for a short to MAF Sensor

Ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 7

7.

VERIFY MAF SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Connect a jumper wire between MAF Sensor Signal circuit and the 5-volt supply circuit at the MAF Sensor harness
connector.

Turn the ignition on.

With the scan tool, read the MAF VOLTS.

Does the scan tool display between 4.0 and 5.5 volts?

Yes

>> Go To 8

No

>> Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

KJ

ENGINE DIESEL DIAG

9 - 751

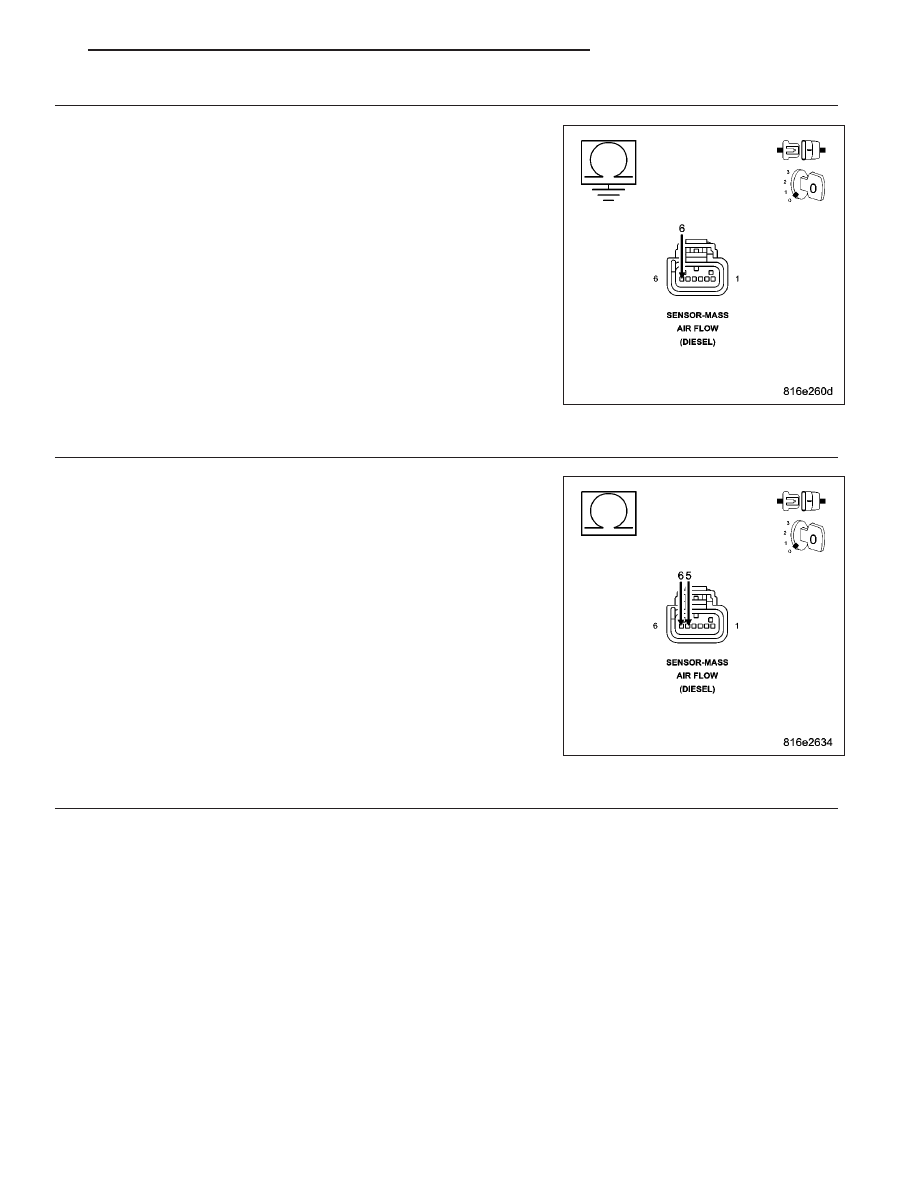

8.

MAF SENSOR GROUND OPEN

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance of the MAF Sensor Ground circuit between the
MAF Sensor and the ECM.

Is the resistance below 10.0 ohms?

Yes

>> Go To 9

No

>> Repair the MAF Sensor Ground circuit for an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9.

ECM - SENSOR GROUND OPEN

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Turn the ignition on.

Measure the voltage between the 5-volt Supply circuit and the MAF
Sensor Ground circuit at the MAF Sensor harness connector.

Is the voltage above 4.5 volts?

Yes

>> Go To 10

No

>> Replace and program the ECM in accordance with the Ser-

vice Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

10.

ASD RELAY OUTPUT CIRCUIT OPEN

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Turn the ignition on.

With the scan tool, actuate the ASD Relay.

Measure the voltage of the 12-volt Supply circuit at the MAF Sensor
harness connector.

Is the voltage above 10.0 volts?

Yes

>> Replace the MAF Sensor.

Perform ROAD TEST VERIFICATION - VER-2.

No

>> Repair the ASD Relay Output circuit for an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 752

ENGINE DIESEL DIAG

KJ

11.

MAF SENSOR 5 VOLT SUPPLY CIRCUIT OPEN

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance of the MAF Sensor 5 Volt Supply circuit.

Is the resistance below 10.0 ohms?

Yes

>> Go To 12

No

>> Repair the MAF Sensor 5 Volt Supply circuit for an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

12.

MAF SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO THE MAF SENSOR GROUND CIRCUIT

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance between the MAF Sensor 5 Volt Supply circuit
and the MAF Sensor Ground circuit at the MAF Sensor harness con-
nector.

Is the resistance above 1000 ohms?

Yes

>> Go To 13

No

>> Repair the MAF Sensor 5 Volt Supply circuit for a short to

the MAF Sensor Ground circuit.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

13.

MAF SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the MAF Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance between ground and the MAF Sensor 5 Volt
Supply circuit at the MAF harness connector.

Is the resistance below 1000 ohms?

Yes

>> Repair the MAF Sensor 5 Volt Supply circuit for a short to

ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 14

KJ

ENGINE DIESEL DIAG

9 - 753
