11. With a pry bar remove the half shafts from the

axle.

NOTE: Right half shaft has a splined axle that may
come out with the half shaft.

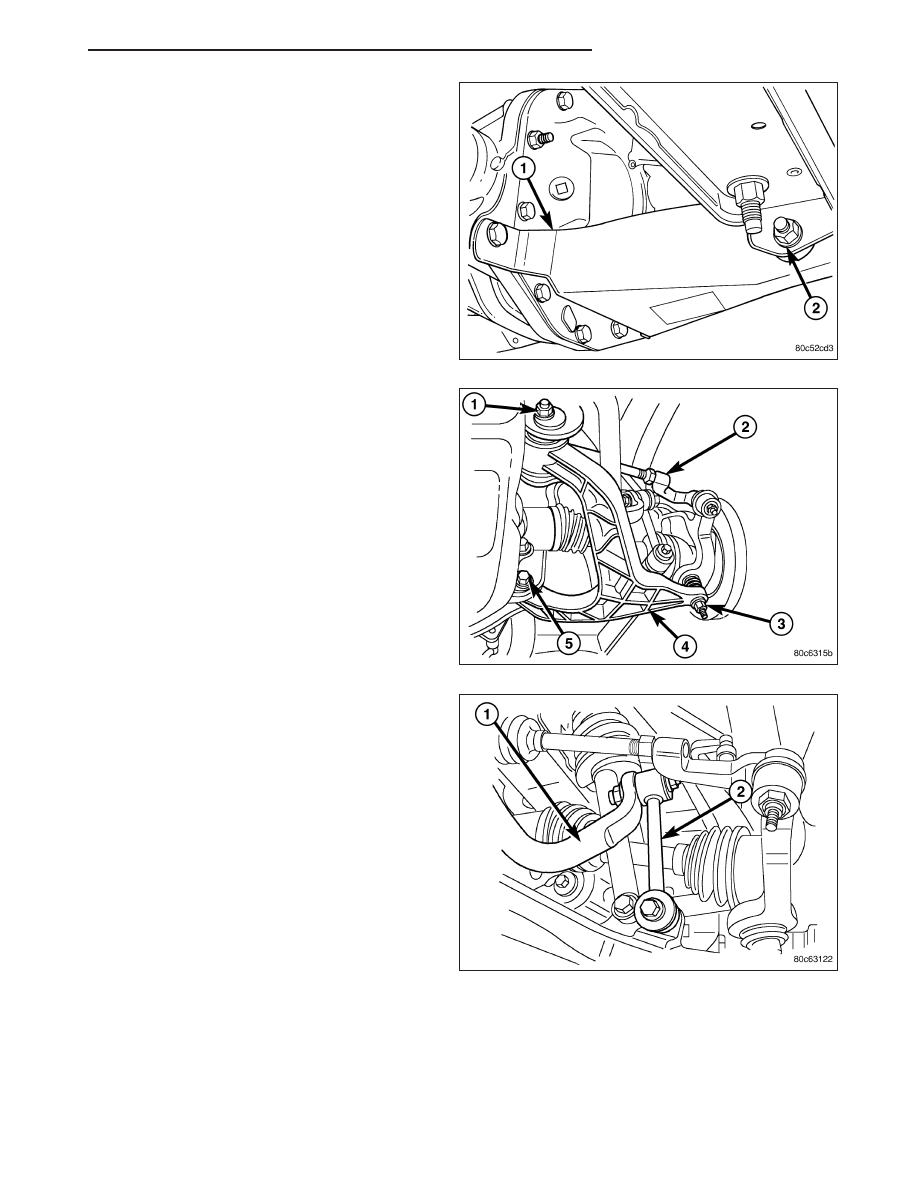

12. Remove differential vent hose from cover and

remove drain trough (1) nut (2).

13. Support axle with a lift/jack.

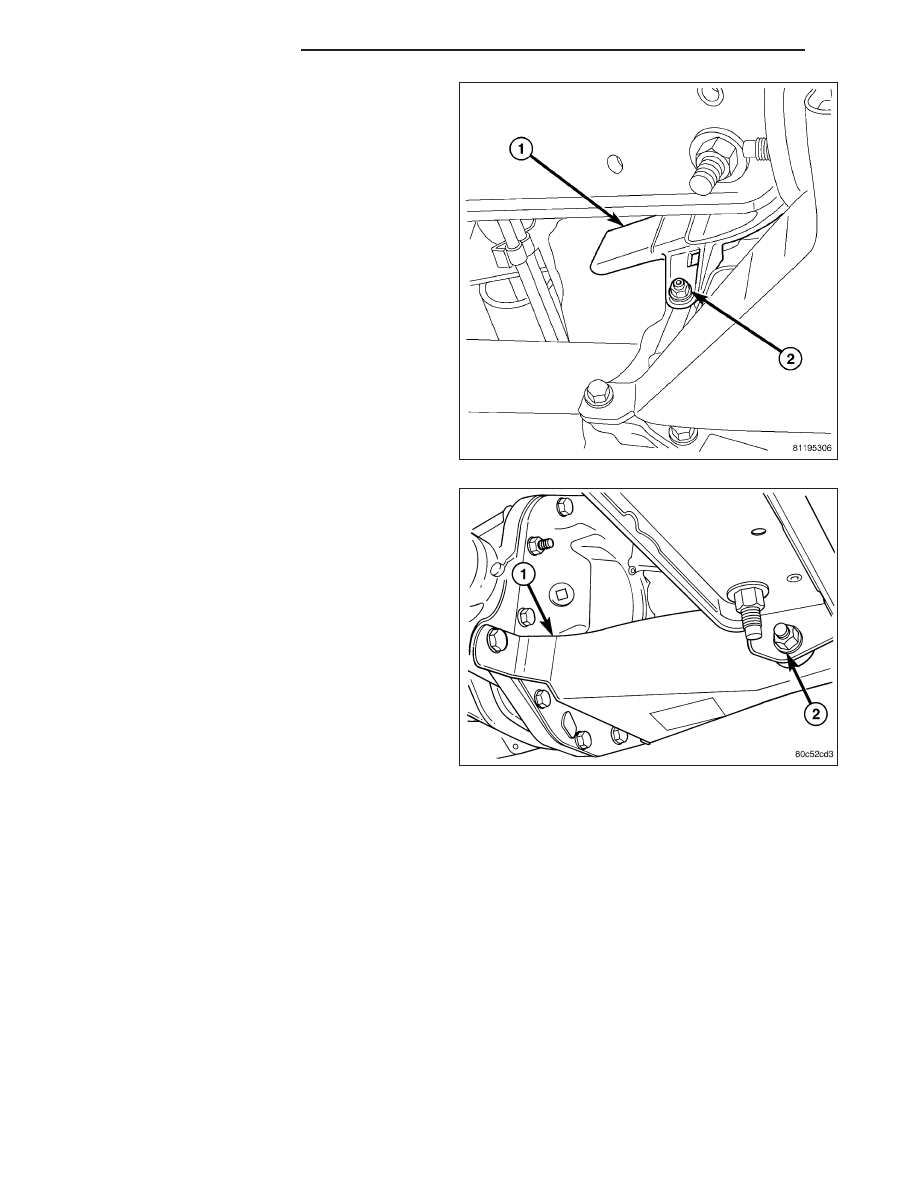

14. Remove bolts from left front axle bracket (1) and

cradle bracket bolt.

15. Remove oil filter drip tray.

3 - 36

FRONT AXLE - 186FIA

KJ

16. Mark and remove right control arm cam bolt.

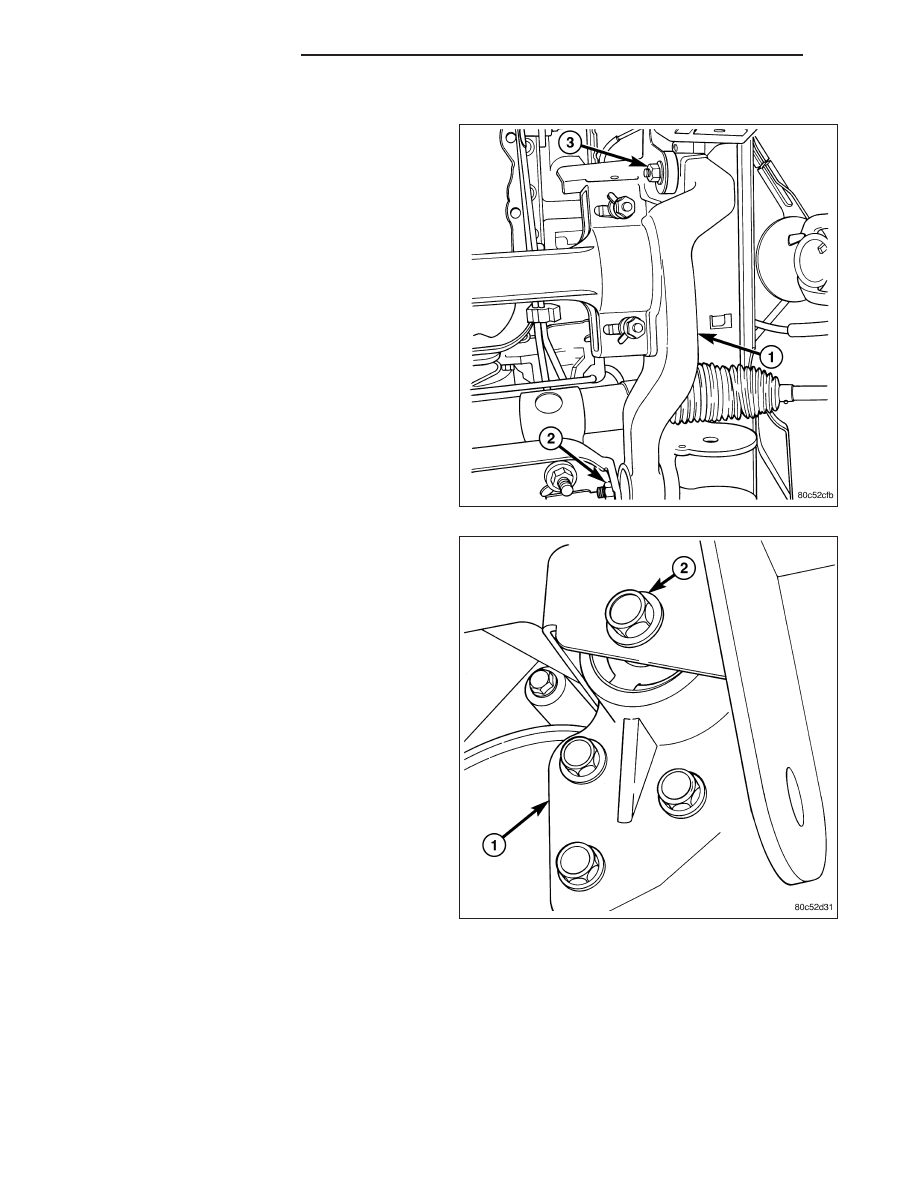

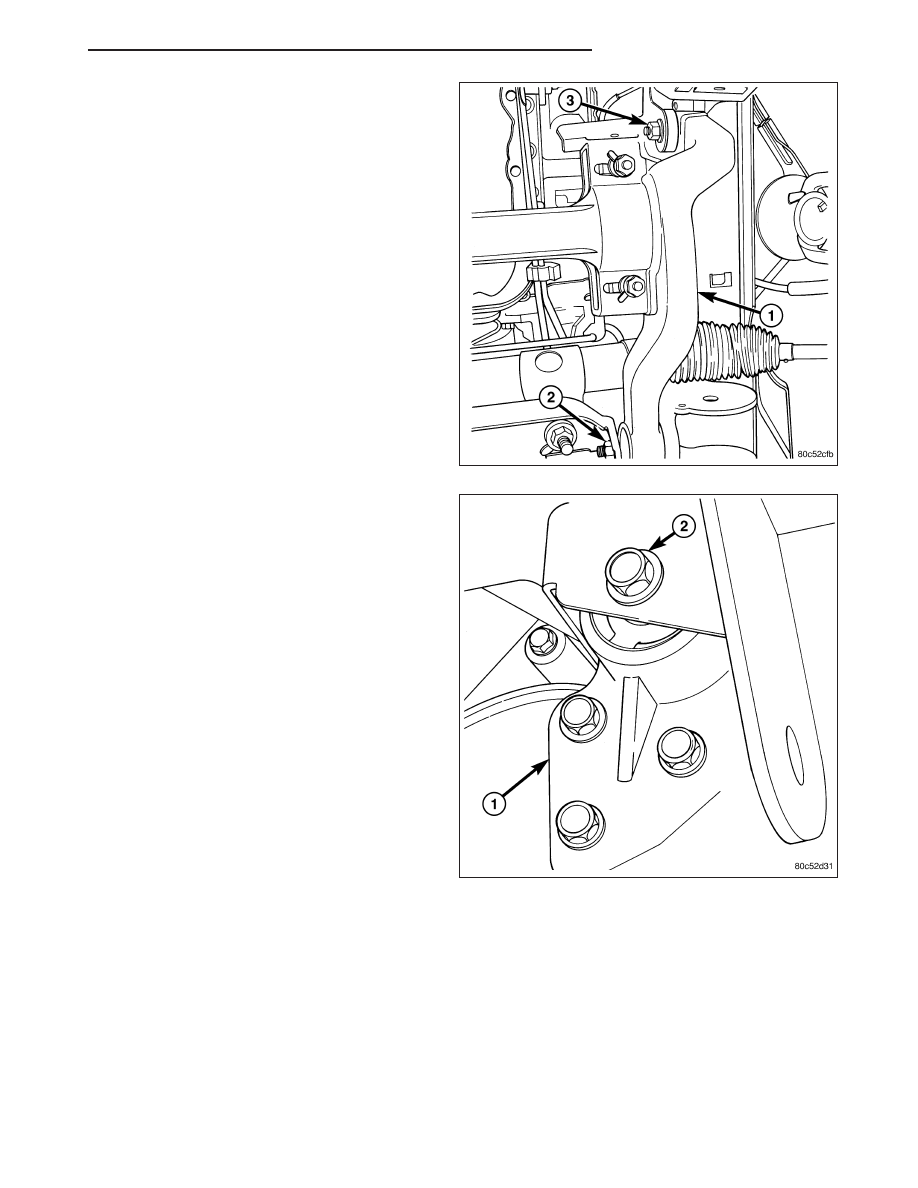

17. Remove front bolt (2) and rear bolt (3) from right

axle bracket (1) frame mounts.

18. Remove bolt (2) from left rear axle bracket (1)

frame mount.

19. Lower axle and from vehicle.

KJ

FRONT AXLE - 186FIA

3 - 37

INSTALLATION

NOTE: Separate right axle shaft from the half shaft
if necessary and install axle shaft in the axle.

1. Install right bracket (1) to axle and tighten to 88

N·m (65 ft. lbs.).

2. Install left rear bracket (1) to axle and tighten to 61

N·m (45 ft. lbs.).

3 - 38

FRONT AXLE - 186FIA

KJ

3. Install left front bracket (1) to axle and tighten to 61

N·m (45 ft. lbs.).

4. Raise axle up and align brackets with frame

mounts.

5. Install frame mount bolts and tighten to 88 N·m (65

ft. lbs.).

6. Install half shafts.

7. Install right front control arm cam bolt (1) with

marks aligned.

8. Install lower ball joint into lower control arms (4)

and tighten nuts (3).

9. Align clevis with knuckles and install clevis bolts.

10. Install stabilizer bar (1) links (2) to lower control

arms and install bolts.

11. Install oil filter trough.

12. Install new half shaft hub nuts and tighten to 136

N·m (100 ft. lbs.).

13. Install propeller shaft.

14. Install axle vent hose.

15. Fill differential with gear lubricant.

16. Install skid plate.

17. Tighten clevis and stabilizer links bolts to specifi-

cations.

18. Check vehicle alignment.
