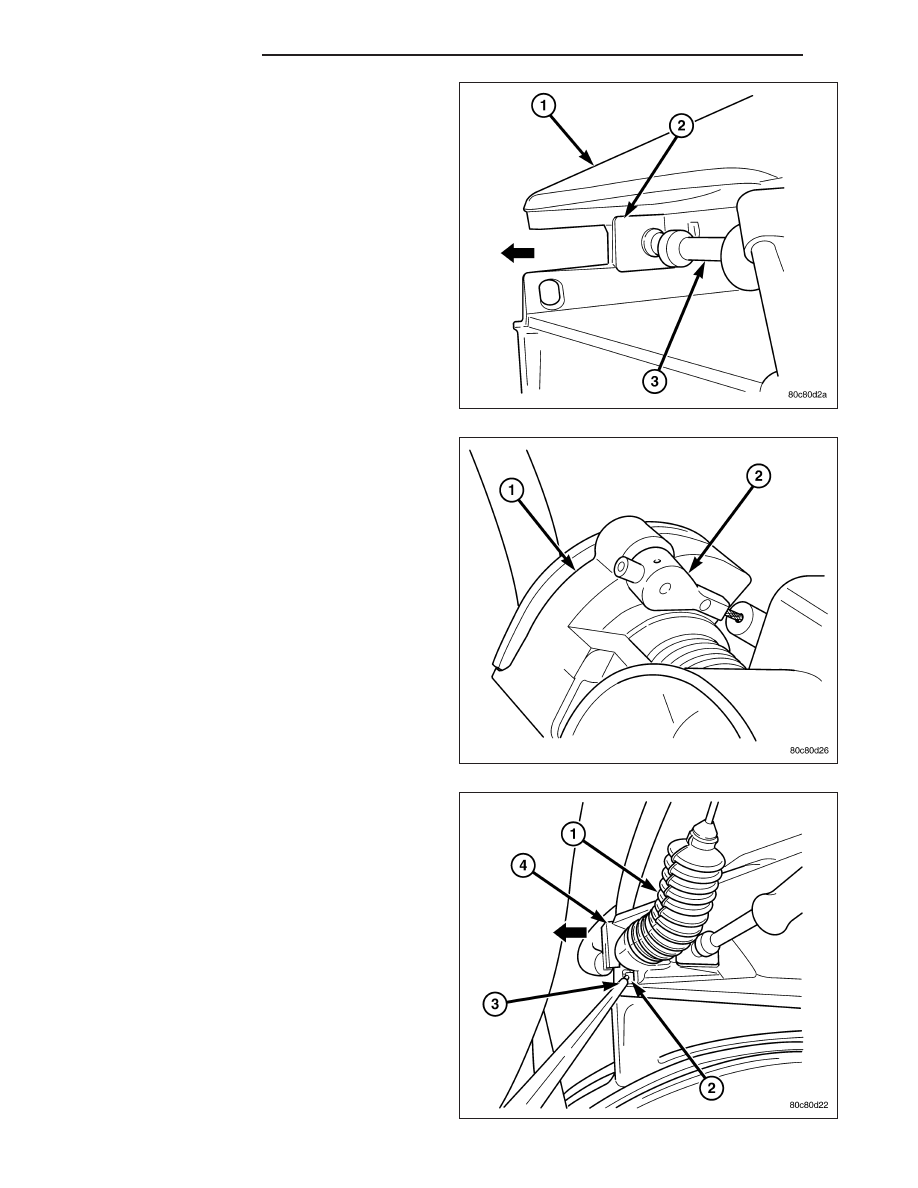

2. Slide speed control cable plastic mount (2) into

throttle body bracket.

3. Install speed control cable connector (2) onto throt-

tle body bellcrank pin (push rearward to snap into
location).

4. Slide throttle (accelerator) cable plastic mount (4)

into throttle body bracket. Continue sliding until
cable release tab (2) is aligned to hole in throttle
body mounting bracket.

8P - 6

SPEED CONTROL

KJ

5. While holding throttle to wide open position, place

throttle cable pin (1) into throttle body bellcrank (2).

6. Install air filter resonator box to throttle body.

7. Connect negative battery cable at battery.

8. Before starting engine, operate accelerator pedal to

check for any binding.

KJ

SPEED CONTROL

8P - 7

SERVO - SPEED CONTROL

DESCRIPTION

The servo unit consists of a solenoid valve body, and a vacuum chamber. The solenoid valve body contains three
solenoids:

Vacuum

Vent

Dump

The vacuum chamber contains a diaphragm with a cable attached to control the throttle linkage.

OPERATION

The Powertrain Control Module (PCM) controls the solenoid valve body. The solenoid valve body controls the appli-
cation and release of vacuum to the diaphragm of the vacuum servo. The servo unit cannot be repaired and is
serviced only as a complete assembly.

Power is supplied to the servo’s by the PCM through the brake switch. The PCM controls the ground path for the
vacuum and vent solenoids.

The dump solenoid is energized anytime it receives power. If power to the dump solenoid is interrupted, the sole-
noid dumps vacuum in the servo. This provides a safety backup to the vent and vacuum solenoids.

The vacuum and vent solenoids must be grounded at the PCM to operate. When the PCM grounds the vacuum
servo solenoid, the solenoid allows vacuum to enter the servo and pull open the throttle plate using the cable. When
the PCM breaks the ground, the solenoid closes and no more vacuum is allowed to enter the servo. The PCM also
operates the vent solenoid via ground. The vent solenoid opens and closes a passage to bleed or hold vacuum in
the servo as required.

The PCM duty cycles the vacuum and vent solenoids to maintain the set speed, or to accelerate and decelerate the
vehicle. To increase throttle opening, the PCM grounds the vacuum and vent solenoids. To decrease throttle open-
ing, the PCM removes the grounds from the vacuum and vent solenoids. When the brake is released, if vehicle
speed exceeds 30 mph to resume, 35 mph to set, and the RES/ACCEL switch has been depressed, ground for the
vent and vacuum circuits is restored.

REMOVAL

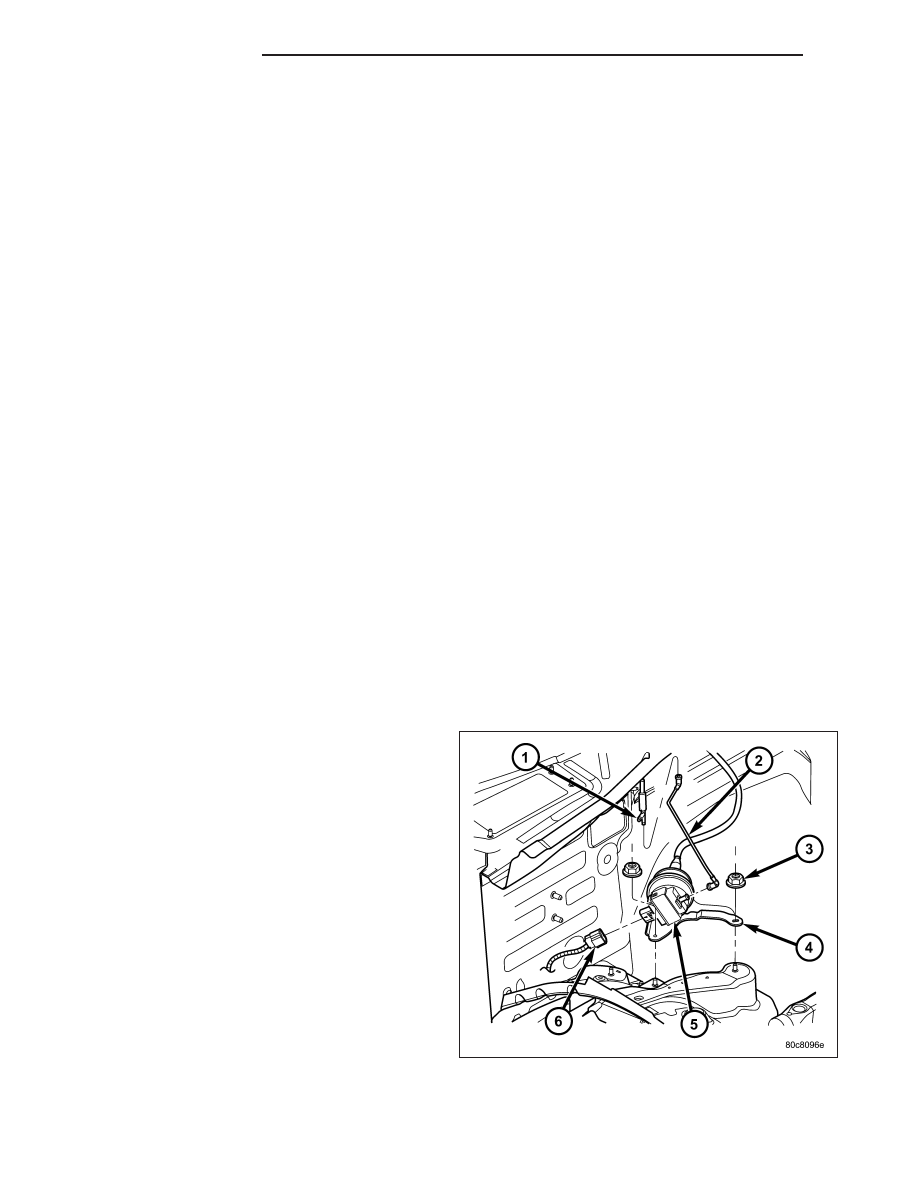

1. Disconnect negative battery cable at battery.

2. Disconnect vacuum line (2) at servo.

3. Disconnect electrical connector (6) at servo.

4. Remove coolant bottle nuts/bolts. Position bottle

forward a few inches.

5. Disconnect servo cable at throttle body. Refer to

servo Cable Removal/Installation.

6. Remove servo bracket mounting nuts (3).

8P - 8

SPEED CONTROL

KJ

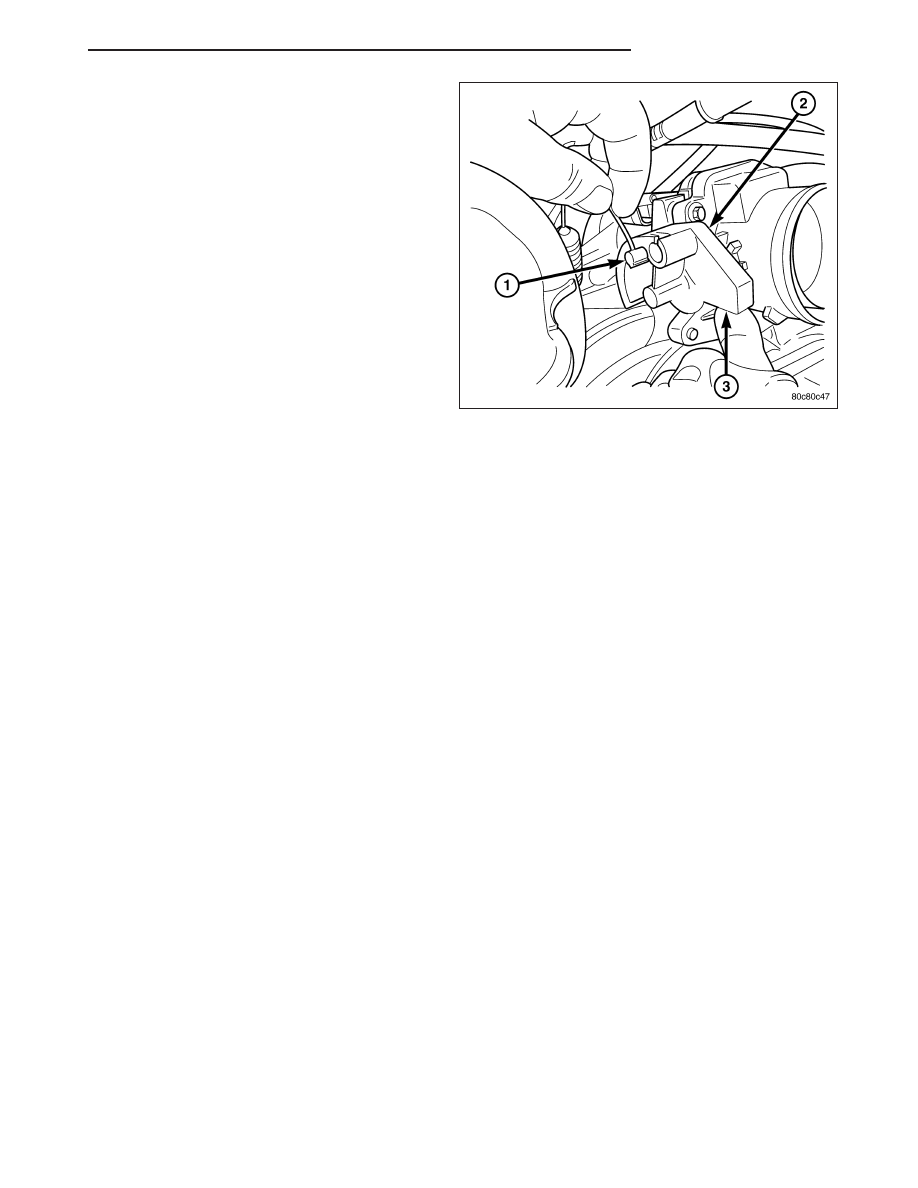

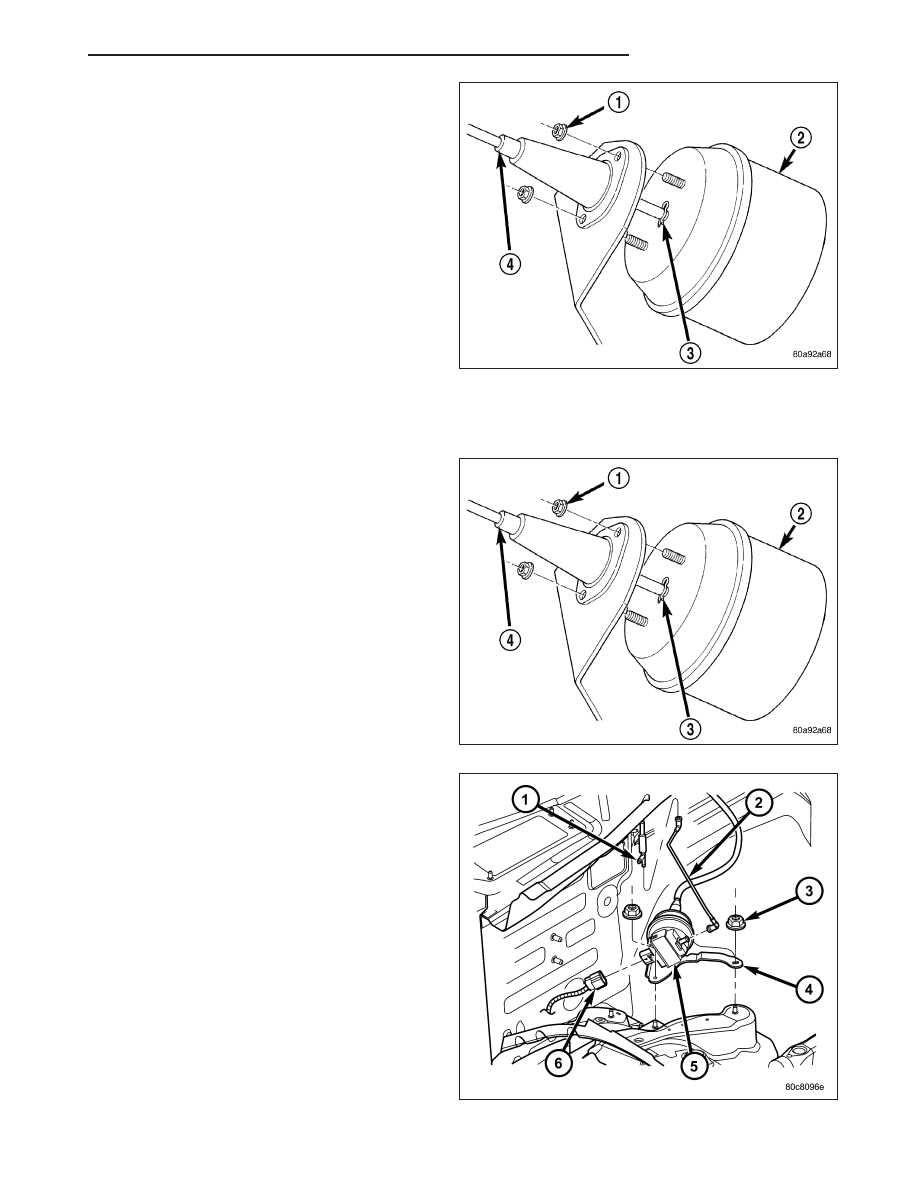

7. Remove two mounting nuts (1) holding servo cable

sleeve to bracket.

8. Pull speed control cable sleeve and servo away

from servo mounting bracket to expose cable
retaining clip (3) and remove clip. Note: The servo
mounting bracket displayed in graphic is a typical
bracket and may/may not be applicable to this
model vehicle.

9. Remove

servo

from

mounting

bracket.

While

removing, note orientation of servo to bracket.

INSTALLATION

1. Position servo to mounting bracket.

2. Align hole in cable connector with hole in servo pin.

Install cable-to-servo retaining clip (3).

3. Insert servo mounting studs through holes in servo

mounting bracket.

4. Install servo-to-mounting bracket nuts (1) and

tighten. Refer to torque specifications.

5. Install servo mounting bracket-to-body nuts (3) and

tighten. Refer to torque specifications.

6. Connect vacuum line (2) at servo.

7. Connect electrical connector (6) at servo.

8. Connect servo cable to throttle body. Refer to servo

Cable Removal/Installation.

9. Install coolant bottle.

10. Connect negative battery cable to battery.

11. Before starting engine, operate accelerator pedal

to check for any binding.

KJ

SPEED CONTROL

8P - 9
