POWER SEAT SWITCH

DESCRIPTION

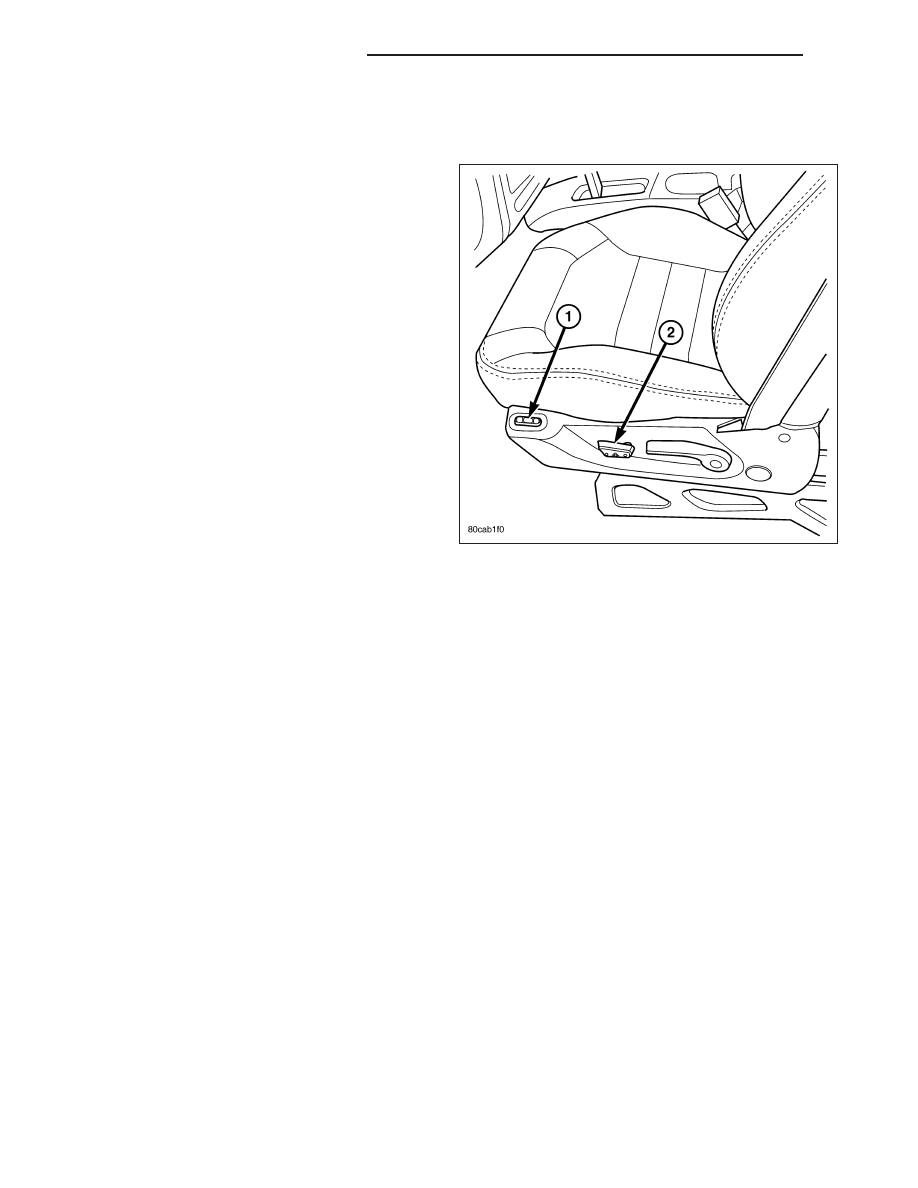

Vehicles equipped with the power seat option utilize a
six-way power seat switch (2). This six-way power
seat switch features one seat cushion shaped knob,
visible on the outboard seat cushion side shield.

The switch is secured to the back of the seat cushion
side shield with two screws. However, the control knob
must be removed before the seat switch can be
removed from the side shield.

The individual switches internal to the power seat
switch assembly cannot be repaired. If one switch is
damaged or faulty, the entire power seat switch
assembly must be replaced.

OPERATION

The power seat tracks can be adjusted in six different ways using the power seat switches. See the owner’s manual
in the vehicle glove box for more information on the power seat switch functions and the seat adjusting procedures.

When a power seat switch control knob or knobs are actuated, a battery feed and a ground path are applied
through the switch contacts to the power seat track adjuster motor. The selected adjuster motor operates to move
the seat track through its drive unit in the selected direction until the switch is released, or until the travel limit of the
seat track is reached. When the switch is moved in the opposite direction, the battery feed and ground path to the
motor are reversed through the switch contacts. This causes the adjuster motor to run in the opposite direction.

No power seat switch should be held applied in any direction after the seat track has reached its travel limit. The
power seat adjuster motors each contain a self-resetting circuit breaker to protect them from overload. However,
consecutive or frequent resetting of the circuit breaker must not be allowed to continue, or the motor may be dam-
aged.

DIAGNOSIS AND TESTING

POWER SEAT SWITCH

For complete circuit diagrams, refer to the appropriate wiring information. The wiring information includes wir-
ing diagrams, proper wire and connector repair procedures, details of wire harness routing and retention, connector
pin-out information and location views for the various wire harness connectors, splices and grounds.

1. Disconnect and isolate the battery negative cable.

2. Remove the power seat switch, (Refer to 8 - ELECTRICAL/POWER SEATS/DRIVER SEAT SWITCH -

REMOVAL).

3. Use an ohmmeter to test the continuity of the power seat switch in each switch position, refer to the switch

illustration and the Power Seat Switch Direction Chart . See the Power Seat Switch Continuity Chart for test

8N - 94

POWER SEATS-SERVICE INFO

KJ

results. If OK, (Refer to 8 - ELECTRICAL/POWER SEATS/POWER SEAT TRACK - DIAGNOSIS AND TESTING)
for further power seat system diagnosis. If not OK, replace the faulty power seat switch assembly.

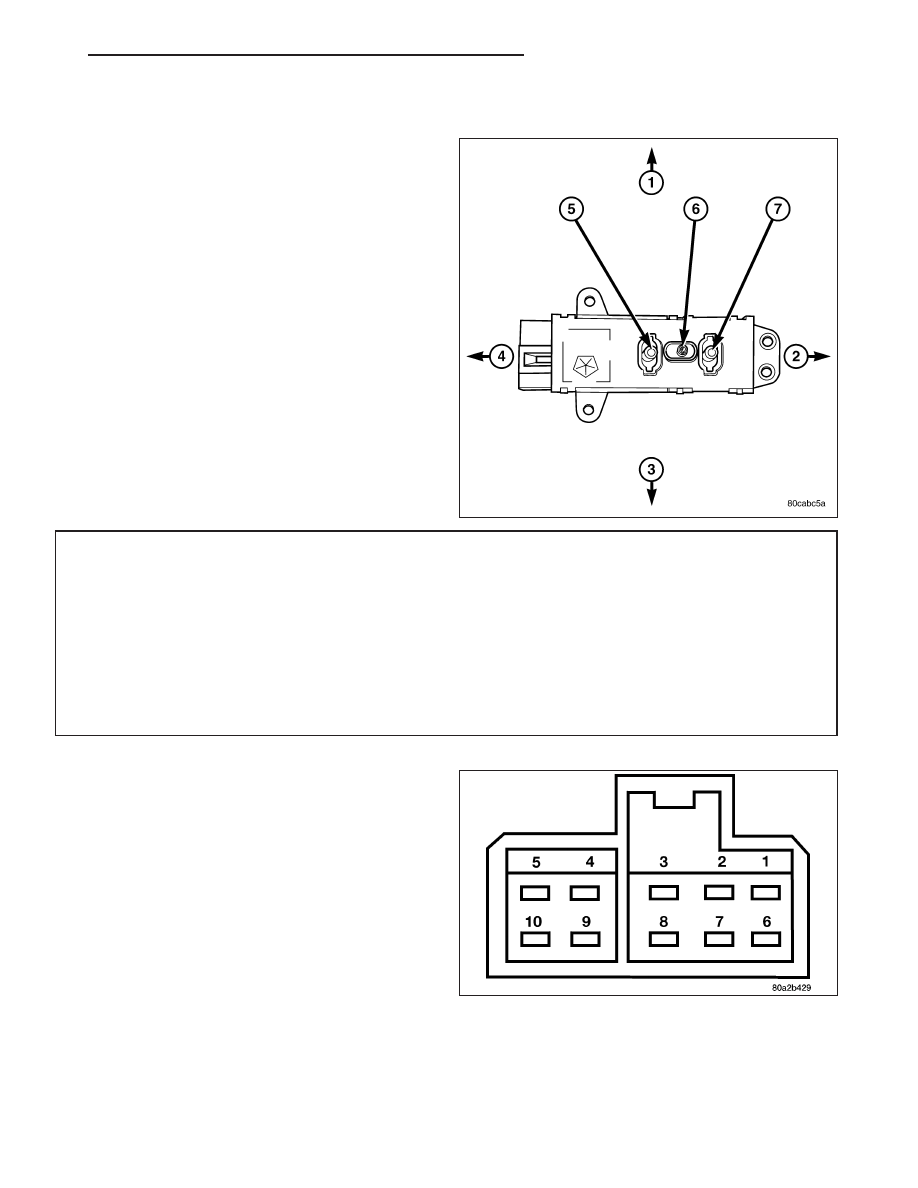

NOTE: The left power seat switch is shown, the
right power seat switch is similar.

Power Seat Switch Direction Chart

ILLUSTRATION CALL-OUT

NUMBER

POWER SEAT SWITCH DIRECTION

1

UP

2

REARWARD

3

DOWN

4

FORWARD

5

FRONT RISER SWITCH

6

CENTER SEAT SWITCH

7

REAR RISER SWITCH

KJ

POWER SEATS-SERVICE INFO

8N - 95

Power Seat Switch Continuity Chart

SWITCH POSITION

CONTINUITY BETWEEN PINS

LEFT POWER SEAT

RIGHT POWER SEAT

OFF

PIN 1 to 3

PIN 1 to 3

PIN 1 to 6

PIN 1 to 6

PIN 1 to 7

PIN 1 to 7

PIN 1 to 8

PIN 1 to 8

PIN 1 to 9

PIN 1 to 9

PIN 1 to 10

PIN 1 to 10

FRONT RISER UP

PIN 1 to 8

PIN 1 to 8

PIN 5 to 9

PIN 5 to 8

FRONT RISER DOWN

PIN 1 to 9

PIN 1 to 9

PIN 5 to 8

PIN 5 to 9

CENTER SWITCH FORWARD

PIN 1 to 6

PIN 1 to 6

PIN 5 to 3

PIN 5 to 3

CENTER SWITCH REARWARD

PIN 1 to 3

PIN 1 to 3

PIN 5 to 6

PIN 5 to 6

REAR RISER UP

PIN 1 to 7

PIN 1 to 7

PIN 5 to 10

PIN 5 to 7

REAR RISER DOWN

PIN 1 to 10

PIN 1 to 10

PIN 5 to 7

PIN 5 to 10

REMOVAL

1. Disconnect and isolate the battery negative cable.

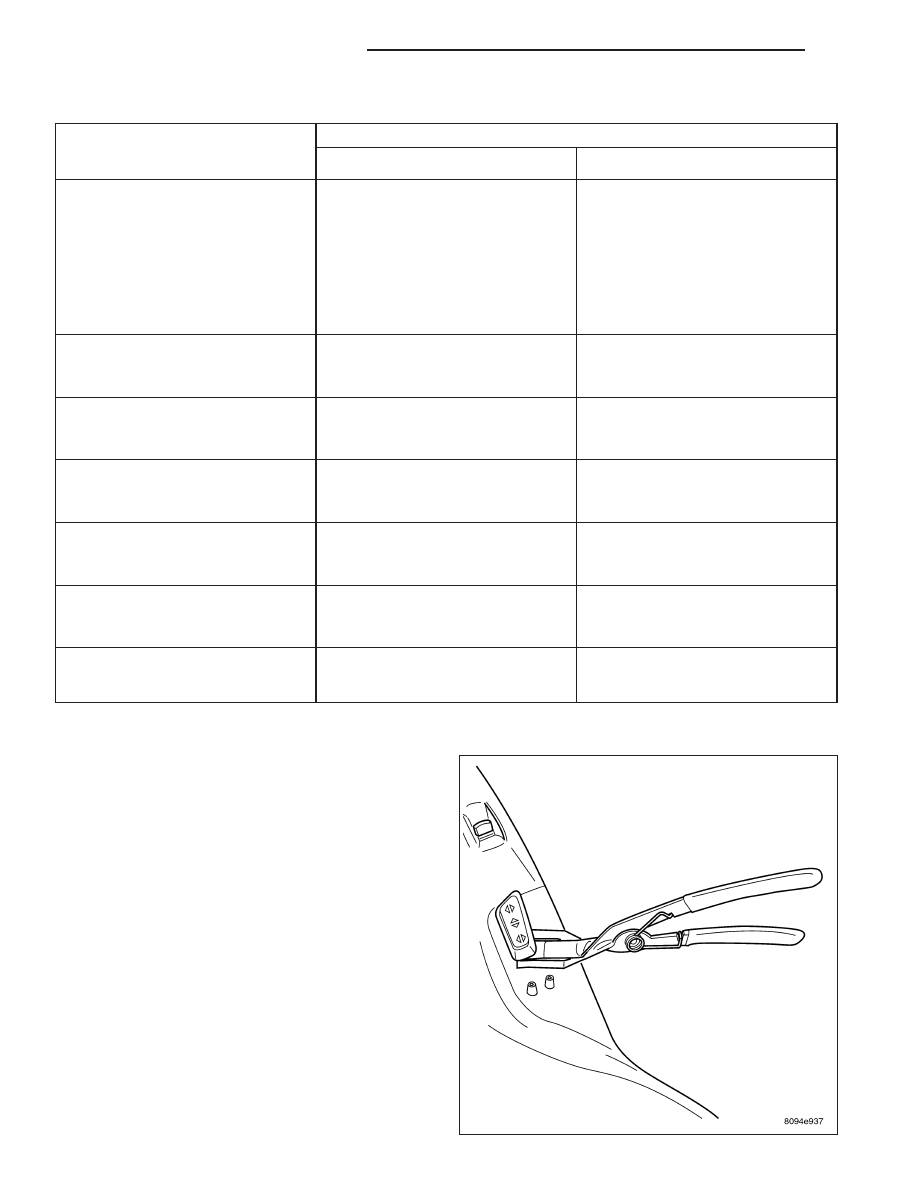

2. Using a push pin remover or another suitable wide

flat-bladed tool, gently pry the power seat switch
knob off of the switch control levers.

3. Remove the two forward-most screws that secure

the outboard seat cushion side shield to the seat
cushion frame.

4. Remove the recliner handle retaining screw and

remove the recliner handle.

5. Pull the outboard seat cushion side shield away

from the seat cushion frame far enough to access
the power seat switch wire harness tie-strap and
connector. Cut the tie-strap, if equipped.

6. Disconnect the power seat wire harness connector

from the power seat switch connector receptacle.
Depress the connector retaining tab and pull
straight apart.

7. Using a very short phillips-headed screwdriver,

remove the two screws that secure the power seat
switch to the inside of the outboard seat cushion
side shield.

8N - 96

POWER SEATS-SERVICE INFO

KJ

8. Remove the power seat switch from the outboard seat cushion side shield.

INSTALLATION

1. Reconnect the power seat wire harness connector to the power seat switch connector receptacle.

2. Position the power seat switch onto the outboard seat cushion side shield. Make certain the alignment dowel is

inserted into the corresponding hole in the power seat switch.

3. Install and tighten the two screws that secure the power seat switch to the inside of the outboard seat cushion

side shield. Tighten the screws to 1.5 N·m (14 in. lbs.).

4. Position the outboard seat cushion side shield onto the seat cushion frame

5. Install and tighten the two screws that secure the outboard seat cushion side shield to the seat cushion frame.

Tighten the screws to 1.5 N·m (14 in. lbs.).

6. Install the recliner handle and retaining screw. Tighten the screws to 1.5 N·m (14 in. lbs.).

7. Position the power seat switch knob onto the switch control levers and push firmly and evenly until it snaps into

place.

8. Reconnect the battery negative cable.

KJ

POWER SEATS-SERVICE INFO

8N - 97
