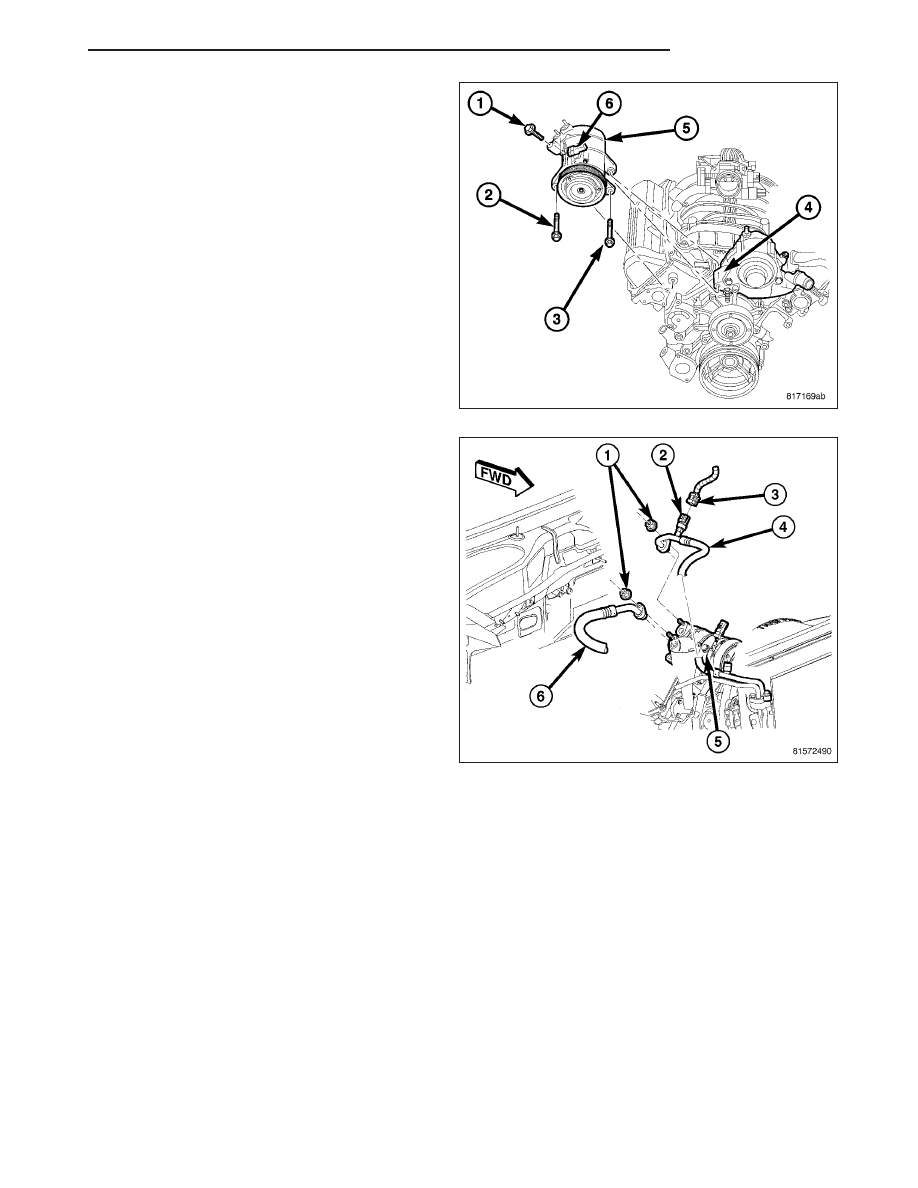

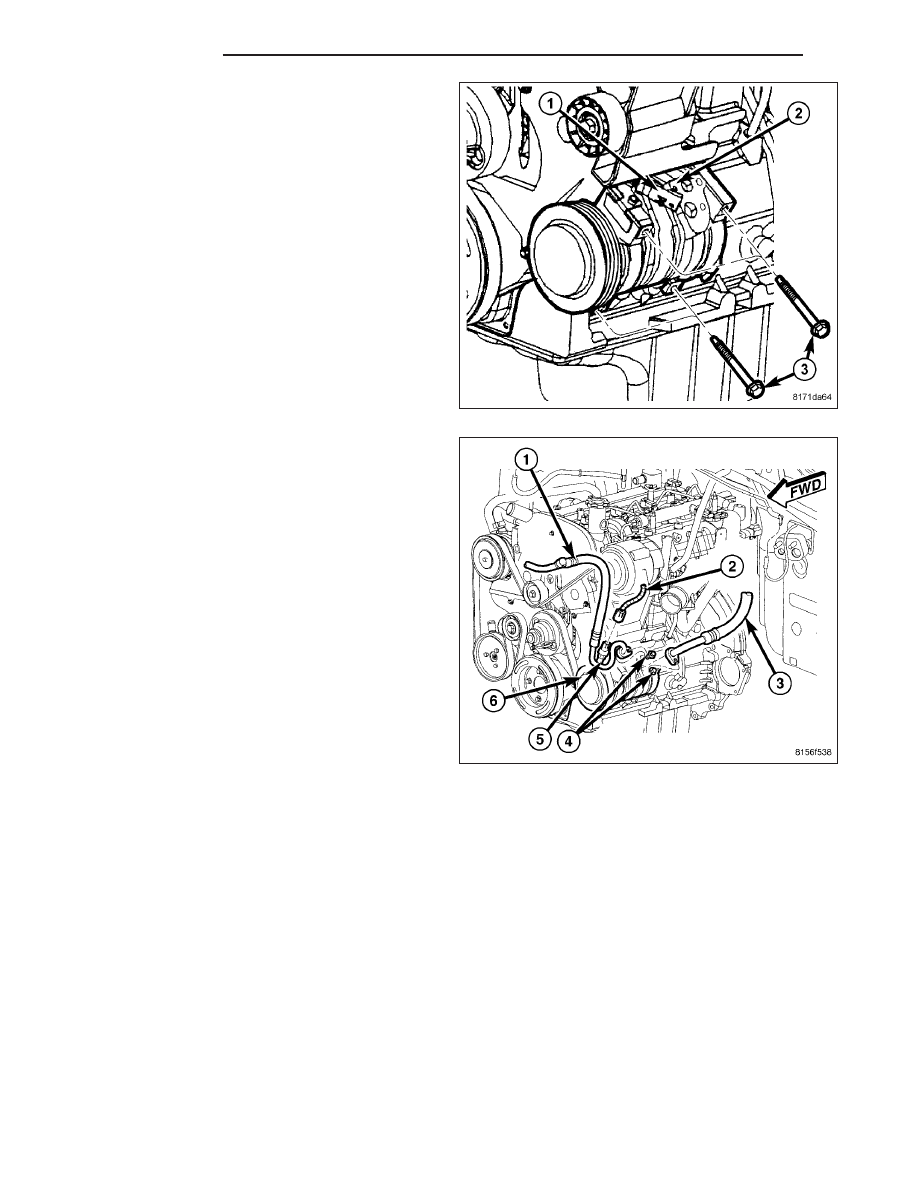

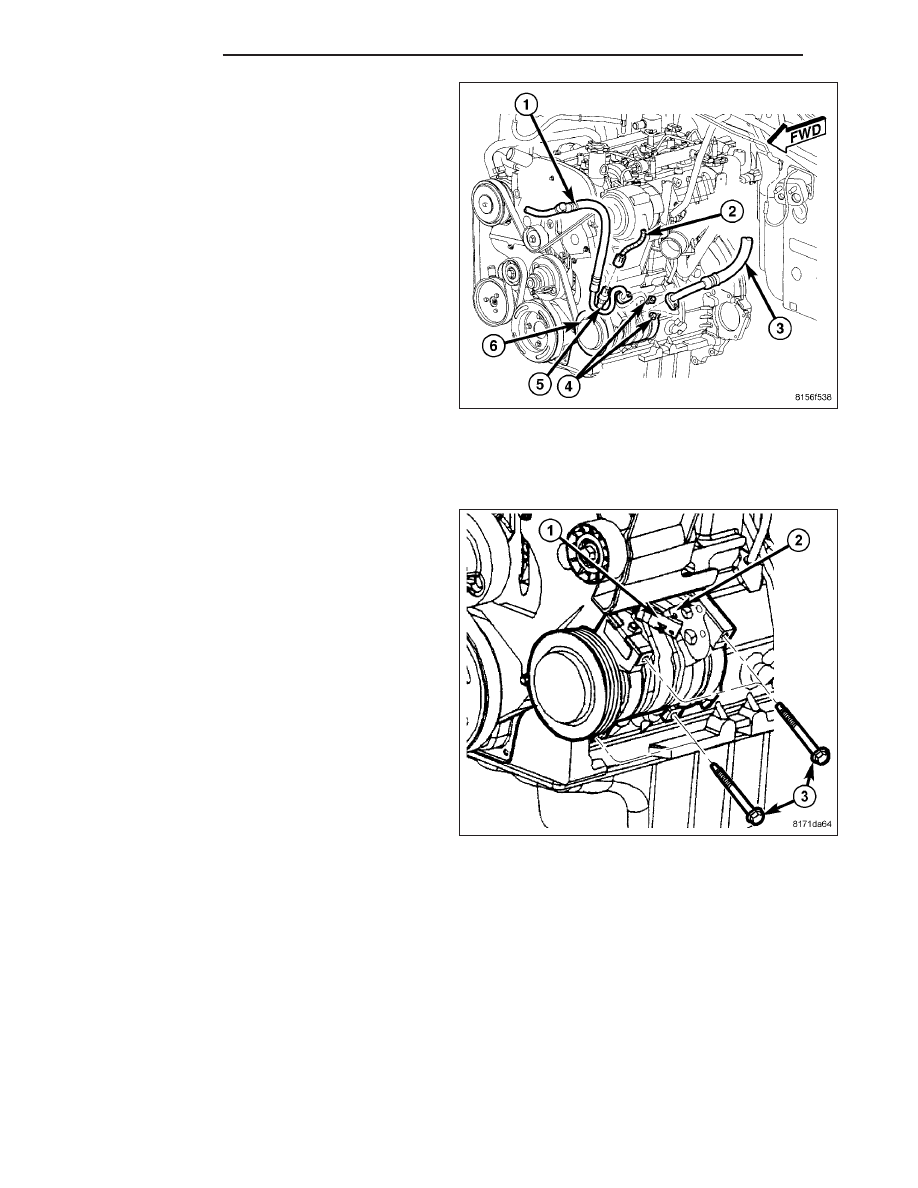

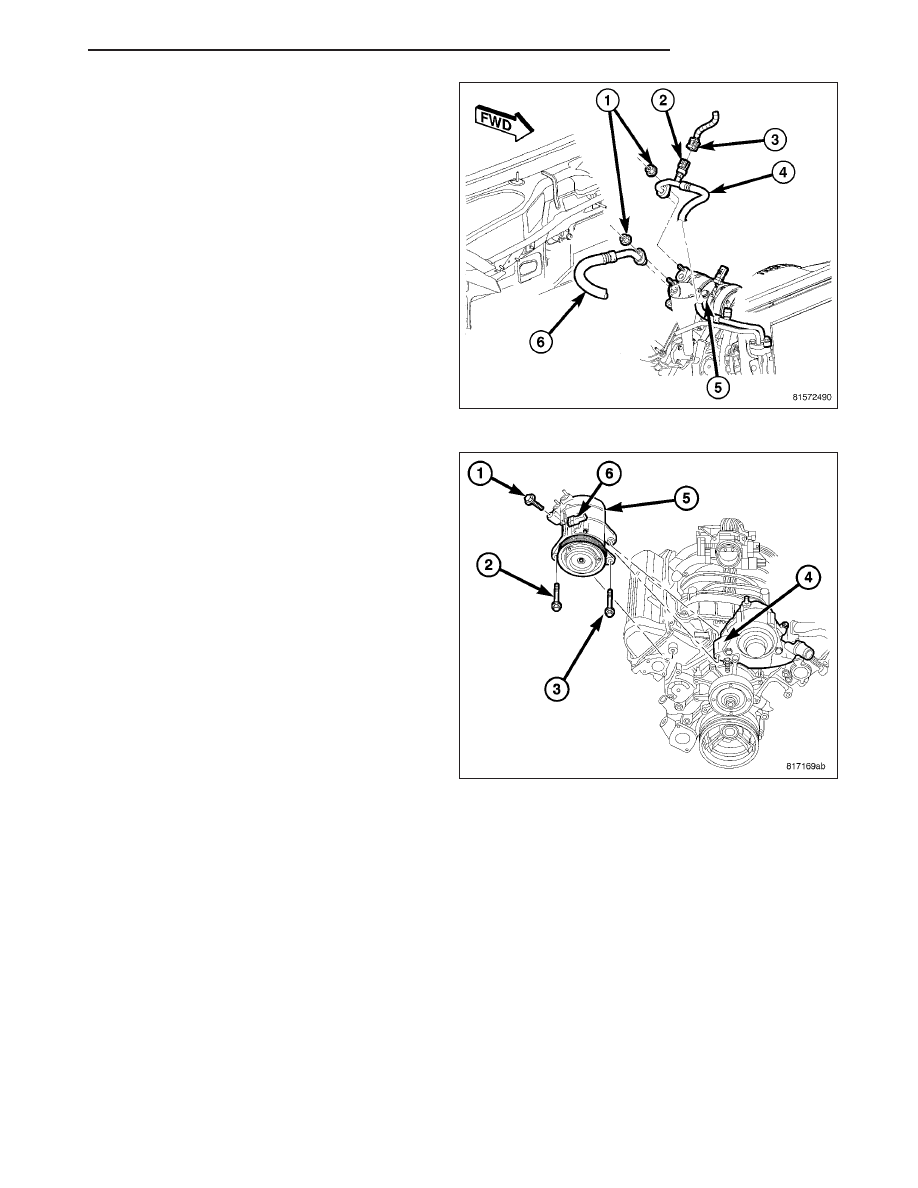

NOTE: RHD model shown. LHD model similar. 1. Disconnect and isolate the negative battery cable. 2. Recover the refrigerant from the refrigerant system (Refer to 24 - HEATING & AIR CONDITIONING/ - STANDARD PROCEDURE - REFRIGERANT RECOVERY). 3. Remove the accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - 4. Raise and support the vehicle. 5. Remove the front skid plate (Refer to 13 - FRAME & BUMPERS/FRAME/FRONT SKID PLATE - REMOVAL). 6. If necessary, disconnect the engine wire harness (2) from the A/C high pressure switch (5). 7. Remove the bolts (4) that secure the A/C suction line (3) and the A/C discharge line (1) to the A/C 8. Remove and discard the O-ring seals from the refrigerant line fittings and install plugs in, or tape over the opened fittings and the compressor ports. 9. Disconnect the engine wire harness from the A/C clutch field coil connector (1). 10. Support the A/C compressor (2) and remove the four bolts (3) that secure the compressor to the 11. Remove the A/C compressor from the engine compartment. 3.7L ENGINE WARNING: Refer to the applicable warnings and cautions for this system before performing the following NOTE: The A/C compressor may be removed and repositioned without disconnecting the refrigerant lines or 24 - 90 PLUMBING KJ |
