REAR VIEW MIRROR

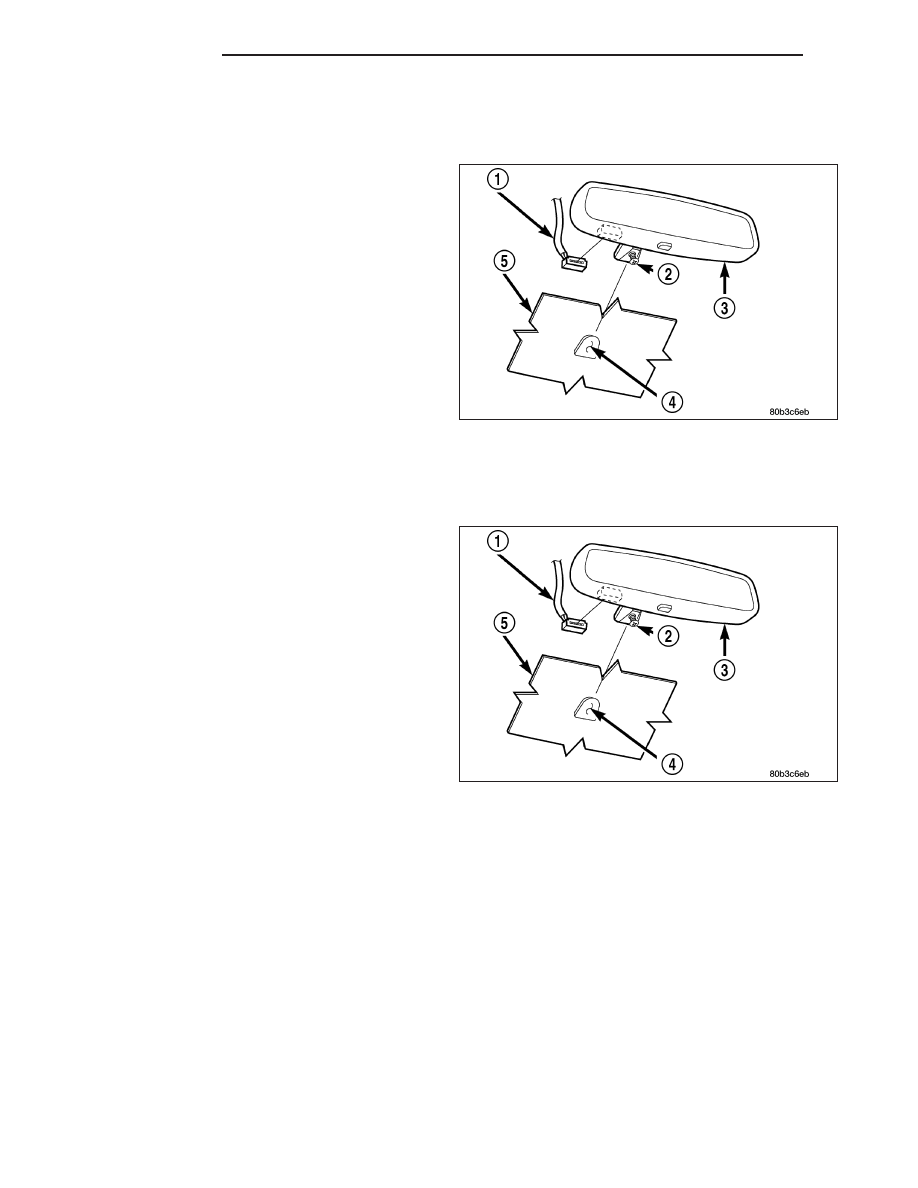

REMOVAL

1. If equipped, disconnect mirror harness connector.

2. Loosen the mirror base setscrew.

3. Slide the mirror base upward and off the bracket.

INSTALLATION

INSTALLATION

1. Position the mirror base at the bracket and slide it

downward onto the support bracket.

2. Tighten the setscrew 1 N·m (15 in. lbs.) torque.

3. If equipped, connect mirror harness connector.

INSTALLATION - REAR VIEW MIRROR SUPPORT BRACKET

1. Mark the position for the mirror bracket on the outside of the windshield glass with a wax pencil.

2. Clean the bracket contact area on the glass. Use a mild powdered cleanser on a cloth saturated with isopropyl

(rubbing) alcohol. Finally, clean the glass with a paper towel dampened with alcohol.

3. Sand the surface on the support bracket with fine grit-sandpaper. Wipe the bracket surface clean with a paper

towel.

4. Apply accelerator to the surface on the bracket according to the following instructions:

a. Crush the vial to saturate the felt applicator.

b. Remove the paper sleeve.

c. Apply accelerator to the contact surface on the bracket.

d. Allow the accelerator to dry for five minutes.

e. Do not touch the bracket contact surface after the accelerator has been applied.

5. Apply adhesive accelerator to the bracket contact surface on the windshield glass. Allow the accelerator to dry

for one minute. Do not touch the glass contact surface after the accelerator has been applied.

23 - 204

INTERIOR

KJ

6. Install the bracket according to the following instructions:

a. Apply one drop of adhesive at the center of the bracket contact-surface on the windshield glass.

b. Apply an even coat of adhesive to the contact surface on the bracket.

c. Align the bracket with the marked position on the windshield glass.

d. Press and hold the bracket in place for at least one minute.

NOTE: Verify that the mirror support bracket is correctly aligned, because the adhesive will cure rapidly.

7. Allow the adhesive to cure for 8-10 minutes. Remove any excess adhesive with an alcohol-dampened cloth.

8. Allow the adhesive to cure for an additional 8-10 minutes before installing the mirror.

KJ

INTERIOR

23 - 205

PAINT

SPECIFICATIONS - PAINT CODES

NOTE: Because of late model changes to the available paint colors (Refer to VEHICLE DATA/VEHICLE
INFORMATION/VEHICLE CERTIFICATION LABEL - DESCRIPTION) or (Refer to VEHICLE DATA/VEHICLE
INFORMATION/BODY CODE PLATE - DESCRIPTION) for the correct paint codes for each vehicle. (Refer to
23 - BODY/PAINT/PAINT CODE - DESCRIPTION)

EXTERIOR COLORS

EXTERIOR COLOR

DAIMLERCHRYSLER CODE

Flame Read Clearcoat

PR4

Inferno Red Crystal Pearlcoat

ARJ

Light Khaki Metallic Clearcoat

AJC

Dark Khaki Pearlcoat

BJT

Deep Beryl Green Pearlcoat

CGV

Atlantic Blue Pearlcoat

ZBJ

Midnight Blue Pearlcoat

BB8

Bright Silver Metallic Clearcoat

WS2

Mineral Gray Metallic Clearcoat

CDM

Black Clearcoat

DX8

Stone White Clearcoat

SW1

INTERIOR COLORS

INTERIOR COLOR

DAIMLERCHRYSLER CODE

Slate Gray

D5

Khaki

J3

Khaki/Light Graystone

J1

Slate Gray/Light Slate Gray

DB

ACCESSORY COLORS

PART

COLOR

DAIMLERCHRYSLER CODE

Sport Accent Colors

Dark Medium Gray

BDL

Renegade Accent Colors

Medium Khaki

CJM

Dark Slate

CD7

KJ

PAINT

23 - 207
