FLOOR CONSOLE LID LATCH

REMOVAL

1. Remove the screws and remove the lid.

2. Remove the screws attaching the lid cover and remove the latch.

INSTALLATION

1. Install the latch and the lid cover.

2. Install the screws attaching the lid cover.

3. Install the console lid onto the console and install the screws.

23 - 196

INTERIOR

KJ

HEADLINER

REMOVAL

1. Remove the A-pillar trim. (Refer to 23 - BODY/INTERIOR/A-PILLAR TRIM AND GRAB HANDLE - REMOVAL)

2. Remove the visors. (Refer to 23 - BODY/INTERIOR/SUN VISOR - REMOVAL)

3. Remove the sun visor support. (Refer to 23 - BODY/INTERIOR/SUN VISOR SUPPORT - REMOVAL)

4. Remove the overhead console. (Refer to 8 - ELECTRICAL/OVERHEAD CONSOLE - REMOVAL)

5. Cut rear washer hose at the mark about halfway up the A-pillar.

6. Remove the upper B-pillar trim. (Refer to 23 - BODY/INTERIOR/B-PILLAR UPPER TRIM - REMOVAL)

7. Remove the assist handles. (Refer to 23 - BODY/INTERIOR/ASSIST HANDLE - REMOVAL)

8. Remove the quarter trim. (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL)

9. Disconnect the electrical connector along the left

D-pillar and remove the ground wire.

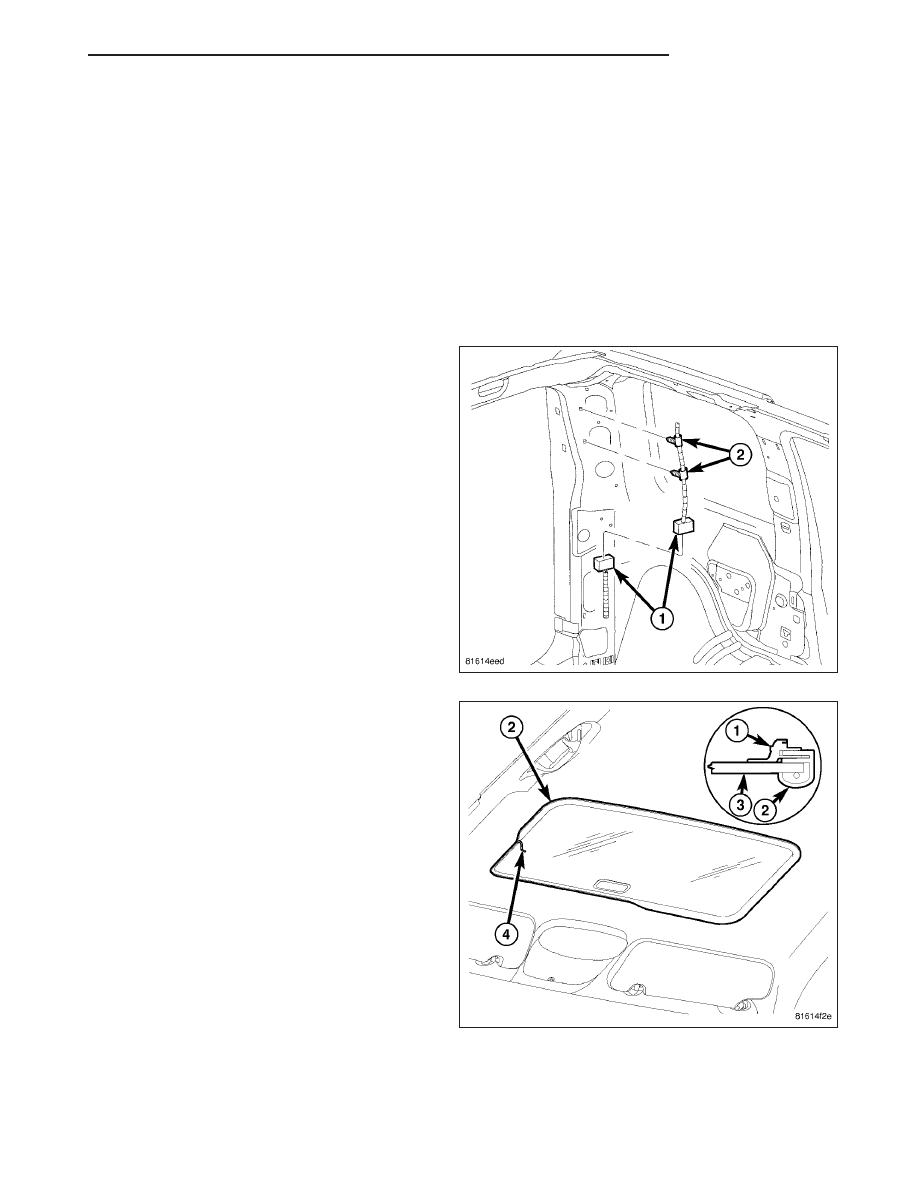

10. Remove the sunroof opening trim lace (2), if

equipped.

(Refer

to

23

-

BODY/SUNROOF/

OPENING TRIM LACE - REMOVAL)

KJ

INTERIOR

23 - 197

11. Remove the dome light in the rear.

12. Remove the rear washer nozzle.

13. Remove the headliner.

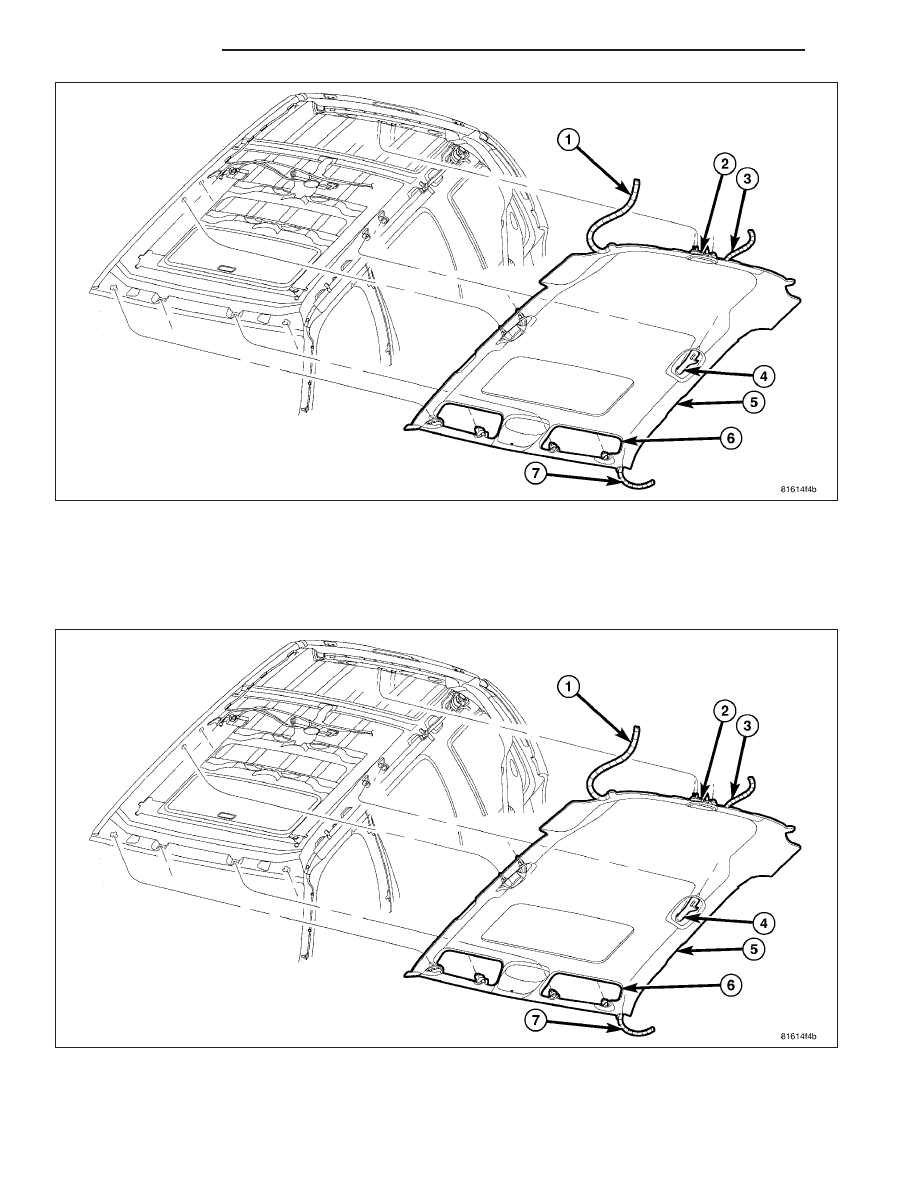

INSTALLATION

1. Install the headliner.

2. Install the assist handles (4). (Refer to 23 - BODY/INTERIOR/ASSIST HANDLE - INSTALLATION)

3. Install the visors (6). (Refer to 23 - BODY/INTERIOR/SUN VISOR - INSTALLATION)

4. Install the visor supports. (Refer to 23 - BODY/INTERIOR/SUN VISOR SUPPORT - INSTALLATION)

23 - 198

INTERIOR

KJ

5. Install the overhead console. (Refer to 8 - ELECTRICAL/OVERHEAD CONSOLE - INSTALLATION)

6. Connect the rear washer hose, previously cut, with a hose junction.

7. Install the A-pillar trim and grab handles. (Refer to 23 - BODY/INTERIOR/A-PILLAR TRIM - INSTALLATION)

8. Install the upper B-pillar trim. (Refer to 23 - BODY/INTERIOR/B-PILLAR UPPER TRIM - INSTALLATION)

9. Install the rear washer nozzle.

10. Connect the electrical connector and ground wire at the left D-pillar.

11. Install the quarter trim panels. (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - INSTALLATION)

12. Install the rear dome light.

13. Install the sunroof opening trim lace, if equipped. (Refer to 23 - BODY/SUNROOF/OPENING TRIM LACE -

INSTALLATION)

KJ

INTERIOR

23 - 199
