Jeep Liberty KJ. Manual - part 123





Theory of Operation

The scan tool will display the door state NOT the switch state. It will display as True/False. True states that the door
is ajar (open). False states that the door is NOT ajar (closed).

Possible Causes

(G74) RIGHT FRONT DOOR AJAR SWITCH SENSE CIRCUIT SHORT TO GROUND

DOOR LOCK MOTOR/AJAR SWITCH

BODY CONTROL MODULE

Diagnostic Test

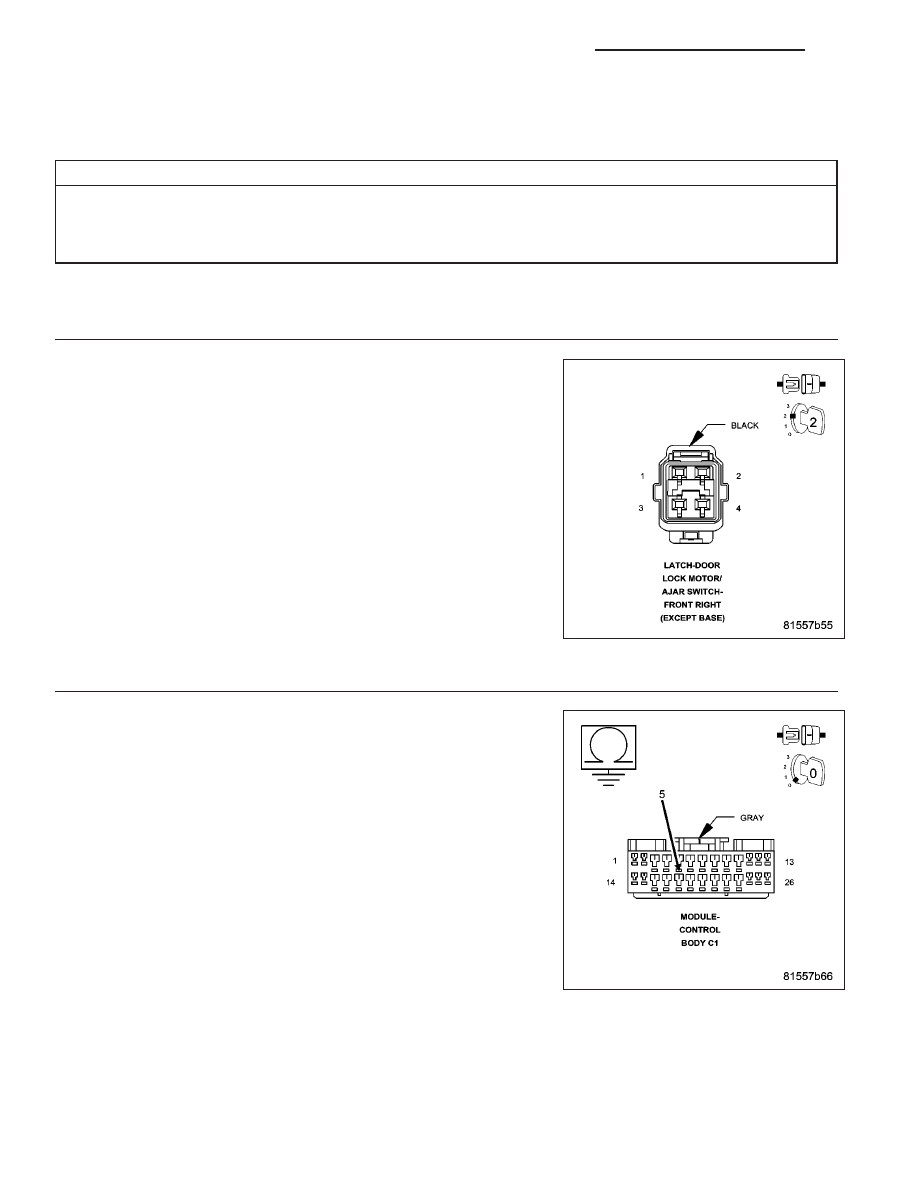

1.

CHECK FOR SHORTED DOOR AJAR SWITCH

NOTE: For the Right Front Door Ajar state the scan tool will read
“PASS” for RHD.
With the scan tool in Data Display, read the RIGHT FRONT DOOR
AJAR SW state.

Disconnect the Door Lock Motor/Ajar Switch connector.

Does the scan tool display RIGHT FRONT DOOR AJAR SW:
FALSE?

Yes

>> Replace the Door Lock Motor/Ajar Switch.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 2

2.

CHECK FOR (G74) RIGHT FRONT DOOR AJAR SWITCH SENSE CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the Body Control Module C1 harness connector.

Measure the resistance between ground and the (G74) Right Front
Door Ajar Switch Sense circuit in the BCM C1 connector.

Is the resistance below 1000.0 ohms?

Yes

>> Replace the Body Control Module in accordance with ser-

vice information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Repair the (G74) Right Front Door Ajar Switch Sense circuit

for a short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

8L - 150

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

KJ

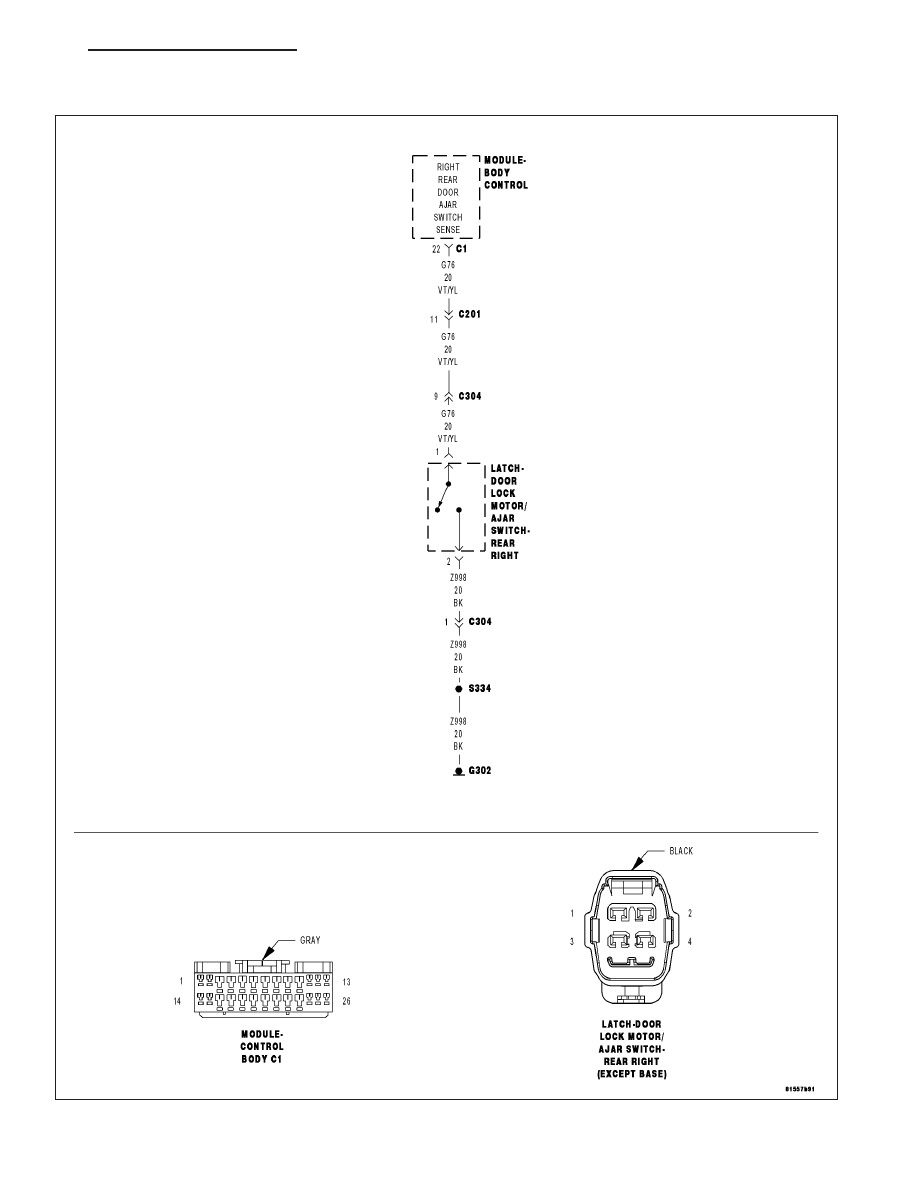

*RIGHT REAR DOOR AJAR CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W.

KJ

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

8L - 151

Theory of Operation

The scan tool will display the door state NOT the switch state. It will display as True/False. True states that the door
is ajar (open). False states that the door is NOT ajar (closed).

Possible Causes

RIGHT REAR DOOR AJAR SWITCH GROUND CIRCUIT OPEN

(G76) RIGHT REAR DOOR AJAR SWITCH SENSE CIRCUIT OPEN

DOOR LOCK MOTOR/AJAR SWITCH

BODY CONTROL MODULE

Diagnostic Test

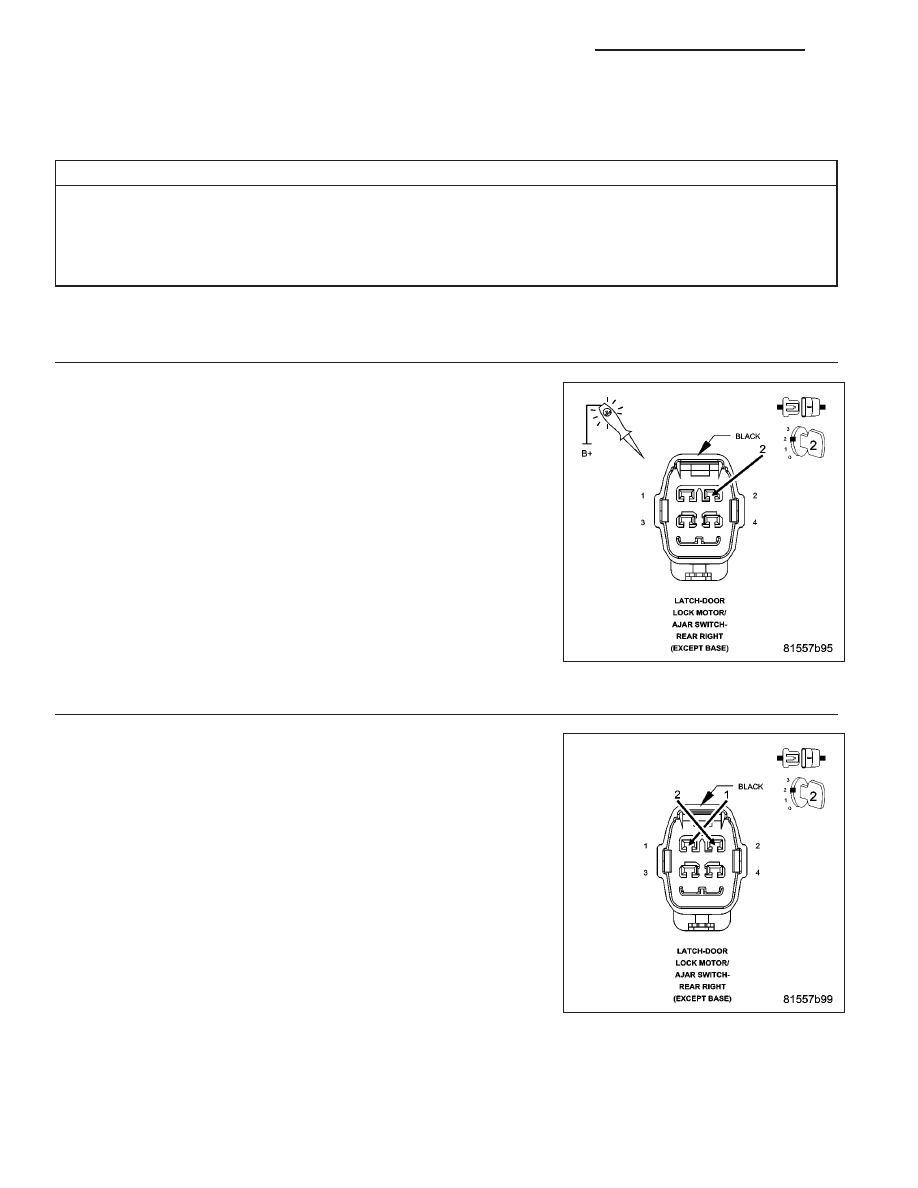

1.

OPEN RIGHT REAR DOOR AJAR SWITCH GROUND CIRCUIT

Disconnect the Right Rear Door Lock Motor/Ajar switch connector.

Using a 12-volt Test Light connected to 12-volts, test the Ground circuit.

Does the test light illuminate brightly?

Yes

>> Go To 2

No

>> Repair the Ground circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

2.

CHECK FOR OPEN RIGHT FRONT DOOR AJAR SWITCH

With the scan tool in Data Display, read the RIGHT REAR DOOR AJAR
SW state.

Connect a jumper wire between the Sense circuit and the Ground cir-
cuit.

Does the scan tool display RIGHT REAR DOOR AJAR SW:
TRUE?

Yes

>> Replace the Door Lock Motor/Ajar Switch.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 3

8L - 152

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

KJ

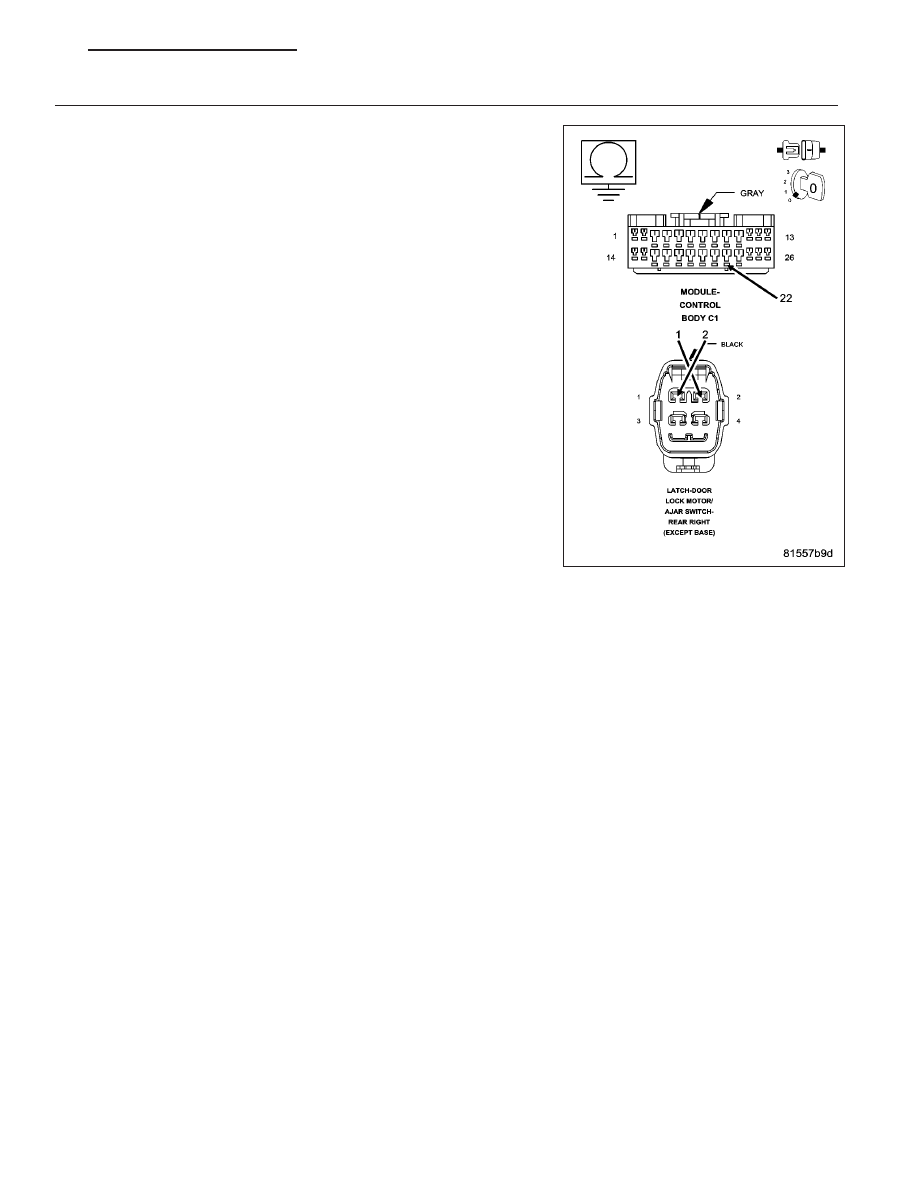

3.

CHECK FOR OPEN (G76) RIGHT REAR DOOR AJAR SWITCH SENSE CIRCUIT

Turn the ignition off.

Leave the jumper wire from the previous step connected.

Disconnect the Body Control Module C1 harness connector.

Measure the resistance between ground and the (G76) Right Rear Door
Ajar Switch Sense circuit in the BCM C1 connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Body Control Module in accordance with ser-

vice information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Repair the (G76) Right Front Door Ajar Switch Sense circuit

for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

KJ

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

8L - 153
