7. Clean gasket sealer residue from retainer and

inspect retainer for cracks or other damage.

8. Apply a 3 mm (1/8 in.) bead of Mopar

T

gasket

maker or silicone adhesive to sealing surface of
retainer.

9. Align cavity in seal retainer with fluid return hole in

front of case.

CAUTION: Do not block fluid return cavity on seal-
ing surface of retainer when applying Mopar

T

gas-

ket maker or silicone adhesive sealer. Seal failure
and fluid leak can result.

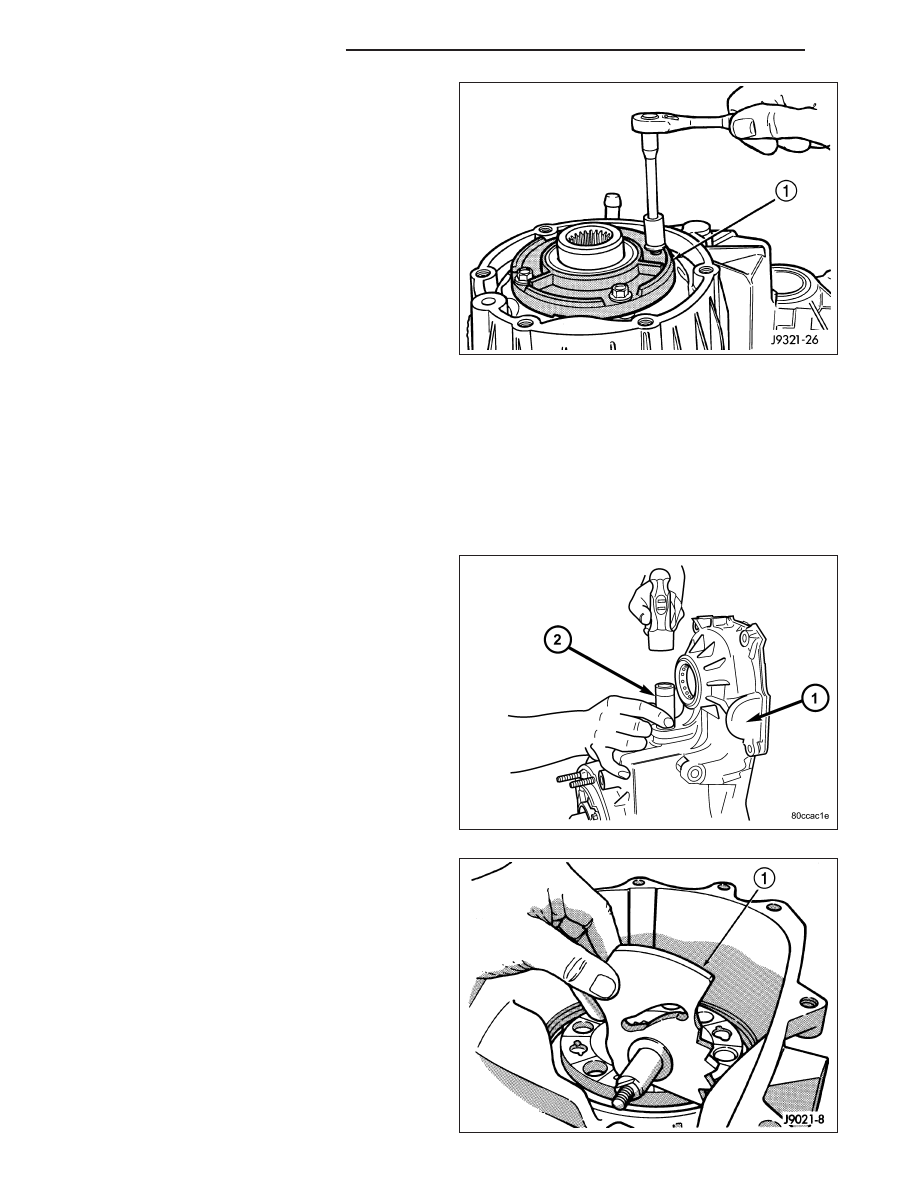

10. Install bolts to hold retainer (1) to transfer case.

Tighten to 21 N·m (16 ft. lbs.) of torque.

MAINSHAFT

1. Lubricate mainshaft splines with recommended transmission fluid.

2. Slide drive sprocket onto mainshaft.

3. Slide mode hub onto mainshaft.

4. Install mode hub retaining ring. Verify that the retaining ring is fully seated in mainshaft groove.

SHIFT FORKS, SECTOR, AND MAINSHAFT

1. Install the shift sector shaft bearing using a suitable

socket (2) until the bearing is flush to the bottom,
inner edge of the bore.

2. Install a new shift sector shaft seal using a suitable

socket until the seal is flush to the bottom of the
bore lead-in chamfer.

3. Install shift sector (1) in case. Lubricate sector

shaft with transmission fluid before installation.

21 - 844

TRANSFER CASE - NV231

KJ

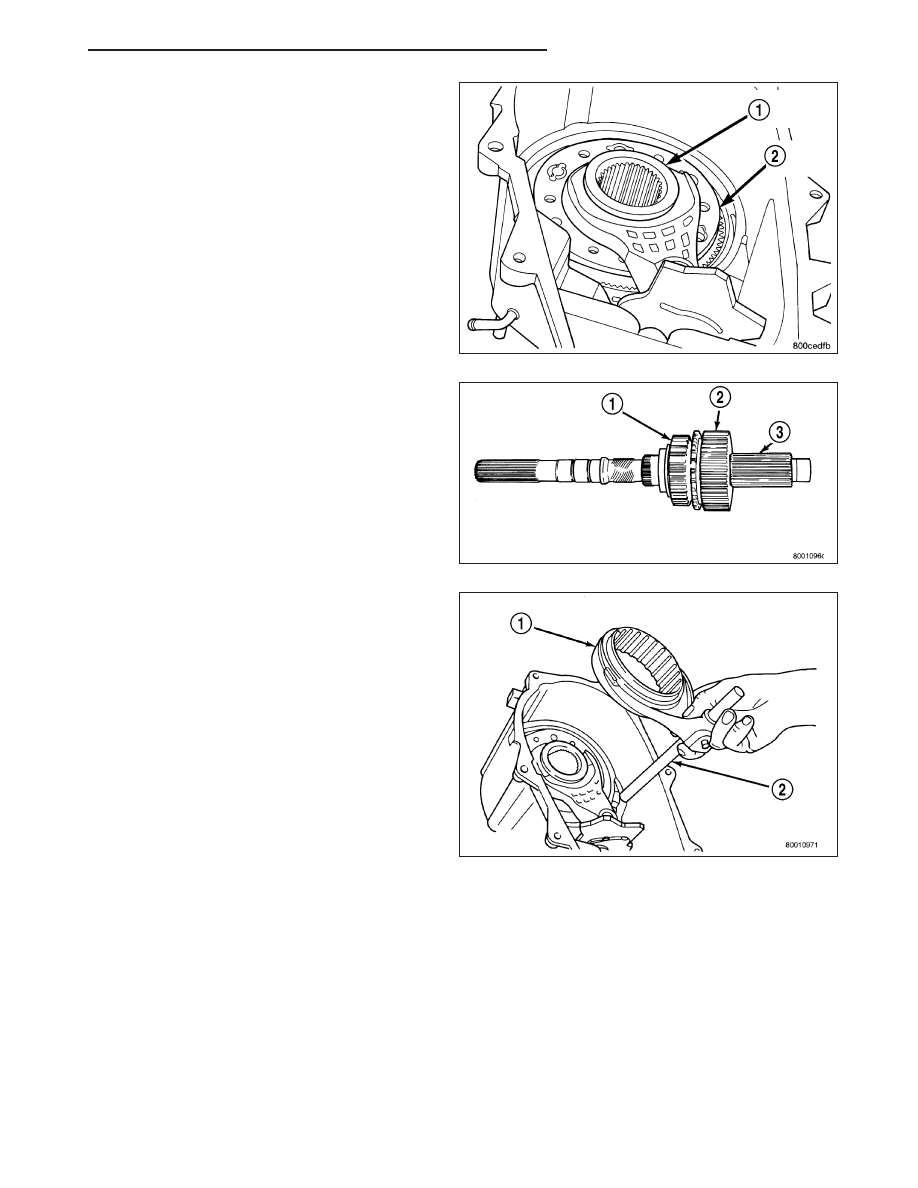

4. Assemble and install range fork (2) and hub (1). Be

sure hub is properly seated in low range gear and
engaged to the input gear.

5. Align and insert range fork pin in shift sector slot.

6. Install assembled mainshaft (3). Be sure shaft is

seated in pilot bearing and input gear.

7. Install new pads on mode fork if necessary.

8. Insert mode sleeve (1) in mode fork. Be sure long

side of sleeve is toward long end of shift rail (2).

KJ

TRANSFER CASE - NV231

21 - 845

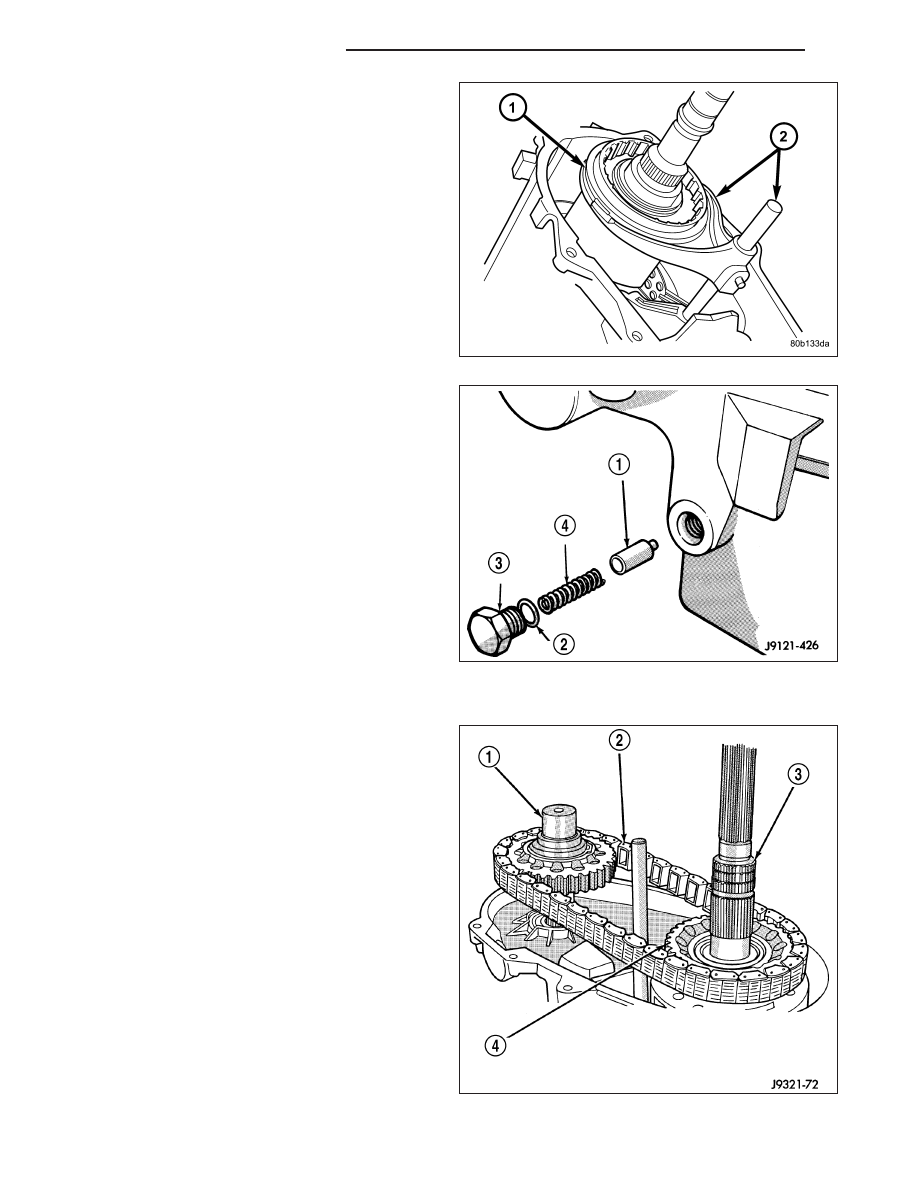

9. Install assembled mode fork (2) and sleeve (1). Be

sure fork rail goes through range fork and into case
bore. Also be sure sleeve is aligned and seated on
mainshaft hub.

10. Rotate sector to NEUTRAL position.

11. Install new O-ring (2) on detent plug (3).

12. Lubricate detent plunger with transmission fluid or

light coat of petroleum jelly.

13. Install detent plunger (1), spring (4). and plug (3).

14. Verify that plunger is properly engaged in sector.

FRONT OUTPUT SHAFT AND DRIVE CHAIN

1. Lubricate front output shaft-sprocket assembly,

drive chain, and drive sprocket with transmission
fluid.

2. Assemble drive chain (2) and front output shaft (1).

3. Start chain on mainshaft drive sprocket.

4. Guide front shaft into bearing and drive sprocket

onto mainshaft drive gear.

21 - 846

TRANSFER CASE - NV231

KJ

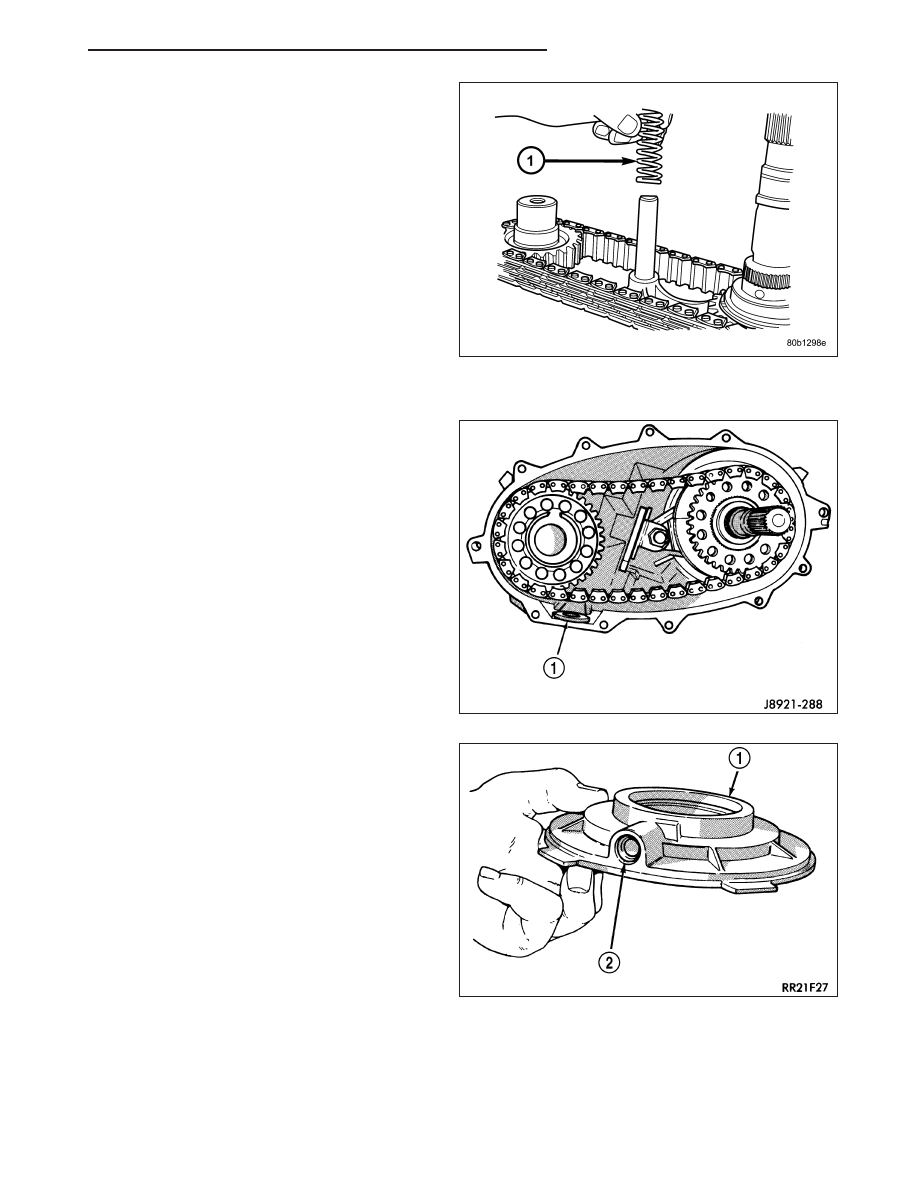

5. Install mode spring (1) on upper end of mode fork

shift rail.

OIL PUMP AND REAR CASE

1. Install magnet (1) in front case pocket.

2. Assemble oil pickup screen, connecting hose, and

tube.

3. Install new pickup tube O-ring (2) in oil pump (1).

KJ

TRANSFER CASE - NV231

21 - 847
