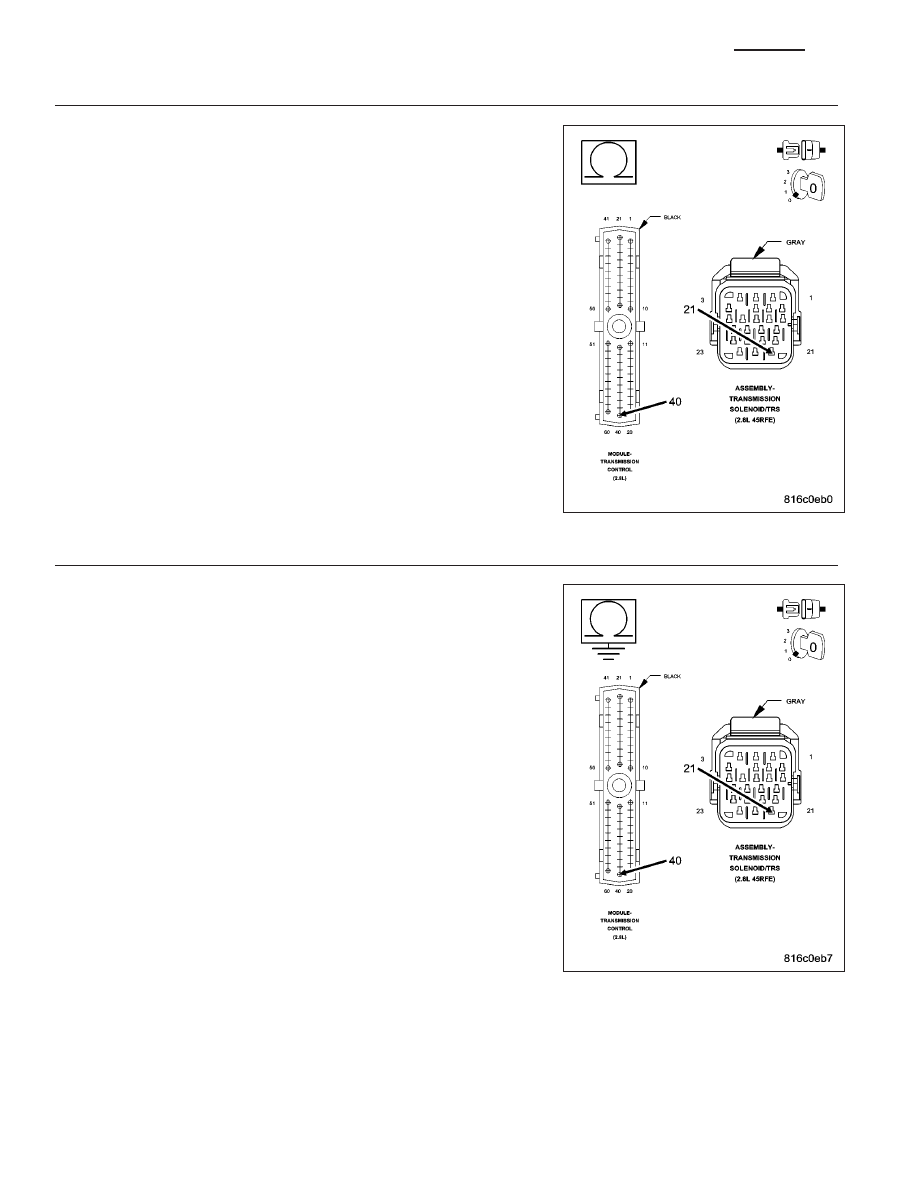

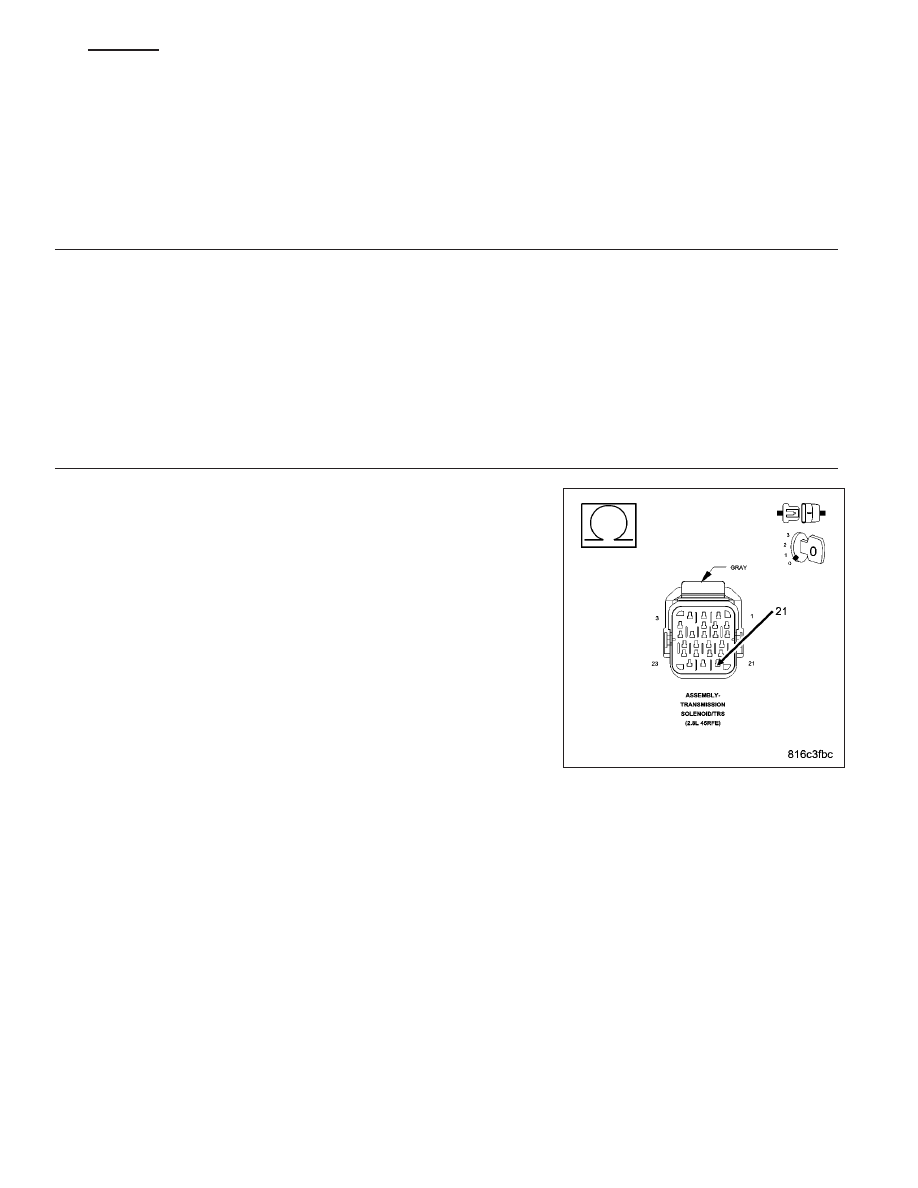

• When Monitored: • Set Condition: Possible Causes RELATED TCM POWER INPUT DTCS PRESENT (T118) MS SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS (T118) MS SOLENOID CONTROL CIRCUIT OPEN (T118) MS SOLENOID CONTROL CIRCUIT SHORT TO GROUND TRANSMISSION SOLENOID/TRS ASSEMBLY TRANSMISSION CONTROL MODULE Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to Theory of Operation The Transmission Control System uses six electronically controlled solenoids that allow hydraulic fluid to be applied Diagnostic Test 1. DETERMINE IF RELATED TCM POWER INPUT DTCS ARE PRESENT With the scan tool, read Transmission DTCs Are there any TCM Power Input DTCs present also? Yes >> Refer to the Transmission category and perform the appropriate symptom. No >> Go To 2 2. TRANSMISSION SOLENOID/TRS ASSEMBLY Turn the ignition off to the lock position. Remove the Starter Relay. CAUTION: Removal of the Starter Relay will prevent the vehicle from being started in gear. WARNING: The Starter Relay must be removed from the PDC. Failure to do so can result in personal injury NOTE: Failure to remove the Starter Relay can cause a Transmission - No Response condition. Ignition on, engine not running. With the scan tool, actuate the MS Solenoid. 21 - 672 AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS - (DIESEL) KJ |
