Jeep Liberty KJ. Manual - part 1058

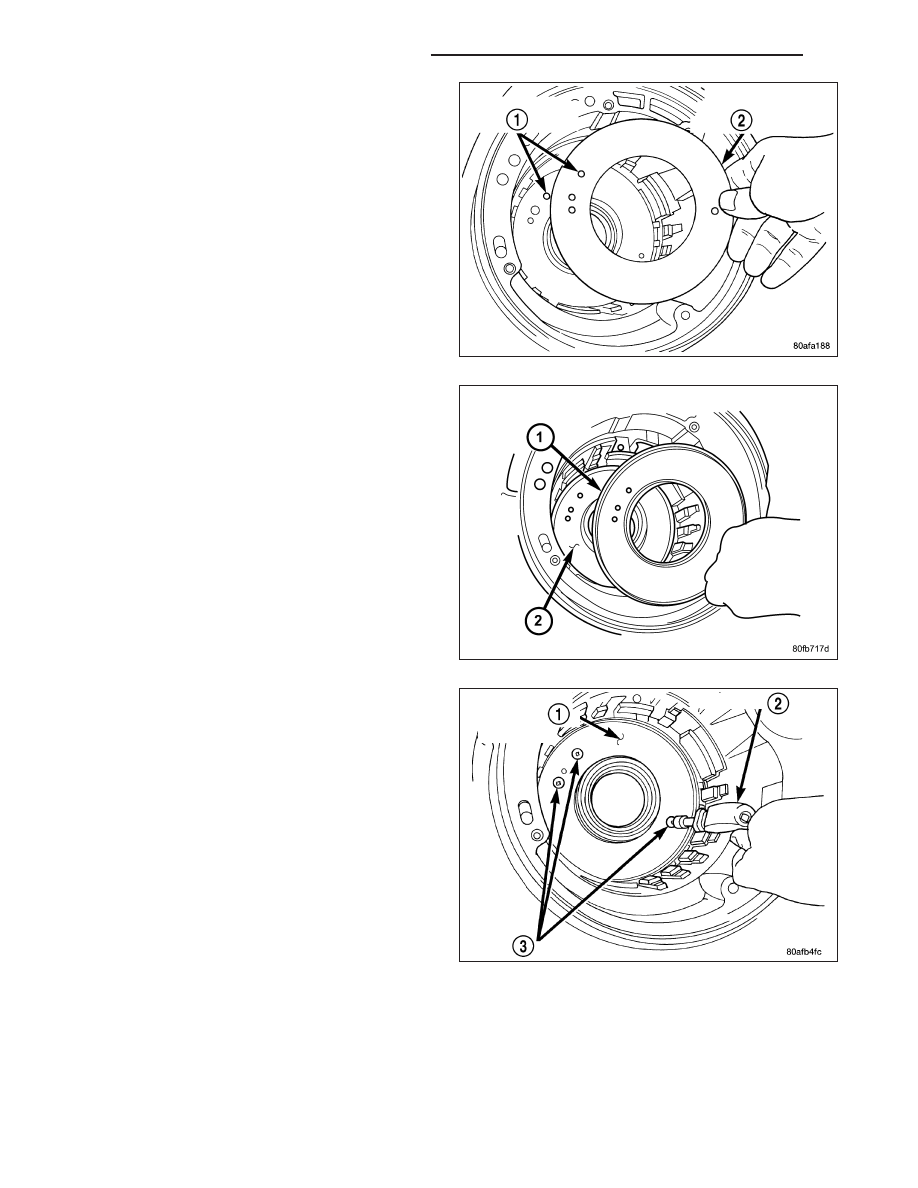

2. Install low/reverse piston retainer gasket (2).

3. Install low/reverse piston retainer (1).

4. Install low/reverse piston retainer-to-case screws

(3) and torque to 5 N·m (45 in. lbs.).

21 - 276

AUTOMATIC TRANSMISSION - 42RLE

KJ

NOTE: The Low/Reverse Clutch Piston has bonded
seals which are not individually serviceable. Seal
replacement requires replacement of the piston
assembly.

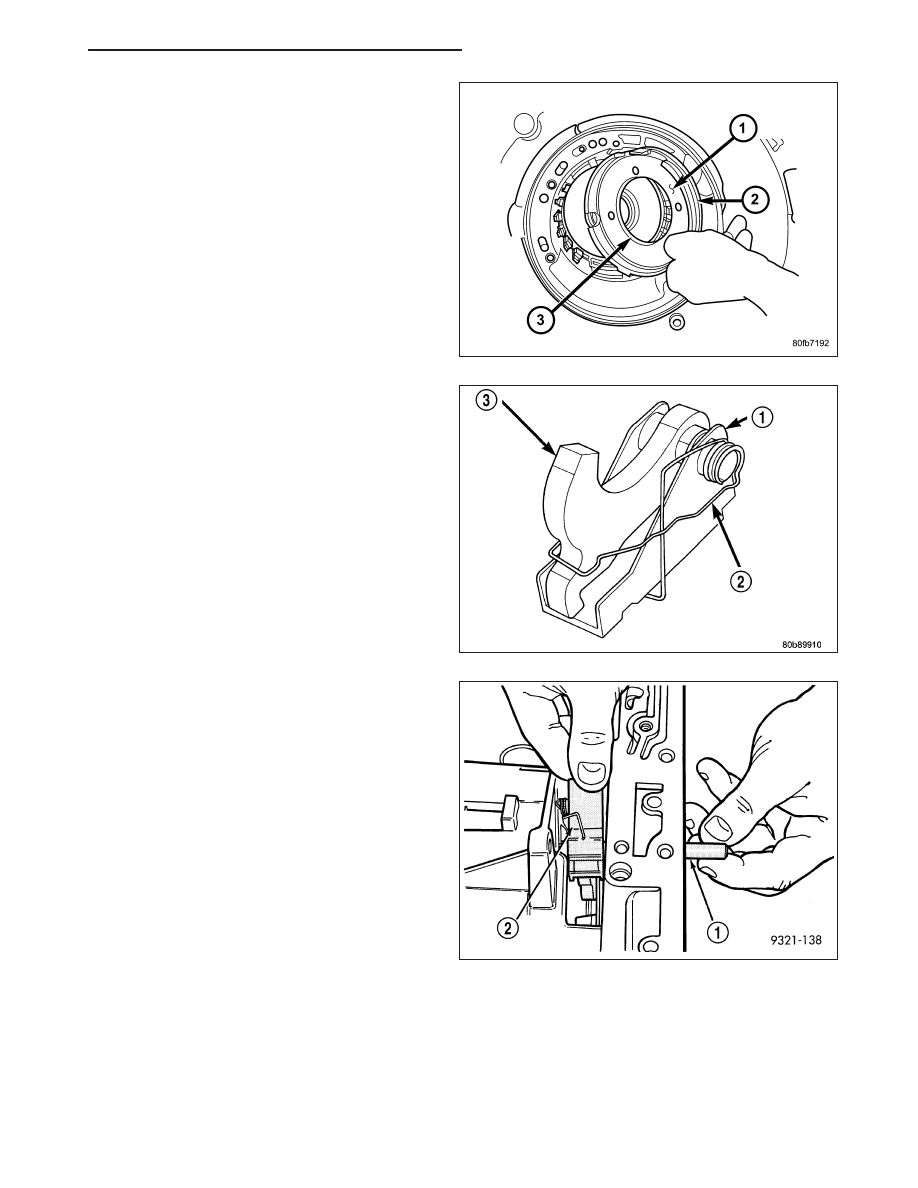

5. Install low/reverse clutch piston (1).

6. Assemble guide bracket (1) assembly as shown, if

necessary.

CAUTION: When installing, be sure guide bracket
and split sleeve touch the rear of the transmission
case.

7. Install guide bracket pivot pin (1).

8. Install park sprag pivot retaining screw and torque

to 4.5 N·m (40 in. lbs.).

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 277

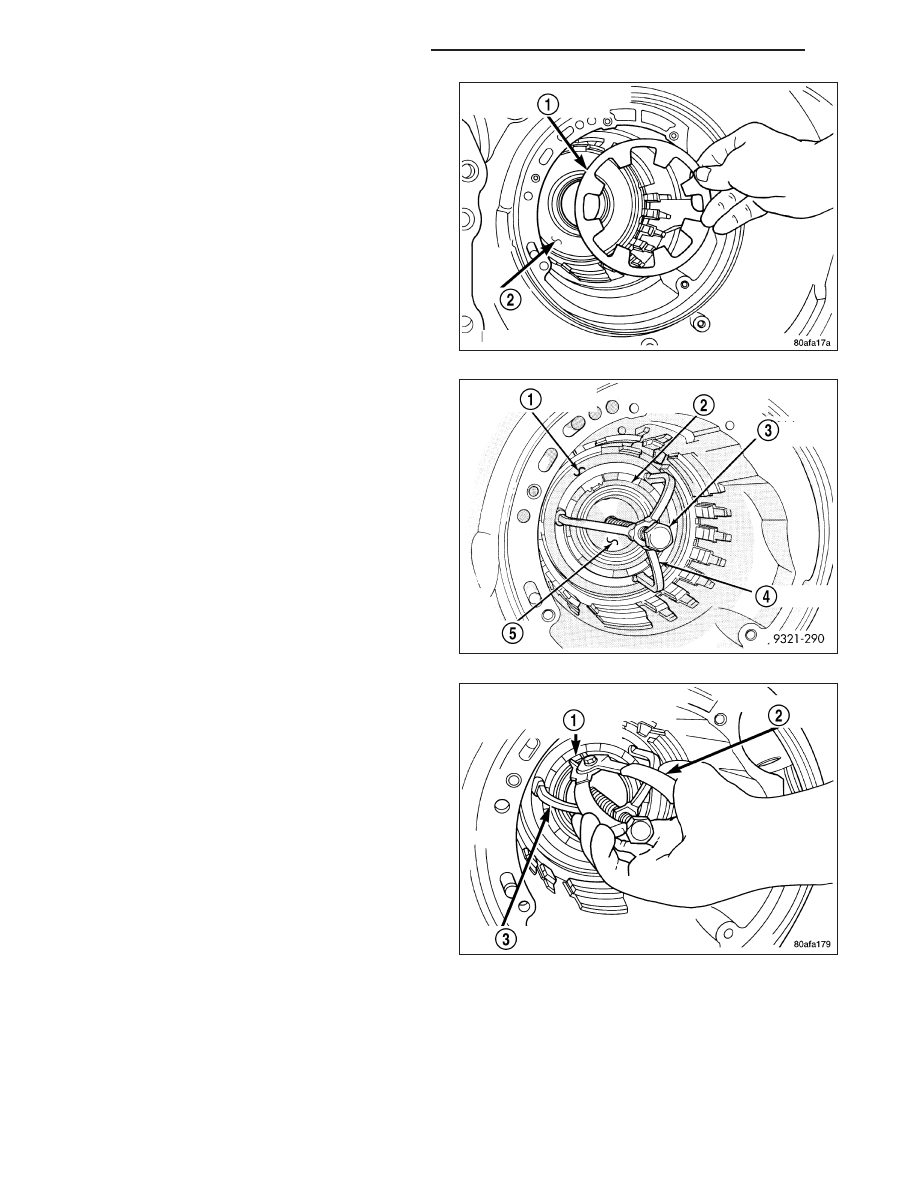

9. Install low/reverse piston belleville spring (1) into

position.

10. Install and load low/reverse spring compressor

tool (3, 4, 5) as shown in to facilitate snap ring (2)
installation.

11. Install snap ring (1) and remove compressor tool.

21 - 278

AUTOMATIC TRANSMISSION - 42RLE

KJ

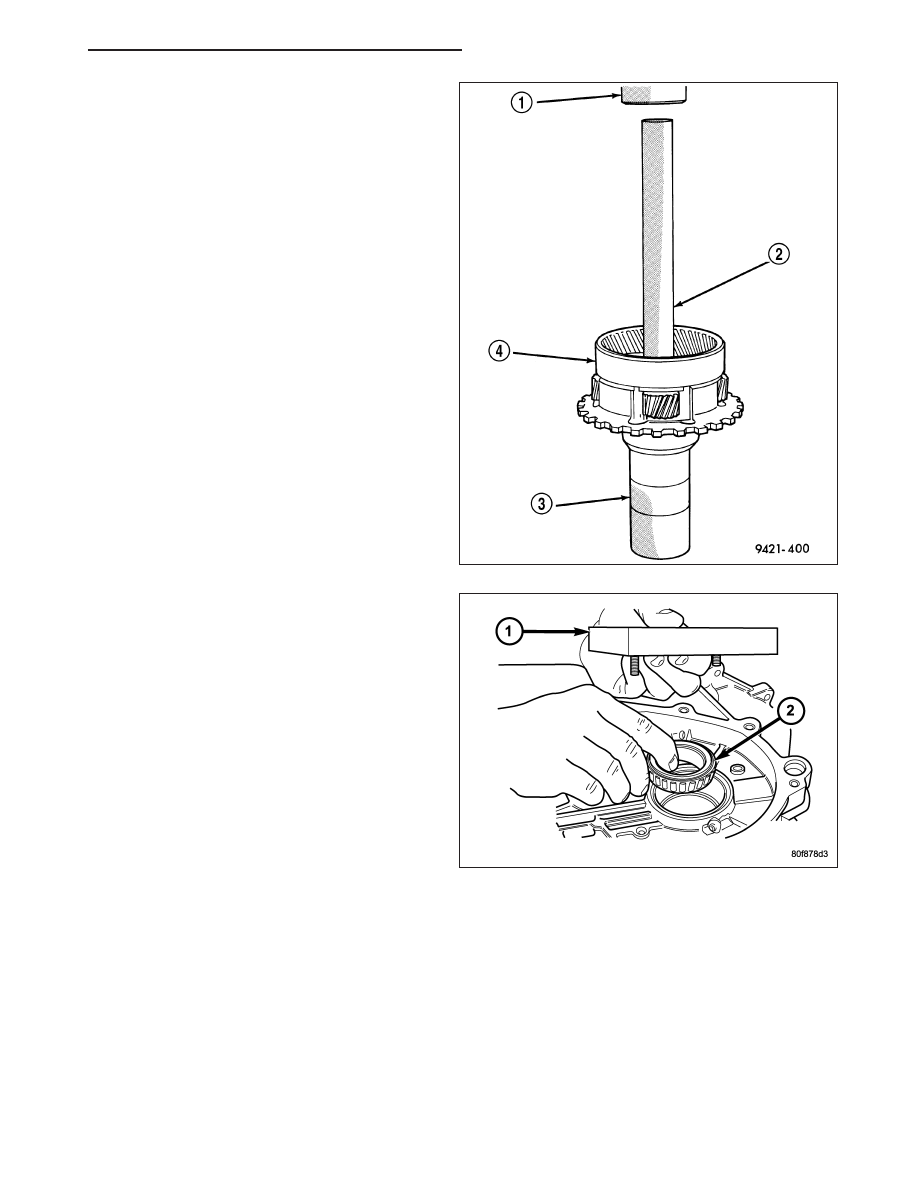

12. Install rear carrier (4) front bearing cone.

Check output bearing preload. Output bearing pre-
load must be checked and/or adjusted if any of the
following items have been replaced:

Output shaft (rear carrier assembly)

Output shaft bearings

Transmission case

13. PRELOAD CHECK/SHIM SELECTION: Install

rear output shaft bearing cone and Support Plate
6618A (1).

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 279
