Jeep Liberty KJ. Manual - part 1057

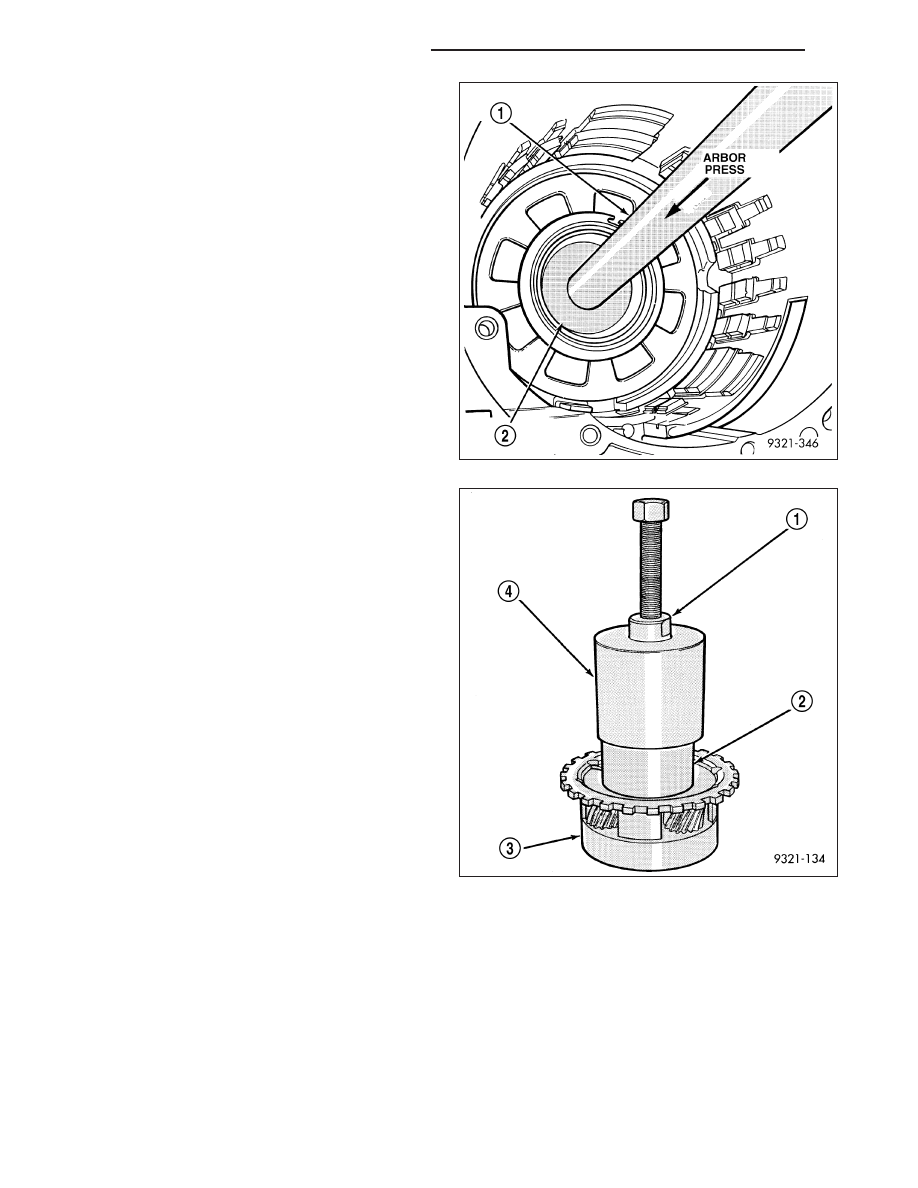

51. Use Disc 6597 (2) and Universal Handle C-4171

(1) and Handle Extension C-4171-2 to press the
rear output shaft bearing cup rearward.

52. Remove the rear carrier front bearing cone (3).

21 - 272

AUTOMATIC TRANSMISSION - 42RLE

KJ

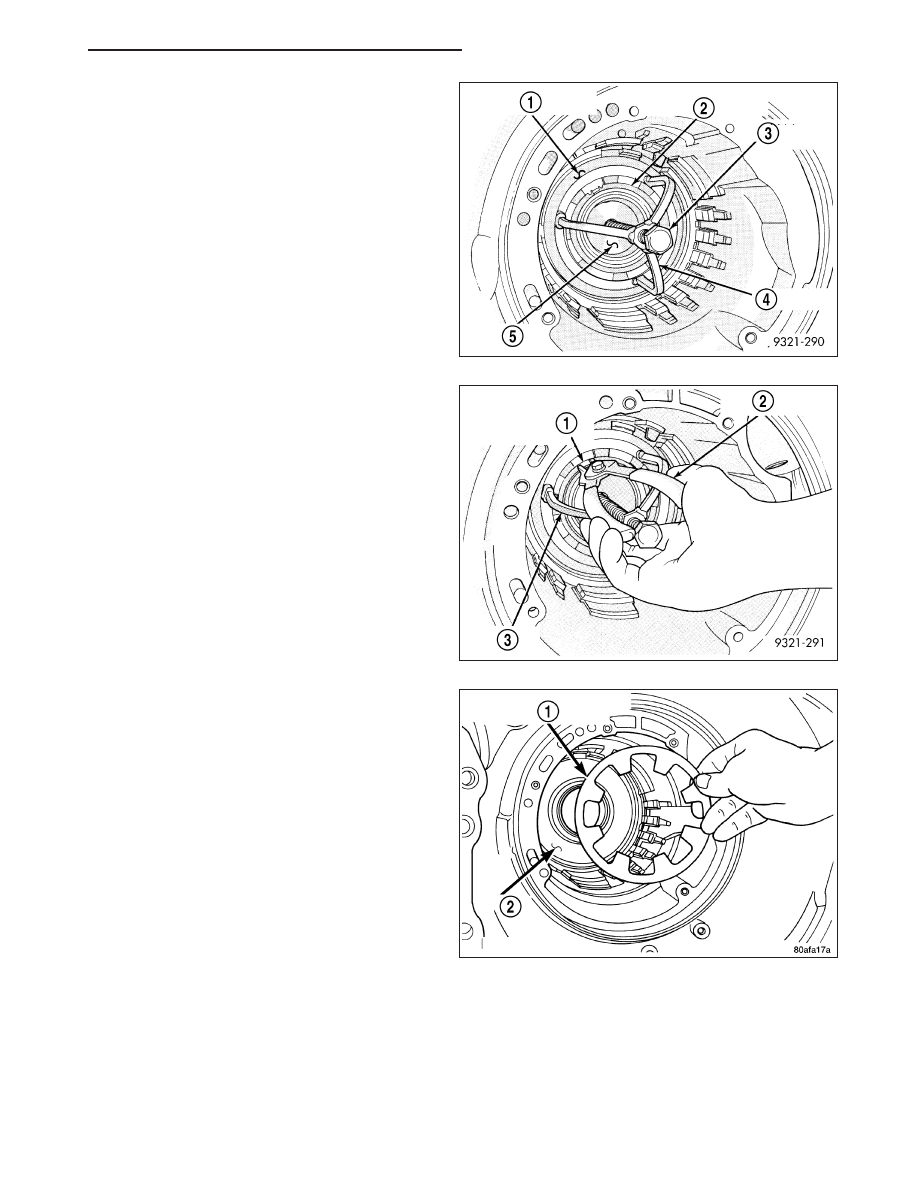

53. Install and load Compressor 5059A (4), Compres-

sor 5058A (3), and Disc 6057 (5) as shown.

54. Remove the low/reverse belleville spring snap ring

(1).

55. Remove the low/reverse piston belleville spring

(1).

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 273

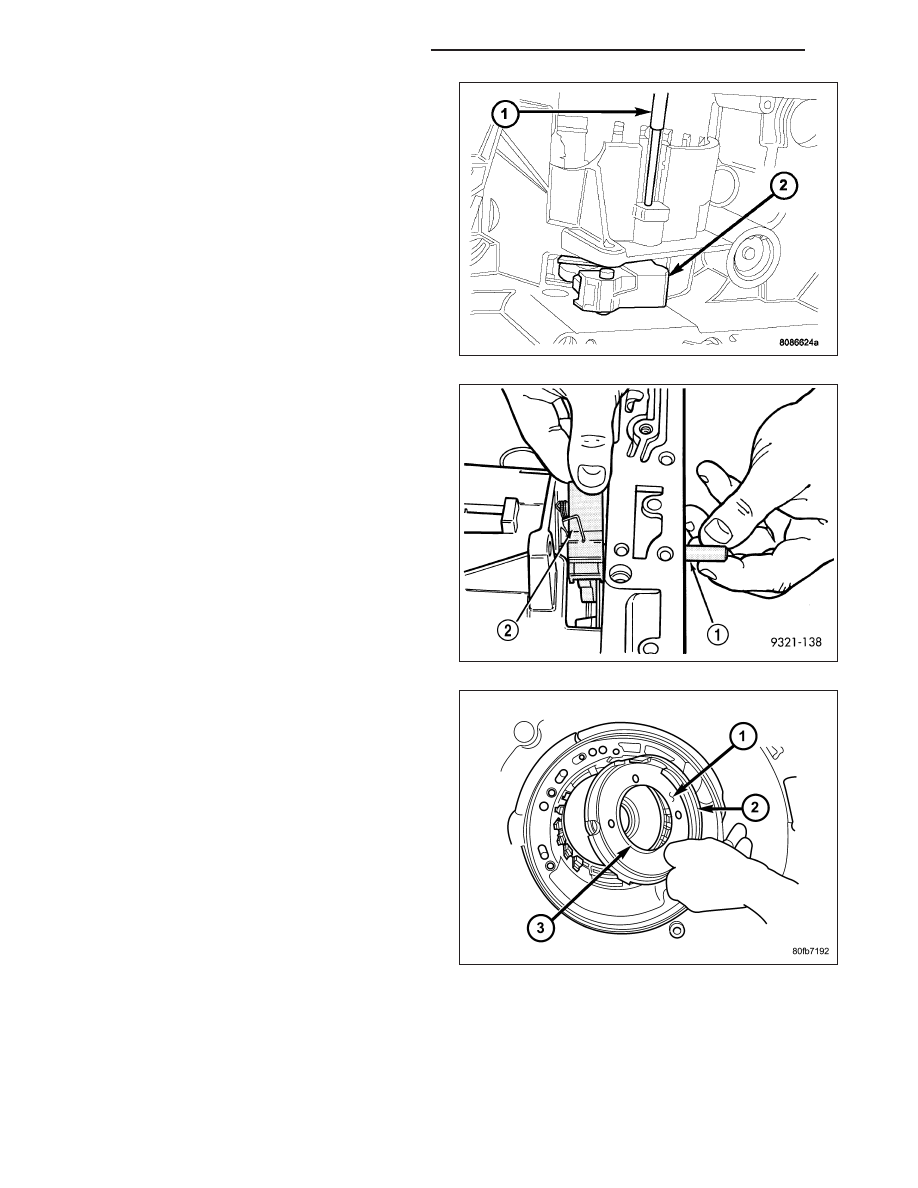

56. Remove the park sprag pivot retaining screw.

57. Drive out the anchor shaft using suitable punch

(1).

58. Remove the guide bracket pivot pin (1). Inspect

all components for wear and replace if necessary.

NOTE: The Low/Reverse Clutch Piston has bonded
seals which are not individually serviceable. Seal
replacement requires replacement of the piston
assembly.

59. Remove the low/reverse clutch piston (1).

60. Remove the low/reverse piston retainer screws.

21 - 274

AUTOMATIC TRANSMISSION - 42RLE

KJ

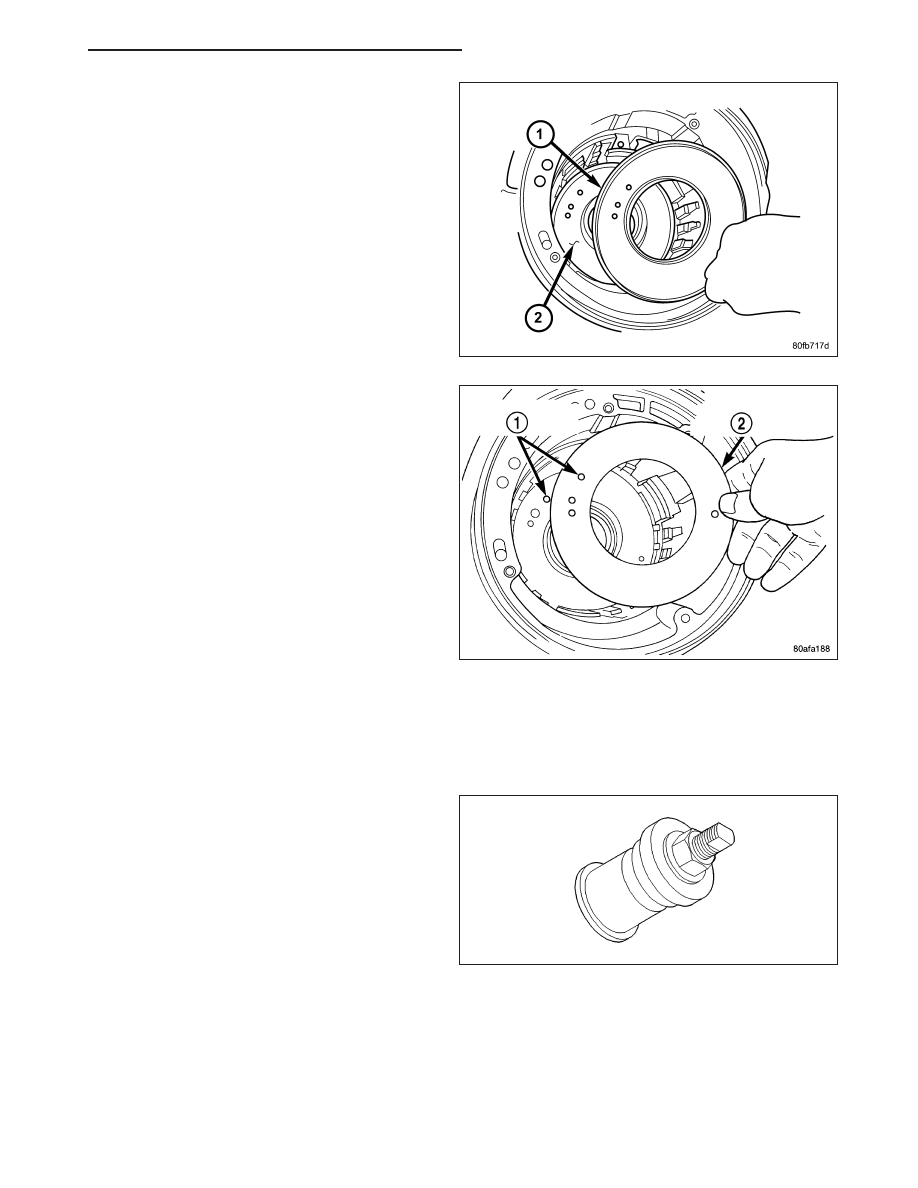

61. Remove low/reverse piston retainer (1).

62. Remove the low/reverse piston retainer gasket

(2).

ASSEMBLY

NOTE: If the transmission assembly is being reconditioned (clutch/seal replacement) or replaced, it is nec-
essary to perform the Quick Learn Procedure using the scan tool (Refer to 8 - ELECTRICAL/ELECTRONIC
CONTROL MODULES/TRANSMISSION CONTROL MODULE - STANDARD PROCEDURE).

1. Install the output bearing cups using Installer

5050A.

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 275
