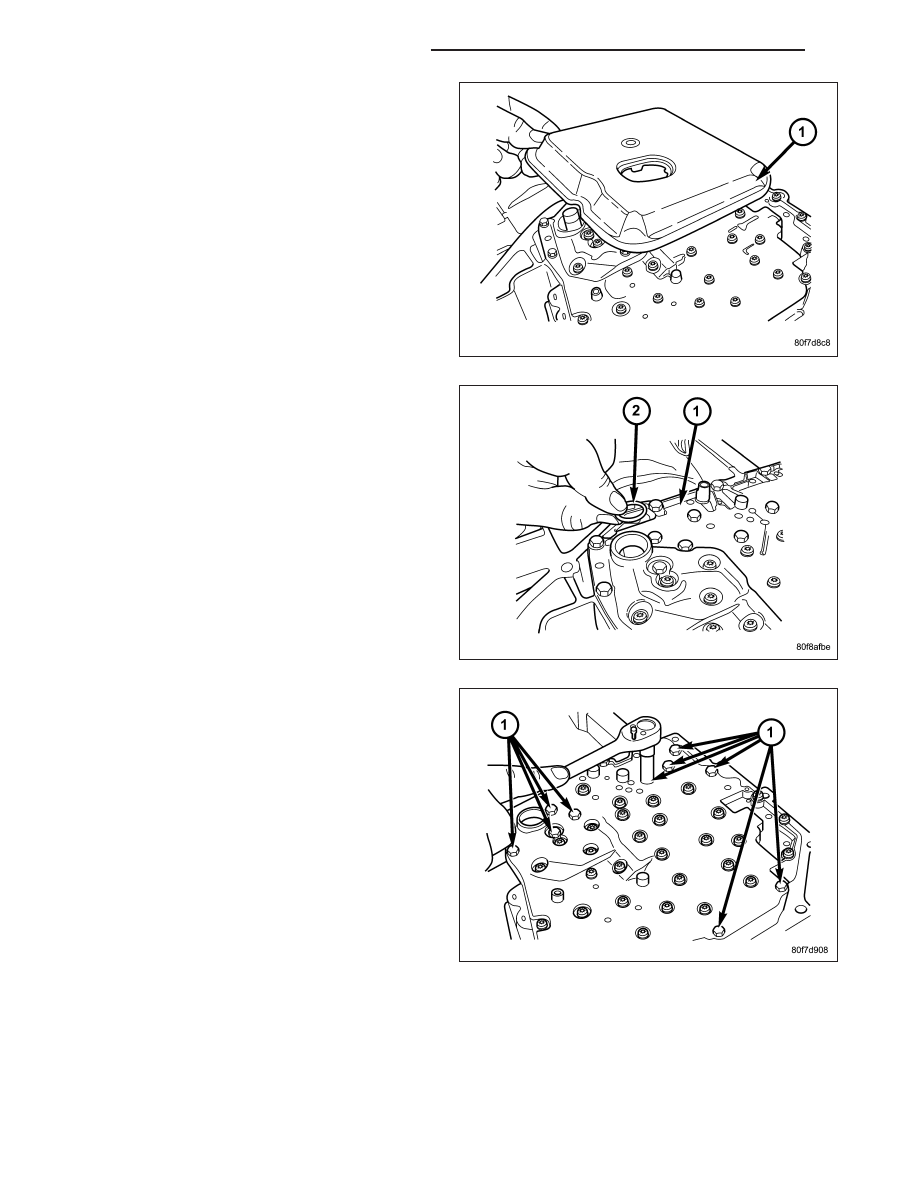

17. Remove transmission oil filter (1).

18. Remove the oil filter o-ring (2) from the valve

body.

19. Remove valve body-to-case bolts (1).

21 - 260

AUTOMATIC TRANSMISSION - 42RLE

KJ

CAUTION: Do not handle the valve body by the
manual shaft. Damage could result.

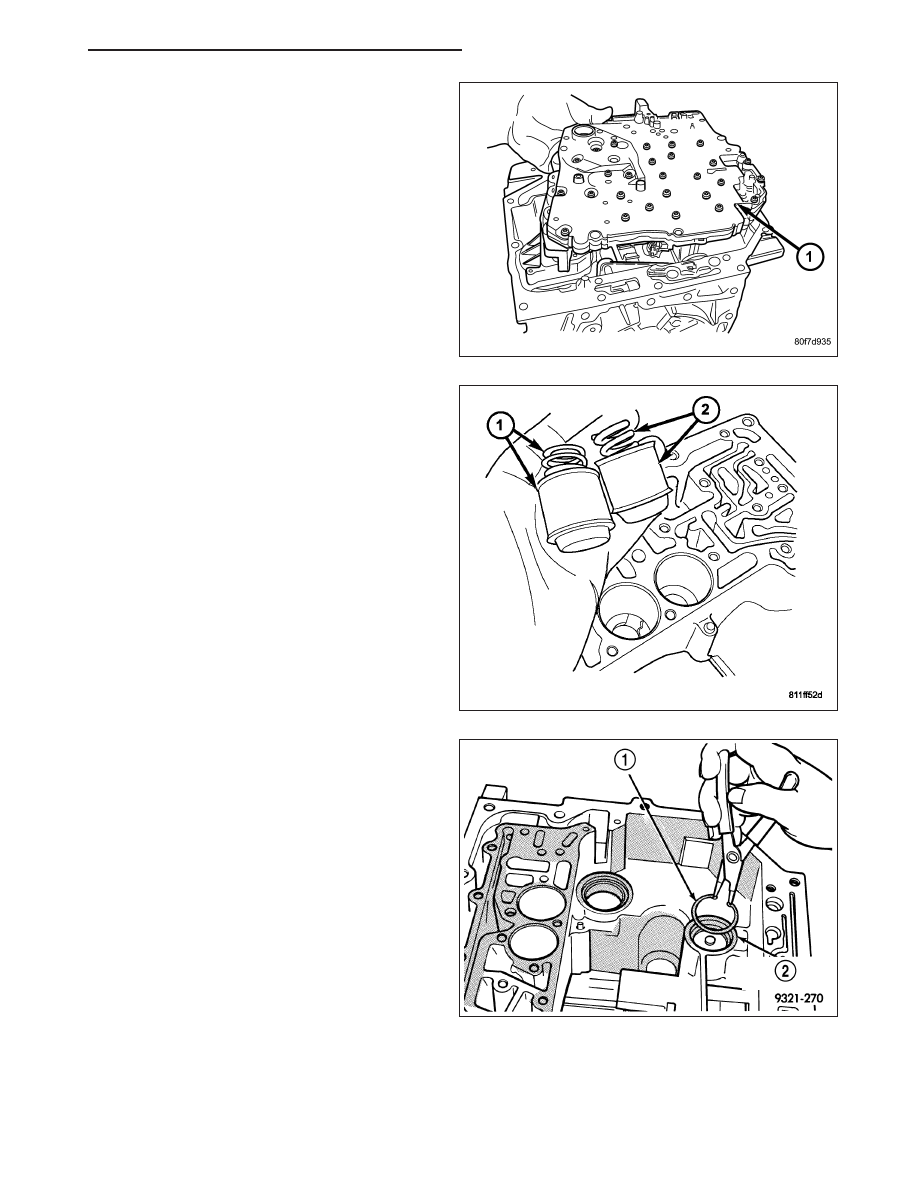

20. Remove valve body (1) from transmission.

21. Remove underdrive and overdrive accumulators

(1, 2).

22. Remove the low/reverse accumulator snap ring

(1).

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 261

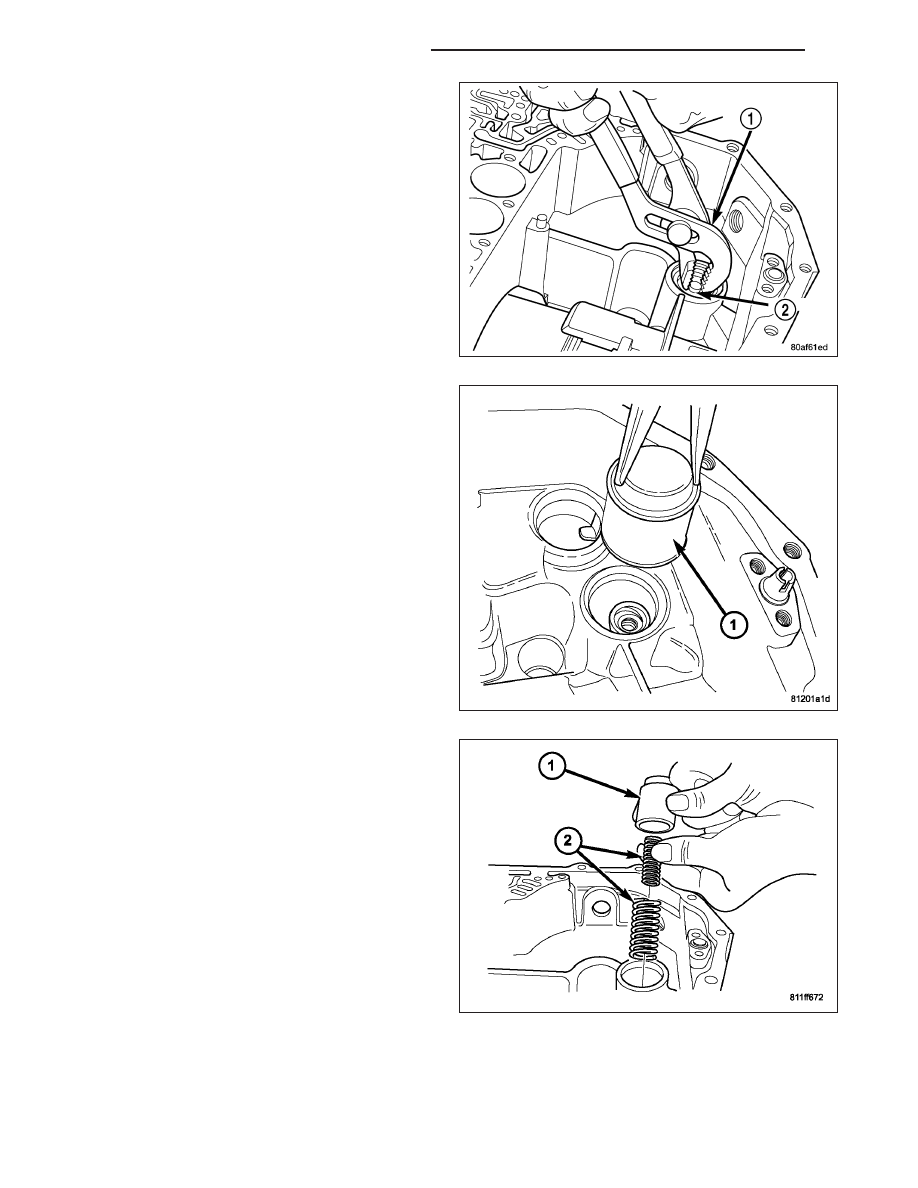

23. Remove the low/reverse accumulator plug (2).

24. Remove low/reverse accumulator piston (1) using

suitable pliers.

25. Remove piston (1) and springs (2).

21 - 262

AUTOMATIC TRANSMISSION - 42RLE

KJ

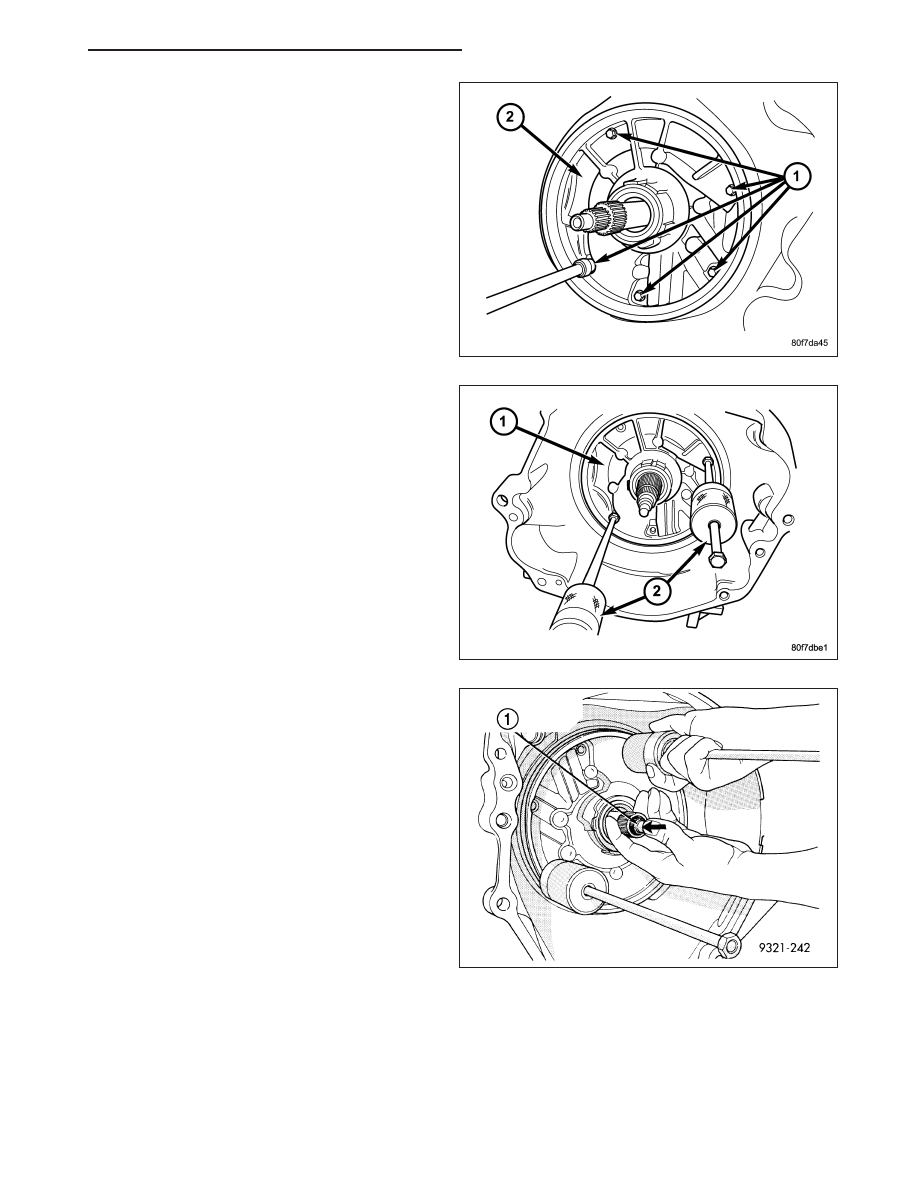

26. Remove and discard the oil pump-to-case bolts

(1). The oil pump bolts are not to be reused.

27. Remove oil pump using Slide Hammers C-3752

(2).

28. Remove oil pump while pushing in on input shaft

(1).

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 263
