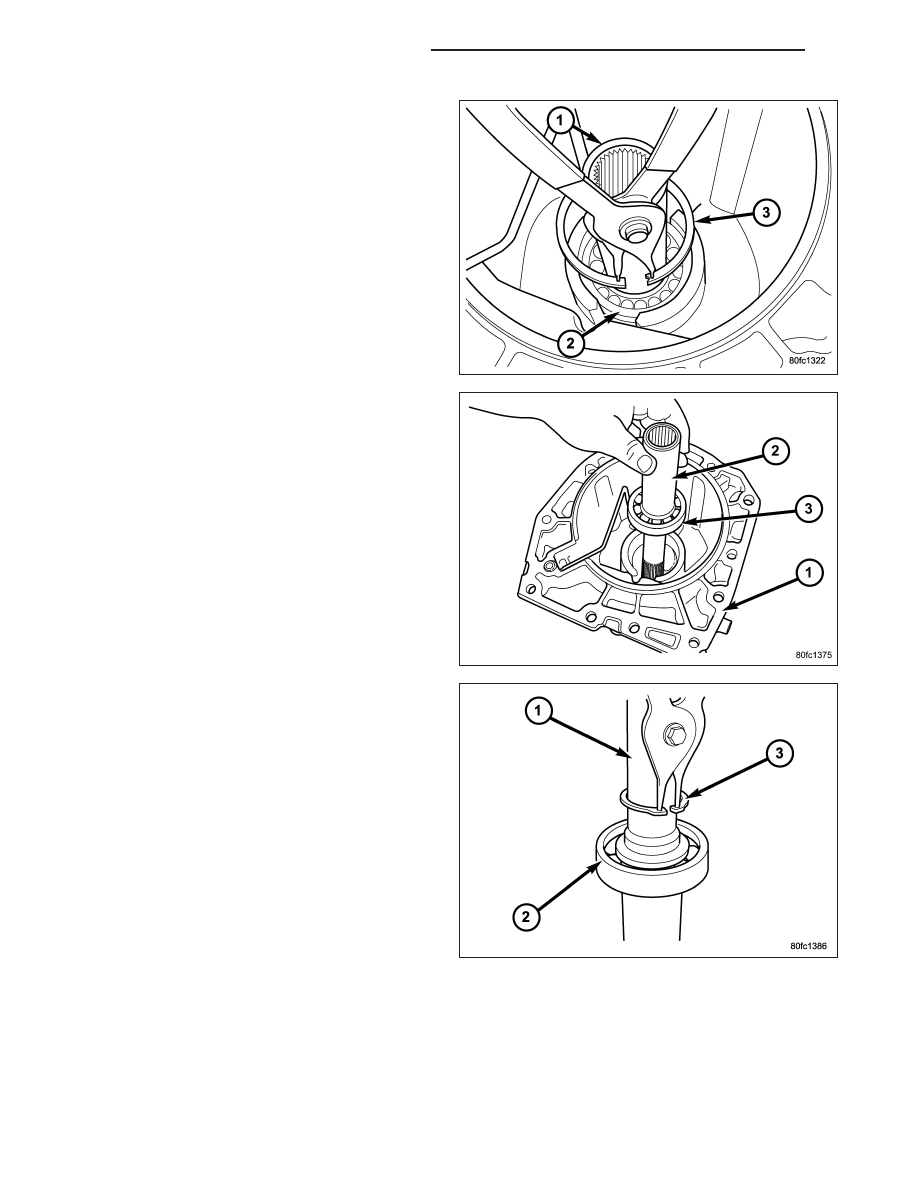

a.

Remove the extension shaft bearing snap ring
(3) from the extension housing.

b. Remove

the

extension

shaft

and

bearing

assembly (2) from the extension housing (1).

c. Remove the extension shaft bearing retaining

ring (3) from the extension shaft (1).

21 - 256

AUTOMATIC TRANSMISSION - 42RLE

KJ

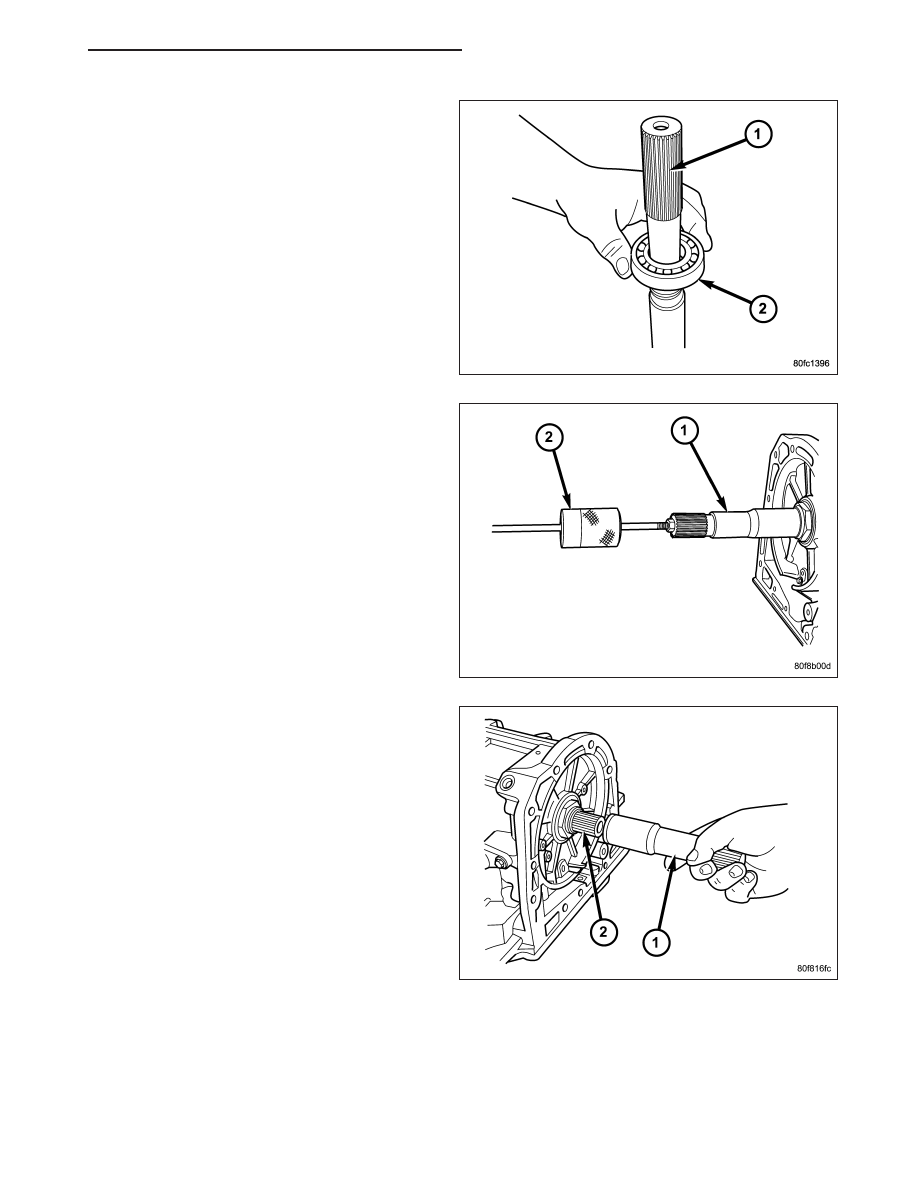

d.

Remove the extension shaft bearing (2) from
the extension shaft (1).

9. Using a Slide Hammer C-3752 (2), remove the 4X4

stub shaft (1).

10. Remove the 4X4 stub shaft (1) from the transmis-

sion output shaft. Inspect the cir-clip on the shaft
for damage and replace the clip if necessary.

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 257

NOTE: The speed sensor bolts have a sealing
patch applied from the factory. Separate these
bolts for reuse.

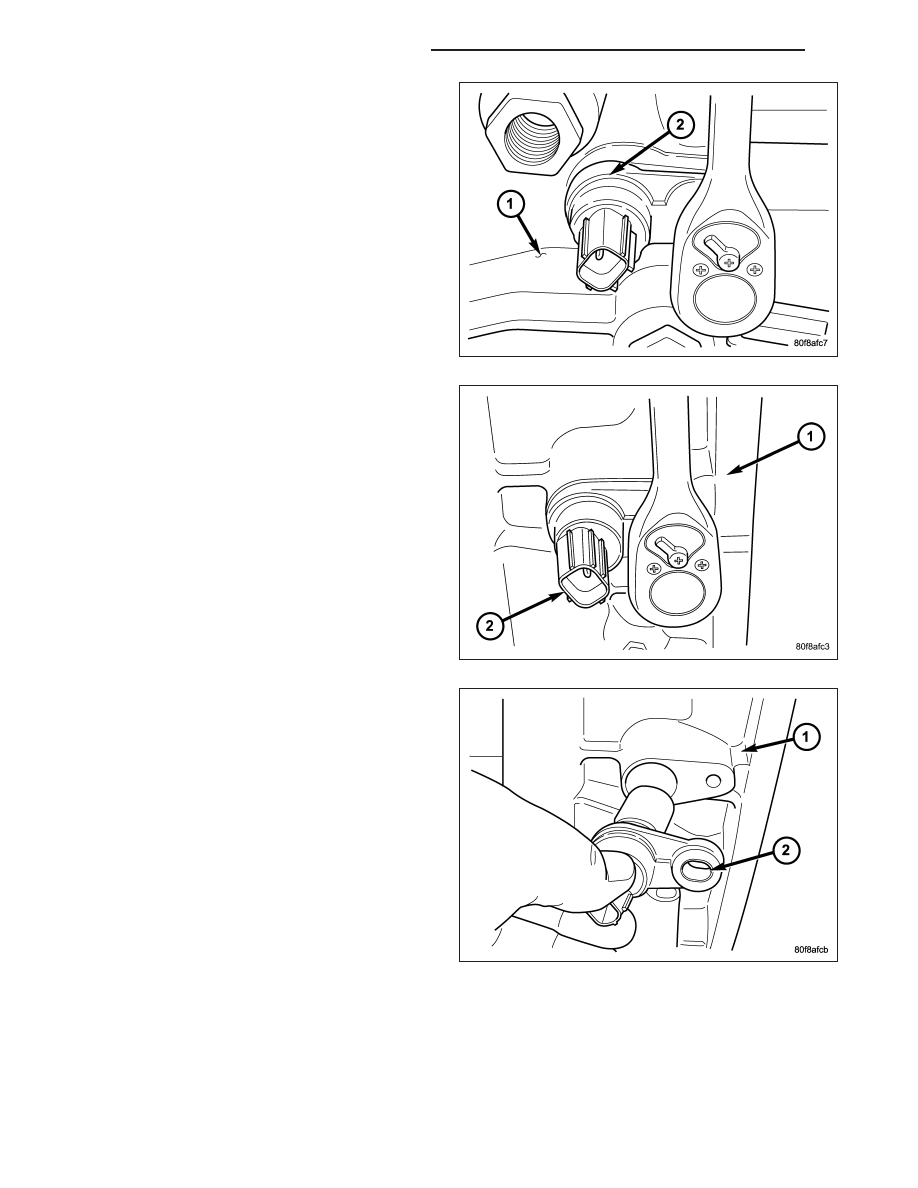

11. Remove the input speed sensor bolt.

NOTE: The speed sensor bolts have a sealing
patch applied from the factory. Separate these
bolts for reuse.

12. Remove the output speed sensor bolt.

13. Remove the input and output (2) speed sensors.

Identify the speed sensors for re-installation since
they are not interchangeable.

21 - 258

AUTOMATIC TRANSMISSION - 42RLE

KJ

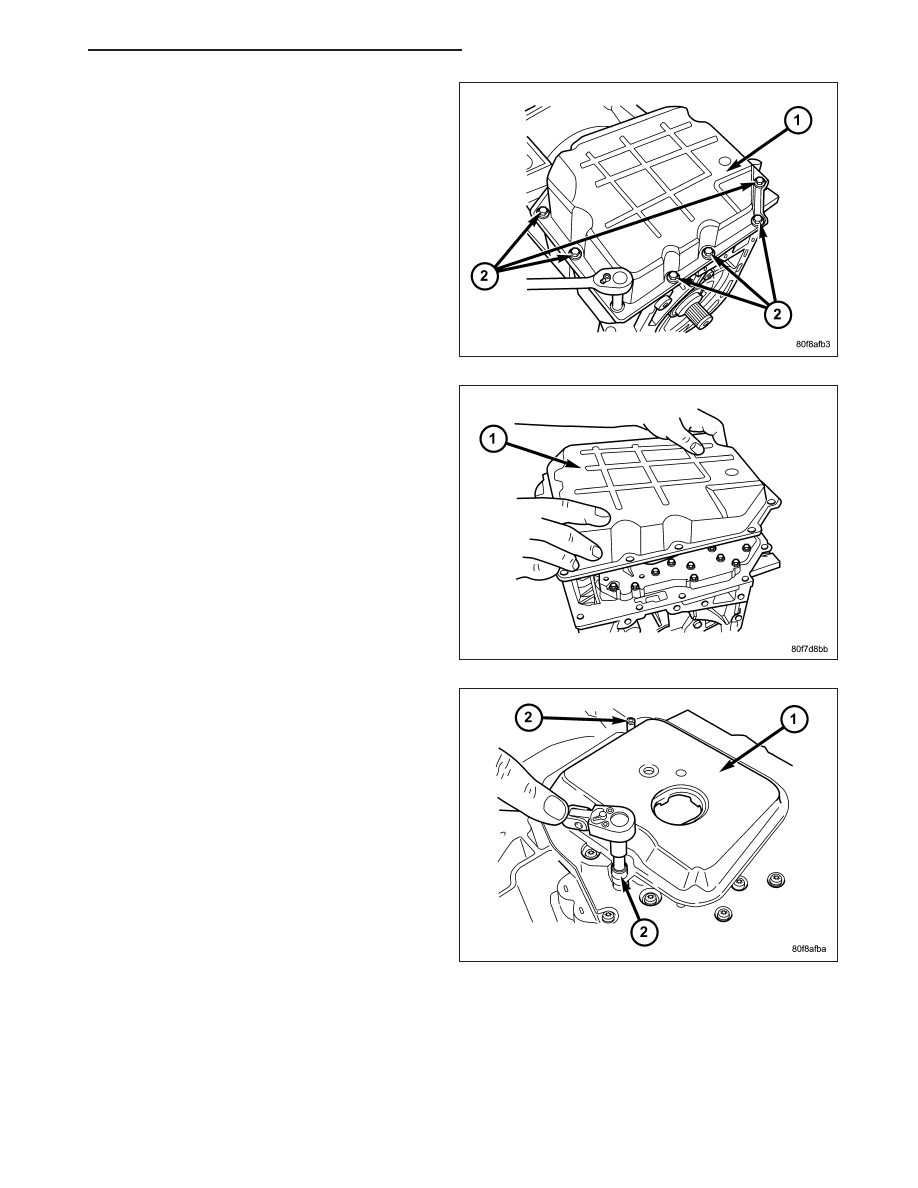

NOTE: One of the oil pan bolts has a sealing patch
applied from the factory. Separate this bolt for
reuse.

14. Remove the transmission oil pan bolts (2).

15. Remove the transmission oil pan (1).

16. Remove the transmission oil filter screws (2).

KJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 259
