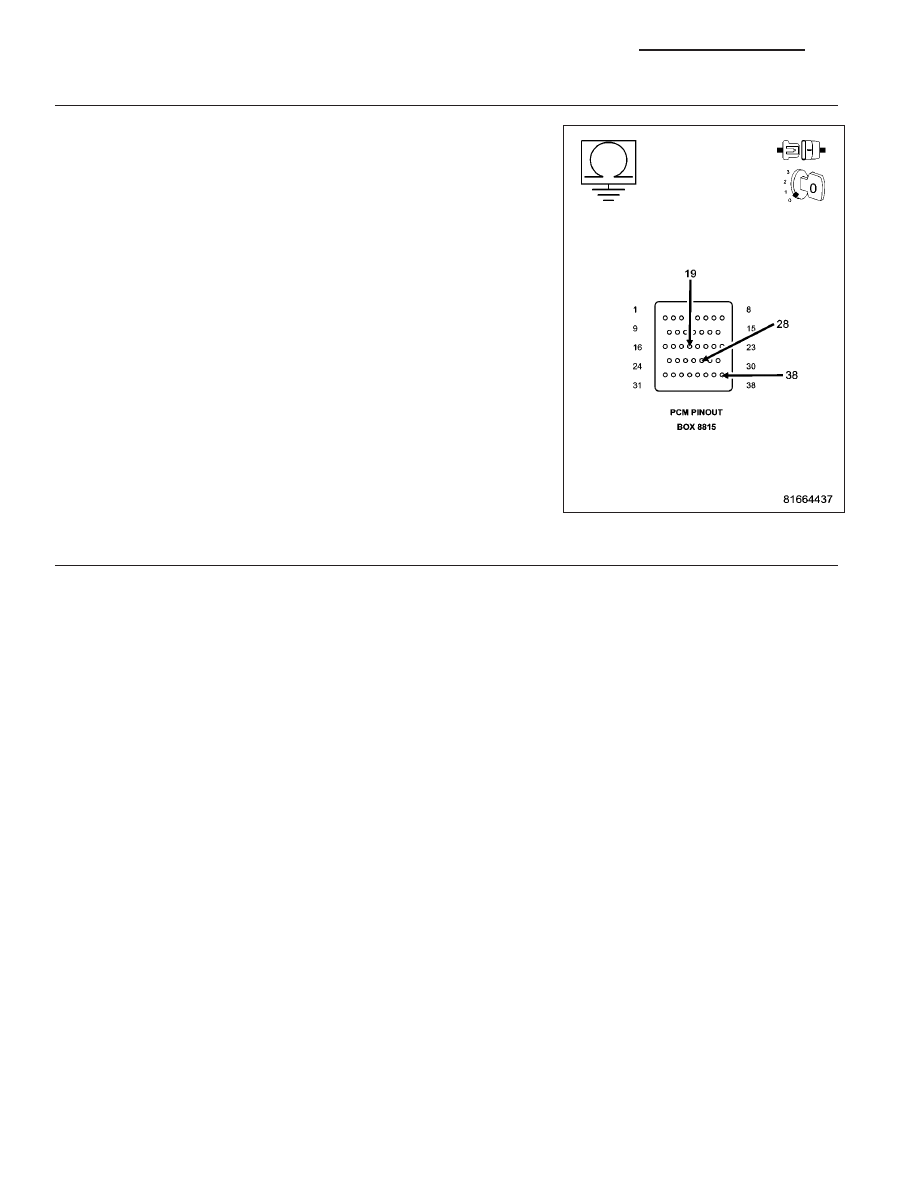

(T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT SHORT TO GROUND

Disconnect the Transmission Solenoid/Pressure Switch harness connec-
tor.

NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the (T16) Transmission
Control Relay Output circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T16) Transmission Control Relay Output circuit

for a short to ground.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Replace the Transmission Solenoid/Pressure Switch Assem-

bly per the Service Information.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

10.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set the DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wiring and connectors while checking for shorted and open circuits.

With the scan tool, check the EVENT DATA to help identify the conditions in which the DTC was set.

Were there any problems found?

Yes

>> Repair as necessary.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Test Complete.

21 - 176

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

KJ

P0883-TCM POWER INPUT HIGH

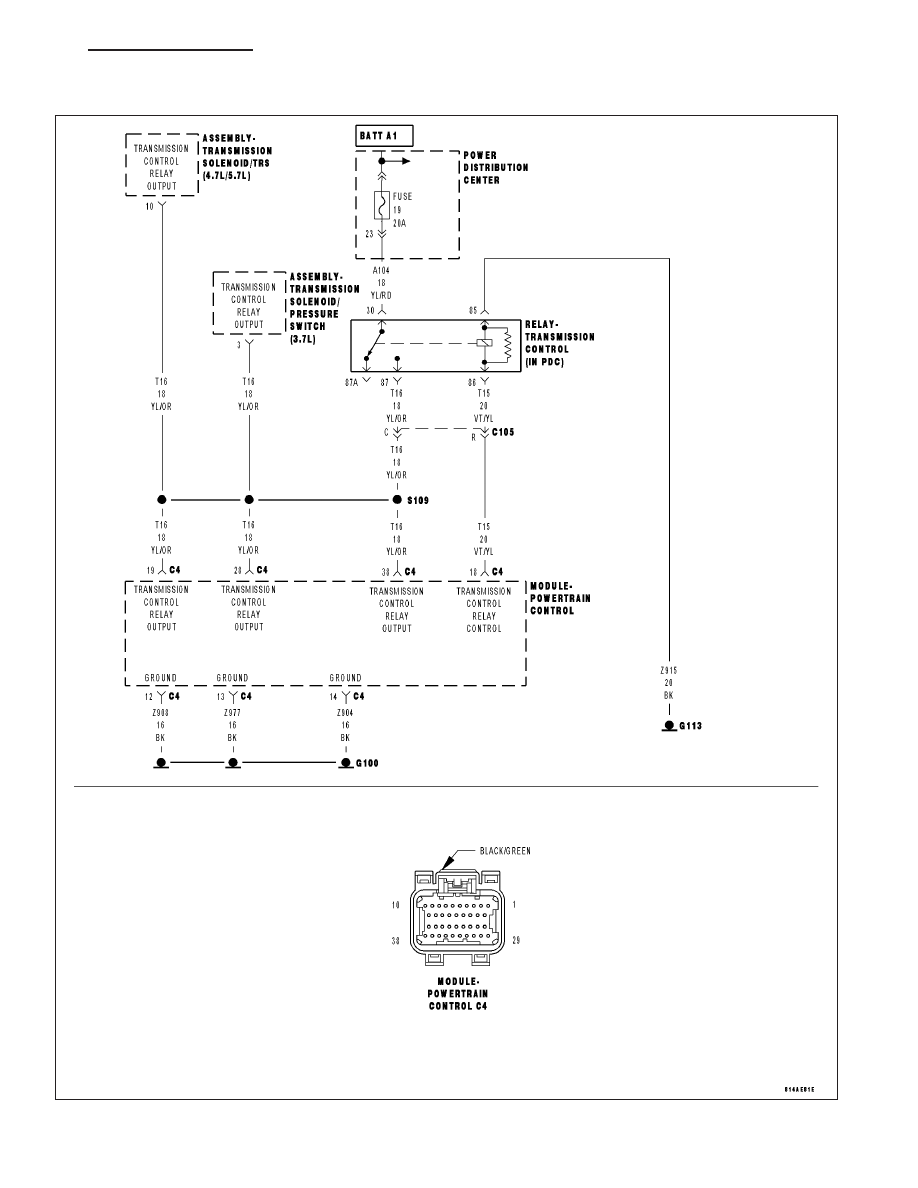

For a complete wiring diagram Refer to Section 8W.

KJ

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

21 - 177

When Monitored:
After a reset (ignition key turned to the RUN position) and after a power down.

Set Condition:
Relay output (Switched Battery) is higher than 3 volts when relay is not energized by the controller. Fault Set
Time: Less than 100 msec

Possible Causes

TRANSMISSION CONTROL RELAY STUCK CLOSED

(T15) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT SHORT TO VOLTAGE

(T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUITS SHORT TO VOLTAGE

POWERTRAIN CONTROL MODULE

Always perform the 42RLE Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 -
TRANSMISSION/TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

Theory of Operation

The transmission relay is used to supply power to the solenoid pack when in normal operating mode and to turn off
power to produce transmission

9

limp-in

9

mode. The relay output (which supplies power to the solenoid pack) is fed

back to the controller This is referred to as SWITCHED BATTERY. After a controller reset (ignition key turned to the
RUN position or after cranking engine), the controller verifies that the relay contacts are open by checking for no
voltage on Switched battery line (relay output) before the relay is energized. Transmission locked in Limp-In. MIL on
after 10 seconds of vehicle operation.

Diagnostic Test

1.

CHECK TO SEE IF DTC P0883 IS CURRENT

With the scan tool, view DTCs.

Is the status Active for this DTC or is the STARTS SINCE SET counter equal to 0?

Yes

>> Go To 2

No

>> Go To 5

2.

TRANSMISSION CONTROL RELAY CONTACTS STUCK CLOSED

Turn the ignition off to the lock position.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance between the Fused B(+) circuit and the Transmission Control Relay Output Circuit at the
terminals of the Transmission Control Relay.

Is the resistance above 5.0 ohms?

Yes

>> Go To 3

No

>> Replace the Transmission Control Relay.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

21 - 178

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

KJ

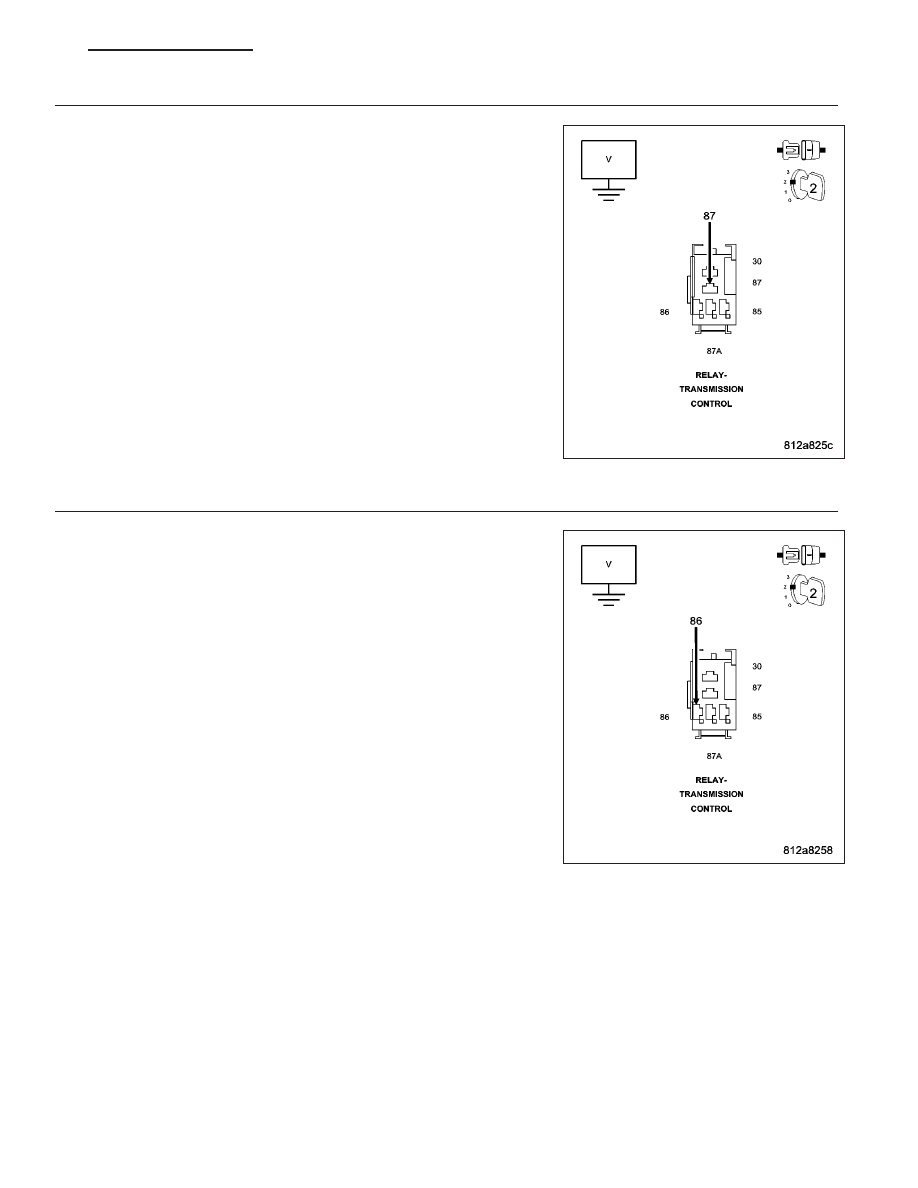

3.

(T16) TRANSMISSION RELAY OUTPUT CIRCUIT SHORT TO VOLTAGE

Ignition on, engine not running.

Measure the voltage at the (T16) Transmission Control Relay Output
circuit in the Transmission Control Relay connector.

Is the voltage above 0.5 volts?

Yes

>> Repair the (T16) Transmission Control Relay Output circuit

for a short to voltage.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Go To 4

4.

(T15) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT SHORT TO VOLTAGE

NOTE: The Transmission Controller will power up the Transmis-
sion Control Relay Control circuit for approximately 3.0 seconds
after initial ignition on. Wait at least 3.0 seconds after turning the
ignition to the on position before performing the following voltage
check.

NOTE: P0882 Relay Always Off may set. Disregard this DTC.
Measure the voltage at the (T15) Transmission Control Relay Control
circuit after a 3.0 second wait period.

Is the voltage above 0.5 volts?

Yes

>> Repair the (T15) Transmission Control Relay Control circuit

for a short to voltage.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Using the schematics as a guide, check the Powertrain

Control Module (PCM) terminals for corrosion, damage, or
terminal push out. Pay particular attention to all power and
ground circuits. If no problems are found, replace the PCM
per the Service Information. With the scan tool, perform
QUICK LEARN

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

KJ

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

21 - 179
