FRONT FOG RELAY CIRCUIT LOW

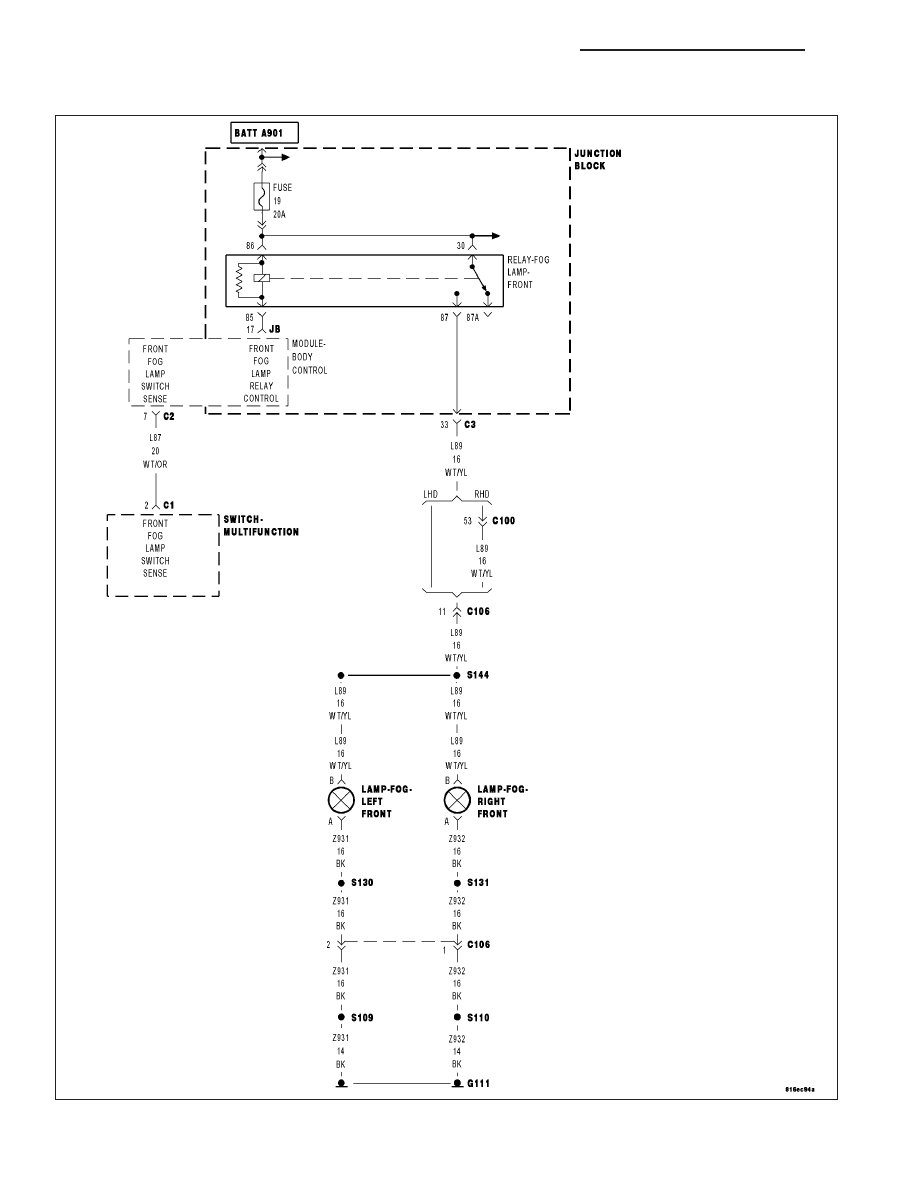

For a complete wiring diagram Refer to Section 8W

8L - 6

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

KJ

When Monitored:
With the ignition on.

Set Condition:
BCM detects a low (ground) on the Front Fog Relay even though it is not attempting to turn on the Front Fog
Lamps for more than 5 seconds.

Possible Causes

FRONT FOG RELAY SHORT TO GROUND

FRONT FOG RELAY

BODY CONTROL MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all BCM DTC’s.

Turn the Fog Lamps on.

With the Scan Tool, read the DTC information.

Does the Scan Tool read: FRONT FOG RELAY CKT LOW?

Yes

>> Go To 2

No

>> The condition is not present at this time. Monitor Scan Tool parameters while wiggling the related wire

harness. Refer to any Technical Service Bulletins that may apply. Visually inspect the related wiring har-
ness and connector terminals.

Perform BODY VERIFICATION TEST - VER 1.

2.

FRONT FOG RELAY SHORT TO GROUND

Turn the ignition off.

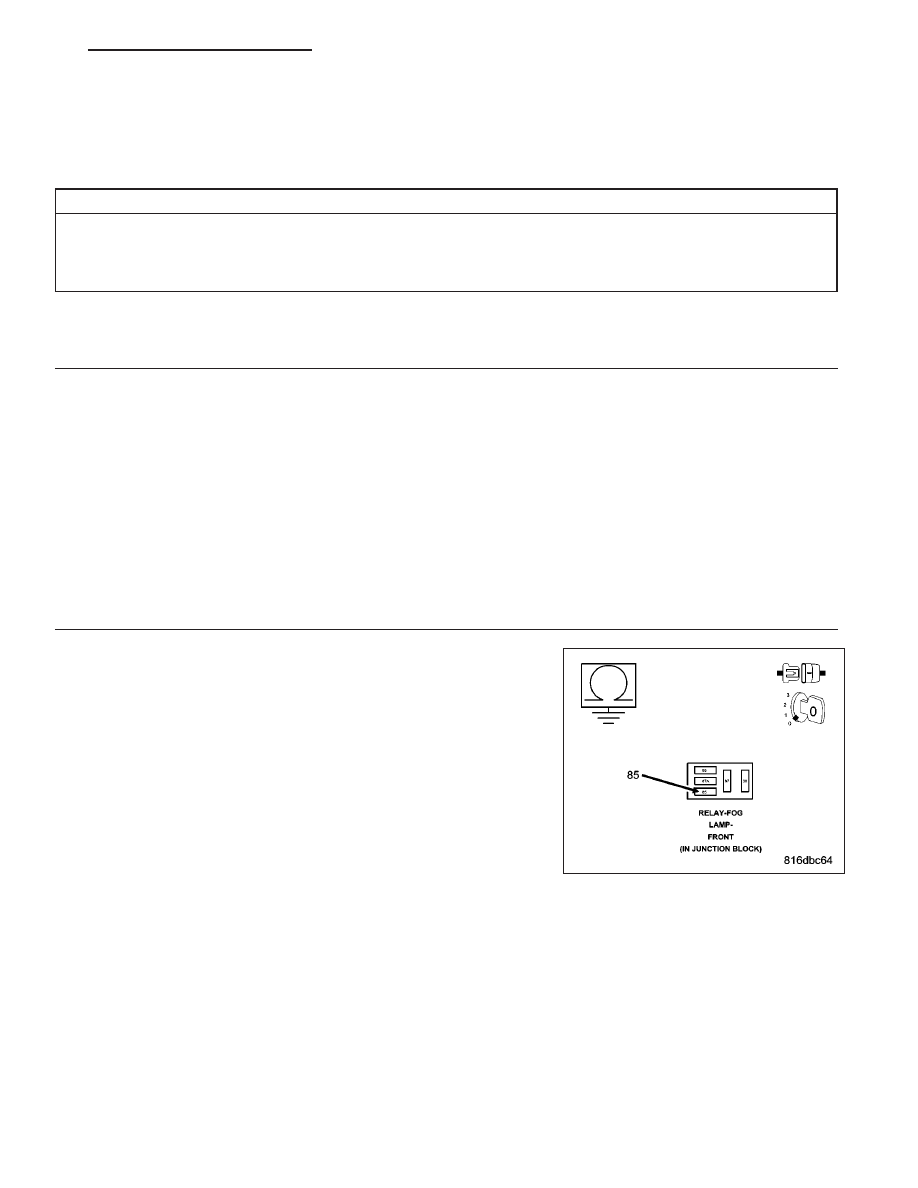

Disconnect the Front Fog Relay.

Measure the resistance between ground and the Front Fog Relay Con-
trol circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the Front Fog Relay Control circuit for a short to

ground.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 3

KJ

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 7

3.

FRONT FOG RELAY

Turn the ignition off.

Disconnect the Front Fog Relay harness connector.

Measure the voltage of the Front Fog Relay harness connector coil side
feed circuit to ground.

Is the voltage above 10.0 volts?

Yes

>> Replace the Fog Lamp Relay.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Replace the Body Control Module.

Perform BODY VERIFICATION TEST - VER 1.

8L - 8

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

KJ

HEADLAMP SWITCH INPUT CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W

When Monitored:
Ignition on.

Set Condition:
The BCM detects a voltage greater than 4.75 V on the Headlamp Switch Input for more than 5 seconds.

Possible Causes

HEADLAMP SWITCH OPEN

HEADLAMP SWITCH MUX CIRCUIT OPEN

HEADLAMP SWITCH RETURN CIRCUIT OPEN

BODY CONTROL MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, erase all BCM DTC’s.

Turn the headlamps to the ON position.

With the Scan Tool, read DTCs.

Does the Scan Tool display: HEADLAMP SWITCH INPUT CKT HIGH?

Yes

>> Go To 2

No

>> The condition is not present at this time. Monitor Scan Tool parameters while wiggling the related wire

harness. Refer to any Technical Service Bulletins that may apply. Visually inspect the related wiring har-
ness and connector terminals.

Perform BODY VERIFICATION TEST - VER 1.

2.

HEADLAMP SWITCH OPEN

Turn the ignition off.

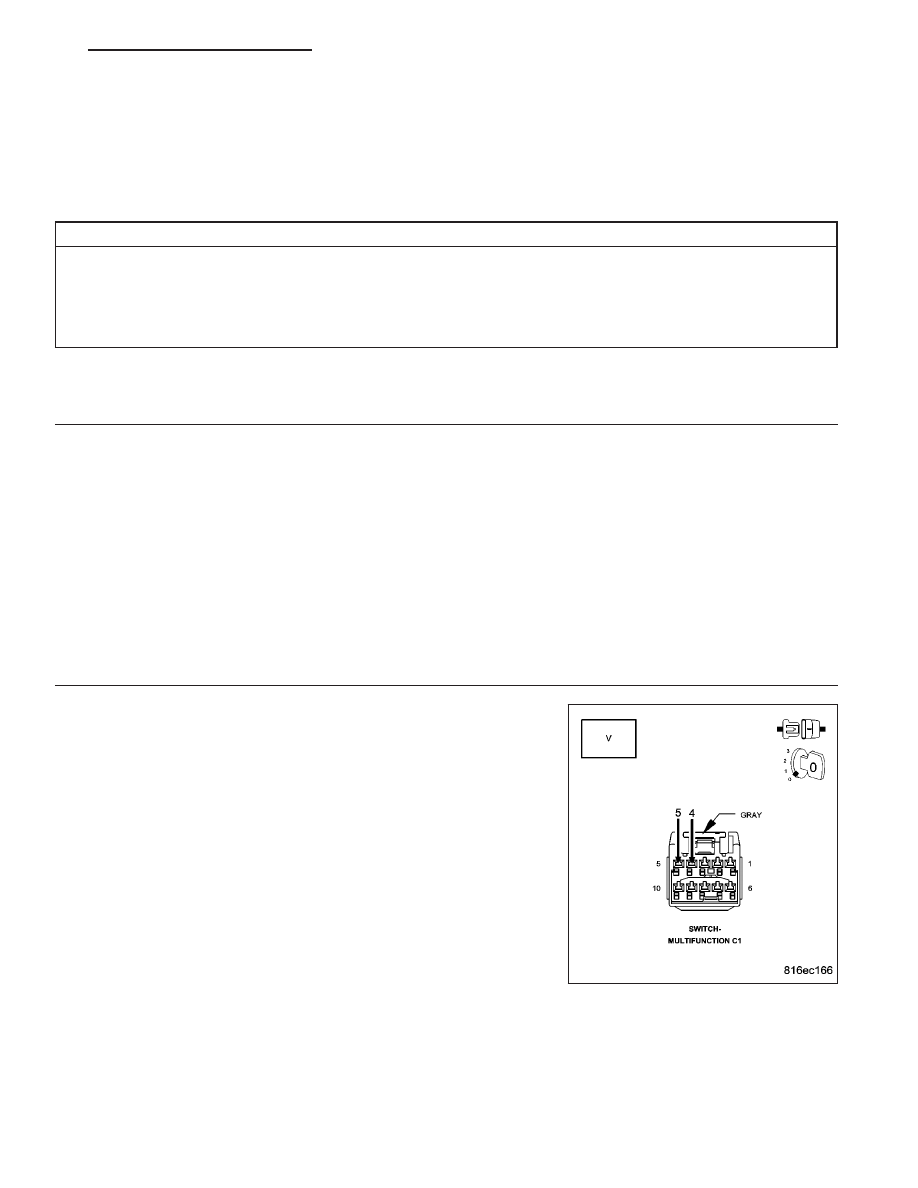

Disconnect the Multifunction Switch harness connector.

Connect a jumper wire between the Headlamp Switch MUX circuit and
the Headlamp Switch Return circuit in the Multifunction Switch harness
connector.

Turn the ignition on.

With the Scan Tool, select Body, Body Controller and read: Headlamp
Switch volts.

Does the Scan Tool display Headlamp Switch voltage below 0.5
volts?

Yes

>> Replace the Headlamp Switch.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 3

KJ

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 9
