LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

DIAGNOSIS AND TESTING

8L - 2

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

KJ

FRONT FOG RELAY CIRCUIT HIGH

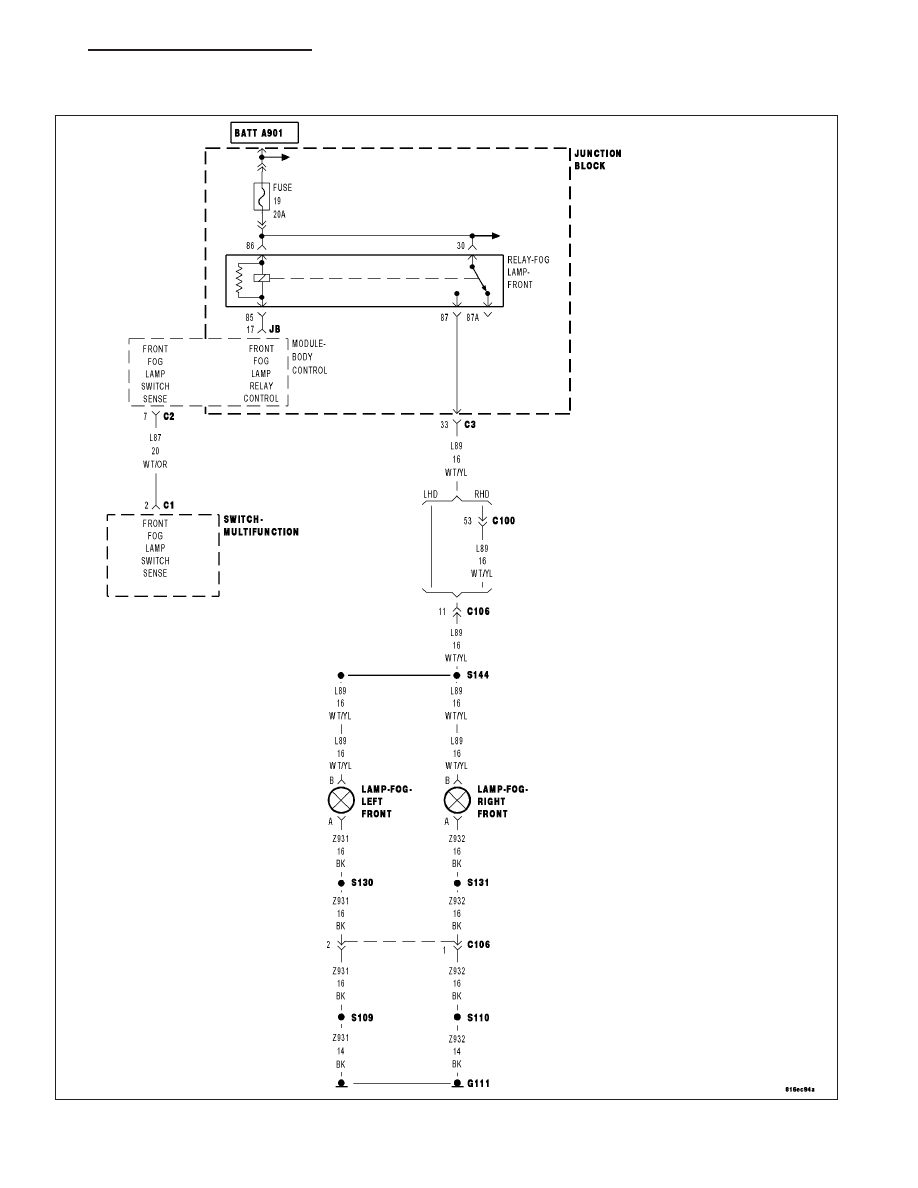

For a complete wiring diagram Refer to Section 8W

KJ

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 3

When Monitored:
With the ignition on.

Set Condition:
BCM detects battery on the Front Fog Relay when it is attempting to turn on the Front Fog Lamps for more
than 5 seconds. The BCM learns that the Front Fog Options exists on a vehicle when it detects a ground on
the Front Fog Switch Input circuit.

Possible Causes

MISSING RELAY

OPEN FUSE

FOG LAMP RELAY

BODY CONTROL MODULE

FOG LAMP RELAY CONTROL CIRCUIT OPEN

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all BCM DTC’s.

Turn the Fog Lamps on.

With the Scan Tool, read the DTC information.

Does the Scan Tool read: FRONT FOG RELAY CKT HIGH?

Yes

>> Go To 2

No

>> The condition is not present at this time. Monitor scan tool parameters while wiggling the related wire

harness. Refer to any Technical Service Bulletins that may apply. Visually inspect the related wiring har-
ness and connector terminals.

Perform BODY VERIFICATION TEST - VER 1.

2.

MISSING RELAY

Turn the ignition off.

Check the Junction Block to make certain the Fog Lamp Relay is present.

Is the Fog Lamp Relay present?

Yes

>> Go To 3

No

>> Replace the missing Fog Lamp Relay.

Perform BODY VERIFICATION TEST - VER 1.

3.

OPEN FUSE

Turn the ignition off.

Check Junction Block fuse 19.

Is the fuse open?

Yes

>> Replace the open fuse.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 4

8L - 4

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

KJ

4.

FOG LAMP RELAY

Turn the ignition off.

Install a known good relay in place of the fog lamp relay.

Turn the Fog Lamps On.

Do the Fog Lamps operate normally?

Yes

>> Replace the Fog Lamp Relay.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 5

5.

BODY CONTROL MODULE

Turn the ignition off.

Remove the Fog Lamp Relay.

Measure the voltage of the Fused B+ circuit of the fog lamp relay.

Is the voltage above 10 volts?

Yes

>> Replace the Body Control Module.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Repair the Fog Lamp Relay Control Circuit for an open con-

dition.

Perform BODY VERIFICATION TEST - VER 1.

KJ

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 5
