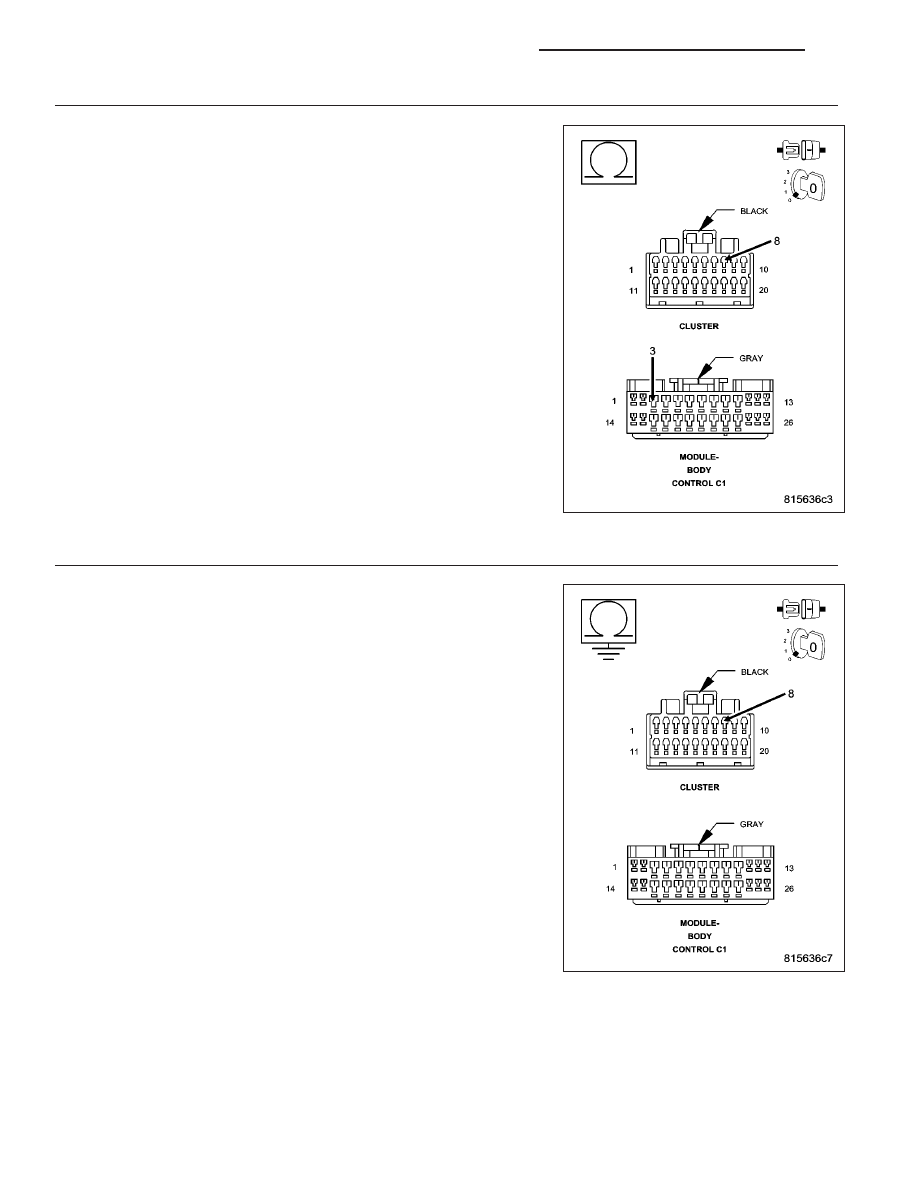

(G150) INSTRUMENT CLUSTER WAKE UP SIGNAL CIRCUIT OPEN

Turn the ignition off.

Disconnect the Instrument Cluster harness connector.

Disconnect the BCM C1 harness connector.

Measure the resistance of the (G150) Instrument Cluster Wake Up Sig-
nal circuit.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (G150) Instrument Cluster Wake Up Signal cir-

cuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 3

3.

(G150) CLUSTER WAKE UP CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the Instrument Cluster harness connector.

Disconnect the BCM C1 harness connector.

Measure the resistance between ground and the (G150) Cluster Wake
Up circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (G150) Instrument Cluster Wake Up Signal cir-

cuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 4

8J - 22

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

KJ

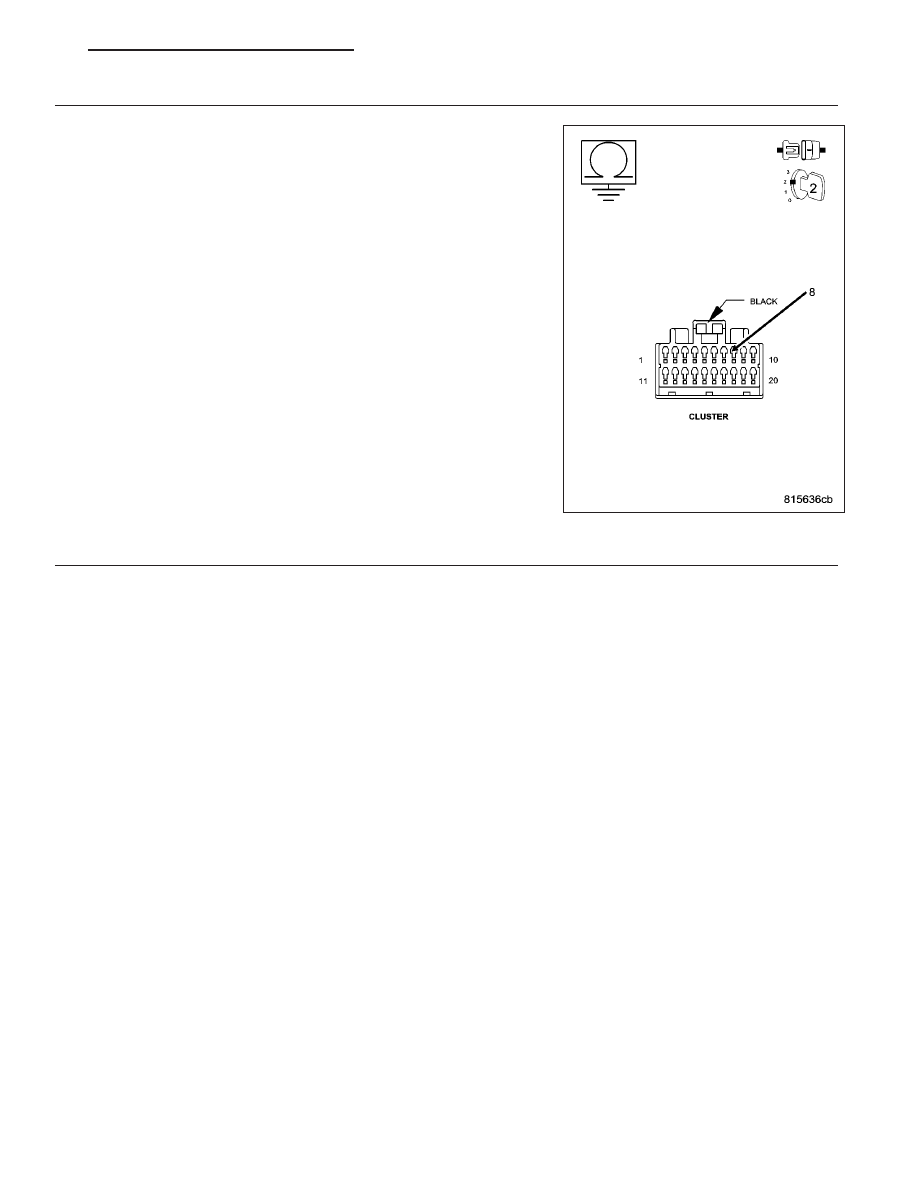

4.

BODY CONTROL MODULE

Turn the ignition off.

Disconnect the Instrument Cluster harness connector.

Ensure that the BCM C1 harness connector is connected.

Install a DVOM between the Cluster Wake Up circuit of the Instrument
Cluster harness connector and ground.

Set the DVOM to read resistance.

Turn the ignition on.

With the scan tool, select Body Control Module, then Actuators.

Observe the DVOM while using the scan tool to actuate the Cluster
Wake Up

9

on.

9

Did the DVOM indicate a brief (2 second) continuity to ground?

Yes

>> Go To 5

No

>> Replace and program the Body Control Module in accor-

dance with the Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

5.

INSTRUMENT CLUSTER

Turn the ignition off.

Ensure that the Instrument Cluster and BCM C1 harness connectors are connected.

Open the driver door or actuate the High Beam Headlamps with the key off.

With the scan tool, read DTCs.

Did this DTC reset?

Yes

>> Replace and configure the Instrument Cluster in accordance with the Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> The condition is not present at this time. Monitor scan tool DTCs while wiggling the related wire har-

ness. Refer to any Technical Service Bulletins (TSB) that may apply. Visually inspect the related wiring
harness and connector terminals.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

KJ

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 23

FUEL SENSOR FAULTED LOW (BCM)

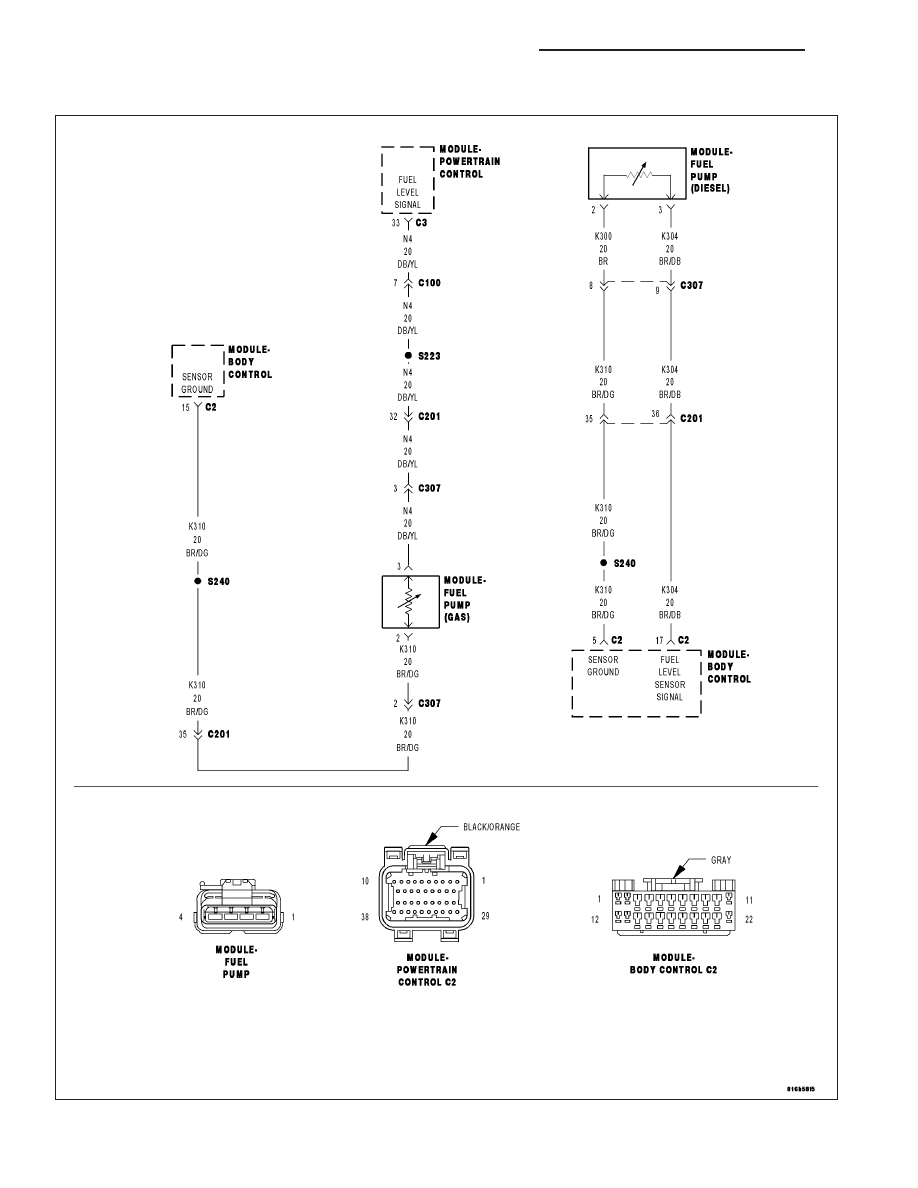

For a complete wiring diagram Refer to Section 8W

8J - 24

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

KJ

When Monitored:
Ignition on and battery voltage above 10.4 volts.

Set Condition:
The fuel level sensor signal voltage goes below 0.0196 of a volt for more than 90 seconds.

Possible Causes

FUEL LEVEL SENSOR VOLTAGE BELOW 0.0196 OF A VOLT

FUEL LEVEL SENSOR

(N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO GROUND

(N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT

PCM

Diagnostic Test

1.

FUEL LEVEL SENSOR VOLTS BELOW 0.0196 VOLT

Ignition on, engine not running.

With the scan tool, read DTCs and record the related Freeze Frame data.

With the scan tool, read the Fuel Level Sensor voltage.

Is the Fuel Level Sensor voltage below 0.0196 of a volt?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION Symptom (Diagnostic Procedure).

Perform POWERTRAIN VERIFICATION TEST VER - 5. (Refer to 9 - ENGINE - STANDARD PROCE-
DURE)

2.

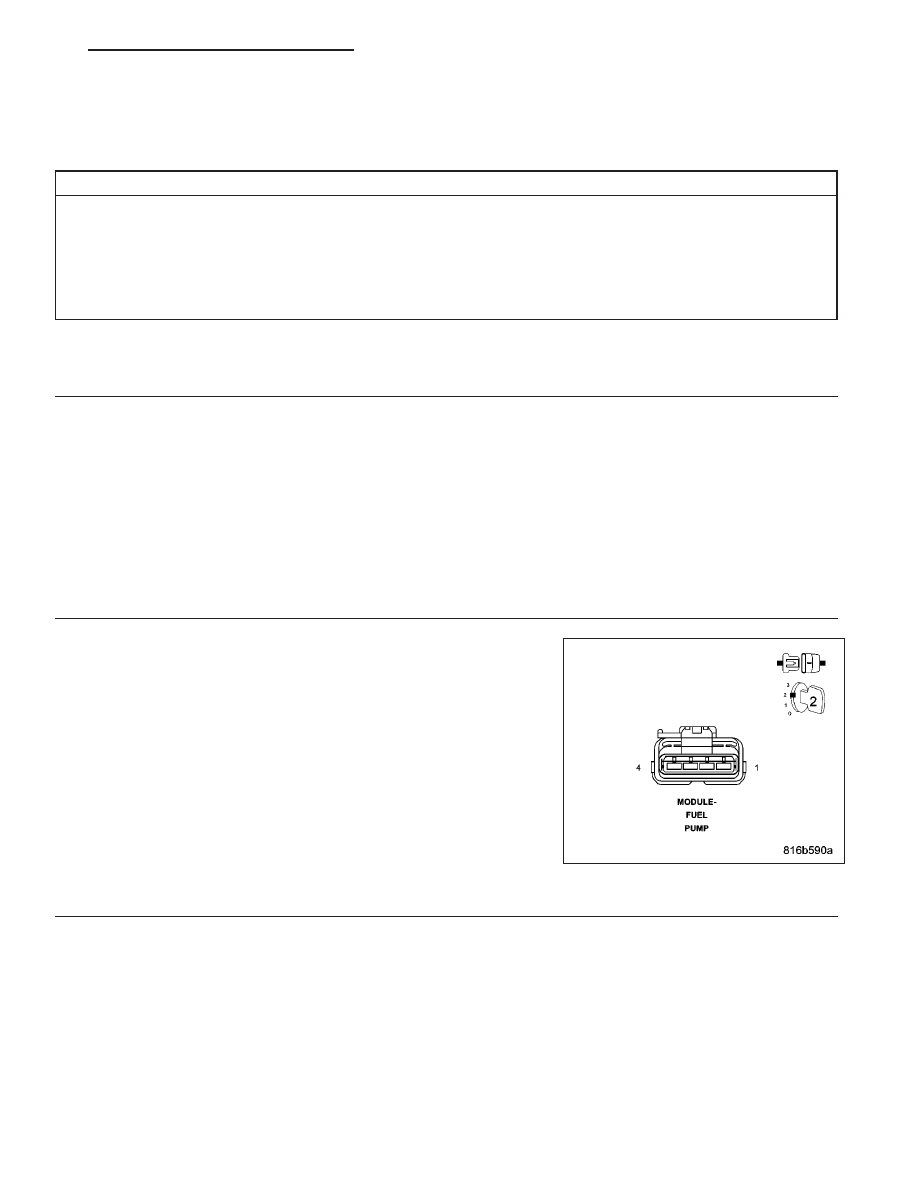

FUEL LEVEL SENSOR

Turn the ignition off.

Disconnect the Fuel Pump Module harness connector.

Ignition on, engine not running.

With the scan tool, read the Fuel Level Sensor voltage.

Did the Fuel Level Sensor voltage change from below 0.4 of a
volt to above 4.0 volts?

Yes

>> Replace the Fuel Level Sensor in accordance with the Ser-

vice Information.

Perform POWERTRAIN VERIFICATION TEST VER - 5.
(Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 3

3.

DETERMINE VEHICLE ENGINE TYPE

What type of engine is the vehicle equipped with?

Gas

>> Go To 4

Gas (ESP)

Go To 7

Diesel

Go To 10

KJ

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 25
