P0128-THERMOSTAT RATIONALITY (CONTINUED)

8.

TEMPERATURE SENSOR

Turn the ignition off.

Connect the C2 FCM harness connector and the C2 PCM harness
connector.

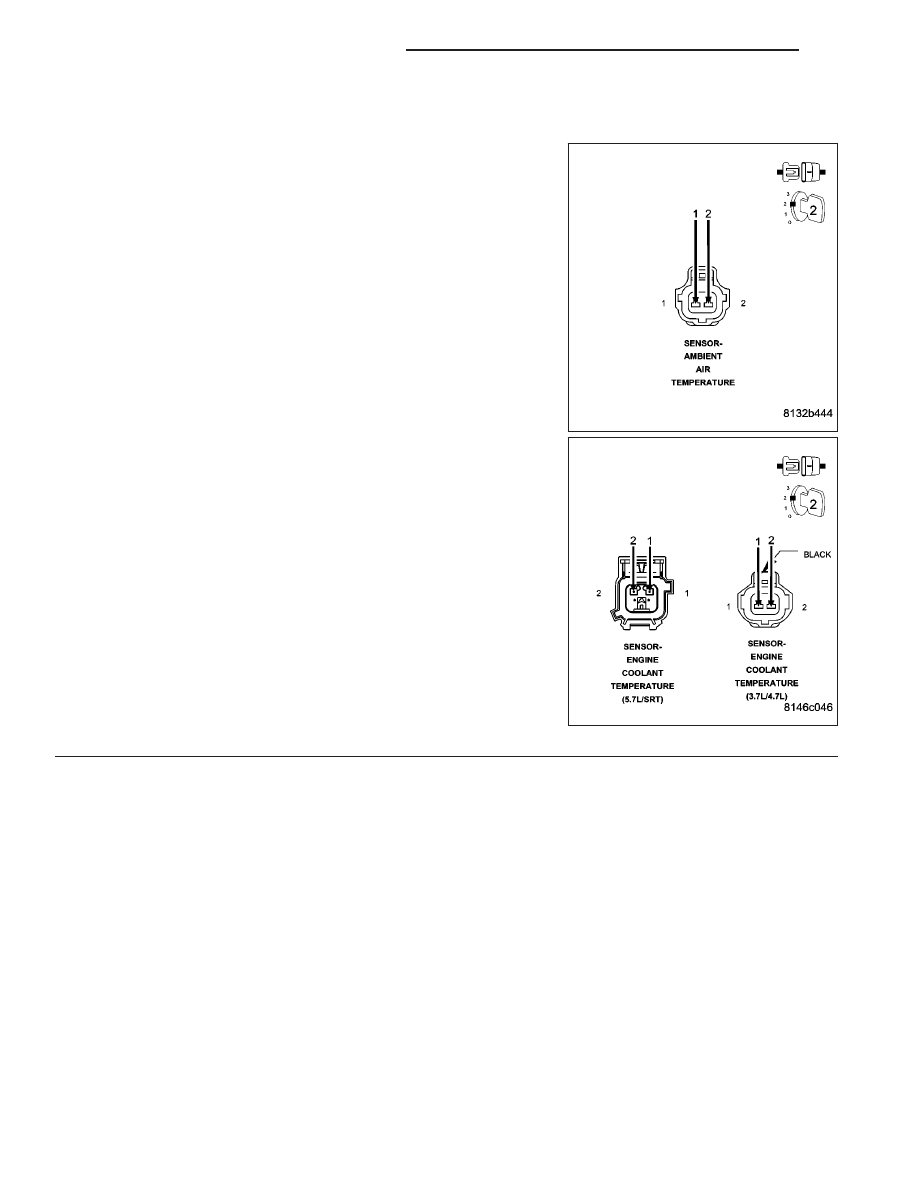

Connect a jumper wire across the ECT and AAT Sensor harness con-
nectors.

Ignition on, engine not running.

With a scan tool, read the Temperature Sensor voltage.

Does the voltage start at 5.0 volts and drop below 1.0 volt when
the jumper wire is installed?

Yes

>> Replace the appropriate Temperature Sensor.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 9

NOTE: Disconnect the jumper wire before continuing.

9 - 144

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0128-THERMOSTAT RATIONALITY (CONTINUED)

9.

SIGNAL CIRCUIT OPEN

Turn the ignition off.

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller Special
Tool #8815 to perform diagnosis.

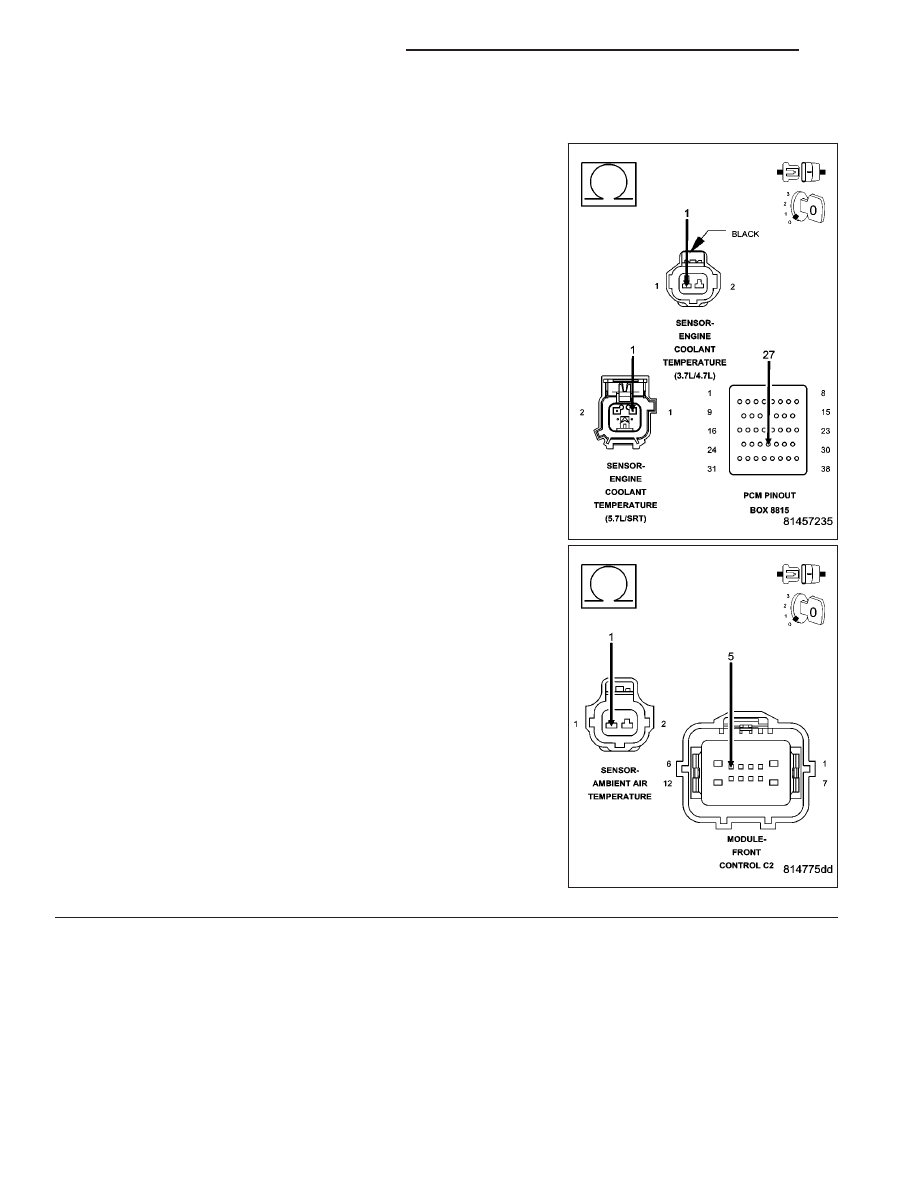

Measure the resistance of the (K2) ECT Sensor Signal circuit from the
ECT Sensor harness connector to the appropriate terminal of special
tool #8815.

Measure the resistance of the (G31) AAT Sensor Signal circuit from
the AAT Sensor harness connector to the C2 FCM harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 10

No

>> Repair the open in the Sensor Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 145

P0128-THERMOSTAT RATIONALITY (CONTINUED)

10.

SENSOR GROUND CIRCUIT OPEN

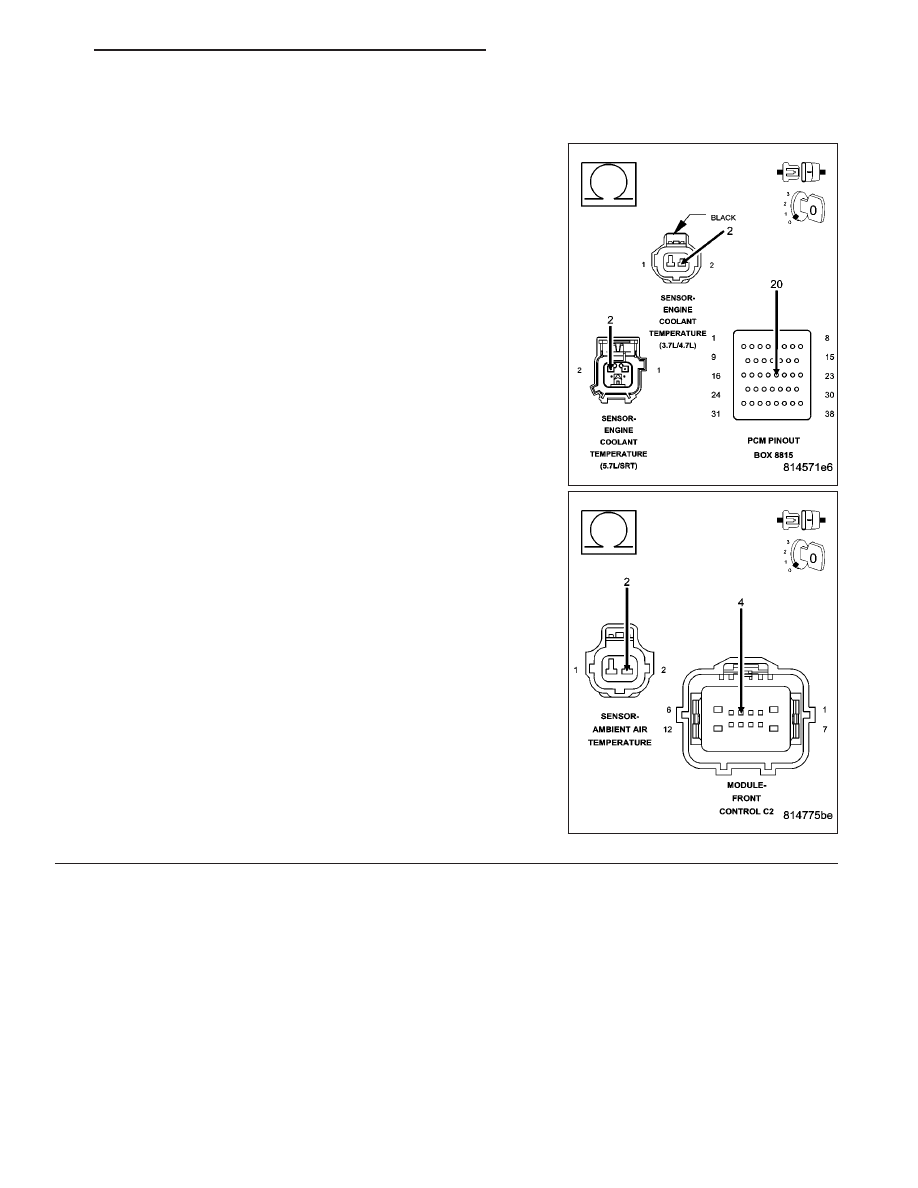

Measure the resistance of the (K900) Sensor ground circuit from the
appropriate Temperature Sensor harness connector to the appropriate
terminal of special tool #8815.

Measure the resistance of the (G931) Sensor ground circuit from the
AAT Sensor harness connector to the C2 FCM harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 11

No

>> Repair the open in the Sensor ground circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

9 - 146

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0128-THERMOSTAT RATIONALITY (CONTINUED)

11.

SIGNAL CIRCUIT SHORTED TO GROUND

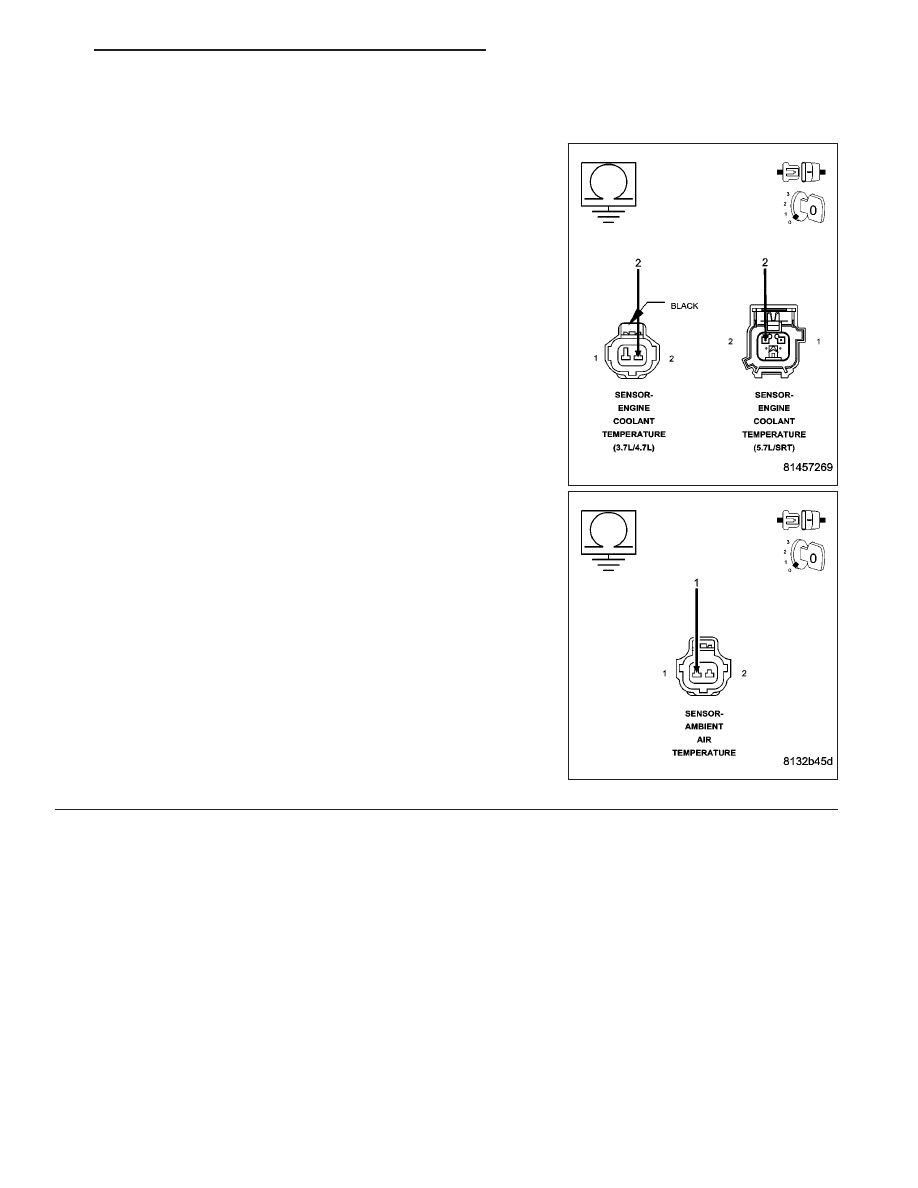

Measure the resistance between ground and the Sensor Signal circuit
in the Temperature Sensor harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 12

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 147
