Jeep Grand Cherokee WK. Manual - part 718





B1416-HFM RIGHT AUDIO OUTPUT CIRCUIT HIGH (CONTINUED)

4.

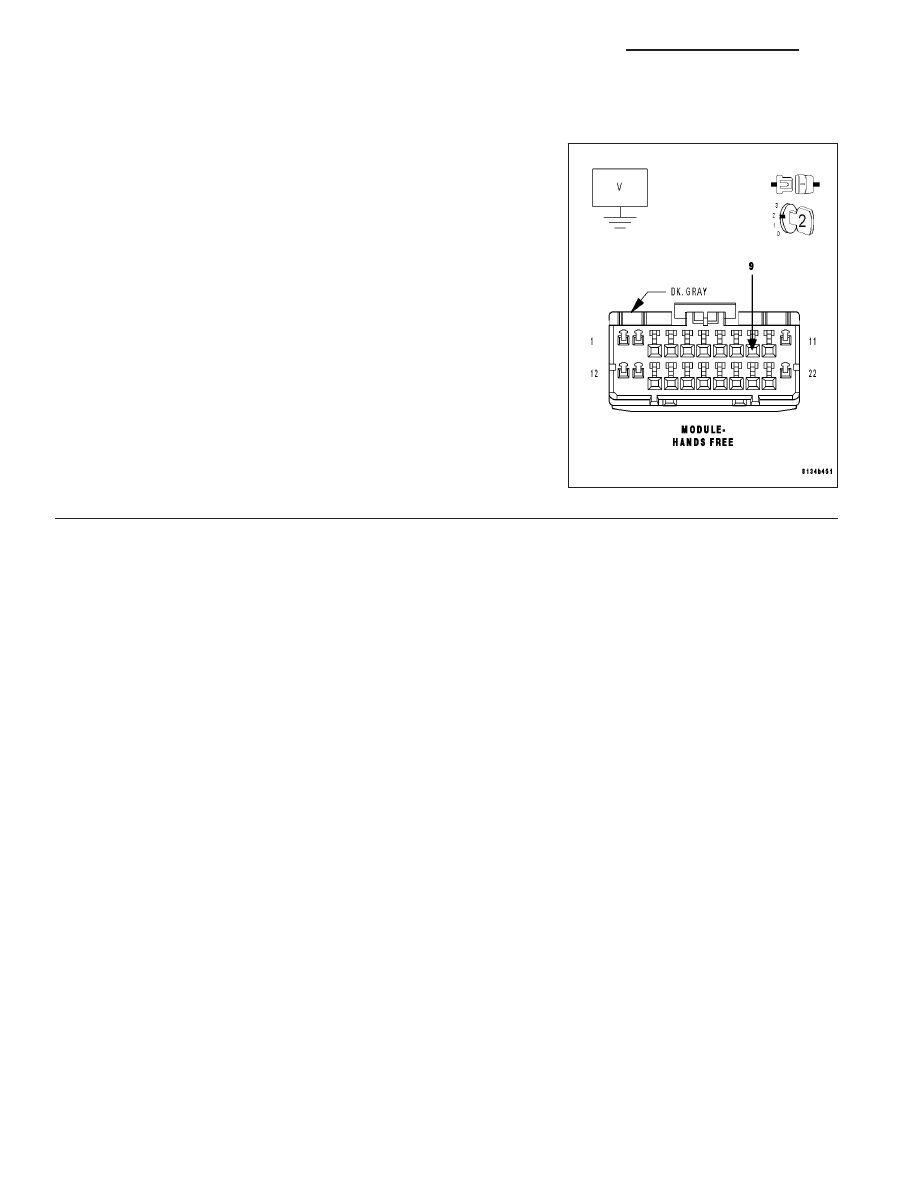

(X704) RIGHT AUDIO OUTPUT CIRCUIT SHORT TO VOLTAGE

Turn the ignition on.

Measure the voltage of the (X704) Right Audio Output circuit.

Is the voltage above 1.0 volts?

Yes

>> Repair the (X704) Right Audio Output circuit for a short to

voltage.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace and program the Hands Free Mod-
ule in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

8T - 18

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

WK

B1435-VOICE RECOGNITION/PHONE SWITCH INPUT CIRCUIT PERFORMANCE

WK

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 19

B1435-VOICE RECOGNITION/PHONE SWITCH INPUT CIRCUIT PERFORMANCE (CONTINUED)

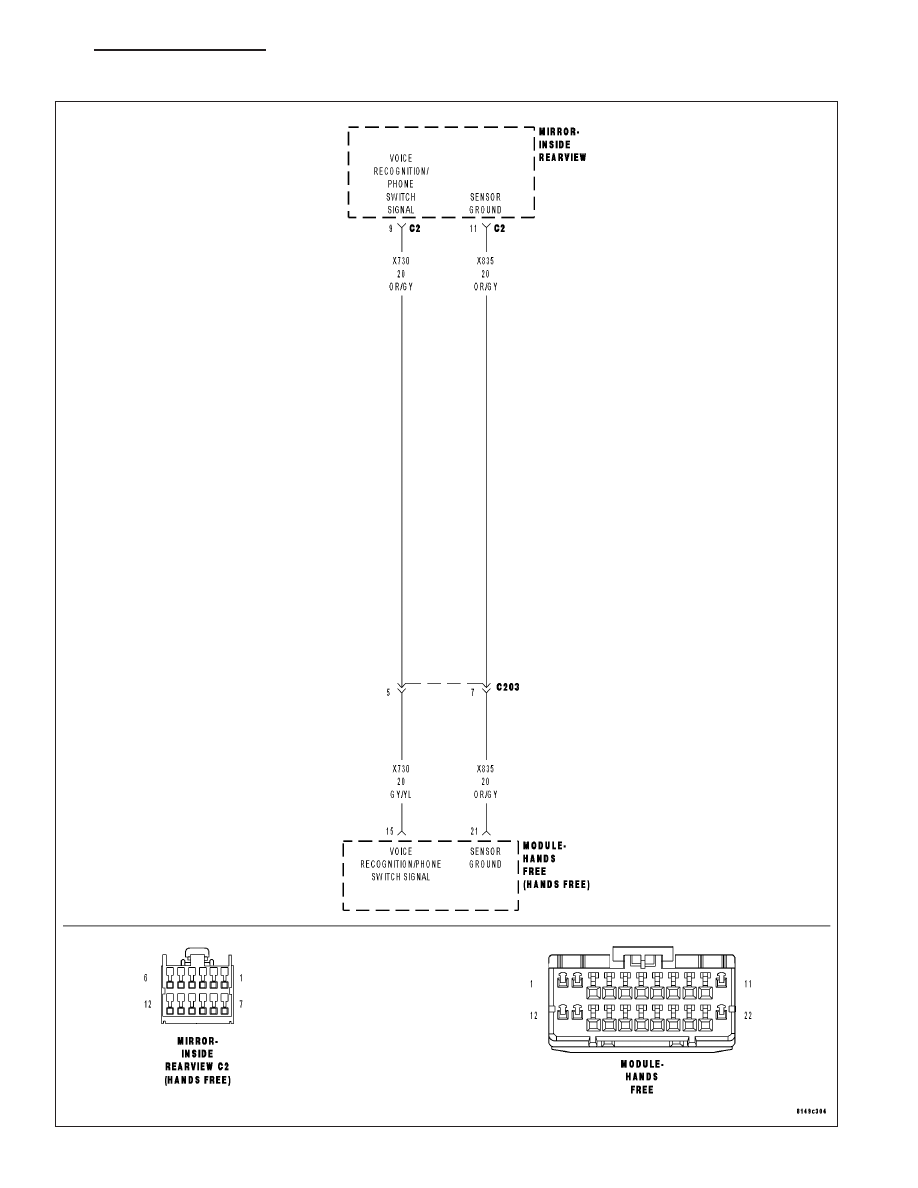

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module detects an invalid voltage signal on the (X730) Voice Recognition/Phone Switch Sig-
nal circuit.

Possible Causes

INSIDE REAR VIEW MIRROR

HANDS FREE MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per
cycle.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

2.

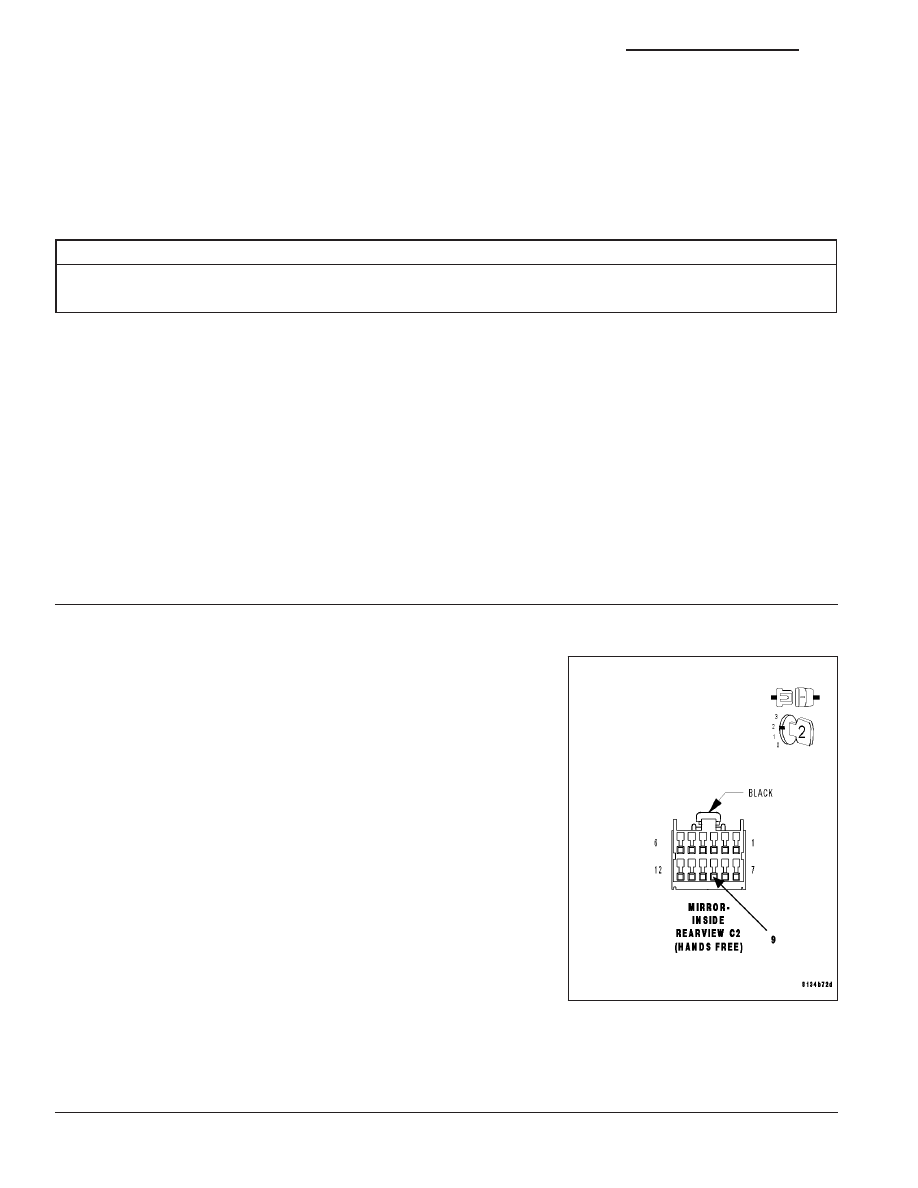

CHECK THE VOLTAGE OF THE (X730) VOICE RECOGNITION/PHONE SWITCH SIGNAL

Turn the ignition off.

Disconnect the Inside Rear View Mirror C2 harness connector.

Turn the ignition on.

With the scan tool, monitor the VR Phone Switch voltage.

While monitoring the VR Phone Switch voltage, momentarily connect a
jumper wire between the (X730) Voice Recognition/Phone Switch Sig-
nal circuit and ground.

NOTE: The scan tool sensor voltage should switch from above
4.7 volts when the jumper is not connected to below 0.6 volts
when the jumper is connected.

Does the sensor voltage switch from above 4.7 volts to below
0.6 volt as described?

Yes

>> Replace the Inside Rear View Mirror in accordance with

the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace and program the Hands Free Mod-
ule in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

8T - 20

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

WK

B1436-VOICE RECOGNITION/PHONE SWITCH INPUT CIRCUIT LOW

WK

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 21
