1. Move the front seat to its most rearward position

for easiest access to the front seat belt buckle
lower anchor nut.

2. Disconnect and isolate the battery negative cable.

Wait two minutes for the system capacitor to dis-
charge before further service.

3. Remove the console from the floor panel transmis-

sion tunnel. (Refer to 23 - BODY/INTERIOR/
FLOOR CONSOLE - REMOVAL).

4. Remove the side shield from the inboard side of

the front seat cushion. (Refer to 23 - BODY/
SEATS/SEAT

BACK

CUSHION/COVER

-

REMOVAL).

5. Disconnect the seat wire harness connector (2)

from the seat belt tensioner initiator.

6. On the driver side only, disconnect the seat belt

switch pigtail wire connector (3) from the seat wire
harness connector for the seat belt switch.

7. Remove the nut (4) that secures the front seat belt buckle (1) lower anchor to the stud on the inboard side of the

seat cushion frame.

8. Remove the seat belt buckle and tensioner from the front seat as a unit.

REAR

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

1. Remove the rear seat cushion from the vehicle.

(Refer to 23 - BODY/SEATS/REAR SEAT CUSH-
ION - REMOVAL).

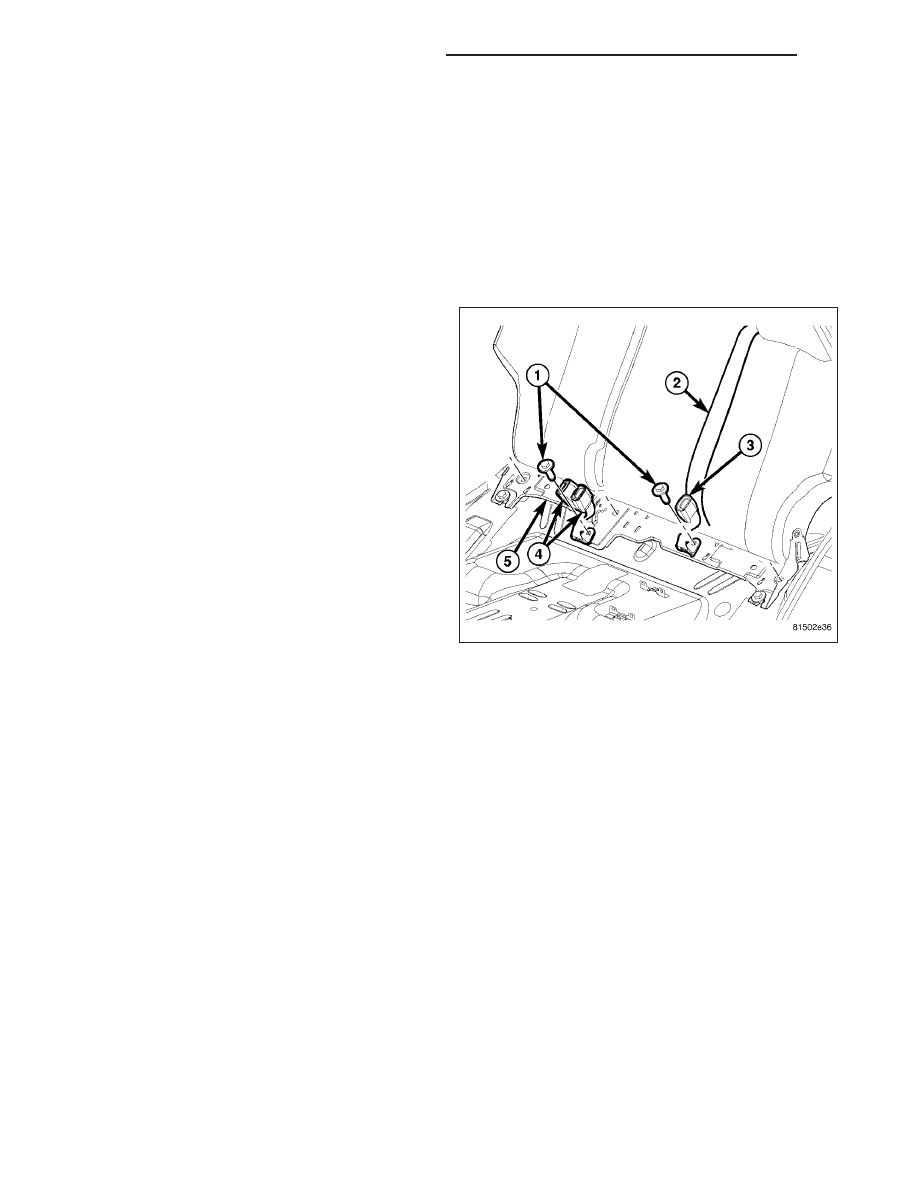

2. Remove the screw (1) that secures the rear seat

back bracket (5) and the right outboard and center
buckles (4) or the left buckle (3) and center seat
belt (2) lower anchor to the rear floor panel.

3. Remove the rear seat belt buckle from the rear

floor panel.

8O - 474

RESTRAINTS - SERVICE INFORMATION

WK

INSTALLATION

FRONT

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, airbag, occupant classification sys-
tem, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge
before performing further diagnosis or service. This is the only sure way to disable the supplemental
restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

NOTE: The following procedure is for replacement of a faulty or damaged seat belt buckle unit. The front
seat belt buckle also includes a seat belt tensioner. If the front seat belt buckle is faulty or damaged, but the
seat belt tensioner is not deployed, review the recommended procedures for handling non-deployed sup-
plemental restraints. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - HANDLING NON-
DEPLOYED SUPPLEMENTAL RESTRAINTS). If the seat belt tensioner has been deployed, review the
recommended procedures for service after a supplemental restraint deployment before removing the unit
from the vehicle. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - SERVICE AFTER A
SUPPLEMENTAL RESTRAINT DEPLOYMENT).

1. Position the front seat belt buckle and tensioner (1)

lower anchor onto the stud on the inboard side of
the seat cushion frame.

2. Install and tighten the nut that secures the front

seat belt buckle lower anchor to the side of the
front seat. Tighten the nut to 43 N·m (32 ft. lbs.).

3. On the driver side only, reconnect the seat belt

switch pigtail wire connector (3) to the seat wire
harness connector for the seat belt switch.

4. Reconnect the seat wire harness connector (2) to

the seat belt tensioner initiator.

5. Reinstall the side shield onto the inboard side of

the front seat cushion. (Refer to 23 - BODY/
SEATS/SEAT BACK CUSHION/COVER - INSTAL-
LATION).

6. Reinstall the console onto the floor panel transmis-

sion tunnel. (Refer to 23 - BODY/INTERIOR/
FLOOR CONSOLE - INSTALLATION).

7. Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test pro-

cedure should be performed following service of any supplemental restraint system component. (Refer to 8 -
ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - VERIFICATION TEST).

WK

RESTRAINTS - SERVICE INFORMATION

8O - 475

REAR

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

1. Position the right outboard and center buckles (4)

or the left buckle (3) and center seat belt (2) lower
anchor to the rear seat back bracket (5) on the rear
floor panel.

2. Install and tighten the screw (1) that secures the

rear seat belt buckle to the rear floor panel. Tighten
the screw to 50 N·m (37 ft. lbs.).

3. Reinstall the rear seat cushion into the vehicle.

(Refer to 23 - BODY/SEATS/REAR SEAT CUSH-
ION - INSTALLATION).

SEAT BELT & RETRACTOR

REMOVAL

FRONT

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

8O - 476

RESTRAINTS - SERVICE INFORMATION

WK

1. Adjust the front seat to its most forward position for

easiest access to the front seat belt lower anchor
cover (1) and the B-pillar trim.

2. Grasp the upper edge of the lower anchor cover

and pull upward to unsnap it from the front seat
cushion outboard side shield.

3. Remove the screw (2) that secures the lower

anchor to the outboard side of the front seat cush-
ion frame.

4. Firmly grasp the lower end of the turning loop trim

cover on the upper B-pillar and pull it straight out to
unsnap it from the height adjuster, then lift the bot-
tom of the cover upward and pull outward to disen-
gage the upper tabs from the adjuster.

WK

RESTRAINTS - SERVICE INFORMATION

8O - 477
