U0019–CAN B BUS–ORC

8O - 366

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

U0019–CAN B BUS–ORC (CONTINUED)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
Whenever the CAN B Bus (+) or CAN B Bus (-) circuit is open, shorted to voltage, or shorted to ground.

Possible Causes

ACTIVE U0019 CAN B BUS DTC IN FRONT CONTROL MODULE

(D55) CAN B BUS (+) CIRCUIT OPEN

(D54) CAN B BUS (-) CIRCUIT OPEN

OCCUPANT RESTRAINT CONTROLLER (ORC)

Diagnostic Test

1.

VERIFY DTC U0019–CAN B BUS IS ACTIVE

Turn the ignition on.

With the scan tool, read Occupant Restraint Controller (ORC) DTCs.

Does the scan tool display active: U0019–CAN B BUS?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition by inspecting the related wiring harness for

chaffed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken,
bent, pushed out, spread, corroded, or contaminated terminals.

Perform ORC VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS
AND TESTING)

2.

CHECK FOR ACTIVE CAN B BUS RELATED DTCS IN THE FRONT CONTROL MODULE (FCM)

With the scan tool, read Front Control Module (FCM) DTCs

Does the scan tool display any active CAN B BUS related DTCs?

Yes

>> Diagnose and repair the DTC(s). (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -

DIAGNOSIS AND TESTING)

No

>> Go To 3

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 367

U0019–CAN B BUS–ORC (CONTINUED)

3.

CHECK (D55) CAN B BUS (+) CIRCUIT FOR AN OPEN

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.

WARNING: If the Occupant Restraint Controller is dropped at any
time, it must be replaced. Failure to take the proper precautions
can result in accidental airbag deployment and personal injury or
death.
Disconnect the ORC C2 connector.

NOTE: Check connectors - Clean and repair as necessary.
Connect the Load Tool ORC 8443–24 Adaptor to the ORC C2 connec-
tor.

Disconnect the Front Control Module (FCM) C1 connector.

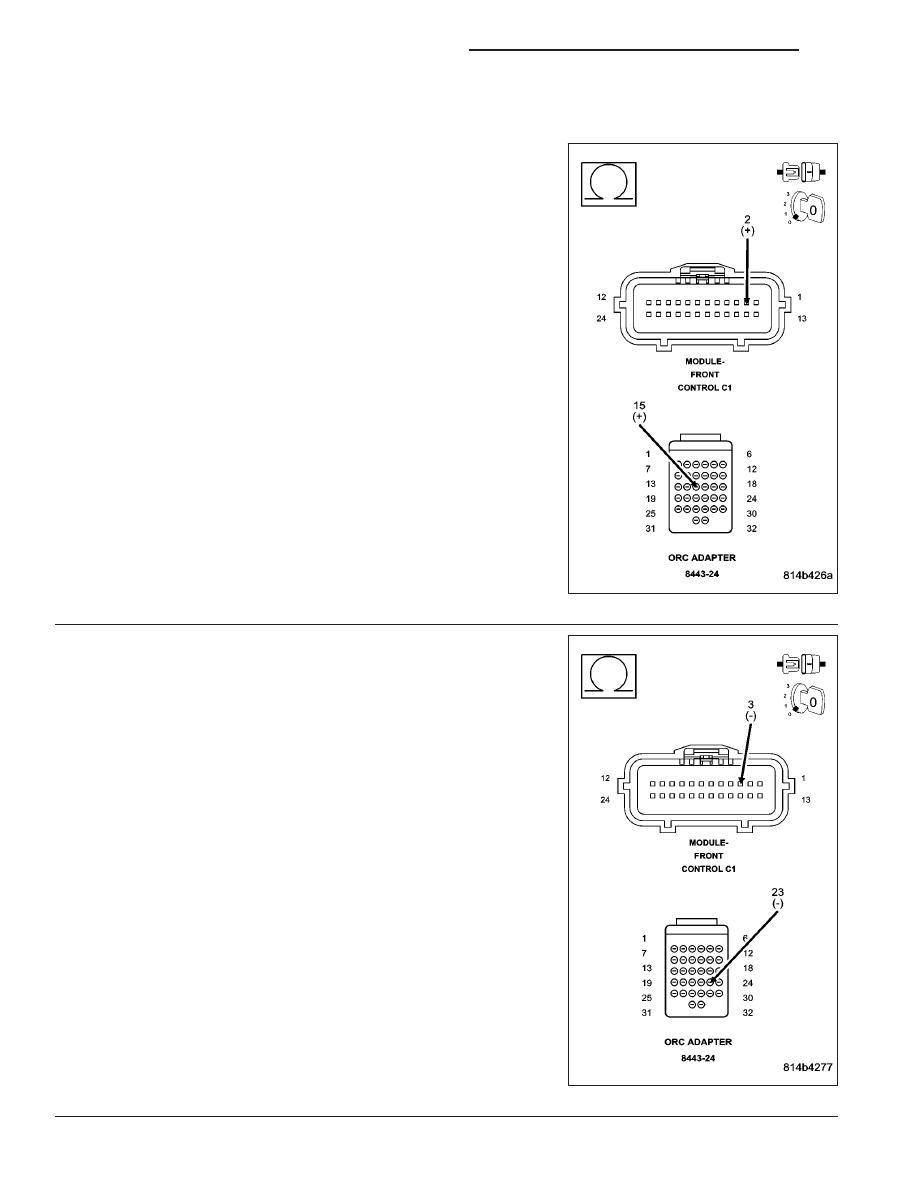

Measure the resistance of the (D55) CAN B Bus (+) circuit between
the Front Control Module C1 connector and the ORC C2 connector.

Is the resistance below 2.0 ohms?

Yes

>> Go To 4

No

>> Repair the (D55) CAN B Bus (+) circuit for an open.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

4.

CHECK (D54) CAN B BUS (–) CIRCUIT FOR AN OPEN

Measure the resistance of the (D54) CAN B Bus (–) circuit between
the Front Control Module C1 connector and the ORC C2 connector.

Is the resistance below 2.0 ohms?

Yes

>> Replace the ORC in accordance with the Service Informa-

tion.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

No

>> Repair the (D54) CAN B Bus (–) circuit for an open.

Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TEST-
ING)

8O - 368

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK
