U0141–LOST COMMUNICATION WITH FRONT CONTROL MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0155-LOST COMMUNICATION WITH CLUSTER/CCN

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

8N - 320

POWER TOP - ELECTRICAL DIAGNOSIS

WK

U0019–CAN B BUS

WK

POWER TOP - ELECTRICAL DIAGNOSIS

8N - 321

U0019–CAN B BUS (CONTINUED)

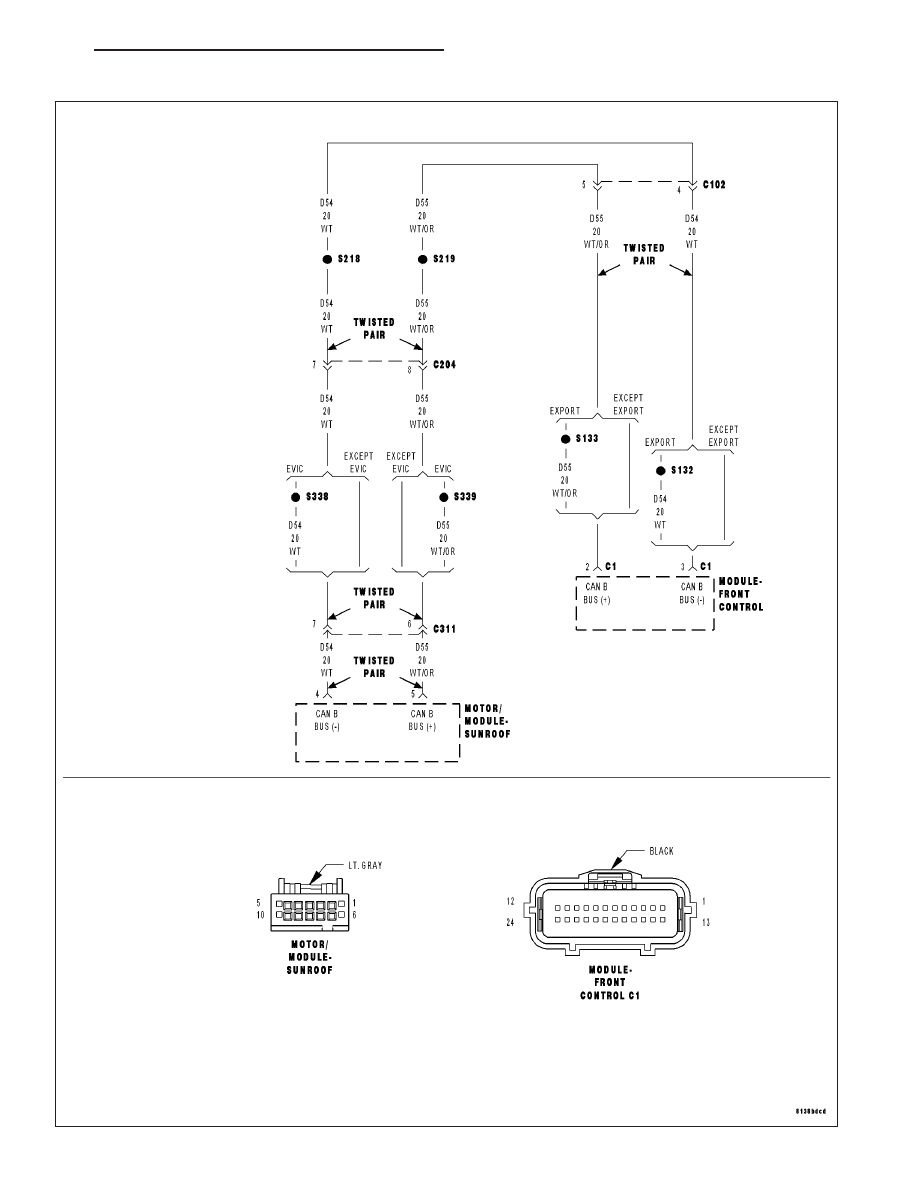

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
Whenever the CAN B Bus (+) or CAN B Bus (-) circuit is open, shorted to voltage or shorted to ground.

Possible Causes

CAN B BUS DTC’s IN FRONT CONTROL MODULE

(D55) CAN B BUS (+) CIRCUIT OPEN

(D54) CAN B BUS (-) CIRCUIT OPEN

SUNROOF MOTOR/MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTCS

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on at least 5 times, leaving the
ignition on for a minimum of 90 seconds per cycle.

Turn the ignition off and wait 30 seconds.

Turn the ignition on.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition.

Visually inspect the related wiring harness connectors.
Look for broken, bent, pushed out, or corroded terminals.

2.

CHECK FRONT CONTROL MODULE DTC’s

With the scan tool, read Front Control Module active DTC’s

Does the scan tool display any CAN B BUS DTC’s – ACTIVE?

Yes

>> (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING)

No

>> Go To 3

8N - 322

POWER TOP - ELECTRICAL DIAGNOSIS

WK

U0019–CAN B BUS (CONTINUED)

3.

(D55) CAN B BUS (+) CIRCUIT OPEN

Turn the ignition off.

Disconnect the negative battery cable.

Disconnect the Sunroof Motor/Module connector.

Disconnect the Front Control Module C1 connector.

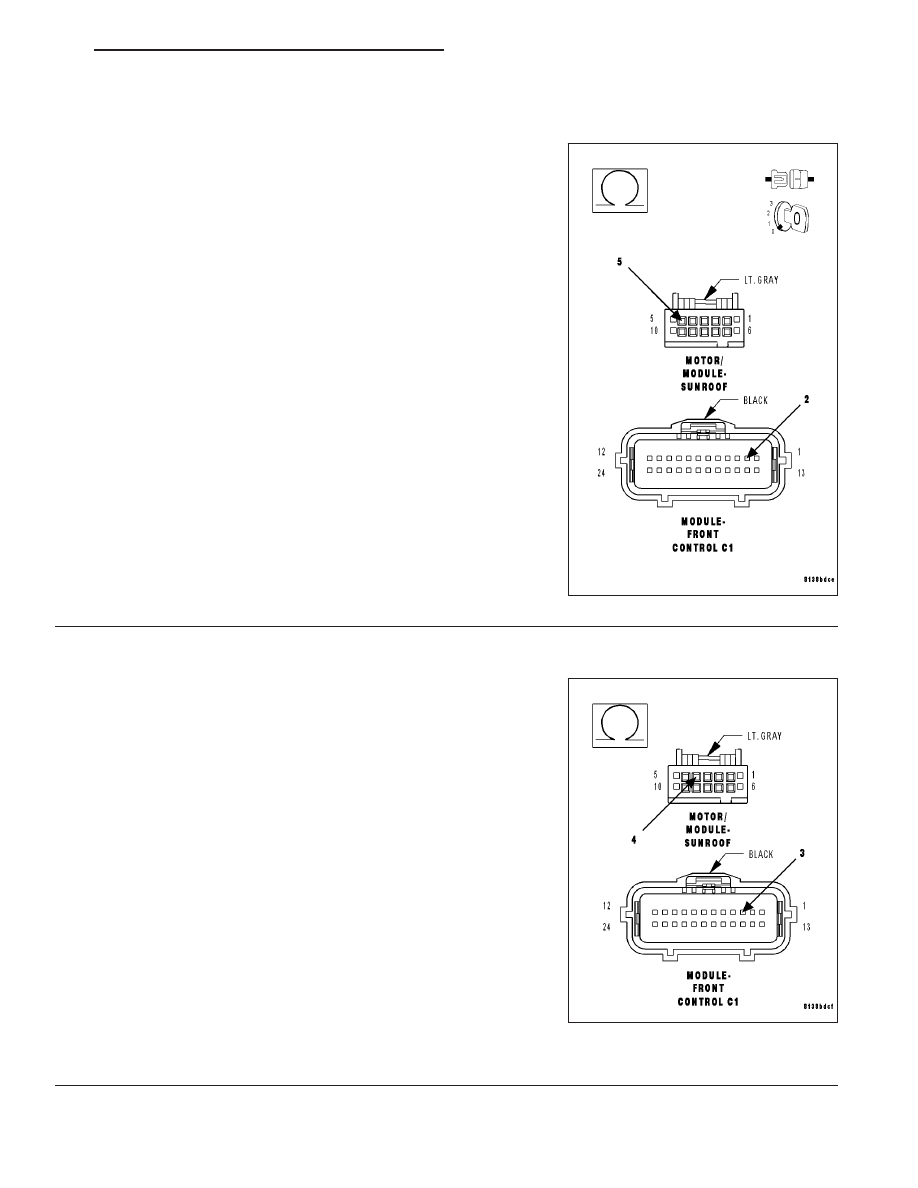

Measure the resistance of the (D55) CAN B Bus (+) circuit between
the Front Control Module C1 connector and the Sunroof Motor/Module
connector.

Is the resistance below 2.0 ohms?

Yes

>> Go To 4

No

>> Repair the (D55) CAN B Bus (+) circuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

4.

(D54) CAN B BUS (–) CIRCUIT OPEN

Measure the resistance of the (D54) CAN B Bus (–) circuit between
the Front Control Module C1 connector and the Sunroof Motor/Module
connector.

Is the resistance below 2.0 ohms?

Yes

>> Replace the Sunroof Motor/Module in accordance with the

service information.

Perform the Sunroof Position Calibration, (Refer to 8 -
ELECTRICAL/POWER TOP/MOTOR - STANDARD PRO-
CEDURE - SUNROOF POSITION CALIBRATION). Per-
form the Excessive Force Limitation Calibration, (Refer to
8 - ELECTRICAL/POWER TOP/MOTOR - STANDARD
PROCEDURE - EXCESSIVE FORCE LIMITATION CALI-
BRATION).

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

No

>> Repair the (D54) CAN B Bus (–) circuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

WK

POWER TOP - ELECTRICAL DIAGNOSIS

8N - 323
