Jeep Grand Cherokee WK. Manual - part 507





B1D4D–MEMORY SWITCH INPUT CIRCUIT STUCK – DRIVER MEMORY MIRROR MODULE (CONTINUED)

2.

CHECK THE DRIVER WINDOW/DOOR LOCK SWITCH FOR A SHORT TO GROUND

With the scan tool, erase DTCs.

Turn the ignition off.

Disconnect the Driver Window/Door Lock Switch C1 connector.

Cycle the ignition 3 times.

Turn the ignition on.

With the scan tool, read DTCs.

Does the scan tool display: B1D4D MEMORY SWITCH INPUT
CIRCUIT STUCK?

Yes

>> Go To 3

No

>> Replace the Driver Window/Door Lock Switch in accor-

dance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

3.

CHECK THE MEMORY SET SWITCH FOR A SHORT TO GROUND

With the scan tool, erase DTCs.

Turn the ignition off.

Disconnect the Memory Set Switch connector.

Cycle the ignition 3 times.

Turn the ignition on.

With the scan tool, read DTCs.

Does the scan tool display: B1D4D MEMORY SWITCH INPUT
CIRCUIT STUCK?

Yes

>> Go To 4

No

>> Replace the Memory Set Switch in accordance with the

Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

8N - 188

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

WK

B1D4D–MEMORY SWITCH INPUT CIRCUIT STUCK – DRIVER MEMORY MIRROR MODULE (CONTINUED)

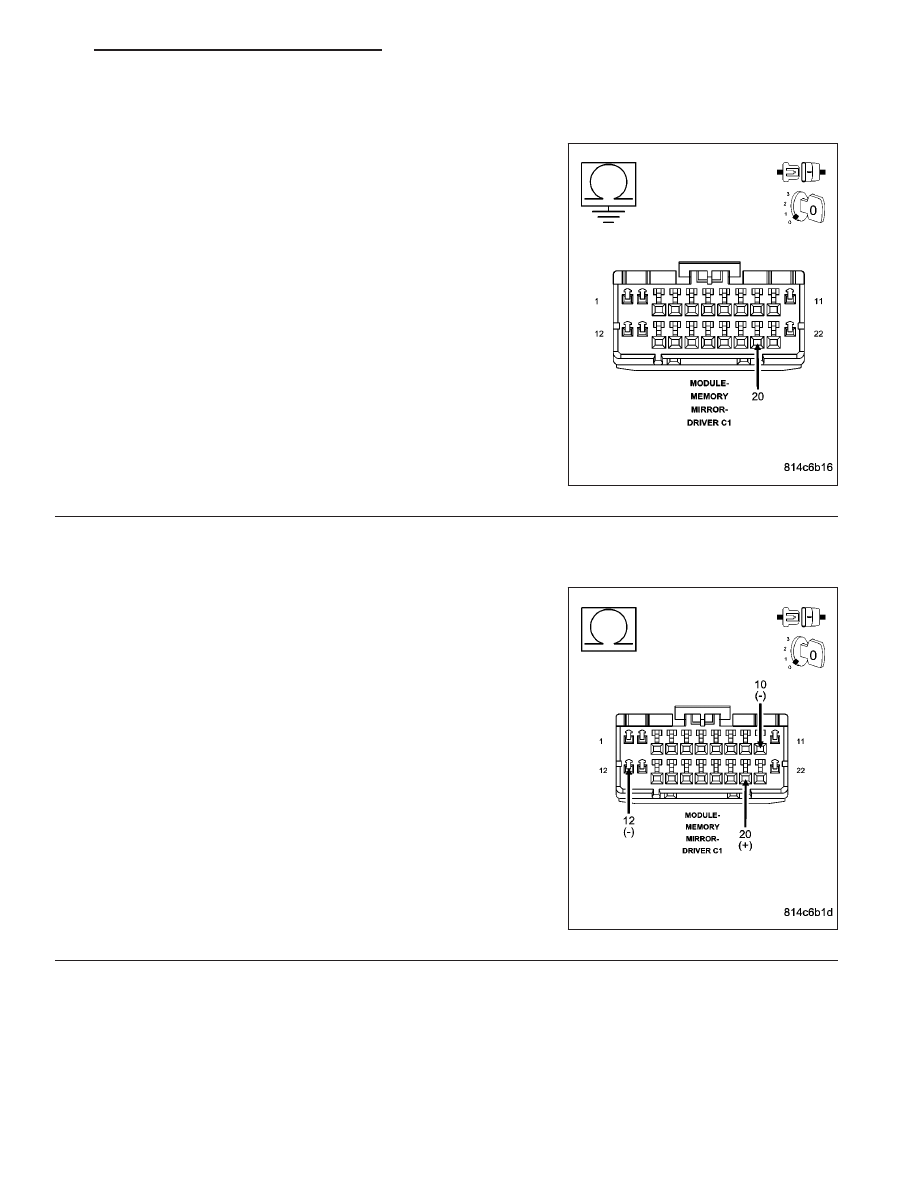

4.

CHECK THE (G161) DRIVER DOOR LOCK SWITCH MUX CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the Driver Memory Mirror Module C1 connector.

Measure the resistance between ground and the (G161) Driver Door
Lock Switch Mux circuit in the Driver Memory Mirror Module C1 con-
nector.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (G161) Driver Door Lock Switch Mux circuit for

a short to ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go to 5

5.

CHECK THE (G161) DRIVER DOOR LOCK SWITCH MUX CIRCUIT FOR A SHORT TO THE (Z911)
GROUND CIRCUIT

Measure the resistance between the (G161) Driver Door Lock Switch
Mux circuit and the (Z911) Ground circuit in the Driver Memory Mirror
Module C1 connector.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (G161) Driver Door Lock Switch Mux circuit for

a short to the (Z911) Ground circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 6

WK

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 189

B1D4D–MEMORY SWITCH INPUT CIRCUIT STUCK – DRIVER MEMORY MIRROR MODULE (CONTINUED)

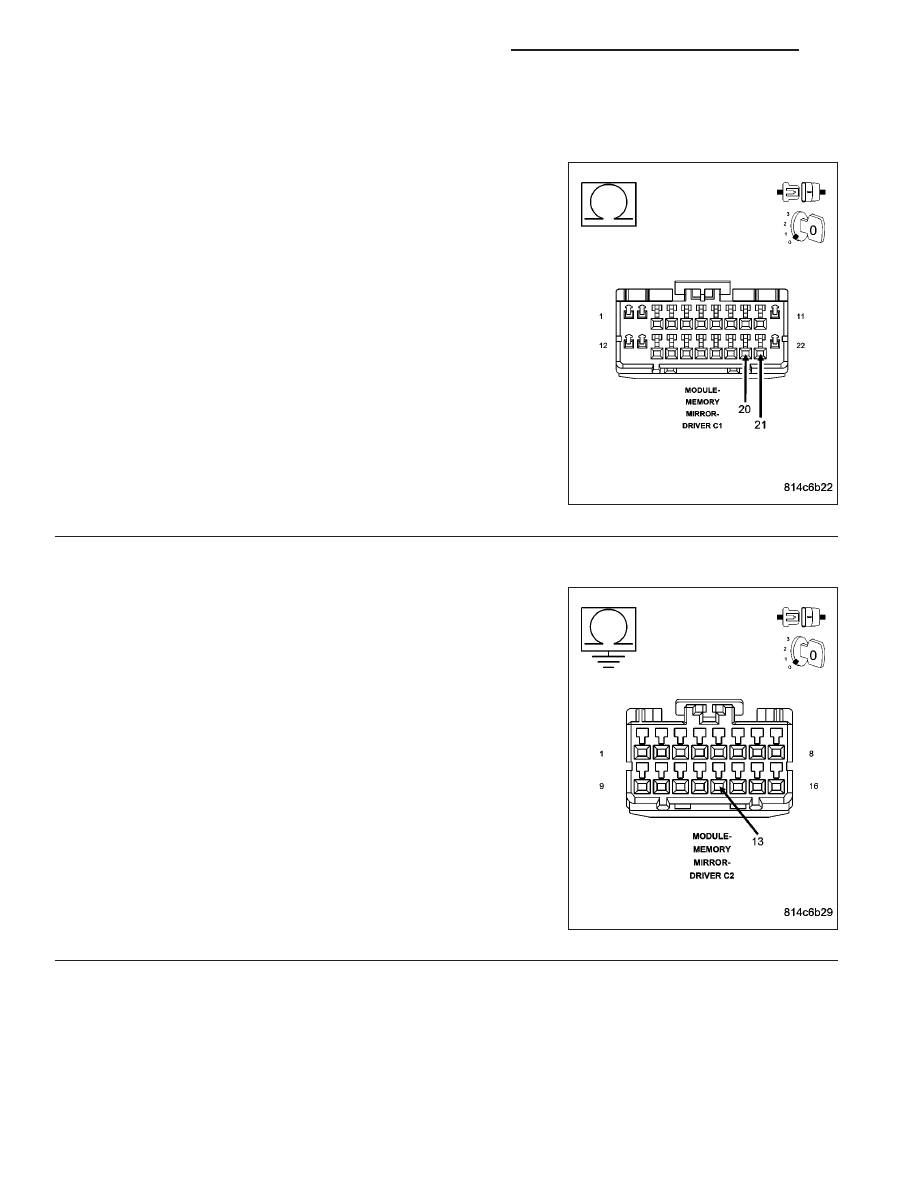

6.

CHECK THE (G161) DRIVER DOOR LOCK SWITCH MUX CIRCUIT FOR A SHORT TO THE (G775) DRIVER
DOOR LOCK SWITCH RETURN CIRCUIT

Measure the resistance between the (G161) Driver Door Lock Switch
Mux circuit and the (G775) Driver Door Lock Switch Return circuit in
the Driver Memory Mirror Module C1 connector.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (G161) Driver Door Lock Switch Mux circuit for

a short to the (G775) Driver Door Lock Switch Return cir-
cuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 7

7.

CHECK THE (P439) MEMORY SELECT SWITCH MUX CIRCUIT FOR A SHORT TO GROUND

Disconnect the Driver Memory Mirror Module C2 connector.

Measure the resistance between ground and the (P439) Memory
Select Switch Mux circuit in the Driver Memory Mirror Module C2 con-
nector.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (P439) Memory Select Switch Mux circuit for a

short to ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 8

8N - 190

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

WK

B1D4D–MEMORY SWITCH INPUT CIRCUIT STUCK – DRIVER MEMORY MIRROR MODULE (CONTINUED)

8.

CHECK THE (P439) MEMORY SELECT SWITCH MUX CIRCUIT FOR A SHORT TO THE (G920) MEMORY
SELECT SWITCH RETURN CIRCUIT

Measure the resistance between the (P439) Memory Select Switch
Mux circuit and the (G920) Memory Select Switch Return circuit in the
Driver Memory Mirror Module C2 connector.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (P439) Memory Select Switch Mux circuit for a

short to the (G920) Memory Select Switch return circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Replace the Driver Memory Mirror Module in accordance

with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

WK

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 191
