B1085-LEFT HEATED SEAT SWITCH INPUT CIRCUIT LOW

8G - 10

HEATED SEATS - ELECTRICAL DIAGNOSTICS

WK

B1085-LEFT HEATED SEAT SWITCH INPUT CIRCUIT LOW (CONTINUED)

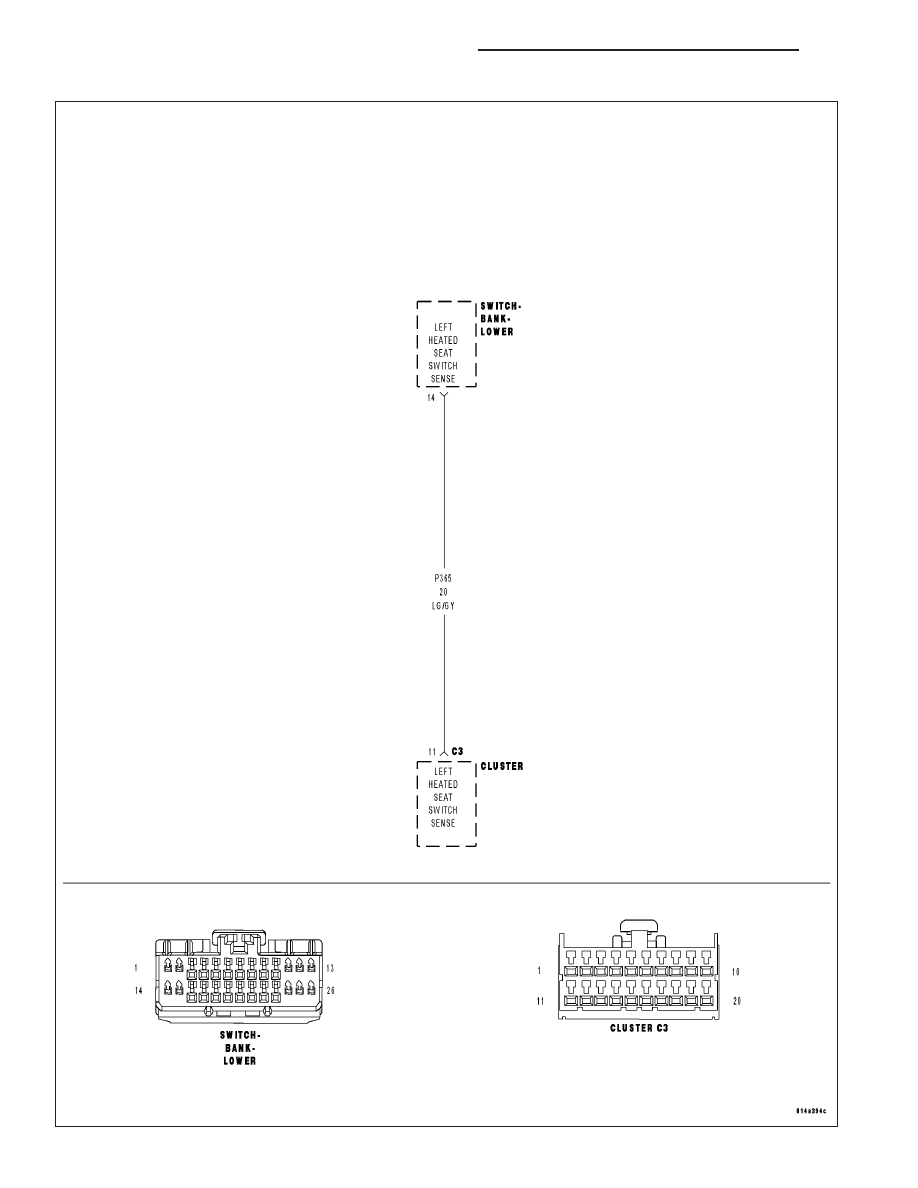

For the Heated Seat System circuit diagram (Refer to 8 - ELECTRICAL/HEATED SEATS - SCHEMATICS AND DIA-
GRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:Ignition on.

Set Condition:This code is set when the Cluster detects the heated seat switch sense circuit is shorted low.

Possible Causes

(P365) LEFT HEATED SEAT SWITCH SENSE SHORTED TO GROUND

LOWER SWITCH BANK

CLUSTER

Diagnostic Test

1.

VERIFY THAT DTC B1085-LEFT HEATED SEAT SWITCH INPUT CIRCUIT LOW IS ACTIVE

With the scan tool, record and erase DTC’s

Cycle the ignition switch off then back on.

With the scan tool, read DTC’s.

Does the DTC B1085 LEFT HEATED SEAT SWITCH INPUT CIRCUIT LOW reset?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST – VER 1.

2.

HEATED SEAT SWITCH

With the scan tool, record and erase DTC’s

Disconnect the lower switch bank connector.

Cycle the ignition switch off then back on.

With the scan tool, read DTC’s.

Does the DTC B1085 LEFT HEATED SEAT SWITCH INPUT CIRCUIT LOW reset?

Yes

>> Go To 3

No

>> Replace the lower switch bank.

Perform BODY VERIFICATION TEST – VER 1.

WK

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 11

B1085-LEFT HEATED SEAT SWITCH INPUT CIRCUIT LOW (CONTINUED)

3.

CHECK THE (P365) LEFT HEATED SEAT SWITCH SENSE CIRCUIT FOR A SHORT TO GROUND

Disconnect the Cluster C3 connector.

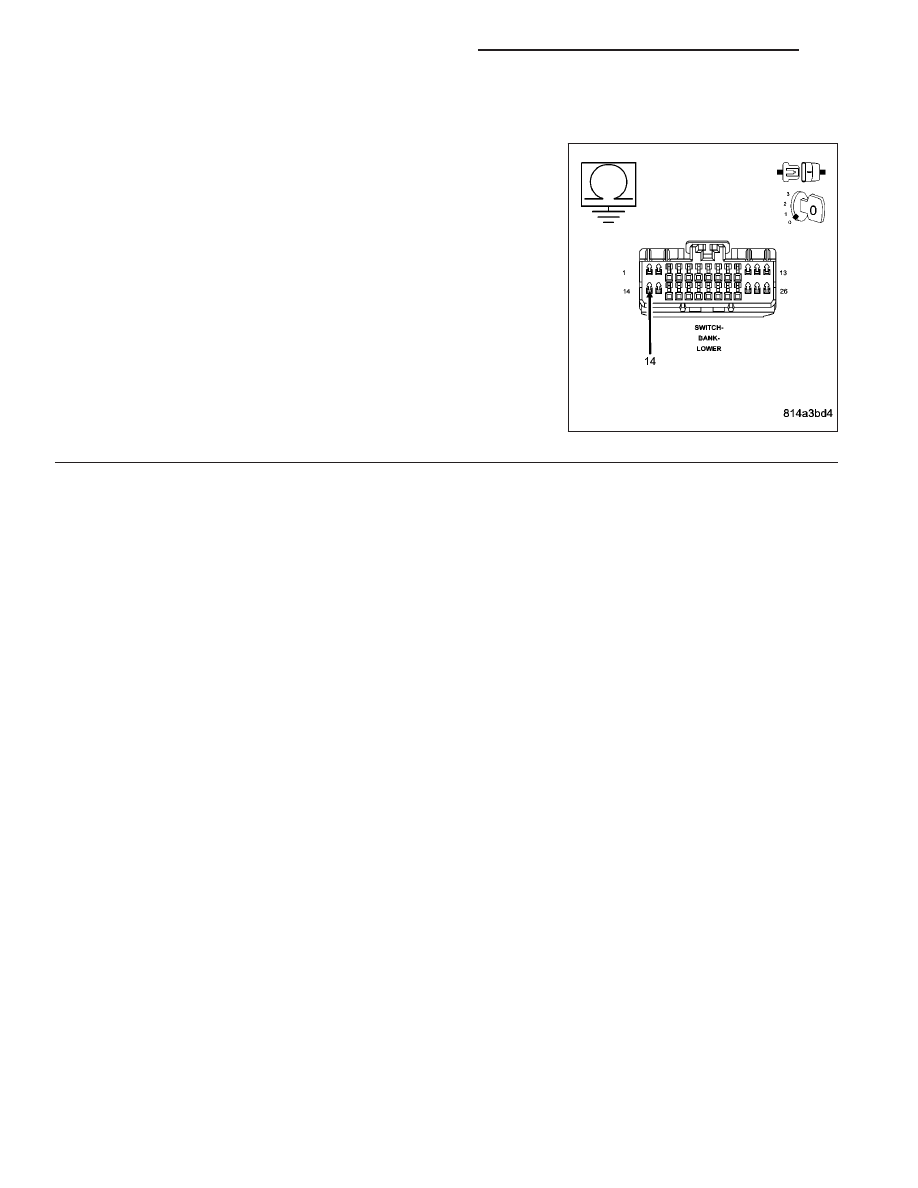

Measure the resistance between ground and the (P365) Left Heated
Seat Switch Sense circuit.

Was the resistance below 5.0 ohms?

Yes

>> Repair the (P365) Left Heated Seat Switch Sense circuit

for a short to ground.

Perform BODY VERIFICATION TEST – VER 1.

No

>> Replace the Cluster.

Perform BODY VERIFICATION TEST – VER 1.

8G - 12

HEATED SEATS - ELECTRICAL DIAGNOSTICS

WK

B1088-RIGHT HEATED SEAT SWITCH INPUT CIRCUIT LOW

WK

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 13
