INSTALLATION

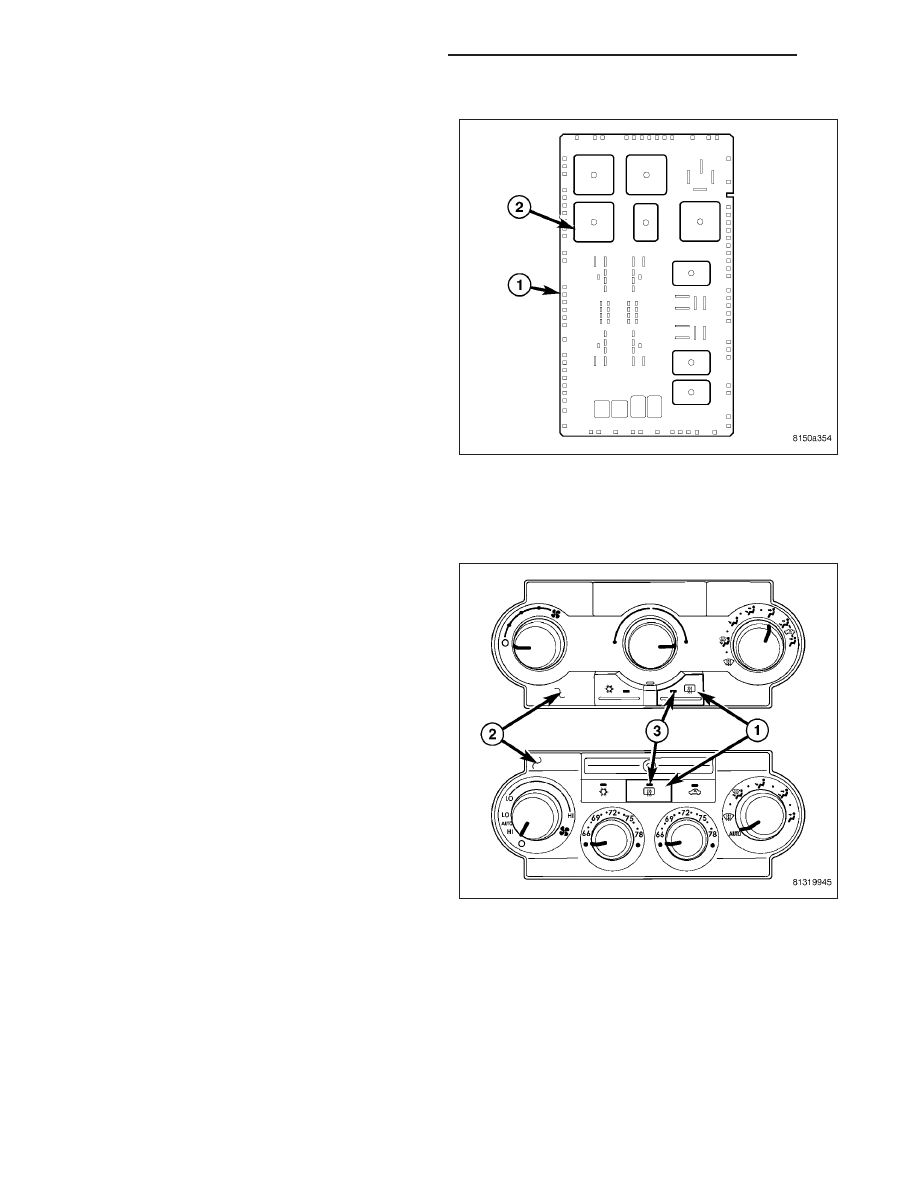

1. Position the EBL relay (2) into the proper recepta-

cle of the junction block (1) located in the passen-
ger compartment.

2. Align the EBL relay terminals with the terminal cav-

ities in the JB receptacle and push down firmly on
the relay until the terminals are fully seated.

3. Install the junction block (JB) (1) (Refer to 8 -

ELECTRICAL/POWER DISTRIBUTION/JUNCTION
BLOCK - INSTALLATION).

4. Reconnect the negative battery cable.

SWITCH-REAR WINDOW DEFOGGER

DESCRIPTION

The switch for the rear window defogger (EBL) system
(1) is integrated into the A/C-heater control (2), which
is located in the center of the instrument panel. When
the rear window defogger switch is activated, the tim-
ing circuit integral to the A/C-heater control operates
the rear window defogger (EBL) relay. An amber indi-
cator (3) in the rear window defogger switch will illu-
minate to indicate when the EBL system is turned on.

When the EBL relay is activated, current is directed to
the rear window defogger grid lines and when
equipped, to the heated outside rear view mirrors. The
grid lines heat the window and mirror glass to help
clear the surfaces of fog or frost.

OPERATION

An LED indicator will illuminate when the rear window defogger switch is activated. When the switch is activated,
the A/C-heater control operates the rear window defogger (EBL) relay. The EBL relay controls the current flow to the
heating grid of the rear window and when equipped, the heated outside rear view mirrors.

NOTE: The EBL system turns off automatically after ten minutes of initial operation. Each following activa-
tion cycle of the EBL system will last five minutes.

The EBL system will initially be on for approximately ten minutes or until the rear window defogger switch or the
ignition switch is turned off. After the initial time interval has expired, if the defogger switch is turned On again during
the same ignition cycle, the EBL system will automatically turn off after about five minutes.

8G - 6

HEATED GLASS - SERVICE INFORMATION

WK

The rear window defogger switch and the rear window defogger LED indicator cannot be repaired and, if faulty or
damaged, the A/C-heater control must be replaced (Refer to 24 - HEATING & AIR CONDITIONING/CONTROLS/
CONTROL-A/C HEATER - REMOVAL).

WK

HEATED GLASS - SERVICE INFORMATION

8G - 7

HEATED MIRRORS - SERVICE INFORMATION

TABLE OF CONTENTS

page

page

HEATED MIRRORS - SERVICE INFORMATION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 8

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

HEATED MIRRORS - SERVICE INFORMATION

DESCRIPTION

The optional heated mirror system is controlled by the
momentary rear window defogger switch (1) which is
integral to the A/C-heater control (2). An amber indica-
tor lamp in the switch (3) will illuminate to indicate
when the rear window defogger (EBL) system is
turned on.

The heated mirror system only operates in concert with the EBL system, and will be automatically shut off after a
programmed time interval of about ten minutes. After the initial time interval has expired, if the defogger switch is
turned on again during the same ignition cycle, the heated mirror system will automatically shut off after about five
minutes.

The heated mirror system will automatically shut off if the ignition switch is turned to the Off position, or it can be
shut off manually by pressing the rear window defogger switch a second time.

Circuit protection is provided by a cartridge fuse located in the junction block (JB).

OPERATION

When the rear window defogger switch is pressed, the rear window defogger (EBL) system becomes activated and
an electric heater grid located behind the glass of each of the outside rear view mirrors is energized. When ener-
gized, each of these heater grids produce heat to help clear the outside rear view mirrors of ice, snow, or fog.

If the outside mirror heating grids are both inoperative, refer to 8 - ELECTRICAL/HEATED GLASS - DIAGNOSIS
AND TESTING in this group. If only one of the outside mirror heating grids is inoperative, refer to 8 - ELECTRICAL/
POWER MIRRORS - DIAGNOSIS AND TESTING.

The heating grid behind each outside mirror glass cannot be repaired and, if faulty or damaged, the mirror glass
must be replaced (Refer to 23 - BODY/EXTERIOR/MIRROR-SIDE VIEW - GLASS - REMOVAL).

8G - 8

HEATED MIRRORS - SERVICE INFORMATION

WK

HEATED SEATS - ELECTRICAL DIAGNOSTICS

TABLE OF CONTENTS

page

page

HEATED SEATS - ELECTRICAL DIAGNOSTICS

DIAGNOSIS AND TESTING

B1085-LEFT HEATED SEAT SWITCH INPUT

CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . 10

B1088-RIGHT HEATED SEAT SWITCH

INPUT CIRCUIT LOW . . . . . . . . . . . . . . . . . . . 13

B1092-FRONT LEFT SEAT HEATER

CONTROL CIRCUIT LOW . . . . . . . . . . . . . . . 16

B1094-FRONT LEFT SEAT HEATER

CONTROL CIRCUIT OPEN . . . . . . . . . . . . . . 20

B1096-FRONT RIGHT SEAT HEATER

CONTROL CIRCUIT LOW . . . . . . . . . . . . . . . 25

B1098-FRONT RIGHT SEAT HEATER

CONTROL CIRCUIT OPEN . . . . . . . . . . . . . . 29

B10BB-LEFT HEATED SEAT SWITCH INPUT

CIRCUIT STUCK . . . . . . . . . . . . . . . . . . . . . . 34

B10BC-RIGHT HEATED SEAT SWITCH

INPUT CIRCUIT STUCK . . . . . . . . . . . . . . . . . 37

B210D-BATTERY VOLTAGE LOW

. . . . . . . . . 40

B210E-BATTERY VOLTAGE HIGH

. . . . . . . . . 43

B221A-HEATED SEAT MODULE INTERNAL

. . 46

U0019–CAN B BUS – HSM

. . . . . . . . . . . . . . 47

U0141–LOST COMMUNICATION WITH

FRONT CONTROL MODULE . . . . . . . . . . . . . 50

U0151-LOST COMMUNICATION WITH

OCCUPANT RESTRAINT CONTROLLER . . . . 50

U0154-LOST COMMUNICATION WITH

OCCUPANT CLASSIFICATION MODULE . . . . 50

U0155-LOST COMMUNICATION WITH

CLUSTER/CCN . . . . . . . . . . . . . . . . . . . . . . . 50

U0156-LOST COMMUNICATION WITH EOM

. 50

U0159-LOST COMMUNICATION WITH

PARKING ASSIST CONTROL MODULE . . . . . 50

U0164-LOST COMMUNICATION WITH HVAC

CONTROL MODULE . . . . . . . . . . . . . . . . . . . 50

U0168-LOST COMMUNICATION WITH

VEHICLE SECURITY CONTROL MODULE
(SKREEM/WCM) . . . . . . . . . . . . . . . . . . . . . . 50

U0169-LOST COMMUNICATION WITH

SUNROOF CONTROL MODULE . . . . . . . . . . 50

U0184-LOST COMMUNICATION WITH

RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

U0186-LOST COMMUNICATION WITH

AUDIO AMPLIFIER . . . . . . . . . . . . . . . . . . . . . 51

U0195-LOST COMMUNICATION WITH

SDARS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

U0196-LOST COMMUNICATION WITH

VEHICLE ENTERTAINMENT CONTROL
MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

U0197-LOST COMMUNICATION WITH

HANDS FREE PHONE . . . . . . . . . . . . . . . . . . 51

U0199-LOST COMMUNICATION WITH

DRIVER DOOR MODULE . . . . . . . . . . . . . . . . 51

U0200-LOST COMMUNICATION WITH

PASSENGER DOOR MODULE . . . . . . . . . . . . 51

U0209-LOST COMMUNICATION WITH

MEMORY SEAT CONTROL MODULE . . . . . . . 51

U0212–LOST COMMUNICATION WITH

SCCM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

U0231-LOST COMMUNICATION WITH RAIN

SENSING MODULE . . . . . . . . . . . . . . . . . . . . 52

U0241-LOST COMMUNICATION WITH AUTO

HIGHBEAM HEADLAMP CONTROL
MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

U1107–ECU IN SINGLE–WIRE MODE – HSM

. 53

BODY VERIFICATION TEST – VER 1

. . . . . . 56

SCHEMATICS AND DIAGRAMS

. . . . . . . . . . . . 57

HEATED SEATS - ELECTRICAL DIAGNOSTICS

DIAGNOSIS AND TESTING

WK

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 9
